Phoenix Gold ZDAPV1 Volvo DSP Power Up Kit 2018+

Upgrade your Volvo's sound system with the Phoenix Gold ZDAP-VOL1 DSP Power Up kit, designed specifically for Volvo vehicles equipped with the High Performance Sound System featuring an OEM amplifier with 8 or 13 flanges. The ZDAP-VOL1 features our ZDA6.8 DSP amplifier for a superior audio experience.

Plug & Play Installation:

Disconnect the connectors from the OEM amplifier under the passenger seat.

Attach the connectors to the ZDC-VOL1.

Reconnect the ZDC-VOL1 to the OEM amplifier.

Route the ZDC-VOL1 to the boot and connect it to the ZDA6.8 DSP amplifier.

With this quick and easy process, your physical installation is complete, allowing you to enjoy enhanced sound quality and performance.

Key Benefits:

Enhanced Performance: The ZDA6.8 DSP amplifier delivers higher power output, increasing the dynamic range and overall volume capability of your system.

Superior Sound Quality: Featuring Class A/B technology, the ZDA6.8 amplifier significantly improves clarity and fidelity, creating a richer, more immersive audio experience.

Plug & Play Installation: Simply disconnect the OEM amplifier connector, attach it to the ZDC-VOL1 harness, connect the harness to your ZDA6.8 amplifier, and you're ready to enjoy upgraded sound.

.

Fitment

The ZDAP–VOL1 is designed specifically for Volvo vehicles from 2018 onward. For a detailed list of compatible models, refer to our Vehicle Application List.

.

Notes:

If your Volvo's OEM amplifier has 8 or 13 flanges, use the ZDAP-VOL2 instead.

.

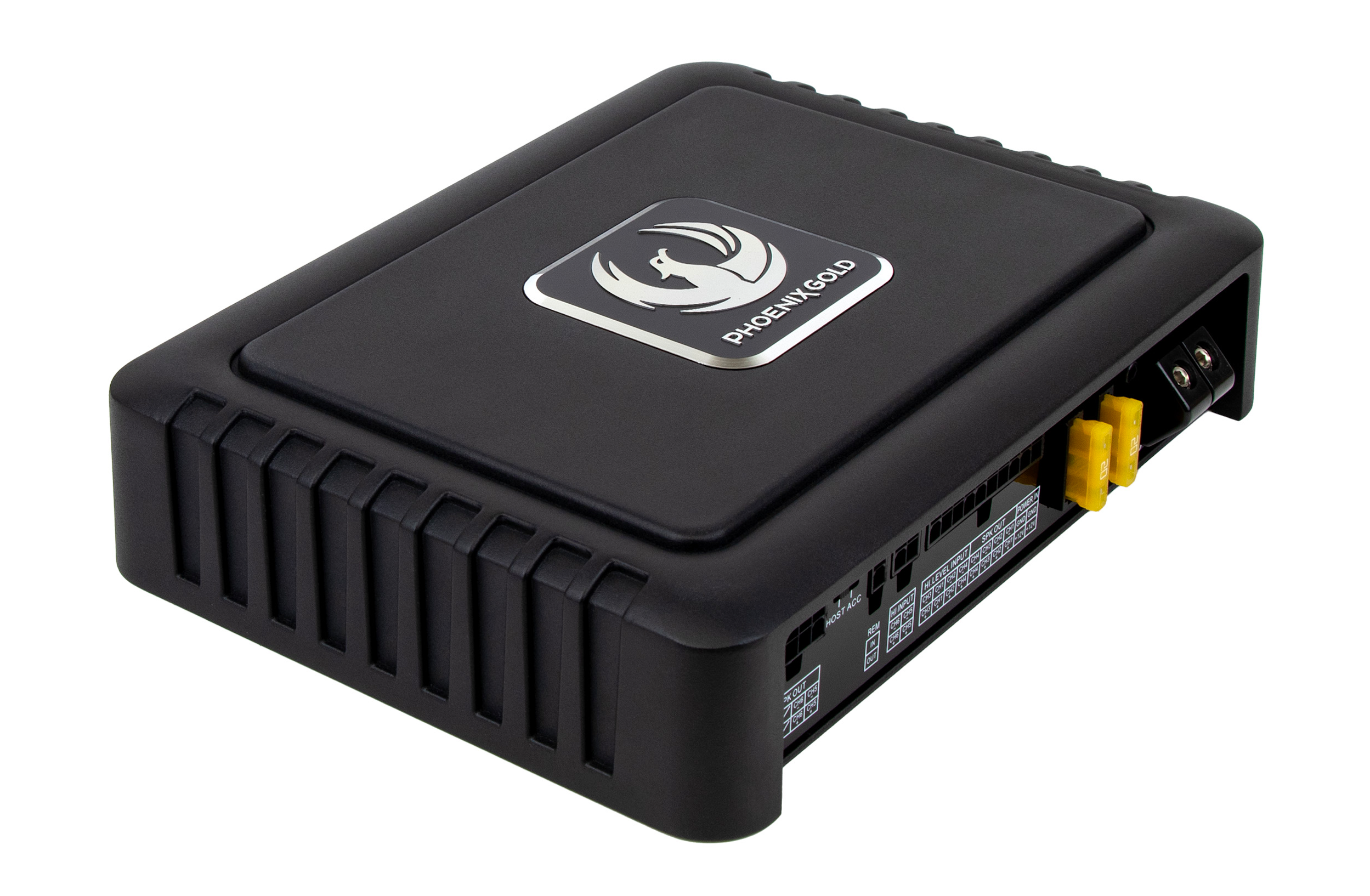

ZDA6.8 – DSP Amplifier

TheZDA6.8DSP Amplifier redefines in-car sound quality at this price point, outshining the standard factory-installed amplifiers. Unlike the typical Class D technology found in similar products, the ZDA6.8 employs Class A/B technology, delivering a warmer, more natural sound that brings your music to life. Even without DSP adjustments, the sound quality is significantly enhanced. However, the built-in DSP takes it further, allowing you to fine-tune your vehicle's audio system to suit your preferences, no matter your music taste.

.

Specification ZDA6.8 – DSP Amplifier

.

The ZDA6.8 is equipped with OEM Impedance Simulation (OIS), ensuring compatibility with modern head units and amplifiers. By simulating speaker impedance, it maintains the functionality of your vehicle's OEM head unit, preventing potential issues with plug-and-play installations.

Input Priority

The Input Priority feature ensures effortless integration with your vehicle's OEM head unit. You can use low-level inputs or digital sources such as Bluetooth, Optical, or Coaxial, without losing vital system sounds like parking sensors, alerts, and radio signals. For instance, if your vehicle has a high-pass filter that limits bass output, you can bypass this limitation by streaming audio directly to the DSP via Bluetooth while maintaining full OEM functionality.

DSP Outputs

The ZDA6.8 doesn't stop at upgrading your system—it also enables expansion. With two free DSP-configurable RCA outputs (Channels 7-8), you can connect additional amplifiers, such as a subwoofer amp, and fully optimize them using the DSP software. Delay settings, filters, and equalization options ensure top-tier performance for your additional components.

.

.

Software

Take control of your sound system with the free, user-friendly PC software (compatible with Windows 10 and 11). Connect via the included USB-B cable and unlock a suite of powerful tuning tools:

31-Band Parametric EQ (PEQ) for precise frequency adjustments

Choose filter types (Bessel, Butterworth, Linkwitz-Riley) with adjustable slopes from -6dB to -48dB.

Time alignment with a built-in delay calculator

Fully custom channel routing

Custom link options (Copy or Relate)With these advanced features, you can tune your sound system to your preferences.

.
