AIYIMA's A70 is a 2.1-channel Class D amplifier featuring quality components. In fact, it incorporates a TI TPA3255 amplifier chip combined with two NE5532 AOPs for an output power of up to 2x 185W at 4 ohms.

SHIPMENT IN 7-10 WORKING DAYS
€216.60 €228.00 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



Aiyima A70 2+1ch Class D Amplifier 2x300W 4ohm

.

AIYIMA's A70 is a 2.1-channel Class D amplifier featuring quality components. In fact, it incorporates a TI TPA3255 amplifier chip combined with two NE5532 AOPs for an output power of up to 2x 185W at 4 ohms.

The AIYIMA A70 features an original vertical form factor and a complete connectivity interface located on the rear panel.

.

Highlights

  • Brands AIYIMA
  • Chips TPA3255
  • Output Power [Watts] 300
  • Channel 1
  • Power Supply (Volts) 48

.

Product details

AIYIMA's A70 is a 2.1-channel Class D amplifier featuring quality components. In fact, it incorporates a TI TPA3255 amplifier chip combined with two NE5532 OPAs for an output power of up to 2x 185W at 4 ohms. The AIYIMA A70 features an original vertical form factor and a complete connectivity interface located on the rear panel: XLR/TRS 6.35mm balanced input, RCA input, active subwoofer output and speaker terminal output.
The interface is completed by a frequency cutoff potentiometer for the subwoofer output and a 12V trigger input on a 3.5mm jack. The front panel features an impressive potentiometer for precise volume control. Thanks to its TI TPA3255 amplifier chip, the AIYIMA A70 amplifier is able to deliver up to 2x 185W into 4 ohm which is a considerable amount of power.
The TI TPA3255 amplifier chip features an integrated feedback design with error correction (PurePath™ UltraHD) that allows for very low levels of distortion across the entire audio band and superior overall sound quality. Two NE5532 OPAs add color to the sound at the output of the AYIMA A70.
These low-distortion, low-noise operational amplifiers are DIP-mounted for easy replacement according to your preferences with many compatible OPAs: RT3609SM, OPA2604, OPA2134, LM4562, JRC5532, OP275GSZ, OPA1612, MUSES01/02/03, etc. In terms of outputs, the AIYIMA A70 features a subwoofer output on an RCA connector for an active subwoofer with a 150Hz-600Hz frequency cutoff potentiometer.
This makes it easy to set up a 2.1-channel home theater system and enjoy immersive bass.

.

Technical Specification

  • Product type Class D amplifiers
  • Channels 2.1 channel
  • TI TPA3255 amplification chip
  • OPA NE5532

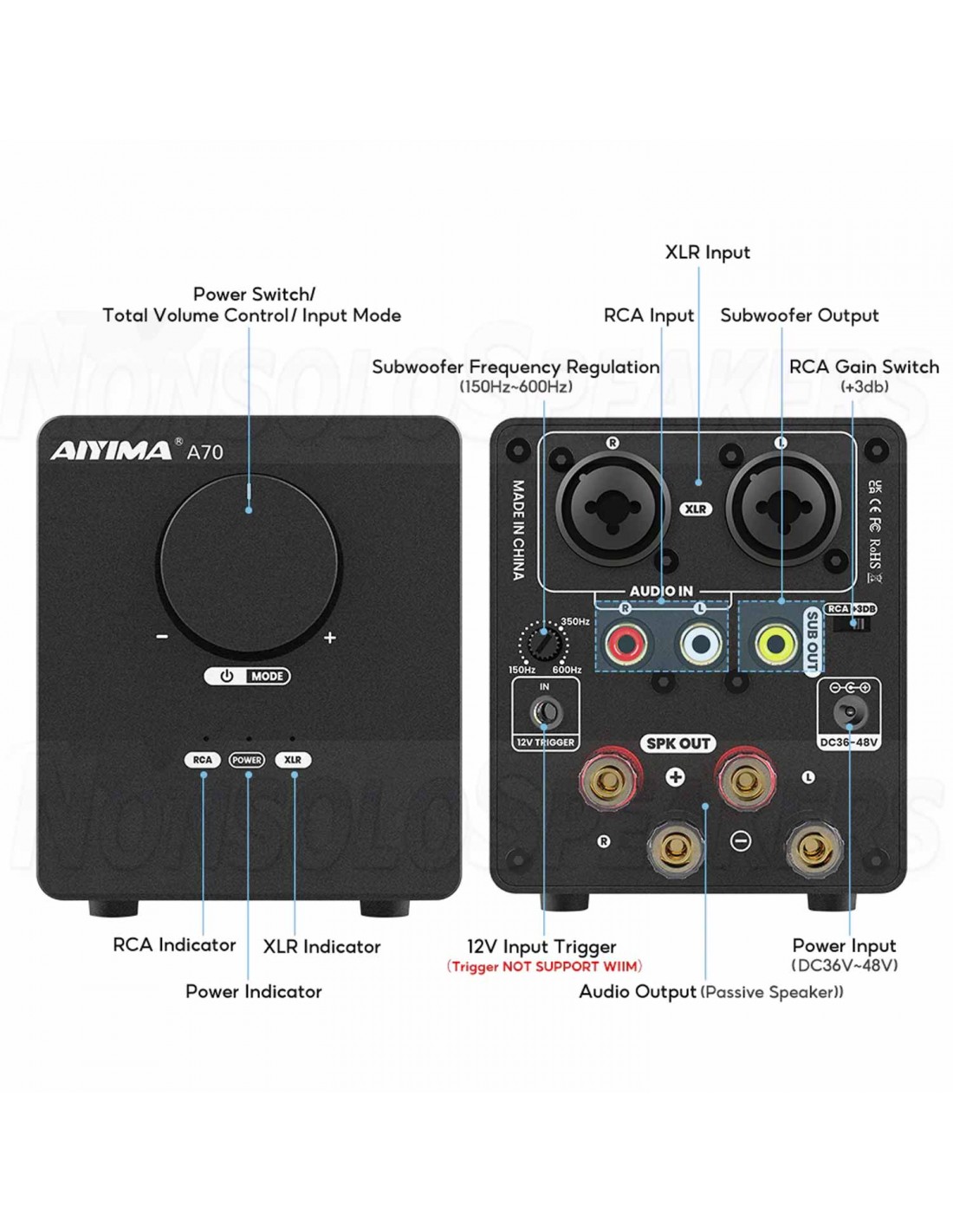

  • Inputs 1x XLR stereo / TRS 6.35mm balanced jack
  • 1x stereo RCA
  • Outputs Speaker terminals
  • 1x Active subwoofer output on RCA connector

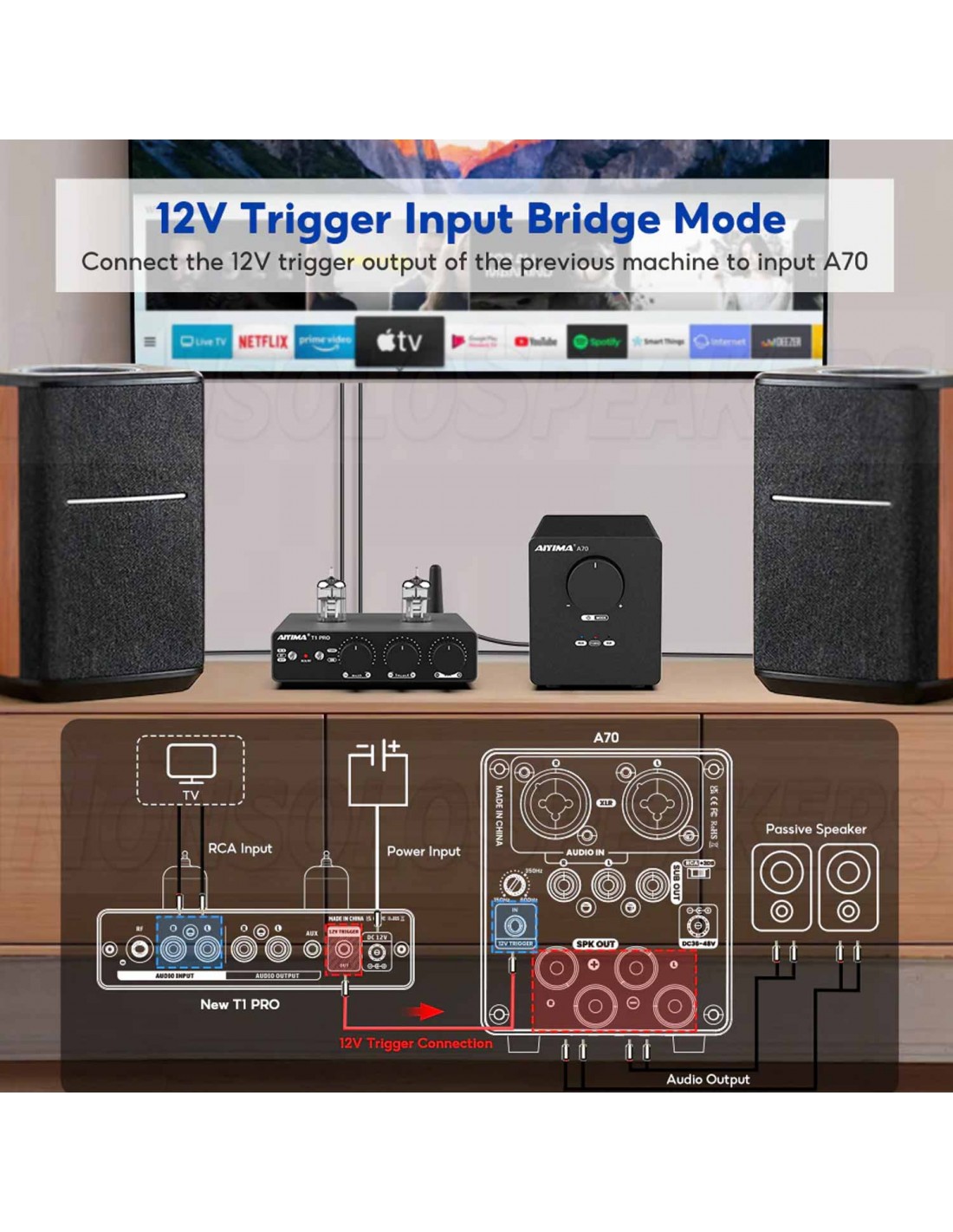

  • Other connectors 12V trigger on 3.5mm jack
  • Output power 2x 185W @ 4 ohm (THD+N=1%)
  • 2x 105W @ 8 ohm (THD+N=1%)
  • THD 0.0015% (@1W)
  • SNR ≥ 116dB
  • Frequency response 20Hz-20KHz (±1DB)
  • XLR input sensitivity 3.8Vrms (19dB)
  • RCA input sensitivity 1.9Vrms (25 DB) / 1.1Vrms (28.5 DB)
  • Termination impedance 4-8Ω
  • Subwoofer output 20Hz~150Hz/600Hz (-3dB), adjustable cut-off frequency
  • Power supply 32V-48V
  • DC Dimensions 146 x 79 x 90mm
  • Color Black

Package include:

  • 1x AIYIMA A70 amplifier
  • 1x 48V 10A power adapter
