It uses the classic TAS5508 (DSP) + TAS5532A power amplifier chip. The maximum output power is 120W + 120W. It can drive a 4-ohm speaker.
SHIPMENT IN 7-10 WORKING DAYS
€200.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



Aiyima D05 Bluetooth Class D Amplifier 2x120W 4ohm RCA input with 32V power supply

.

It uses the classic TAS5508 (DSP) + TAS5532A power amplifier chip. The maximum output power is 120W + 120W. It can drive a 4-ohm speaker.

.

Highlights

  • Brands Aiyima
  • Input sensitivity: 0.775V
  • Amplifier max output power: 120W+120W, load 4Ohm speaker

.

Product details

Retro vacuum tube: Using a 6K4 vacuum tube, the sound is softer and the digital feel is filtered out. The sound is warm and sweet without noise.

Interchangeable tubes: 6J1, 6J2, GE5654, 6J3, 6J4, 6J5, 6J1P, 6AK5, etc. You can replace the tubes according to your needs.

Enjoy stereo HiFi music. Bluetooth version 5.0 supports APT-X and APT-X LL lossless transmission.

The low-frequency output is specially designed for connecting an active subwoofer. Building a 2.1-channel system is very easy. Multi-function knob + remote control: With ±12dB treble and bass adjustment and EQ effect, the sound is more refined.

Reasonable power layout and simple wiring, using an aluminum alloy shell and gold-plated connectors, ensure clear and pure HiFi sound.

The exquisite appearance, large OLED screen, and remote control design bring you different enjoyment. Four audio input modes: Bluetooth, PC-USB, Optical, Coaxial, and RCA.

With a variety of input mode options, it meets your diverse needs.

Perfectly compatible with most home audio devices such as mobile phones, computers, tablets, TVs, MP3 players, CD players, etc.

With an infrared remote control that adjusts the input mode, volume, bass, treble, EQ, mute, and speaker volume.

.

Technical Specifications

  • Product model: Aiyima--D05
  • Color: Black
  • Chips set: CM6642, TAS5508, TAS5352A, QCC3031, CS8422, WM8782
  • Working Voltage: DC 24-36V, can't over 36V ( package includes 32V 5A power adapter)
  • Input sensitivity: 0.775V
  • Frequency response: 20Hz-20kHz (±1dB)
  • SNR(Singal noise rate): ≥105dB
  • Total harmonic distortion: 0.001% (1kHz1w)
  • Bluetooth distortion rate: 0.01%
  • Bluetooth Version: 5.0 (QCC3031)
  • Bluetooth support: ACC.SBC.aptX.aptX LL
  • Speaker match resistance: 4-8Ohm
  • Amplifier max output power: 120W+120W, load 4Ohm speaker
  • PC-USB Support max sample rate: PCM 192kHz/24Bit
  • Coaxial Support max sample rate: PCM 192kHz/24Bit
  • Optical Support max sample rate: 192kHz/24Bit
  • PC-USB support system: XP, W7, W10, mac, Linux, mobile phone OTG

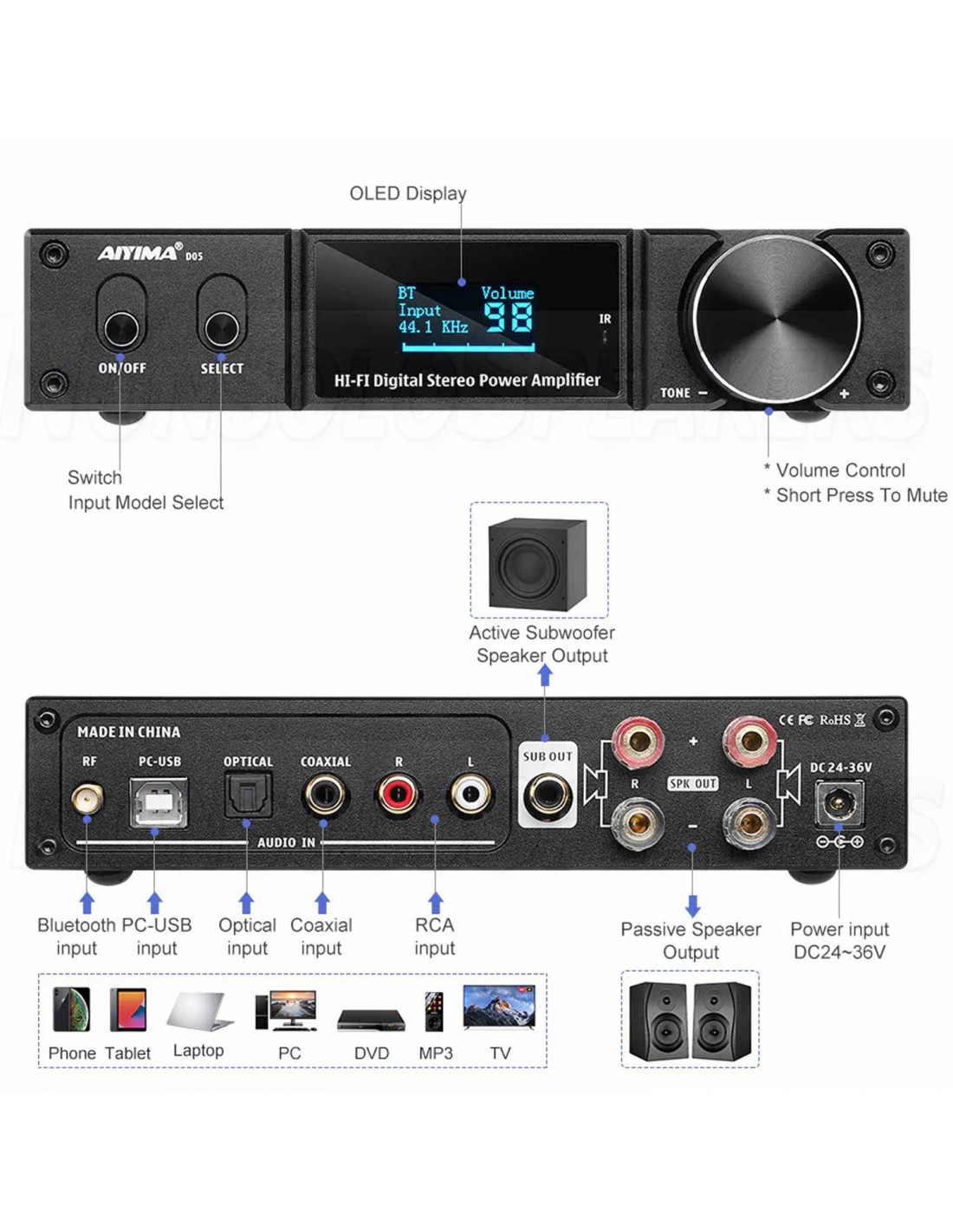

  • Audio input: Bluetooth, PC-USB, Optical, Coaxial, RCA
  • Audio output: Banana Jack, Golden subwoofer output (connect with active subwoofer speaker)
  • Product size: 183*128.5*37mm
  • Package weight: 1.5kg.

Package included:

*1 T5 amplifier
*1,32 V power adapter
*1 manual

.

Aiyima D05
5 Items
New

Aiyima is a brand that specializes in audio equipment, particularly amplifiers, speakers, and other related audio components. They are known for offering high-quality products at relatively affordable prices, often targeting audiophiles and enthusiasts who want good sound performance without breaking the bank.

Some of their popular products include:

  1. Aiyima Amplifiers – They produce both integrated and power amplifiers, often using Class D or Class AB technology. The Aiyima TPA3255 amplifier, for example, is quite popular due to its clean power output and efficiency.

  2. Aiyima DACs (Digital-to-Analog Converters) – These are designed to improve audio quality by converting digital signals into analog with high precision.

  3. Aiyima Speakers – While not as widely known as their amplifiers, Aiyima does offer speakers and other audio accessories, such as preamps and tube amplifiers.
