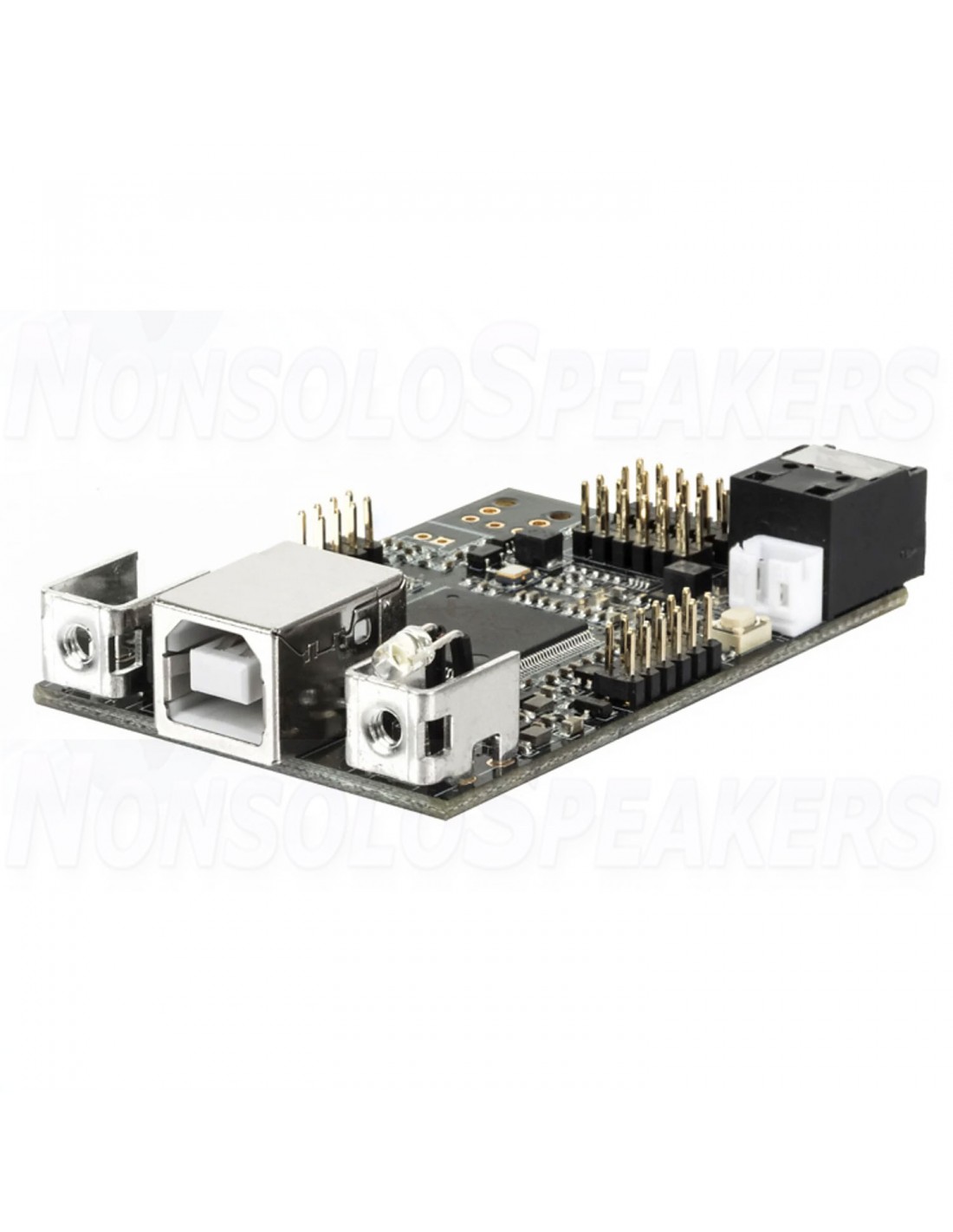

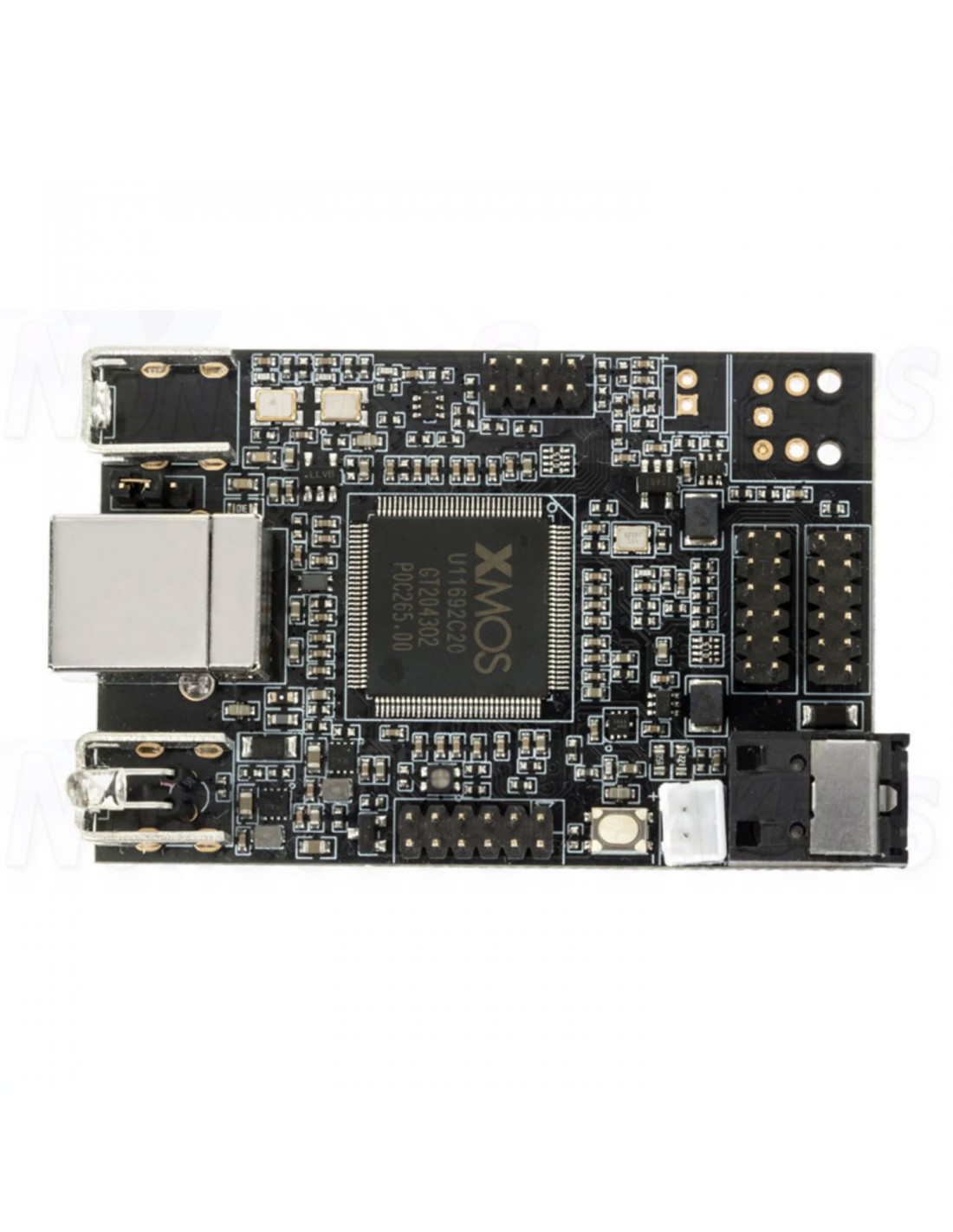

miniDSP MCHStreamer Lite Multi-Channel USB Interface Kit

The miniDSP MCHStreamer Lite, a simplified version of our MCHStreamer, is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages years of XMOS product development to achieve a rock solid performance in all configurations. Packaged on a tiny 40x62mm PCB, the MCHStreamer Lite is a perfect fit for OEM/DIY integration or as a testing tool for your R&D team.

.

Highlights:

• Multi-channel USB audio interface (up to 24x24)
• Wide range of digital IO format depending on the loaded firmware: TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats
• Native support up to 32bit / 384kHz
• PDM to I2S converter for up to 16 MEMS microphones
• Multichannel DSD (up to 8ch) support
• USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization
• OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle)
• Toslink (optical) and SPDIF (coax) transmitterFlexible board powering option: USB powered or External DC input power

.

Product details:

miniDSP MCHStreamer Lite Multi-Channel USB Interface Kit

By loading one of the miniDSP-provided firmware packages, MCHStreamer Lite supports I2S, TDM, DSD and PDM data formats for input and output.

In addition, optical TOSLINK, ADAT and S/PDIF (coax), are supported for output only.

This USB Audio Class 2 (UAC2) compliant interface truly is a powerful tool for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android.

It even supports format conversion from PDM signal to I2S for up to 16 MEMS microphones: a neat tool for beamforming algorithm development.

.

Specifications:

• Article number MCHStreamer Lite
• Product type USB Digital Interface DAC
• Outputs Optical (Toslink/ADAT)
• USB Compatibility Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle)
• Processing resolution & sample rate 24bit up to 192kHz. Please consult user manual for more details
• Power requirements USB powered OR 5Vdc external supply via header - 300mA requirement
• Dimensions 13 x 40 x 62 mm

.

What's included in the box?

• 1 x MCHStreamer Lite
• 1 x 1m long USB audio cable
• 1 * Toslink audio cables
• 2 * 2x6pin (2mm pitch) header cable harness for I2S In/Out interfacing
