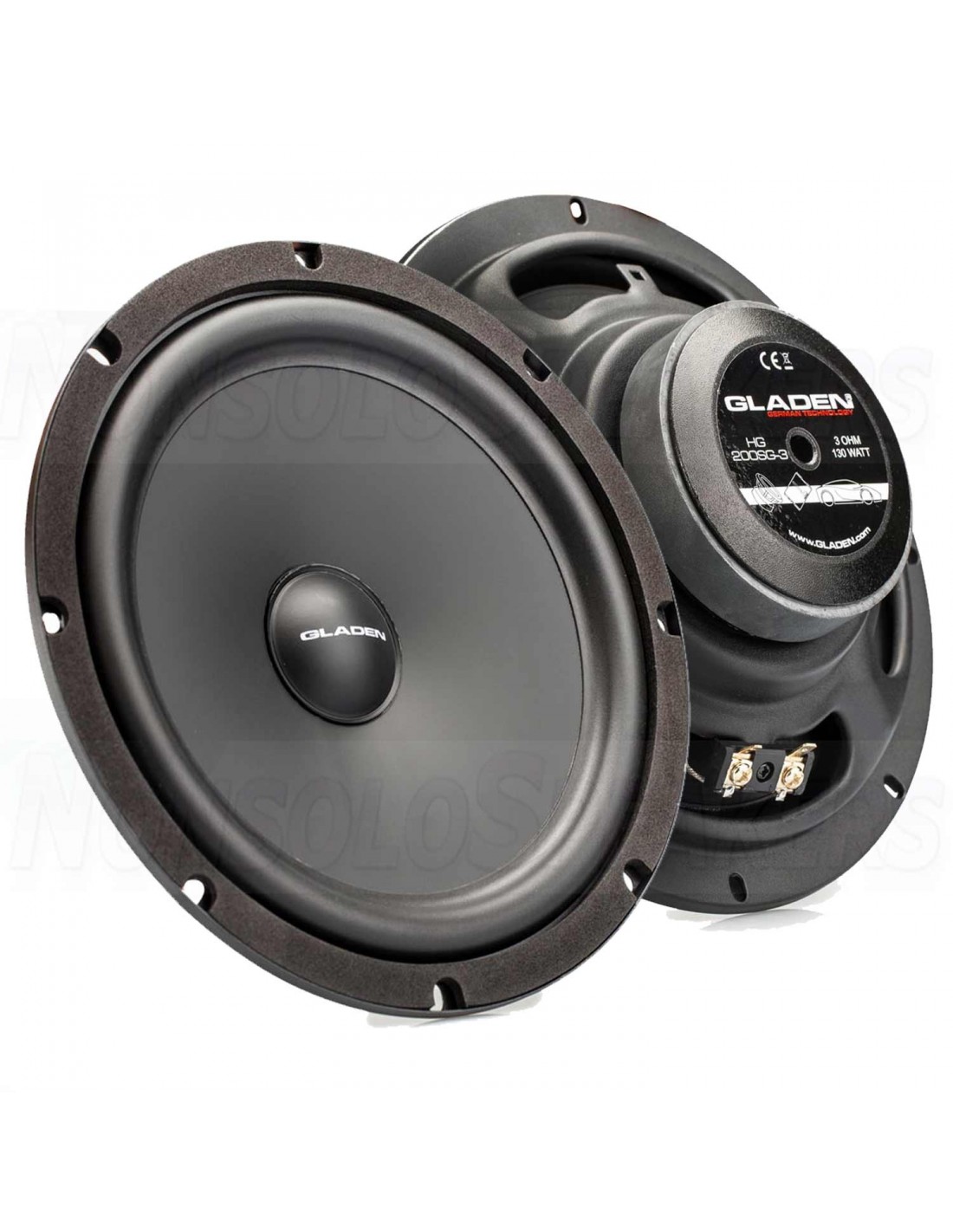

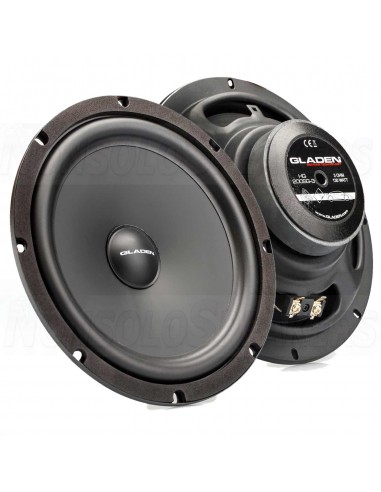

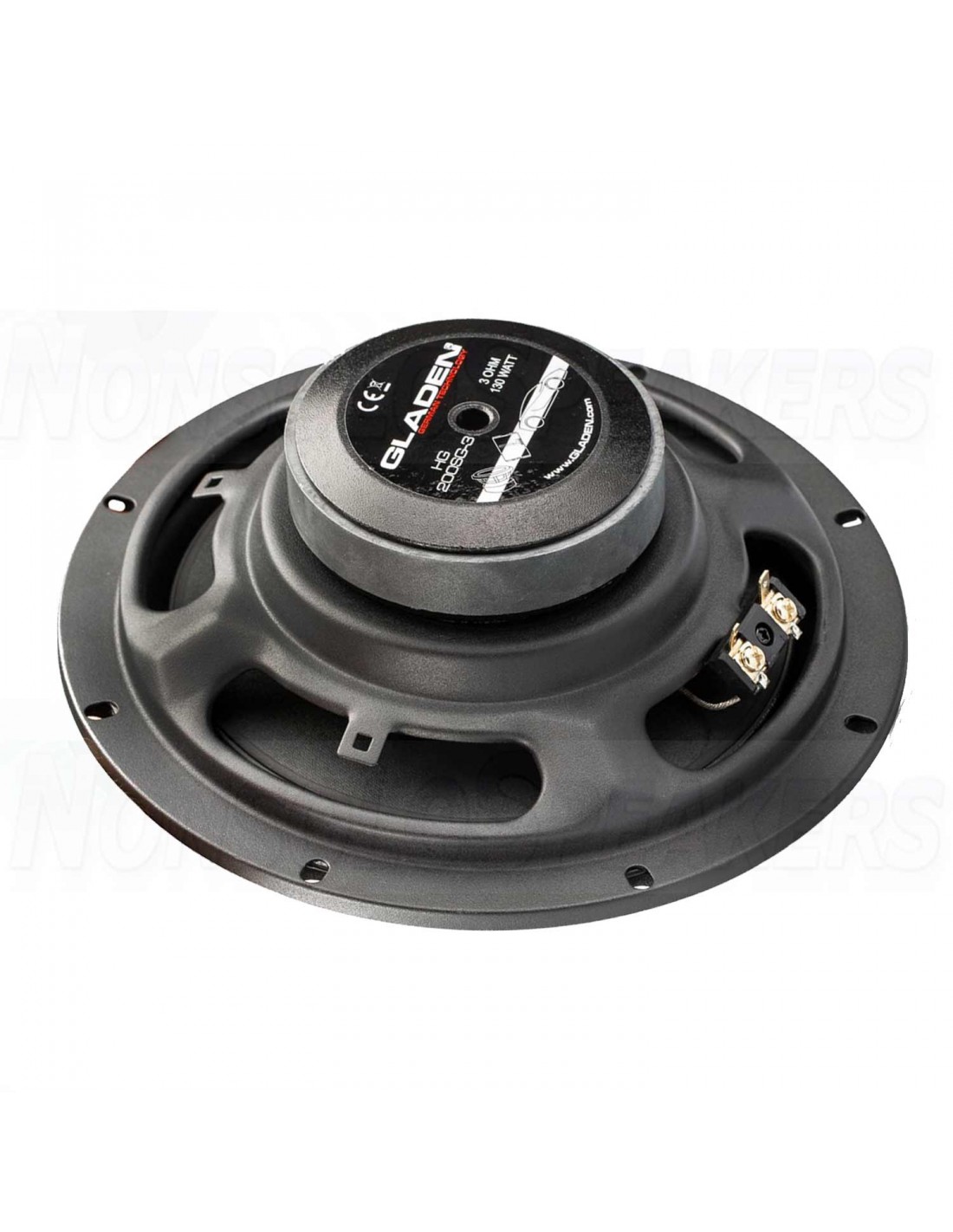

Gladen GA-200SG-3 20cm woofer speaker Pair

Gladen GA-200SG-3 20cm woofer speaker Pair

Name: Gladen GA-200SG-3 20cm woofer speaker Pair
Brand: Gladen Mosconi
SKU: GA-200SG-3
Price: 169 EUR
Availability: InStock

SHIPMENT IN 7/10 WORKING DAYS

€169.00

Tax included

No review at the moment

Gladen GA-200SG-3 20cm woofer speaker Pair

20cm woofer / midrange, 70 WRMS @ 3 ohms

Estimated Shipping Costs

Shipping Costs

€16.80

Shipping Time

Want to check another country or courier?

Gladen GA-200SG-3 20cm woofer speaker Pair

This GLADEN speaker system has an impedance of 3 ohms instead of the usual 4 ohms. And for good reason: if a 3 ohm system is operated on an amplifier, this will do more than with a 4 ohm load. If no separate amplifier is used, the radio cables in the system act as additional resistance. Often these have reduced cross-sections, with a total load of about 4 ohms, but you also get better power than traditional 4-ohm speakers.

20cm woofer / midrange, 70 WRMS @ 3 ohms

Universal speaker

Can be combined in many ways with different tweeters

1 pair

Technical specifications

Impedance 3Ω

Load capacity 130/70 watts/Wrms

Recommended range of use 50-5000 Hz

SPL (2.83V/1m) 94.4dB

DC resistance Rdc 2.5 Ω

Resonance frequency fs 44.8 Hz

Mechanical quality Qms 3.1

Electrical quality Qes 0.61

Total quality Qts 0.51

Equivalent air volume VAS 37.5 liters

Dynamically moved mass Mms 22.2 g

Effective membrane area Sd 216.4 cm2

Mechanical resistance Rms 2.0 Kg/s

Compliance Cms 0.6mm/N

Drive factor BL 5.0 Tm

Maximum linear deflection Xmax +/- 4.0 mm

Maximum mechanical deflection

Xmech +/- 6.0mm

Outside diameter 209 mm

Installation diameter 179.5 mm

Installation depth 65 mm

Net weight 1.2 kg

Reference GA-200SG-3

In stock 2 Items

EAN13 4260242462813
