SMSL D400ES MQA Audio DAC

With its D400ES DAC, SMSL is back on the scene by adopting the latest high-end DAC chip ES9039MSPro from ESS. Associated with very high quality audio circuits and components, the D400ES offers first class performances.

-

Highlights

• JAS Hi-res certification
• MQA certification
• MQA-CD certification
• ESS ES9039MSPRO chip
• 0.00005% THD+N
• Eight-channel parallel circuit design
• XMOS XU316
• DSD512
• PCM 32-bit/768kHz
• Up to 7 modes of digital filters
• Equipped with a full-featured remote control

.

Product Details

SMSL D400ES | MQA | Audio DAC

The SMSL D400ES DAC turns heads with its stylized all-aluminum chassis, but it's what’s inside that counts: a next gen ESS flagship DAC chip, full MQA decoding, and incredible specs–133dB dynamic range and 0.00005% THD+N. A third-gen XMOS XU316 USB controller provides support for 32-bit/768kHz PCM and DSD512 transmission.

The next generation ESS flagship is here. Providing both incredible specs and features, the ES9039MSPRO boasts a built-in MQA renderer, 32-bit/768kHZ PCM decoding, and 133dB dynamic range.With multiple low-noise regulated power supplies, the D400ES provides a stable, reliable, and low-noise system that contributes to the DAC’s incredible 0.00005% THD+N.

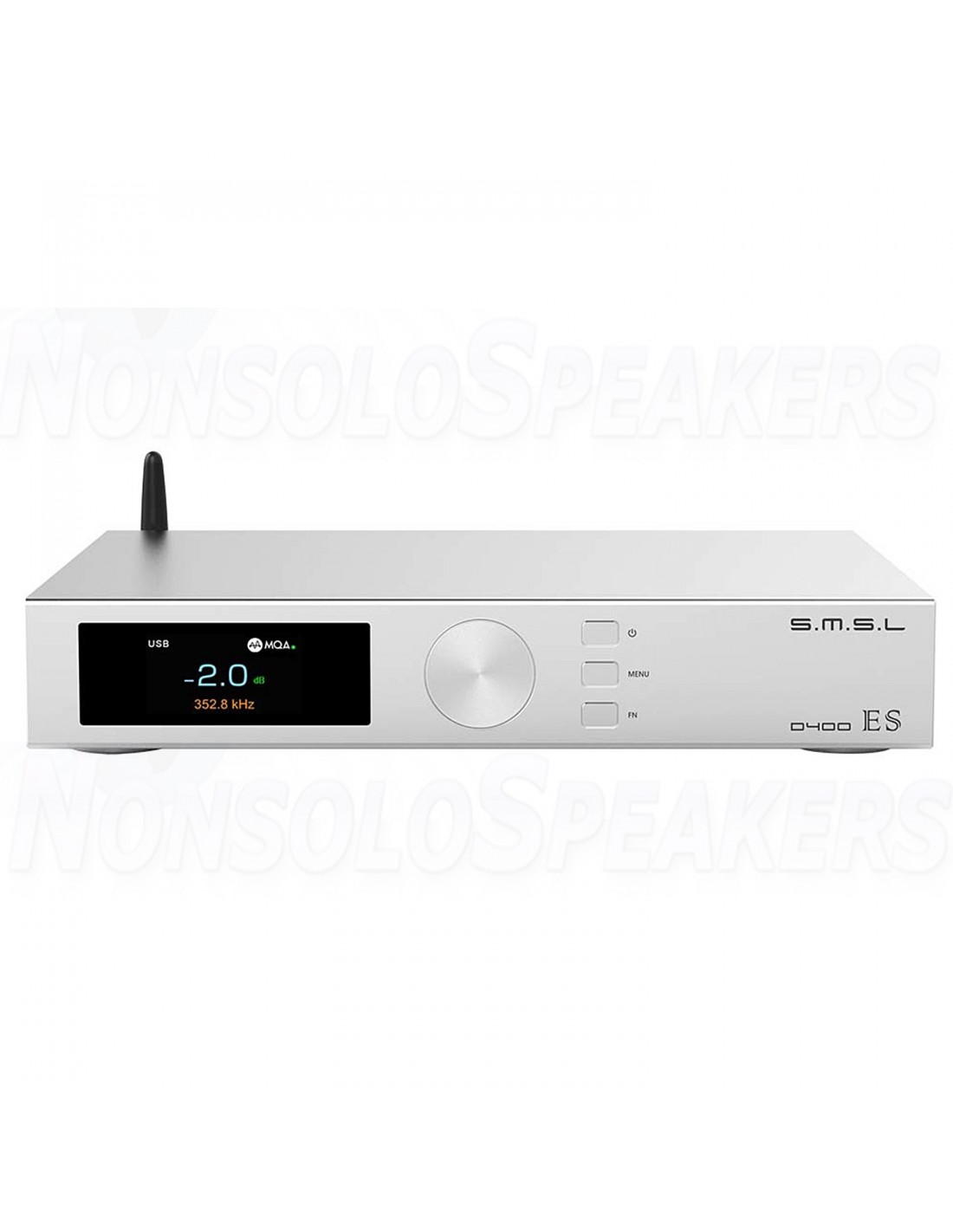

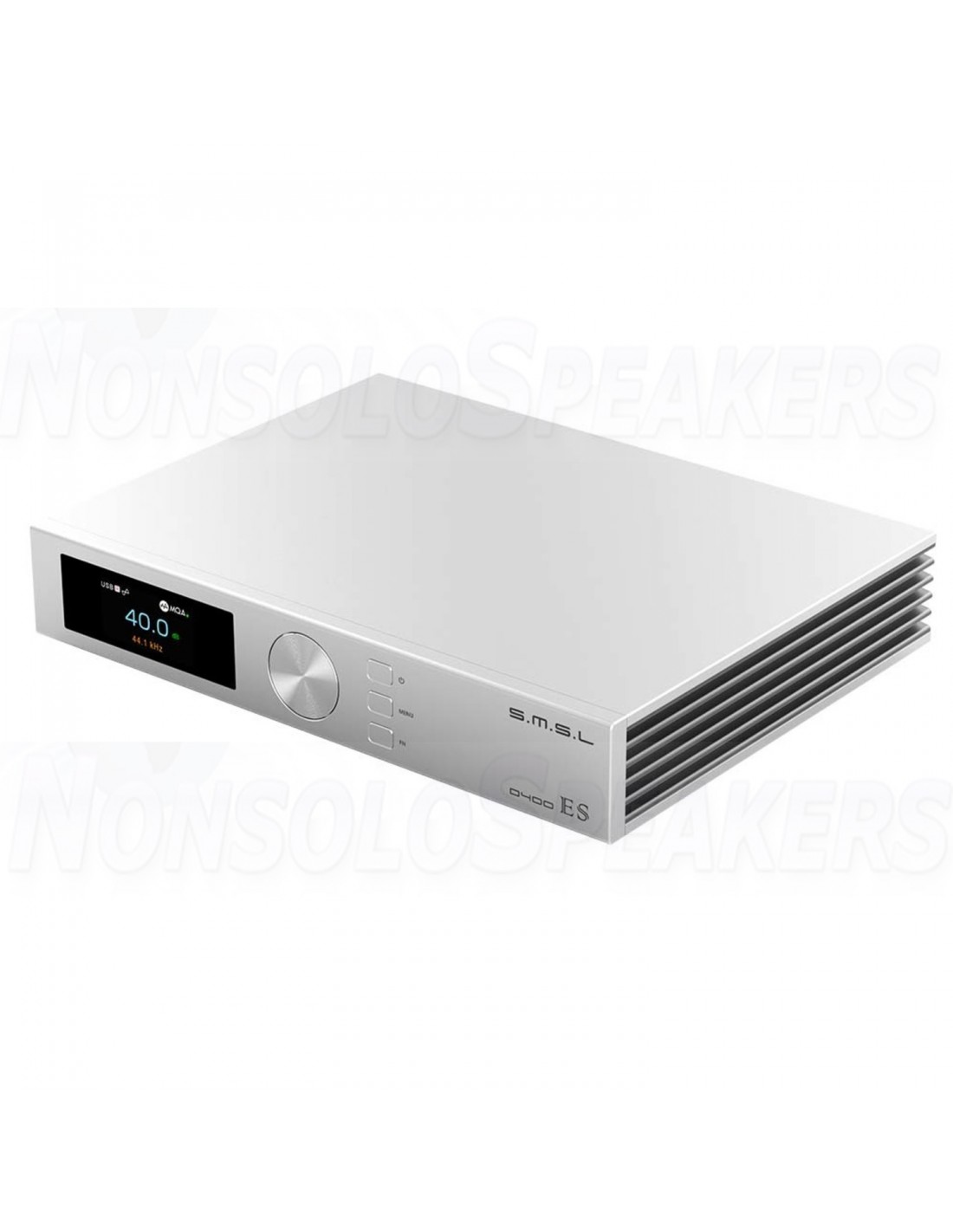

The D400ES provides full MQA decoding, fully expanding the sound file to provide the best sound quality. At this level, you’ll hear the original sound created by the artist in the recording studio. Housed in chamfered high-grade aluminum, the D400ES looks gorgeous, while remaining utterly protected. Check the settings and dive into the menu using the full-color display. Protected by a fully-laminated tempered glass display panel, it provides high light transmittance that can be seen from across the room (or dimmed to suit your needs).

The D400ES supports high-end Bluetooth codecs like LDAC, Qualcomm aptX, and aptX HD. With playback support for 24bit tracks and transmission up to 50 feet away, it’ll help you cut cords without sacrificing quality.

.

Specifications

Article number D400ES

Product type DAC

Wireless Connectivity Bluetooth 5.0 (LDAC, APTX/HD, SBC, AAC)

DAC Chipset ES9039MS Pro

Codec support XMOS XU-316

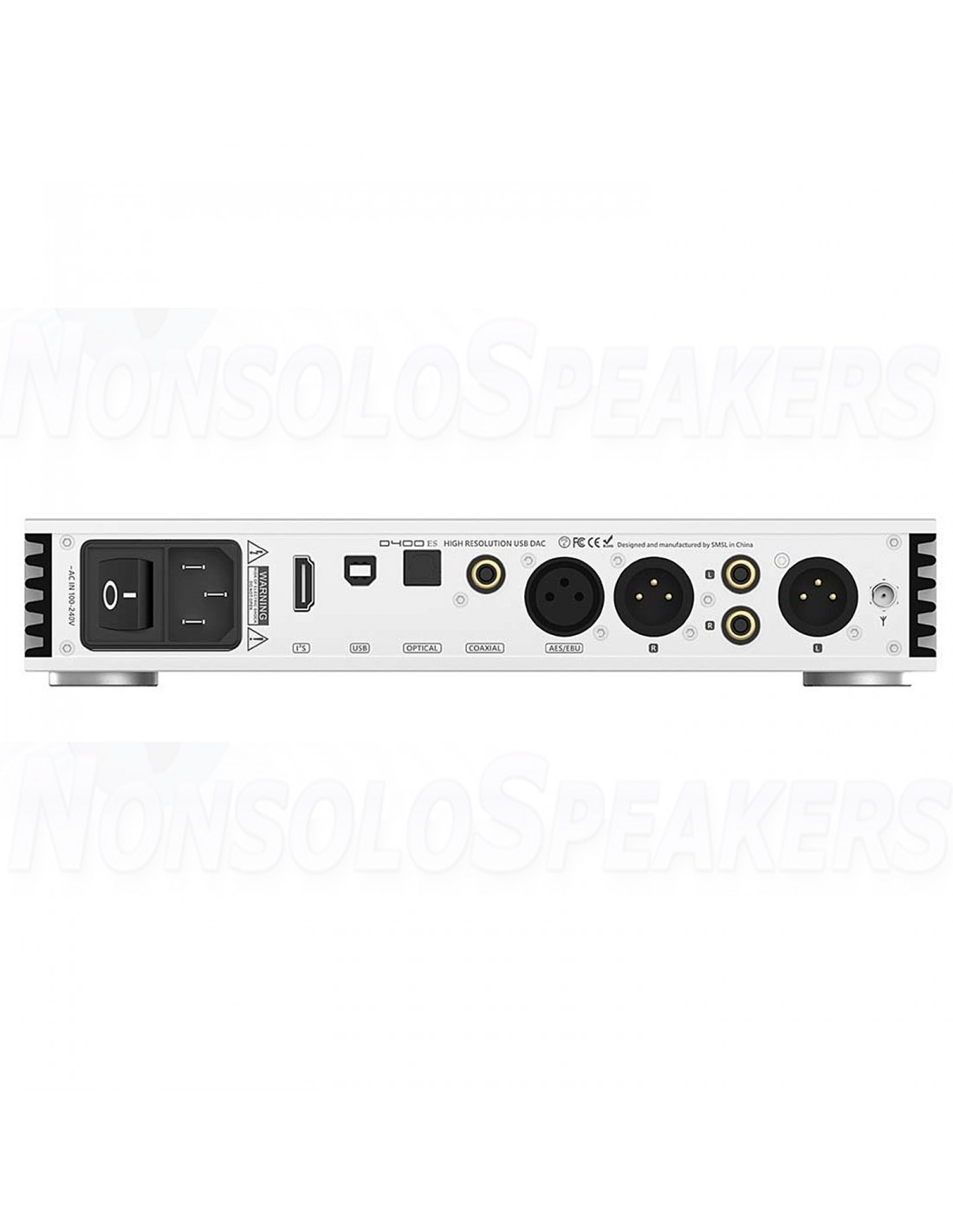

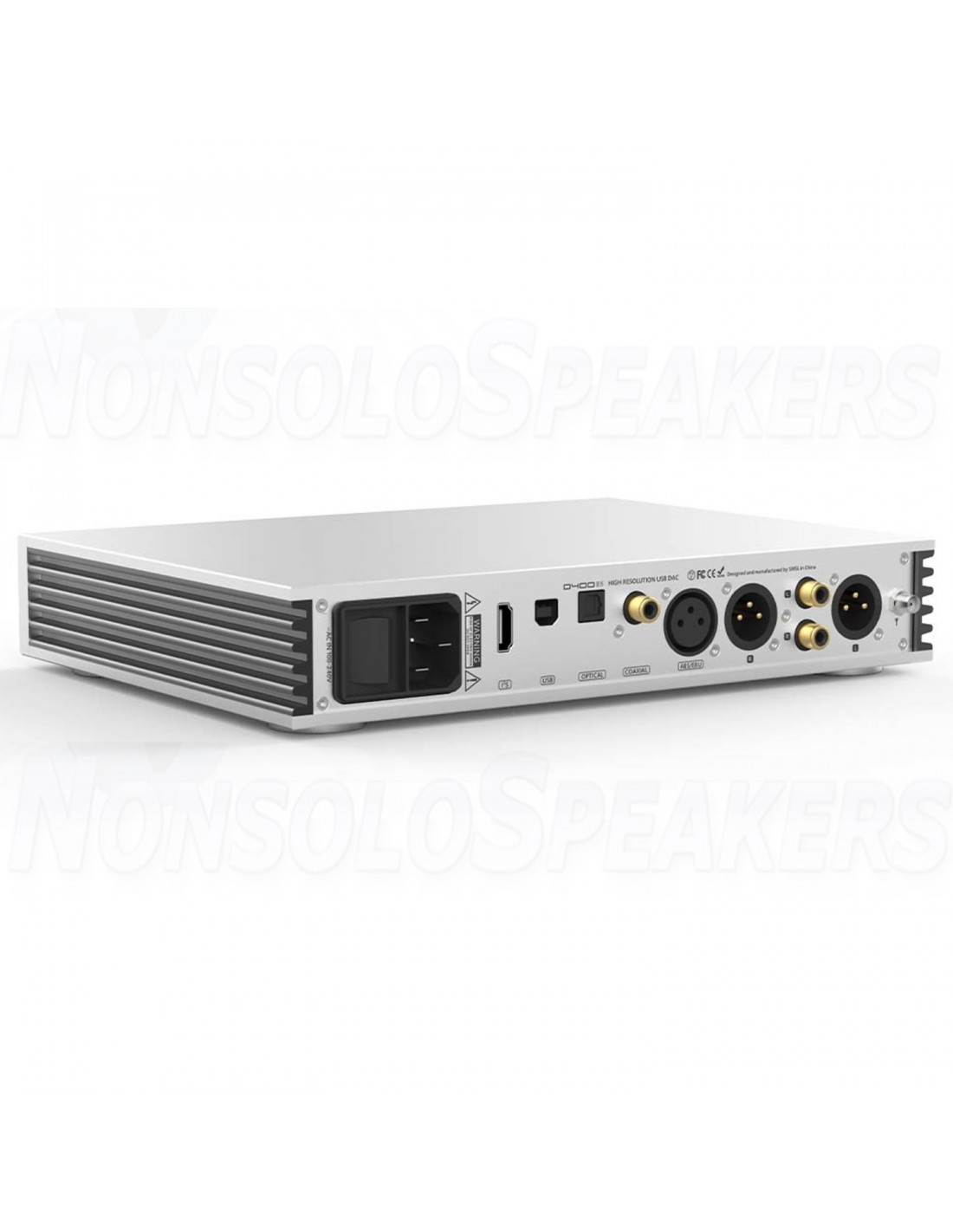

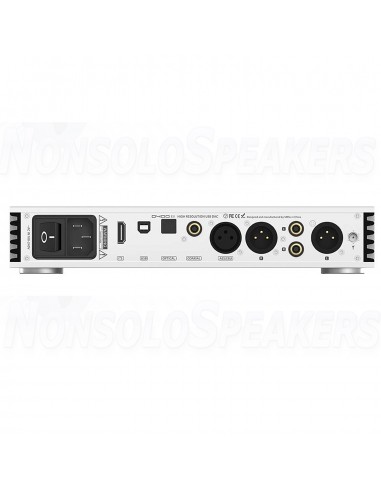

Inputs USB / Optical / Coaxial / Bluetooth / I2 S / AES

Outputs RCA / XLR

THD(+N) 0.00005%(-125dB)(UN-WTD)

Dynamic Range 133dB(XLR),128dB(RCA)

SNR 133dB(XLR),127dB(RCA)

USB Compatibility Windows 7 / 8 / 8.1 / 10 (Needs Driver), Mac OSX10.6 or Later, Linux (Driverless)

Power consumption <10W

Standby power consumption <0.5W

Dimensions 240x188x43mm

Weight 1.8kg / 3.97lb
