Add stable power to your amplifier boards and amplification projects using this rectifier board which has been built with 12,000 buffering capacity microfarads, undulation reduction capability.

SHIPMENT IN 7/10 WORKING DAYS
€44.50
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



WONDOM AA-AB41121 - 75V 30A 12000uF Rectifier card for amplifiers

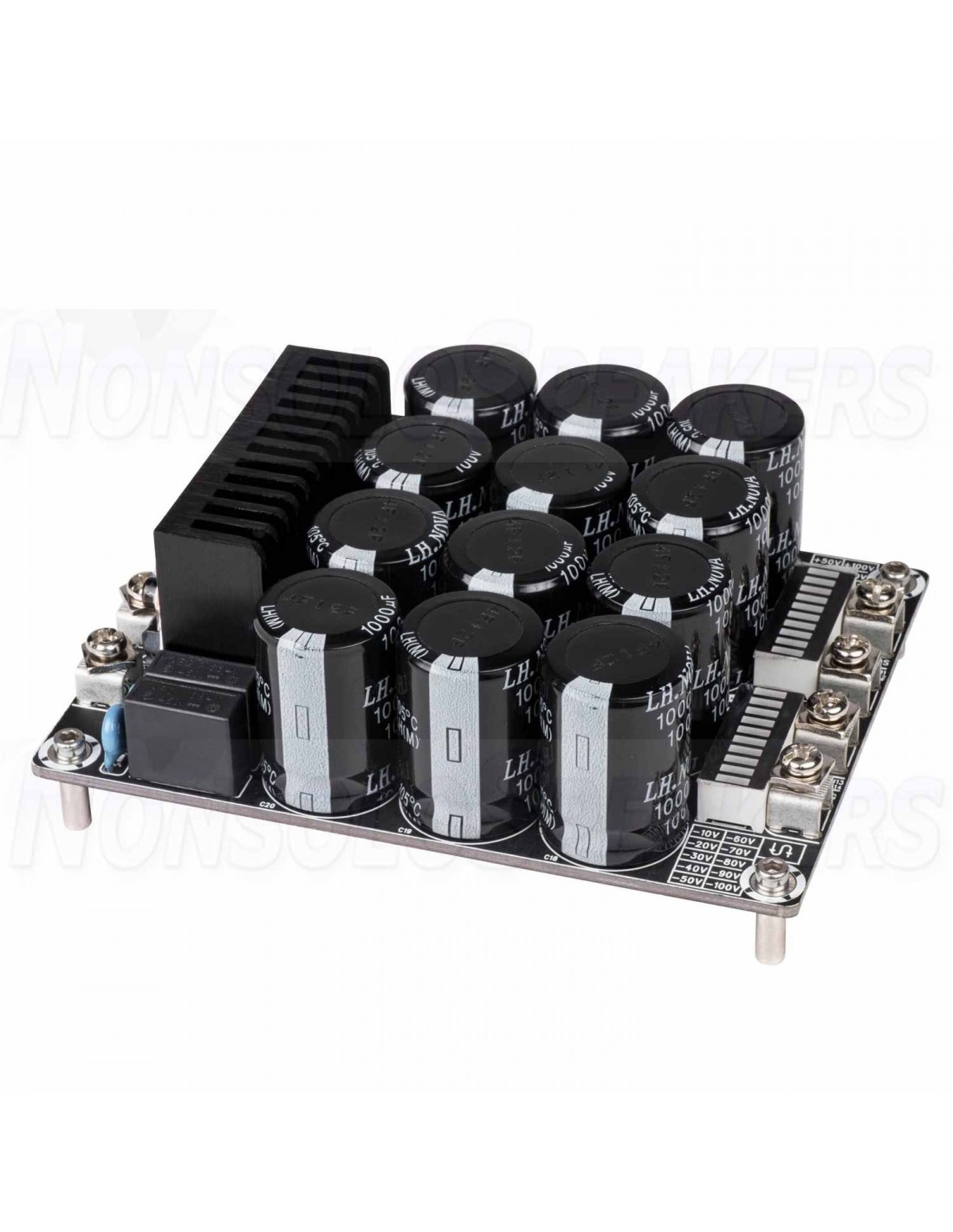

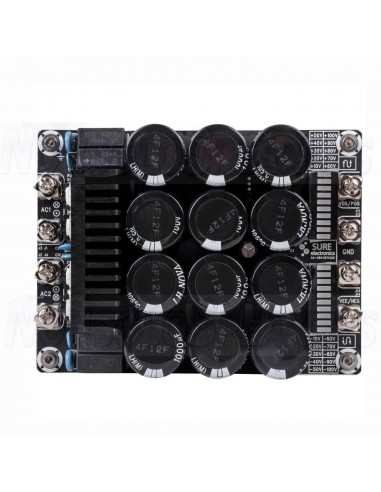

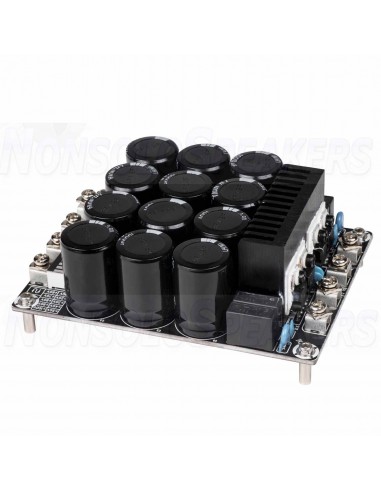

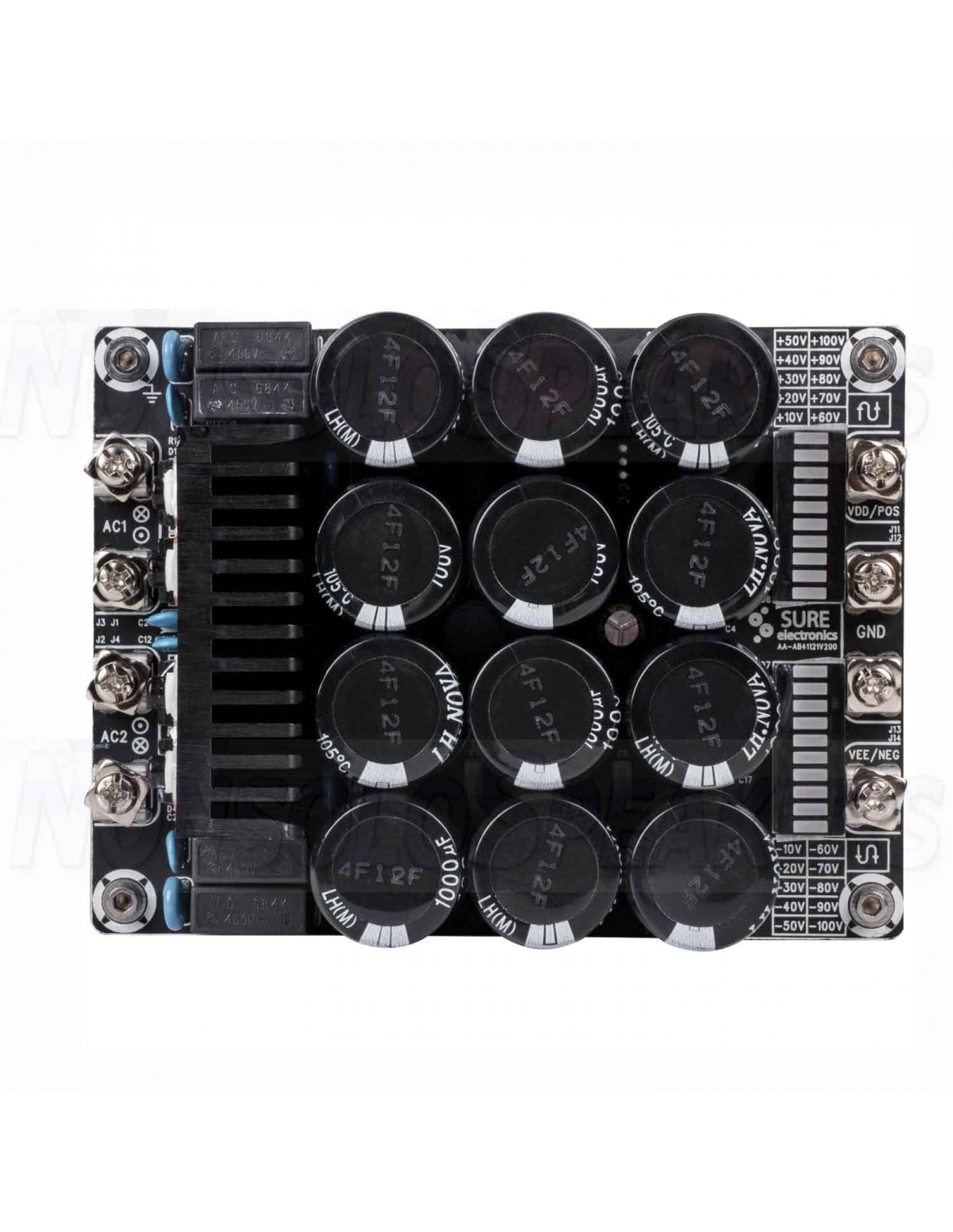

Add stable power to your amplifier boards and amplification projects using this rectifier board which has been built with 12,000 buffering capacity microfarads, undulation reduction capability. AC power is applied to the input (positive on the AC1 X terminal, negative on the AC2 X terminal, with central sockets connected to the AC1 and AC2 internal terminals if used), with positive DC output on the VDD / POS terminal and negative symmetrical DC output on the VEE / NEG terminal. An LED indicator shows the voltage output for each channel.

Note: to calculate the voltage output, multiply the secondary voltage by 1.414 (the square root of 2). For example, if you were to connect a primary 220 V AC input to two 70 V AC secondary outputs, the output would be +100 VDC and -100 VDC.

Principle scheme

AA-AB41121

Features

Parametri  Valori
Produttore Sure Electronics
Potenza di uscita (W) 2.250
Tensione di uscita (V) 100
Corrente di uscita (A) 20
Corrente diretta (RMS) 30 A
Caduta di tensione diretta 1.1 V
Conversione di Potenza Max 1.500 W
Buffering di Potenza 12.000 uF

Others features

Parametri Specifiche
Larghezza (mm) 89
Altezza (mm) 47,6
Profondità  (mm) 120
