SoundImpress HY502-2CH Stereo Amplifier|500WPC|Ncore® by Hypex
SoundImpress HY502-2CH Stereo Amplifier | 500WPC | Ncore® | Powered by Hypex
This SoundImpress amplifier is a self-contained high-end class-D stereo amplifier intended for a wide range of audio applications, ranging from public address systems to ultra high-fidelity replay systems for studio and home use
SoundImpress HY502-2CH Stereo Amplifier | 500WPC | Ncore® | Powered by Hypex
.
Highlights
- Ncore® technology inside
- Impressive performance despite load
- Neutral and transparent reproduction
- Flat, fully load-independent frequency response
- Plenty of power combined with high efficiency
- Compact design

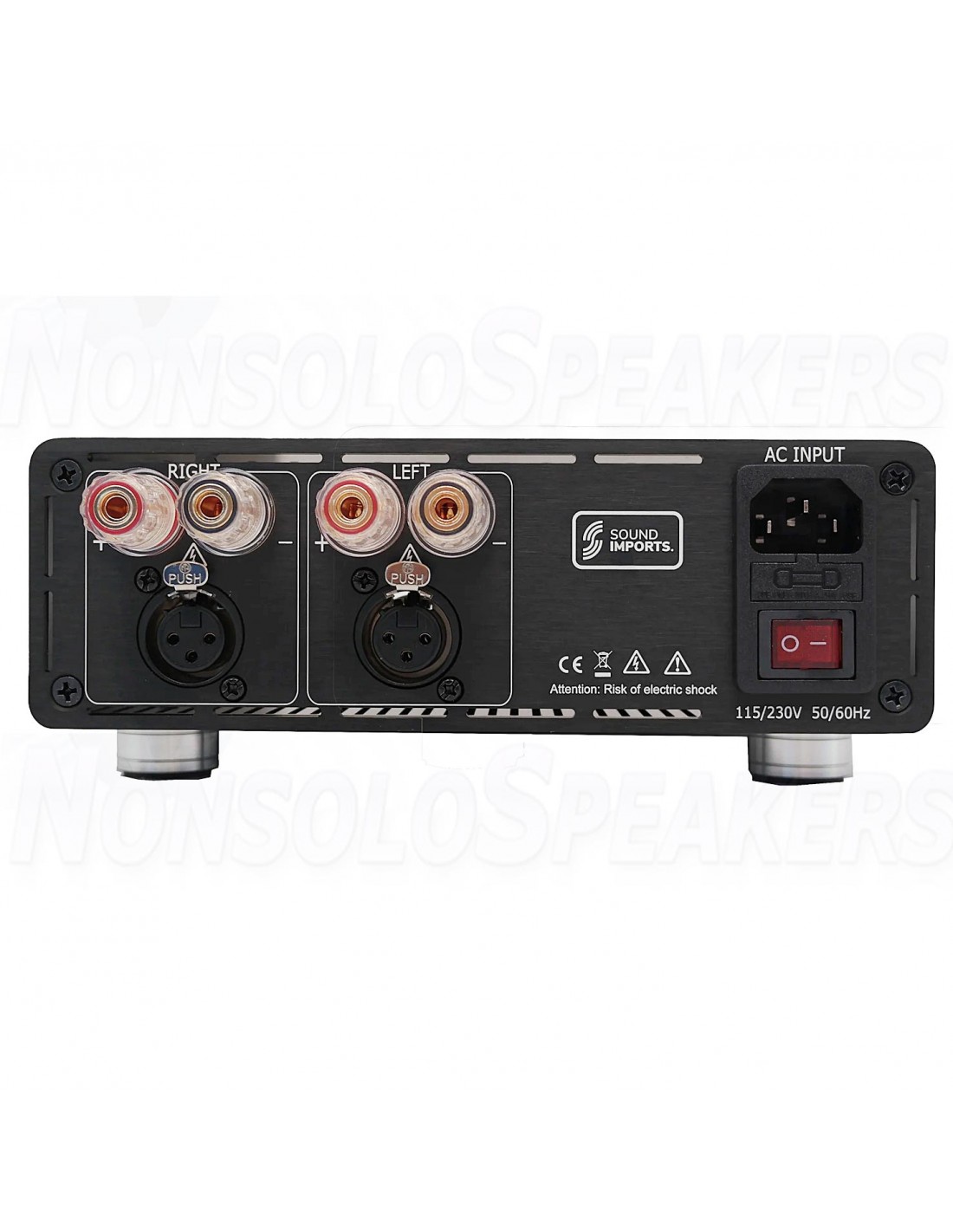

- XLR input, binding posts output
- Assembled by hand in the Netherlands
- 5 year Warranty
-
Product details
SoundImpress HY502-2CH 2x500W Ncore Stereo Amplifier
The HY502-2CH is a compact, high performance, two channel and no-nonsense class-D power amplifier. It incorporates the proven and renown Hypex Ncore® technology for nothing less than impressive performance!
The performance stands out with authoritative and tightly controlled low registers, high dynamics and crystal clear mid- and high-frequencies. The super-low noise level generates a completely black background to reveal the tiniest of details in every recording.

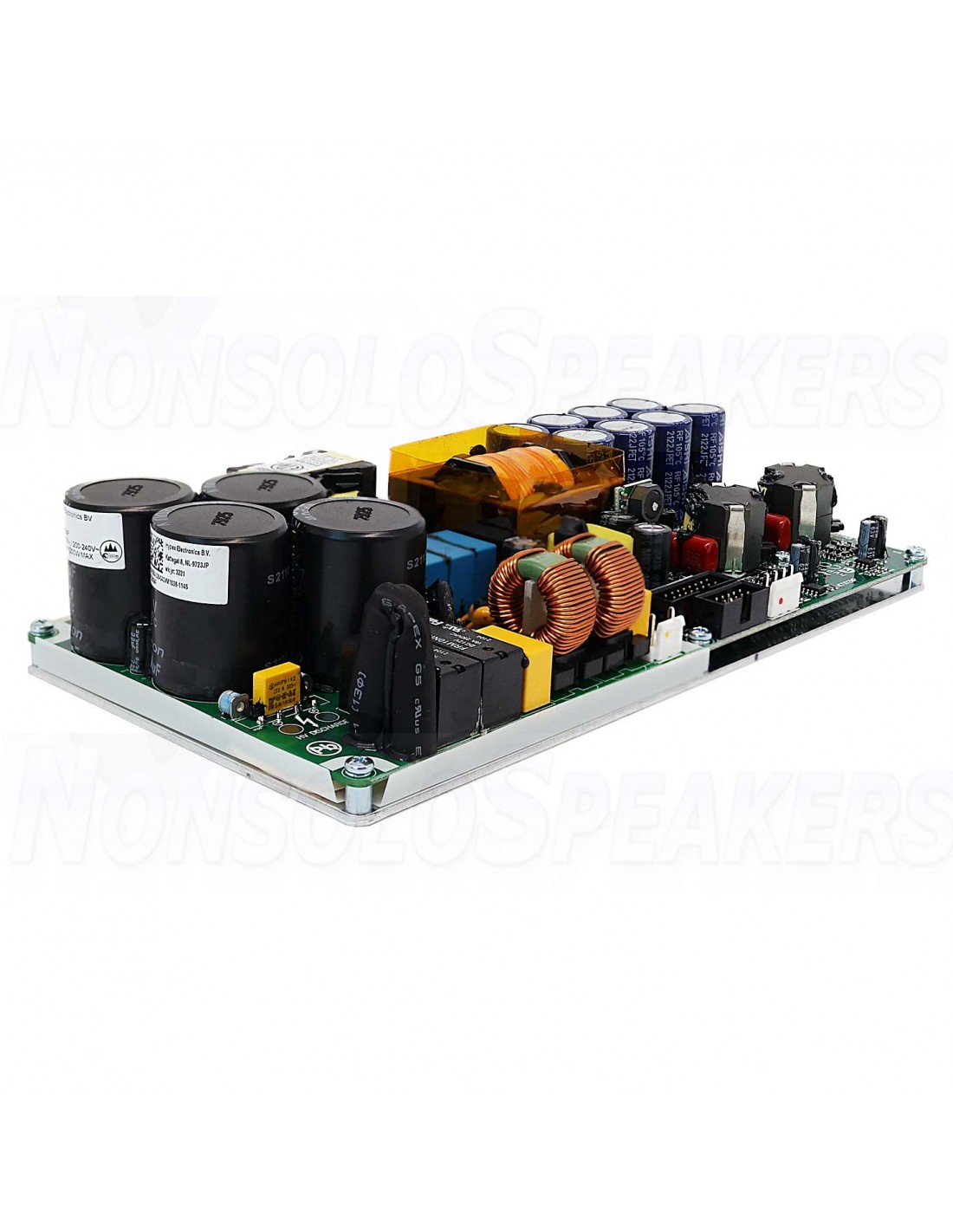

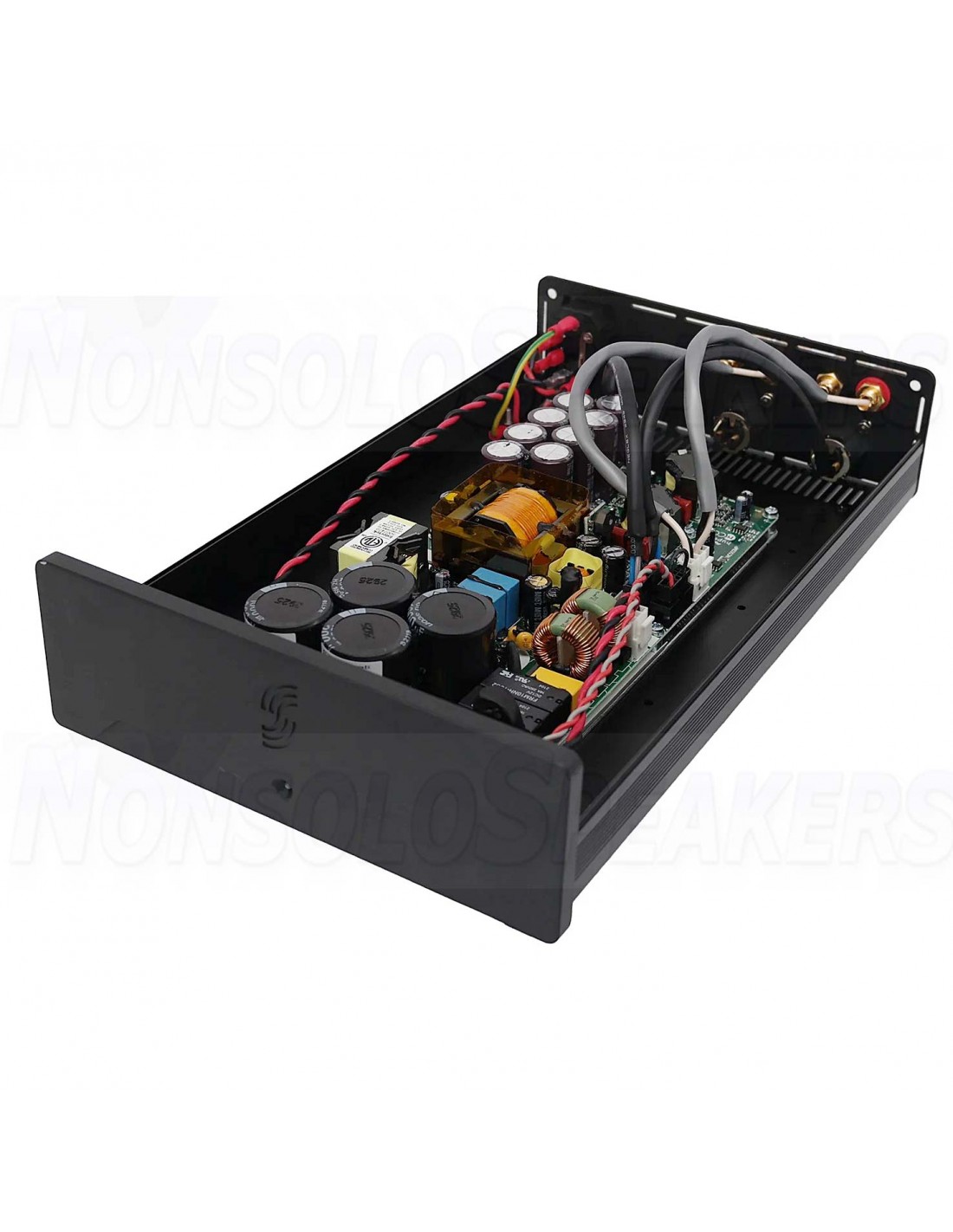

All SoundImpress amplifiers are hand assembled in the Netherlands. The custom milled aluminum enclosure houses the Hypex NC502MP amplifier module, the best thermal material for audio devices. The in- and output connections are provided through high-quality binding posts from CMC and XLR-chassis from Neutrik and wiring from Mogami and Belden. It can operate from both 110 and 230 VAC mains voltage due to its universal mains input compatibility featuring an automatic input voltage doubler.
Small and powerful
Specifications
- Article number HY502-2CH
- Rated power output (RMS) 2 x 500 watts at 4 ohms 2 x 350 watts at 8 ohms
- Minimum load 4 ohm
- Signal-to-noise ratio (SNR) 124 dB
- Distortion 0.0018% (20-20,000 Hz at 0.5 x rated power output)
- Efficiency 92%
- Frequency response 10 - 48,000 Hz
- Circuit Topology Ncore®
- Amplifier classification Class D S
- peaker output channels 2 XLR in/out 2/0
- Banana plug compatible Check
- Power requirements 110 / 230 VAC
- Power inlet connector IEC C14
- Dimensions (D x W x H) 326mm x 200mm x 78mm (size incl feet, excl connectors)
- Case material Aluminum
-
What’s In The Box
- SoundImpress HY502-2CH Stereo Amplifier
- IEC C13 power cable (UK/EU/US)
- SoundImpress manual
