Out-of-Stock
€136.45
Tax included
rating No review at the moment

Visaton PACTO | DIY Components Pack | Sold Per Piece

Components for one speaker, (cabinet not included)

This DIY speaker KIT is Visaton’s answer on the question, if it is possible to design a small bookshelf speaker with a balanced soundstage and powerful bass reproduction.


Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton PACTO | DIY Components Pack | Sold Per Piece

Components for one speaker, (cabinet not included)

This DIY speaker KIT is Visaton’s answer on the question, if it is possible to design a small bookshelf speaker with a balanced soundstage and powerful bass reproduction.

.

Highlights

F.A.S.T. (Full-range and Subwoofer Technology)

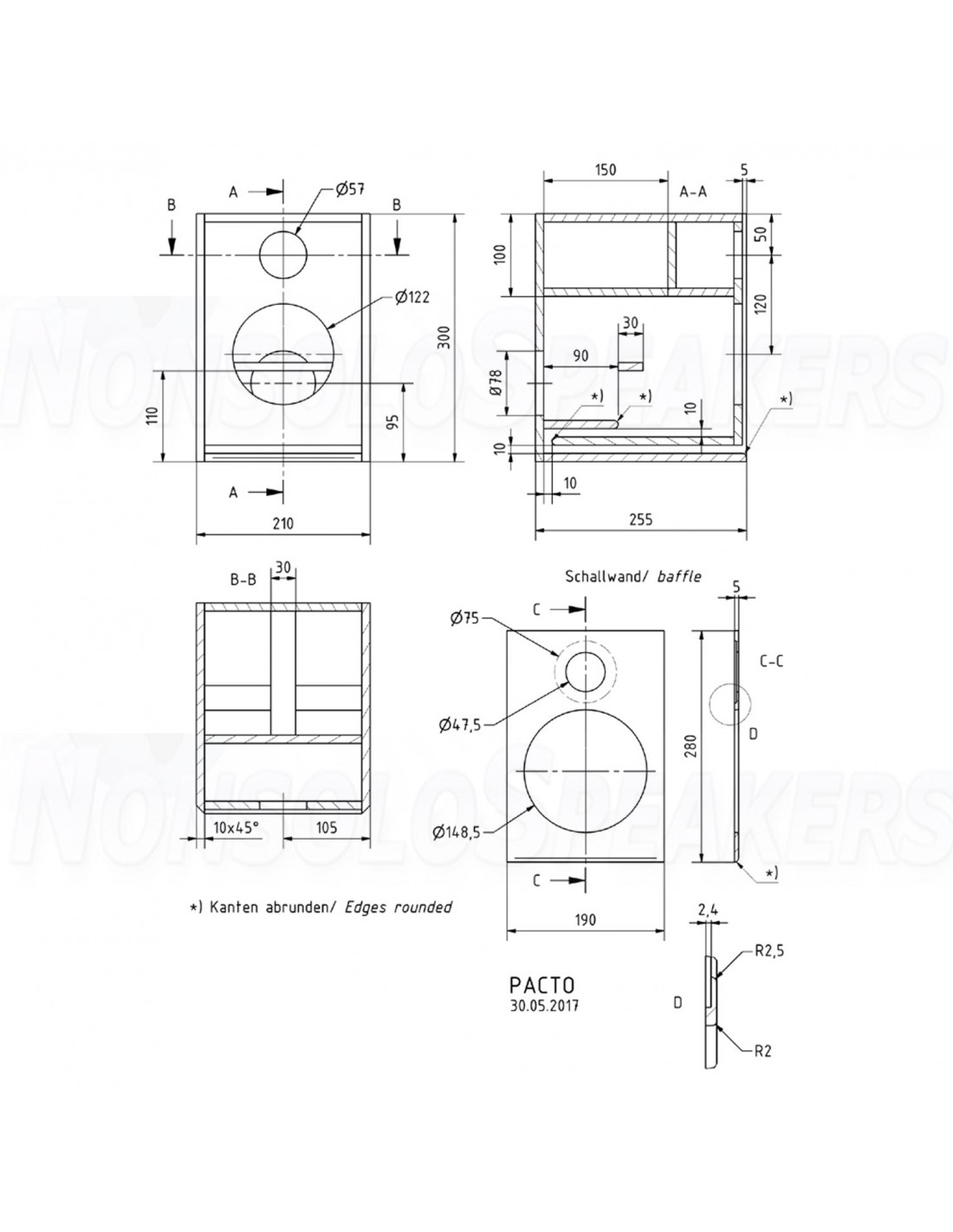

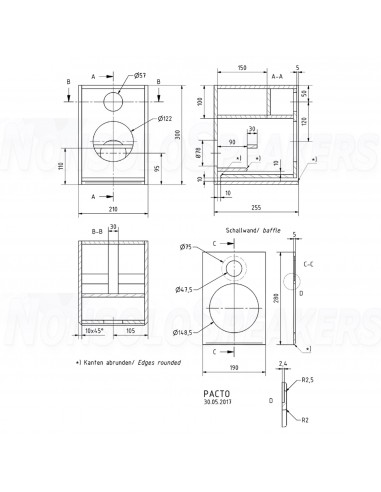

Compact 13 liter enclosure

Simple but effective series crossover

.

Product details

Visaton PACTO DIY Components Pack

The PACTO is a F.A.S.T. speaker design with a compact bass reflex enclosure. The FR 58 full-range driver is combined with the W 130 X subwoofer to ensure a powerful low-frequency reproduction. The drivers share a crossover point of 250 Hz thanks to a simple three part crossover. The critical frequency range is delivered through a single driver for precise imaging an accurate soundstage reproduction. Thanks to the front located bassreflex slot, this compact speaker can be positioned close or even against to the backwall.

-

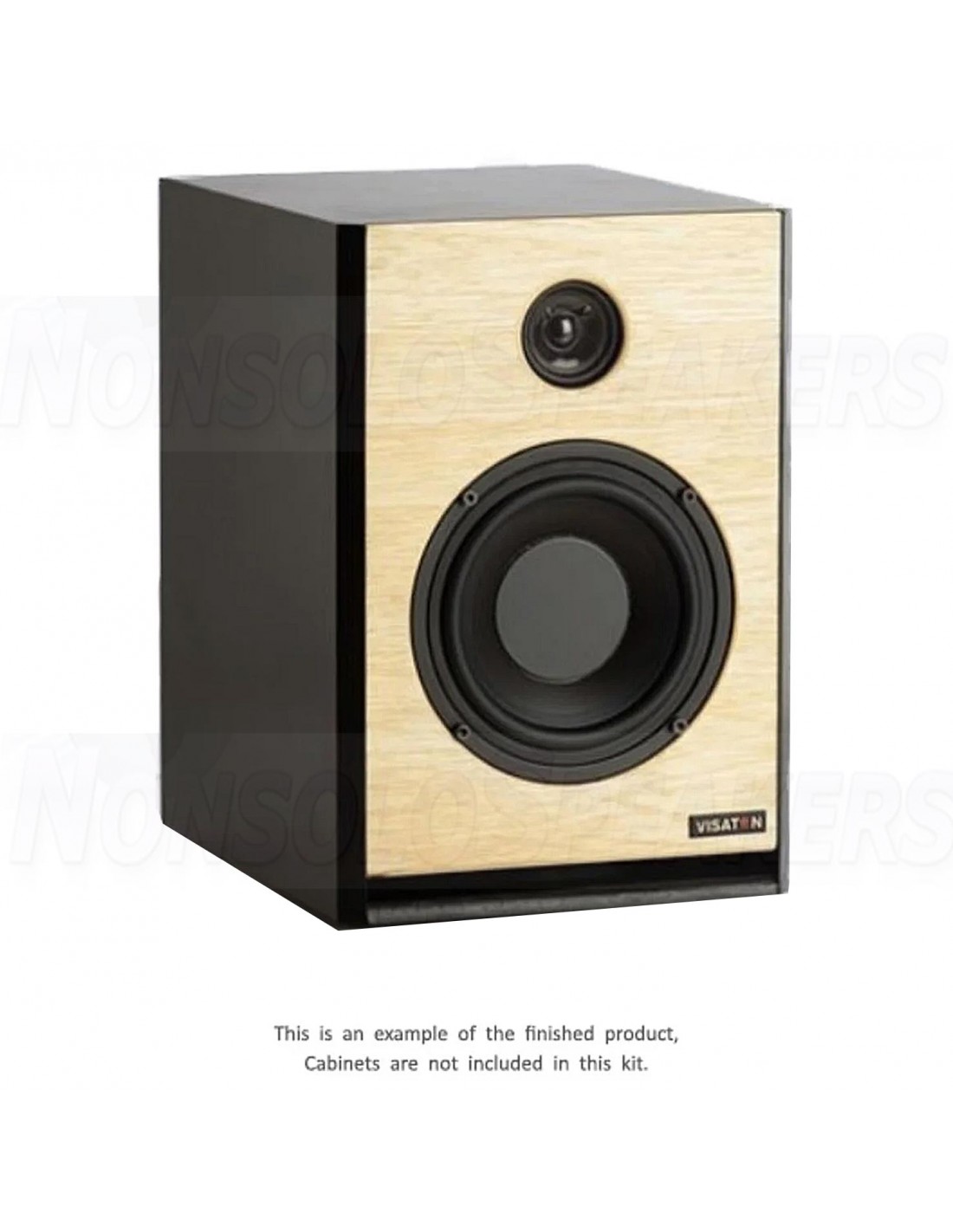

Note: Cabinets are not included.

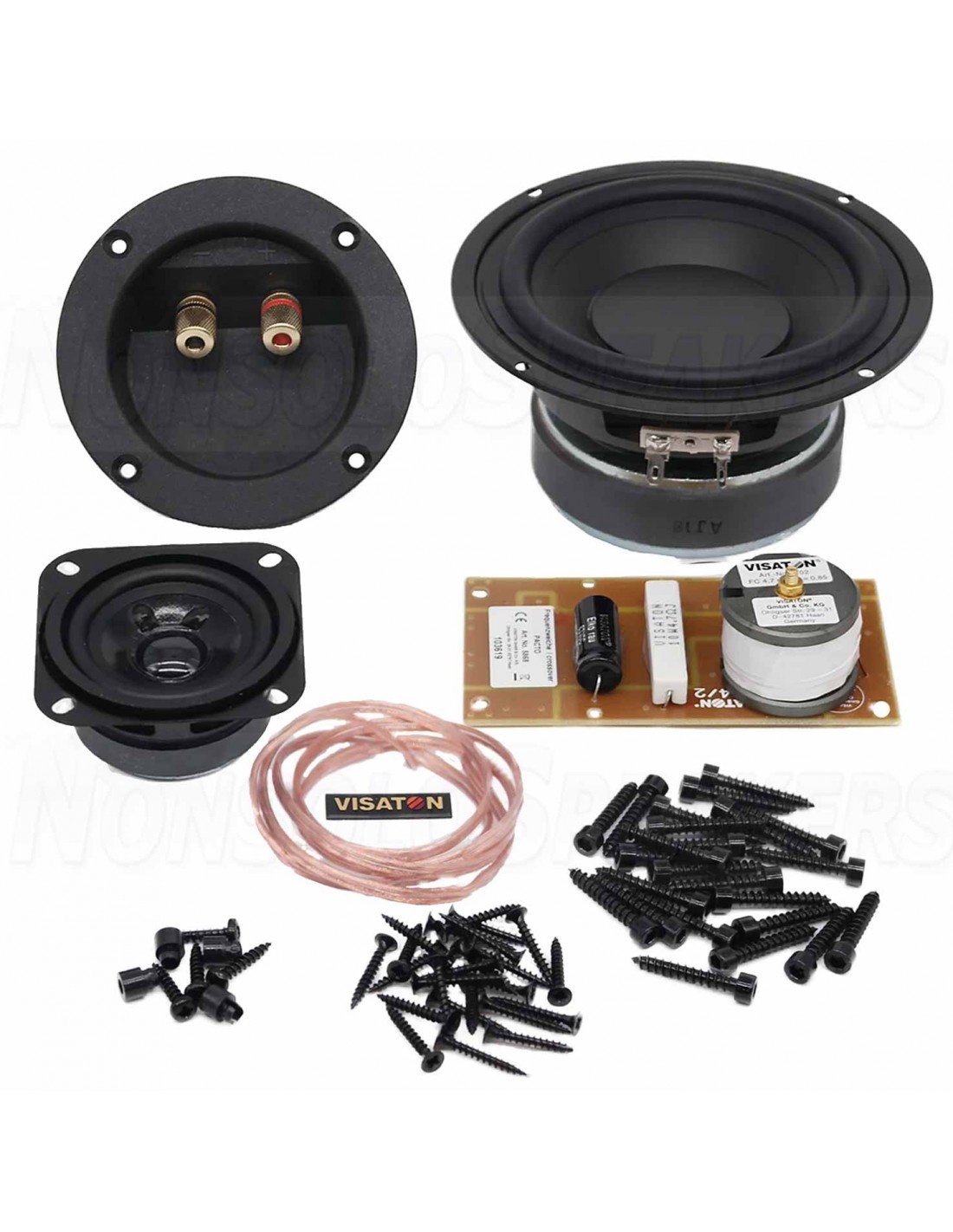

Delivery content for 1 kit :

1 x Cone driver W 130 X-4+4 (piece)

1 x Cone driver FR 58-8 (piece)

1 x Passive crossover FI-PACTO (piece)

1 x Bornier enceinte ST 77 (piece)

4 x Wood screw, 4 x 25 mm, black, allen head (piece)

8 x Wood screw, 3.5 x 25 mm, black countersunk head (piece)

1m Speaker cable 2 x 1.5 mm²

Visaton PACTO
