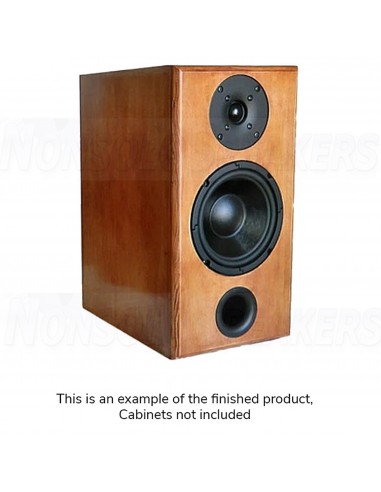

Classix II MT Bookshelf Speaker Kit Components

Components for one speaker, (cabinet not included)

.

Product description

If you desire a small speaker that can put the fun back into music without taking a chunk out of your wallet then look no further than the Classix II speaker kit. Designed by Paul Carmody, this 2-way kit includes almost everything you need to build a single high-end bookshelf speaker, including: drivers, crossover components, and damping material.

.

Highlights

Compact speaker that can provide a big sound in small to medium sized space

Designed and fine-tuned by expert designer Paul Carmody

The Classix II is known for its ability to make even bad recordings sound good

.

Product details

Classix II MT Bookshelf Speaker Kit Components Only

The Classix II kit is a 2-way bookshelf speaker that provides a big sound from a small package. With powerful bass response, relaxed mid-range, and natural high end this speaker has the ability to make even poor recordings sound great.

With the exceptional low frequency ability of the popular Dayton Audio DC160-8 6½ (16.5cm) woofer the Classix II delivers plenty of bass for most small to medium sized rooms. For the upper frequencies this kit uses the Peerless by Tymphany BC25TG15-4 1" (2.54cm) silk dome tweeter which is known for natural, non-fatiguing response making this speaker ideal for long listening sessions. This kit includes nearly everything you need to build a top-notch speaker in no time, including: the drivers, port, damping material, and crossover components.

Note: Cabinets are not included.

-

Included Components:

Qty Part Number Description

1 027-424 Dayton Audio DMPC-6.8 6.8uF 250V Polypropylene Capacitor

1 027-422 Dayton Audio DMPC-4.7 4.7uF 250V Polypropylene Capacitor

1 027-340 10uF 100V Non-Polarized Capacitor

1 027-360 100uF 100V Non-Polarized Capacitor

1 255-026 Jantzen 1528 0.25mH 20 AWG Air Core Inductor

1 255-036 Jantzen 1034 0.50mH 20 AWG Air Core Inductor

1 255-254 Jantzen 1901 1.2mH 18 AWG Air Core Inductor

1 004-4 Dayton Audio DNR-4.0 4 Ohm 10W Precision Audio Grade Resistor

1 004-6 Dayton Audio DNR-6.0 6 Ohm 10W Precision Audio Grade Resistor

1 004-10 Dayton Audio DNR-10.0 10 Ohm 10W Precision Audio Grade Resistor

1 264-1040 Peerless by Tymphany BC25TG15-04 1" Silk Dome Tweeter

1 295-305 Dayton Audio DC160-8 6-1/2" Classic Woofer

1 260-402 Port Tube 1-1/2" ID x 4" L Flared

1 260-520 Sonic Barrier 1/2" Acoustic Foam w/PSA 18" x 24"
