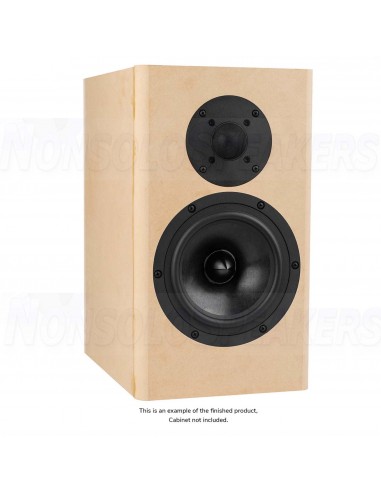

Samba MT DIY components pack

Components for one speaker, (cabinet not included)

.

Product description

The Samba cabinet kit delivers reference quality sound with natural high frequency response and powerful low end capability. This premium design delivers pinpoint imaging, revealing detail, and flat response with minimal distortion. This kit includes only the components, not the knock-down cabinet.

.

Highlights

The Samba speaker kit delivers revealing and accurate response with incredible detail

Incredibly flat response throughout the crossover region, ±1.5 dB from 500-15,000 Hz

Full 6 dB of baffle step compensation for powerful bass response, even away from a wall

.

Product details

Samba MT | Bookshelf Speaker Kit | Components Only

Designed by the engineers at Dayton Audio, the Samba speaker kit is a compact 2-way bookshelf speaker that provides a reference quality sound without the usual high price. The Sambas produce an extremely detailed and accurate sound while still delivering a natural and non-fatiguing quality that is perfect for long listening sessions. Both the woofer and tweeter use low distortion motors and non-resonant diaphragms to deliver accurate sound that allows the speakers seemingly disappear into your listening environment. The Samba speaker kit will be right at home in everything from a high-end recording studio to any audiophile's living room.

Bass and midrange frequencies are handled by the popular Dayton Audio RS180P-4 7" Reference Paper Woofer. With a reinforced paper cone and low-distortion motor system with dual shorting rings, this driver sets the standards for value in high-performance woofers. High frequency duties go to the Dayton Audio RST28F-4 1-1/8" Reference Series Fabric Dome Tweeter. Designed to be a match for the Reference Series woofers, this tweeter was the obvious choice and with a state-of-the-art Ferrofluid cooled motor system, including copper shorting rings, to ensure that high frequency content is reproduced as transparently as possible, assuring studio-quality performance.

The solid 3/4" MDF enclosure panels are all CNC milled by Denovo Audio to tight tolerances ensuring easy assembly. The finished enclosure includes a center brace tying all sides together minimizing cabinet resonances. Recesses for flush mounting the drivers and the opening for the port are pre-cut making assembly a snap.

This kit includes nearly everything you need to build a top-notch speaker in no time, including: drivers, port, damping material, and crossover components.

This kit includes parts to build a single speaker.

Note: Screws, Cabinets, baffle, binding posts, and speaker wire are not included.

Specifications: Power handling: 70 watts RMS/140 watts max • Frequency response: 40-20,000 Hz • Impedance: 4 ohms • Sensitivity: 87 dB 1W/1m• Dimensions: 15" H x 8.5" W x 11-3/4" D.
