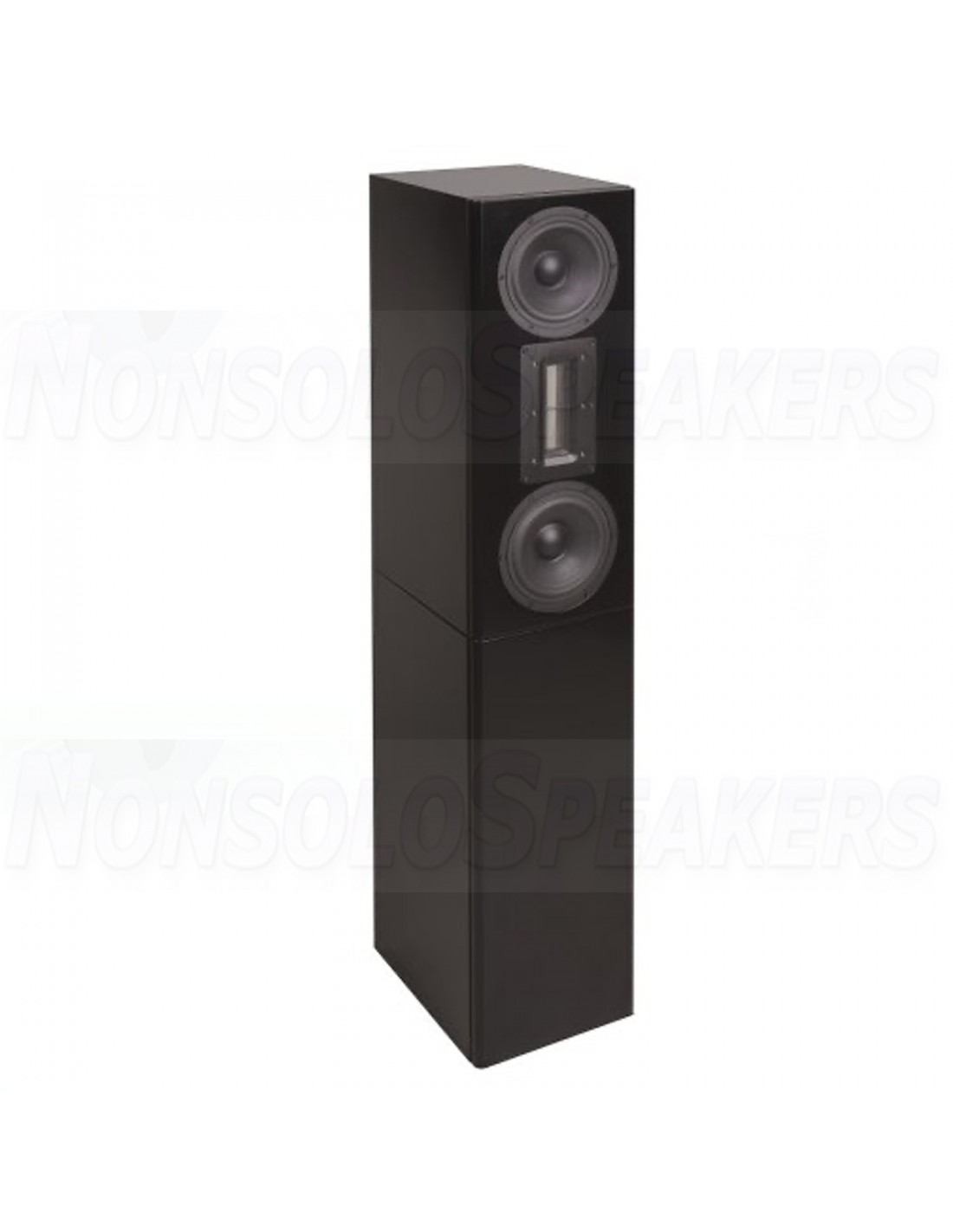

Audaphon Angara floorstanding loudspeaker Kit with high-end crossover

Kit with high-end crossover without housing, price per speaker

Our high-end crossover contains ClarityCaps in the high-end version instead of high-quality Audaphon capacitors in the standard version. The very high-quality MR-Tyen in series with the Air Motion Transformer can be seen here in particular.

Estimated Shipping Costs
Shipping Costs
€38.40
Shipping Time
.
Want to check another country or courier?

You might also like



Audaphon Angara floorstanding loudspeaker Kit with high-end crossover

Kit with high-end crossover without housing, price per speaker

.

Our high-end crossover contains ClarityCaps in the high-end version instead of high-quality Audaphon capacitors in the standard version. The very high-quality MR-Tyen in series with the Air Motion Transformer can be seen here in particular. A copper foil coil is used in series with the woofers; otherwise air coils (mostly baked enamel coils) are used throughout

.

Technical data:

  • Impedance: 4 Ohm
  • Sound pressure level (2.83V/1m): 87 dB
  • Dimensions (HxWxD): 1200 x 250 x 319 mm
  • Frequency range (-8dB): 30 - 42000 Hz
  • Crossover frequency(s): Hz
  • Principle: bass reflex box
.

Highlights

  • Audaphon Ribbon NeoPro5i, aluminum, black
  • 2x Wavecor mid-woofer WF182BD04, 8 Ohm
  • Bass reflex tube HP70, 70x220mm, black
  • 3x insulation material made of polyester wadding, 125 g for 20L volume
  • Biwiring terminal T122 Au with gold-plated brass terminals
  • 3m speaker cable 2x1.5 mm2, transparent
  • PE sealing strip, 5x2 mm Pan screws 3.5x17 black, 4 pieces
  • Allen wood screws 4x25mm, black 18 pieces
  • Construction plan for the kit the crossover components (right), to be assembled on a wooden board.
  • ClarityCap MR Kondensator 5,6 μF / 630 Vdc
  • ClarityCap MR Kondensator 15 μF / 630 Vdc
  • ClarityCap PWA Kondensator 2,2 μF / 400 Vdc
  • ClarityCap PWA Kondensator 2,7 μF / 400 Vdc
  • ClarityCap PWA Kondensator 3,9 μF / 400 Vdc
  • ClarityCap PWA Kondensator 10 μF / 400 Vdc
  • Mundorf Folienspule CFC14-1,2mH/0,26Ohm 0,7 mm
  • Mundorf Luftspule, 0,068 mH 2x 0,7 mm
  • Mundorf Backlack-Luftspule, 0,47 mH/0,57 Ohm
  • 0,7 mm Mundorf Backlack-Luftspule, 4,7 mH/2,39 Ohm
  • 3x Metalloxidwiderstand MOX10 2,2 Ohm (rot-rot-gold)
  • Metalloxidwiderstand MOX10 8,2 Ohm (grau-rot-gold)
  • Metalloxidwiderstand MOX10 5,6 Ohm (grün-blau-gold)
Audaphon Angara
2 Items

You might also like

CVS10C - OFC speaker cable 2x1.0mm² - white sheath CVS10C - OFC speaker cable 2x1.0mm² - white sheath 2
SHIPMENT IN 5/7 WORKING DAYS
Speakers Cables for Home HIFI

SPEAKERS CABLE CVS25C - OFC 2x2.5mm² - white sheath

XPL
CVS25C
rating 0 review
€2.59
SPEAKERS CABLE CVS25C - OFC  2x2.5mm² - white sheath Bipolar OFC copper cable for 2x2.5mm² speakers composed of 7 braids with 32 wires each of 0.12mm. External dimensions: 3.8x7.6mm. Available in 50m and 100m air-wound rolls. Excellent quality .. Price per linear meter. Technical features Cable type Double wire speaker Cross section Cable 25 mm Cable...
Dayton Audio BR-1 2-Way Bookshelf Monitor Speaker Dayton Audio BR-1 2-Way Bookshelf Monitor Speaker 2
  • On sale!
  • -10%
SHIPMENT IN 7-10 WORKING DAYS
DIY speaker kit

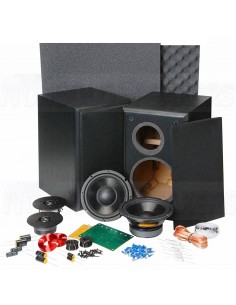

Dayton Audio BR-1 2-Way Bookshelf Monitor Speaker
