Monacor Aurum floorstanding loudspeaker Kit price-performance

Kit with price/performance crossover without housing price per speaker

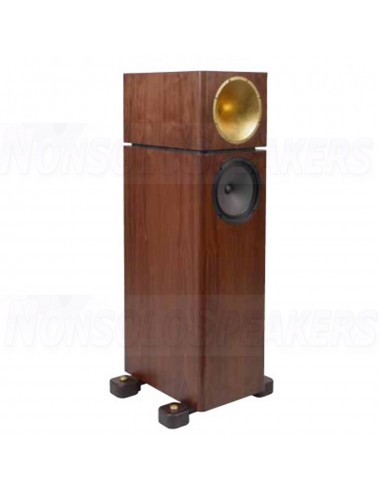

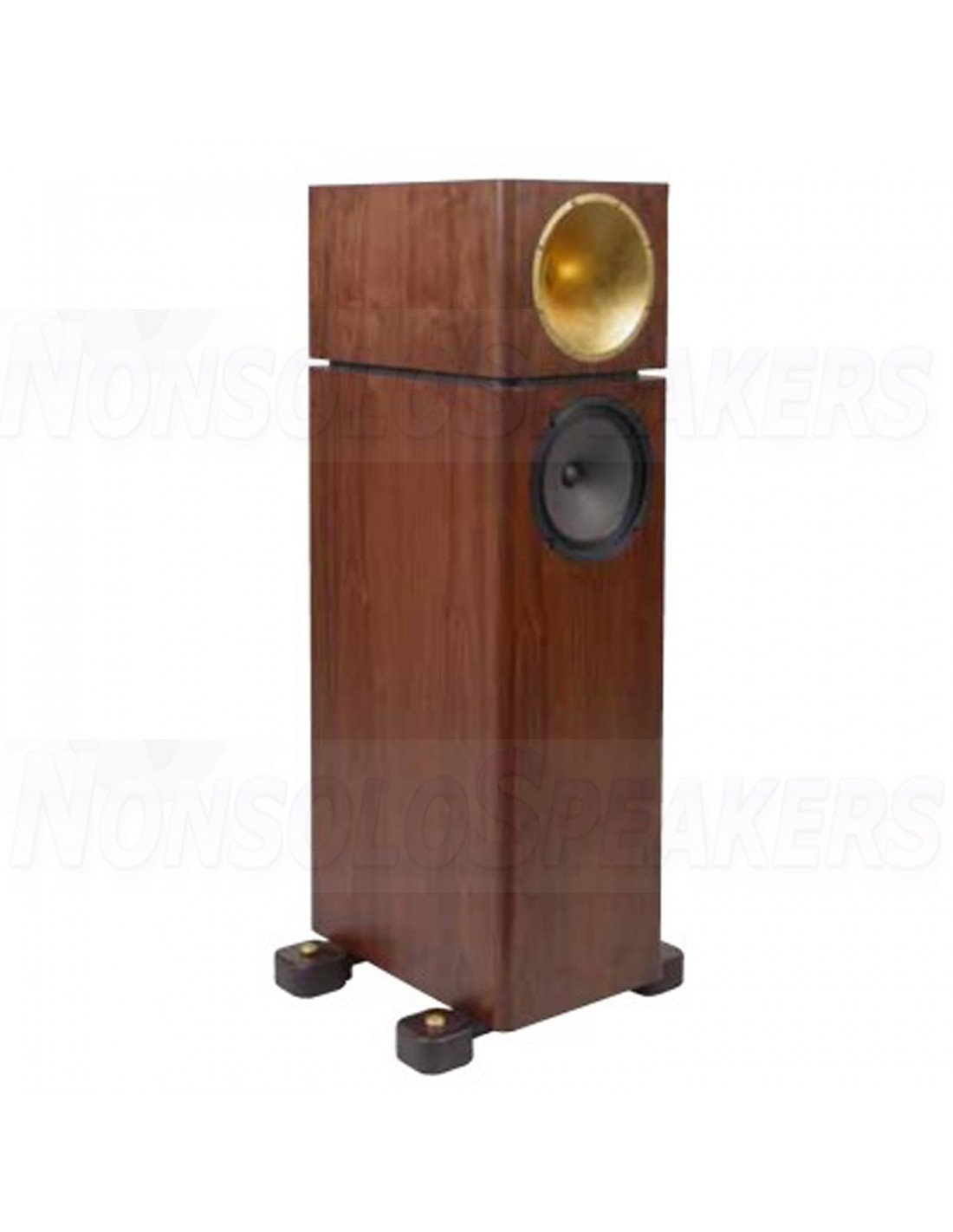

Aurum is a floor-standing loudspeaker developed by Ronald Waßen and Markus Schäpermeier. It contains a Visaton broadband BG 20, as was already included in Notch, CT 230 or CT 250. In the proposed design, its frequency range is extended upwards by a pressure chamber driver with a horn. The driver is a Monacor MRD-34PA, which plays into a Dayton H08RW horn. The crossover has a slope of 18 dB/octave. This results in a flat frequency response; the decay spectrum is fast, apart from minor resonances. The non-linear distortions are low, especially at low levels.

Our price/performance kit contains N25 foam and polyester wadding as insulation material. Three simple terminals are used for the wiring. The kit also contains standard coils; a H71 core coil in series with the broadband speaker and smooth electrolytic capacitors as capacitors.

Technical data:

• Impedance: 8 Ohm
• Sound pressure level (2.83V/1m): 88 dB
• Dimensions (HxWxD): 1040 x 280 x 420 mm
• Frequency range (-8dB): 32 - 24000 Hz
• Crossover frequency(s): Hz
• Principle: bass reflex box

Highlights

• Dayton H08RW Waveguide
• Monacor MRD-34PA, 1-inch horn driver
• Vifa compensation magnet 90mm
• Visaton broadband BG 20, 8 Ohm
• Bass reflex tube HP70, 70x220mm, black
• 1.5x cut from needle felt, 1100 g/m2 1000x400, 10mm
• 4.5 pack Sonofil (sheep's wool no longer available)
• 3 pairs of pole terminals PK31, pair, gold-plated, red+black
• 3m speaker cable 2x1.5 mm2, transparent
• Pan screws 3.5x17 black, 12 pieces
• Construction plan for the kit the crossover components (right), to be assembled on a wooden board.
• 2x smooth electrolytic capacitor, 1.5 μF / 70 Vdc
• Smooth electrolytic capacitor, 5.6 μF / 70 Vdc
• Smooth electrolytic capacitor, 8.2 μF / 70 Vdc
• Smooth electrolytic capacitor, 10 μF / 70 Vdc
• 1.0 mm air coil, 0.33 mH/0.26 Ohm
• 1.0 mm air coil, 0.82 mH/0.45 Ohm
• Mundorf H71 core coil, 2.2 mH/0.38 Ohm
• Metal oxide resistor MOX10 1.2 Ohm (brown-red-gold)
• Metal oxide resistor MOX10 2.7 Ohm (red-violet-gold)
• Metal oxide resistor MOX10 3.3 Ohm (orange-orange-gold)
• Metal oxide resistor MOX10 6.8 Ohm (blue-gray-gold)
