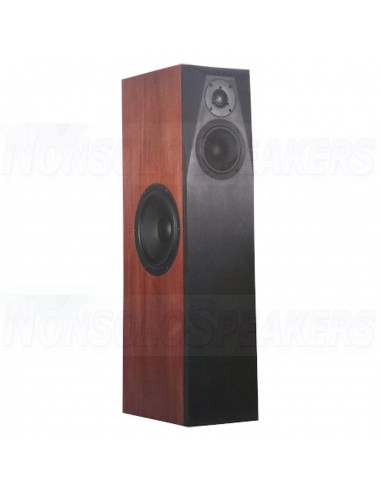

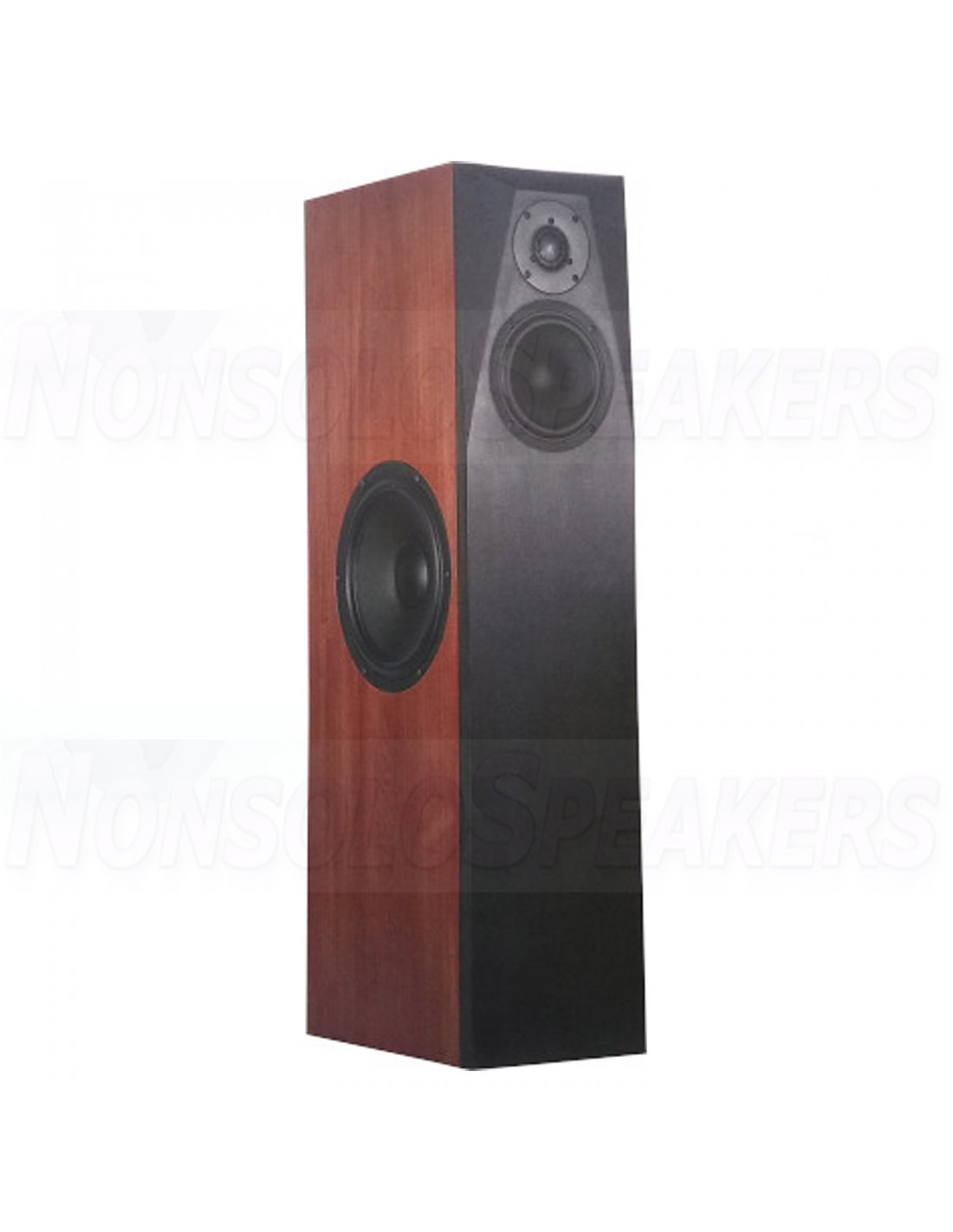

Scan Speak ScanBySide 2 floorstanding speakers Kit with high-end crossover

Name: Scan Speak ScanBySide 2 floorstanding speakers Kit with high-end crossover
Brand: Scan Speak
SKU: ScanBySide 2
Price: 959 EUR
Availability: InStock

Scan Speak ScanBySide 2 floorstanding speakers Kit with high-end crossover

Kit with high-end crossover without housing price per speaker

SHIPMENT IN 7-10 WORKING DAYS

€959.00

Tax included

No review at the moment

Estimated Shipping Costs

Shipping Costs

€46.80

Shipping Time

Want to check another country or courier?

Scan Speak ScanBySide 2 floorstanding speakers Kit with high-end crossover

Kit with high-end crossover without housing price per speaker

ScanBySide 2 is a three-way floor-standing loudspeaker with a flat frequency response from under 30 to over 40,000 Hz, low distortion and an excellent decay spectrum. ScanBySide 2 is a closed loudspeaker with chassis from SB Acoustics and Scan Speak. The loudspeaker contains the following chassis: - a tweeter SB Acoustics SB29BAC-C000-4 - a midrange speaker SB Acoustics SB17NBAC35-4 - a woofer Scan Speak 26W/4534G00 The loudspeaker was developed by Bernd Timmermanns. The crossover consists of: - a 3rd order high pass (18 dB / octave) for the tweeter. - a band pass consisting of a 2nd order high pass (12 dB / octave) and a 3rd order low pass (18 dB / octave) for the midrange woofer. - a 2nd order low-pass filter (12 dB / octave) for the woofer. The frequency response of the speaker is perfectly linear. The decay spectrum (waterfall diagram) is exemplary without any disturbing resonance. The non-linear distortions at medium volumes (90 dB, 1m) are below 0.3% above 200 Hz.

The high-end kit is equipped with baked varnish coils in the important places to reduce the microphonic effect (the current through the coil generates a magnetic field, which in turn sets the winding in motion. This movement induces voltages in the coil, which are added to the useful signal. The tighter the winding of the coil, the less the useful signal is distorted.) The capacitors for the SB Acoustics SB29BAC-C000-4 - where quality is particularly important - are high-quality Mundorf MCAP EVO silver gold oil capacitors with 450 V.

Technical data:

Impedance: 4 Ohm
Sound pressure level (2.83V/1m): 85 dB
Dimensions (HxWxD): 1075 x 230 x 380 mm
Frequency range (-8dB): 27 - 40000 Hz
Crossover frequency(s): 150, 2500 Hz
Principle: closed box

Highlights

SB Acoustics tweeter SB29BAC-C000-4, beryllium
SB Acoustics SB17NBAC35-4, black aluminum membrane
ScanSpeak subwoofer 26W-4534G00 (also suitable as a replacement for Vifa M26WR09-08)
Insulating fleece MT Bondum 800 (30 x 50 x 2 cm)
0.5x Damping 30, 1100 x 470 mm, self-adhesive
0.5x PE foam sealing strip, 5x2 mm, roll 7.5 m
1.5x insulating material Sonofil 100 x 35 cm for 20 liters
Pole terminals PK31, one pair, gold-plated, red+black
3m speaker cable 2x2.5 mm2, transparent
2x Pan screws 4x20 black, Torx, 8 pieces
Construction plan for the Kit the crossover components (right), to be assembled on a wooden board.
Mundorf MCAP EVO 22 μF; / 450 V
Mundorf MCAP EVO Silver Gold Oil 2.2 μF; / 450 V
Mundorf MCAP EVO Silver Gold Oil 3.9 μF; / 450 V
Mundorf MKP Capacitor 10 μF; / 400 V
Audaphon MKP CAP Superior 8.2 μF; / 400 Vdc
2x JB Elko bipolar, 220 uF/50 Vdc
JB Elko bipolar, 330 uF/50 Vdc
2x JB Elko bipolar, 470 uF/50 Vdc
JB Elko bipolar advanced, 47μF / 100 Vdc
JB Elko bipolar advanced, 100μF / 100 Vdc
Mundorf baked varnish air coil BL71, 0.56 mH/0.64 Ohm
Mundorf baked varnish air coil BL71, 0.68 mH/0.71 Ohm
Mundorf baked varnish air coil BL71, 0.82 mH/0.89 Ohm
Mundorf baked varnish air coil BL71, 10 mH/3.62 Ohm
Mundorf baked varnish air coil BL71, 18 mH/4.66 Ohm
Mundorf BS140 core coil 6.8mH/0.3Ohm
Mundorf H-core baked enamel coil BH71, 3.3 mH/0.47 0hm
MResist Classic resistor 5.6 Ohm / 10 Watt
Metal oxide resistor MOX10 1.0 Ohm (brown-black-gold)
Metal oxide resistor MOX10 2.2 Ohm (red-red-gold)
Metal oxide resistor MOX5 0.47 Ohm 5% (yellow-violet-silver)
Metal oxide resistor MOX5 3.3 Ohm (orange-orange-gold)
Metal oxide resistor MOX5 27 Ohm (red-violet-black)

Reference ScanBySide 2

In stock 2 Items
