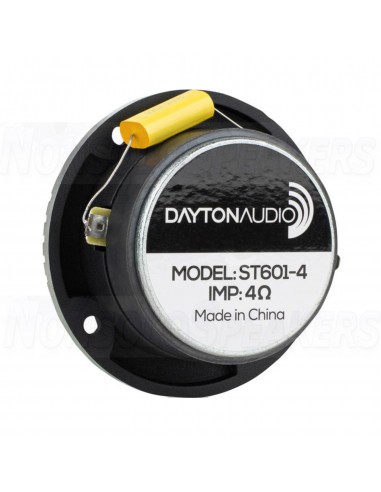

    Dayton Audio ST601-4 60W Titanium Shallow Mount Tweeter Pair

    The ST601-4 from Dayton Audio was designed to articulate and reinforce the high-frequency output of any professional loudspeaker. With a great price-to-performance ratio, you would be hard-pressed to find a better driver to keep on hand!

    Highlights

    • High sensitivity output designed for pro audio duty
    • 1" titanium diaphragm for a detailed response
    • Compact Size to fit in the tightest spaces for smaller boxes 5,600Hz crossover point is perfect for 3-way designs
    • Easily adds detail to any existing system



    Estimated Shipping Costs
    Shipping Costs
    €18.00
    Shipping Time
    .
    Want to check another country or courier?

    You might also like



    Dayton Audio ST601-4 60W Titanium Shallow Mount Tweeter Pair

    The ST601-4 from Dayton Audio was designed to articulate and reinforce the high-frequency output of any professional loudspeaker. With a great price-to-performance ratio, you would be hard-pressed to find a better driver to keep on hand!

    Frequency Response & Impedance

    The Dayton Audio ST601-4 is a supertweeter that can keep up with many midrange drivers. By taking advantage of its high-frequency response, you can add air and clarity to any PA system!

    -

    High Sensitivity

    The Dayton Audio ST601-4 has a high sensitivity to keep up with the demands of live audio. An output sensitivity of 106dB means the ST601-4 can add detail to even the most sensitive PA cabinets. When installed, the high-frequency output of the ST601-8 provides a clear and airy experience for every audience member in the crowd!

    Highlights

    • High sensitivity output designed for pro audio duty
    • 1" titanium diaphragm for a detailed response
    • Compact Size to fit in the tightest spaces for smaller boxes 5,600Hz crossover point is perfect for 3-way designs
    • Easily adds detail to any existing system

    -

    Product Details

    Model Number ST601-4
    Color Black/Silver
    Unit of Measure Pair
    Product Shipping Weight (lbs.) 1.4
    Speaker Type Tweeter
    Nominal Diameter 1"
    Power Handling (RMS) 30 watts
    Power Handling (max) 60 watts
    Continuous Program Power --
    Impedance 4 ohms
    Sensitivity 103 dB @ 2.83V/1m
    Frequency Response 5,000 – 20,000 Hz
    Voice Coil Diameter 25.4 mm
    Magnet Weight --
    DC Resistance (Re) 3.61 ohms
    Voice Coil Inductance (Le) 0.089 mH @ 10kHz
    Resonant Frequency (Fs) 2,660 Hz
    Mechanical Q (Qms) --
    Electromagnetic Q (Qes) --
    Total Q (Qts) --
    Diaphragm Mass Inc. Airload (Mms) --
    Moving Mass Of Diaphragm (Mmd) --
    Mechanical Compliance of Suspension (Cms) --
    Surface Area Of Cone (Sd) --
    Volume of Displacement (Vd) --
    BL Product (BL) --
    Compliance Equivalent Volume (Vas) --
    Maximum Linear Excursion (Xmax) --
    Drivers Mechanical Losses (Rms) --
    Cone / Diaphragm Material PEI
    Entry / Exit Diameter --
    Surround Material --
    Voice Coil Wire Material --
    Voice Coil Former --
    Basket/Frame Material --
    Magnet Material Ferrite
    Overall Outside Diameter 95 mm
    Overall Depth 42.5 mm
    Baffle Cutout Diameter 70 mm
    Mounting Hole Diameter --
    Bolt Circle Diameter --
    Product Weight --
    Cone / Dome Diameter --
