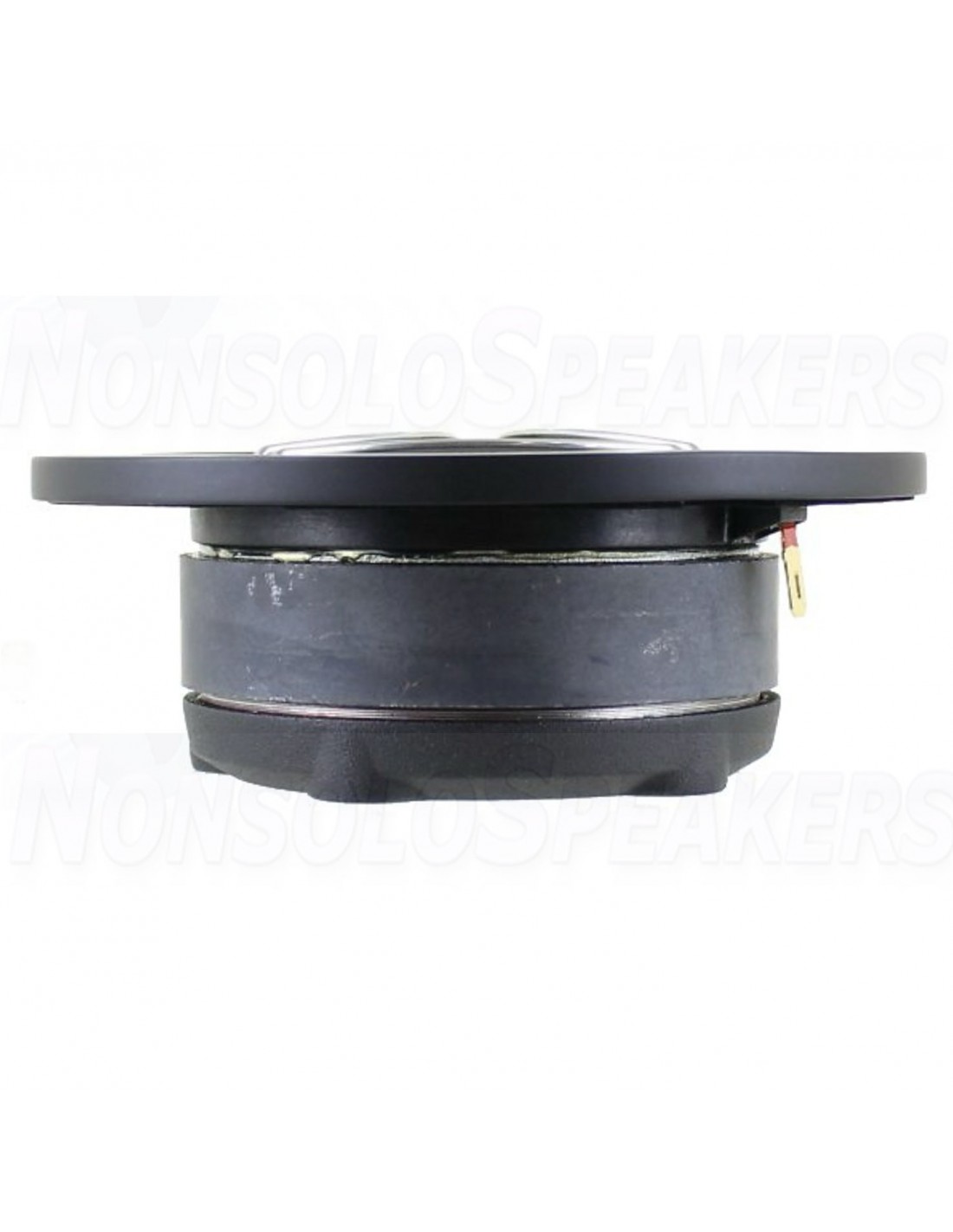

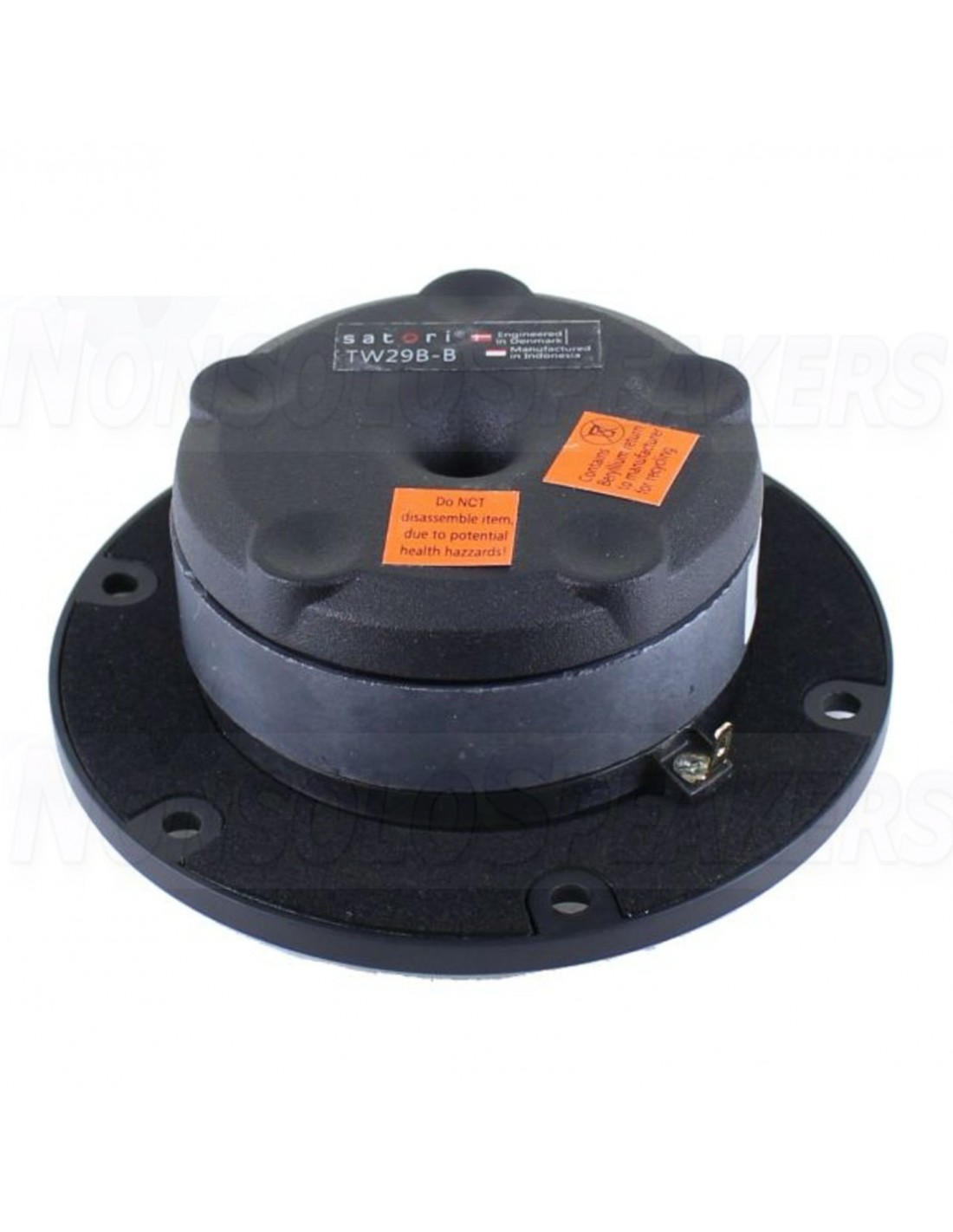

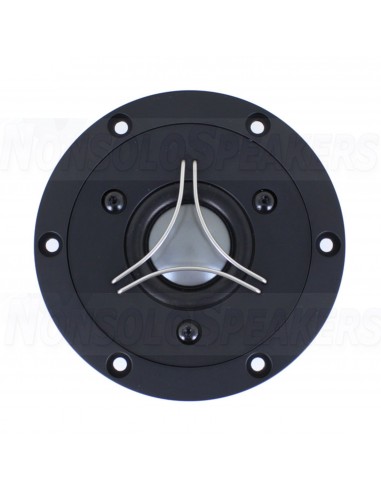

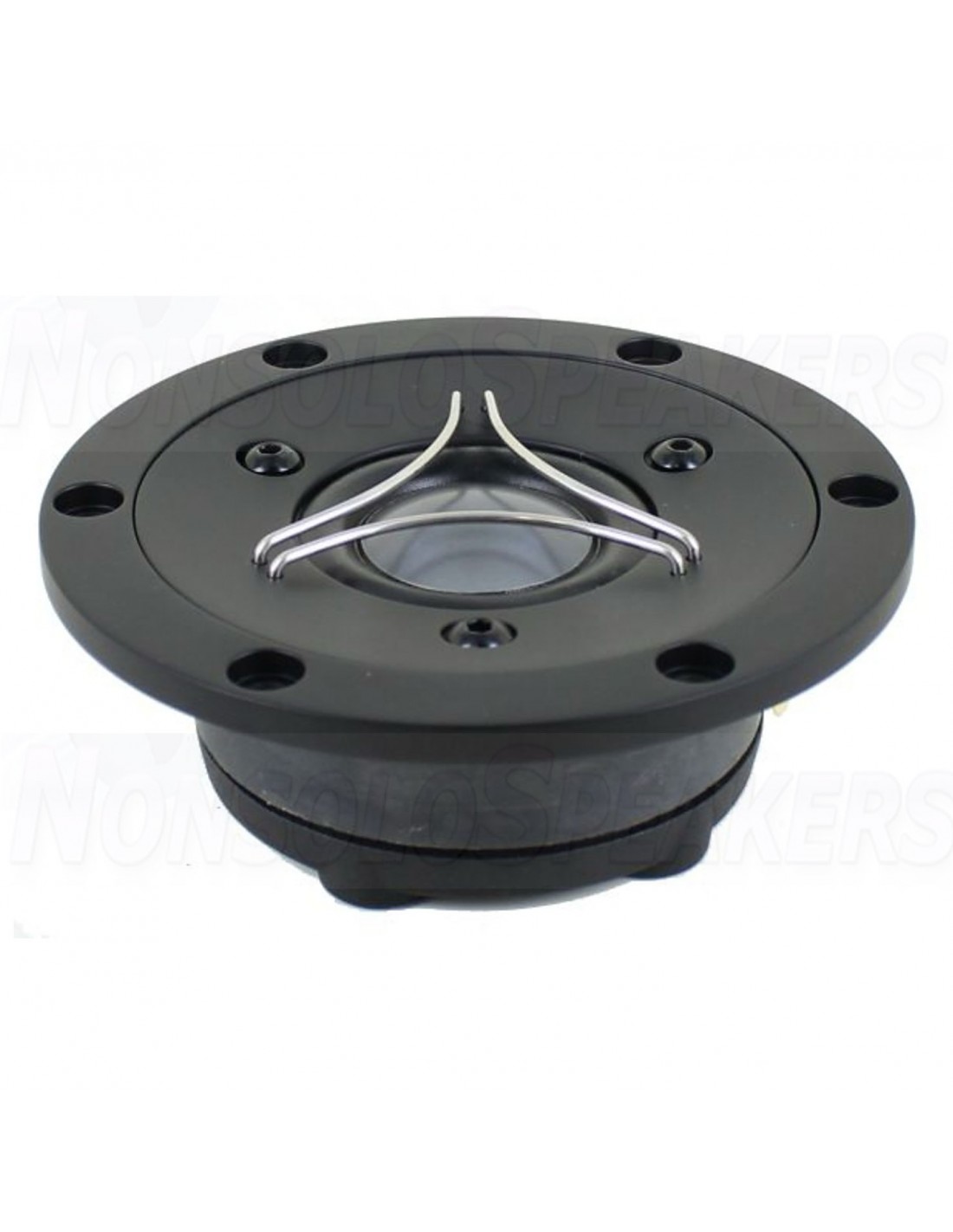

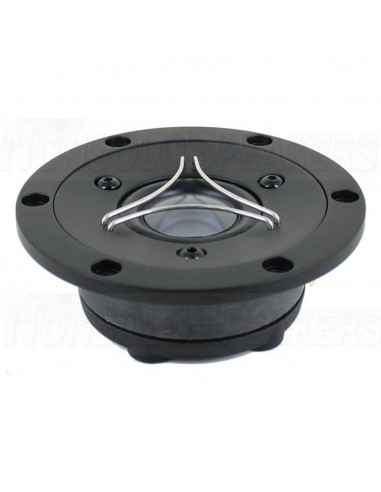

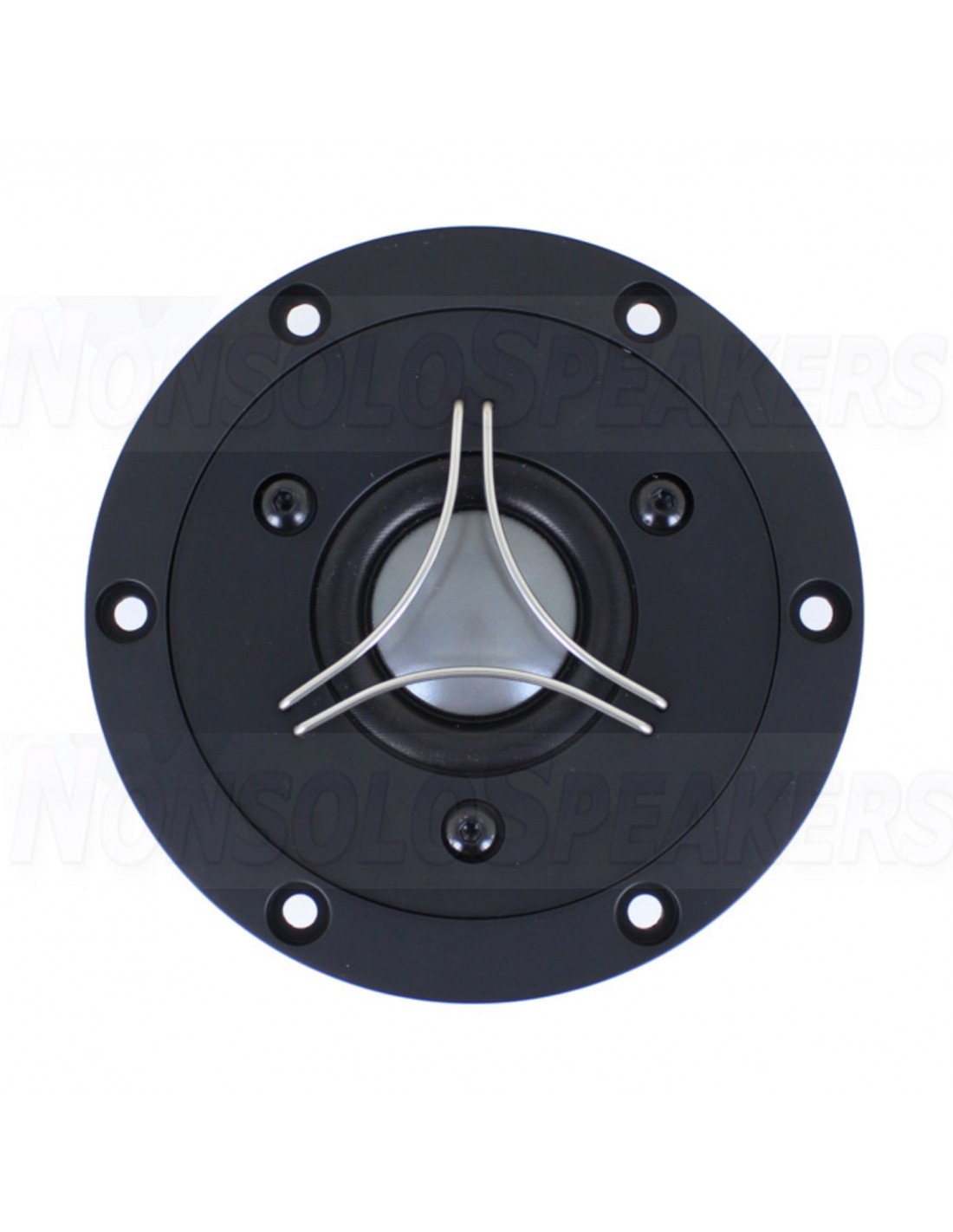

SB Acoustics Satori TW29B-B Dome Tweeter
SB Acoustics Satori TW29B-B Dome Tweeter
SB Acoustics Satori TW29B-B Dome Tweeter
SB Acoustics Satori TW29B-B Dome Tweeter
  • New
SB Acoustics Satori TW29B-B Dome Tweeter
SB Acoustics Satori TW29B-B Dome Tweeter
SB Acoustics Satori TW29B-B Dome Tweeter
SB Acoustics Satori TW29B-B Dome Tweeter

SB Acoustics Satori TW29B-B Dome Tweeter

SHIPMENT IN 7-10 WORKING DAYS
€265.83
rating No review at the moment

SB Acoustics Satori TW29B-B Dome Tweeter

The new Satori Beryllium dome tweeter with ferrite magnet has arrived!  Beryllium is known for its open and spatial sound, often described as holographic.

Estimated Shipping Costs
Shipping Costs
€59.00
Shipping Time
.
Want to check another country or courier?



SB Acoustics Satori TW29B-B Dome Tweeter

.

Product description

Beryllium dome for non-resonant high frequency extension

Two part aluminum faceplate with integrated mechanical decoupling

Dual balanced compression chambers for improved dynamics

Dual copper caps for absolute minimum voice coil inductance and minimum phase shift

Non-reflective cast aluminum chamber with optimized damping for improved dynamics

Shallow flow optimized magnet structure for optimum coupling to rear chamber

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency for extended range

.

Product details

SB Acoustics Satori TW29B Beryllium Dome Tweeter

The new Satori Beryllium dome tweeter with ferrite magnet has arrived!  Beryllium is known for its open and spatial sound, often described as holographic.  The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters.  All dome materials have a different tonal and spatial presentation.  Beryllium has a real positive difference, providing an experience unlike all other dome materials.  This new ferrite magnet version has a little less output for a very competitive price.

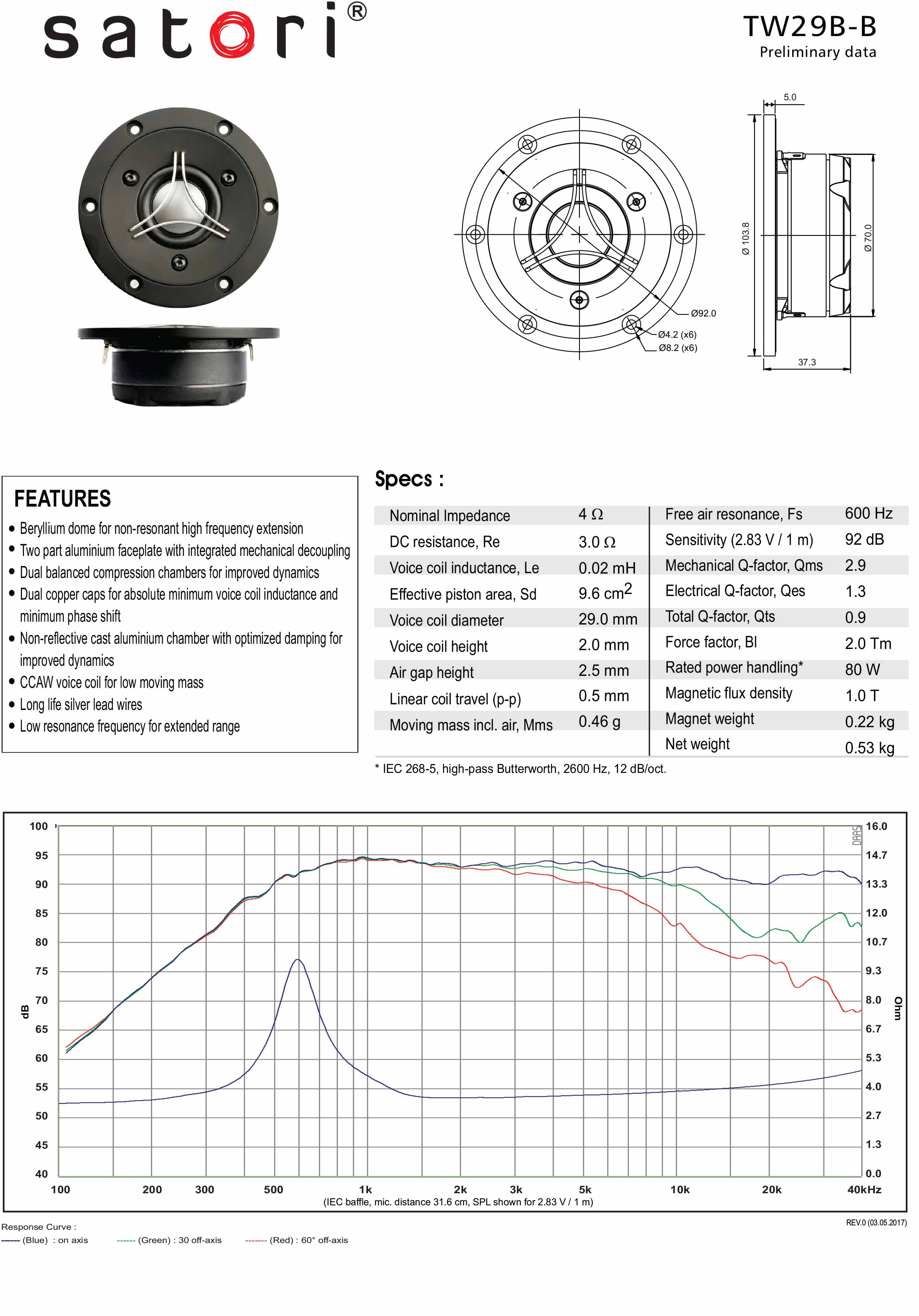

Specifications: BL Product (BL): 2 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.46 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

.

Specifications

Article numberTW29B-B
Tweeter TypeDome
Tweeter SeriesSatori Series
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)80 Watts
Impedance (Z)4 Ω
Sensitivity (SPL at 1m / 2.83V)92 dB
Resonant Frequency (Fs)600 Hz
DC Resistance (Re)3 ohms
Voice Coil Inductance (Le)0.02 mH
Mechanical Q (Qms)2.9
Electromagnetic Q (Qes)1.3
Total Q (Qts)0.90

.

TW29BN
