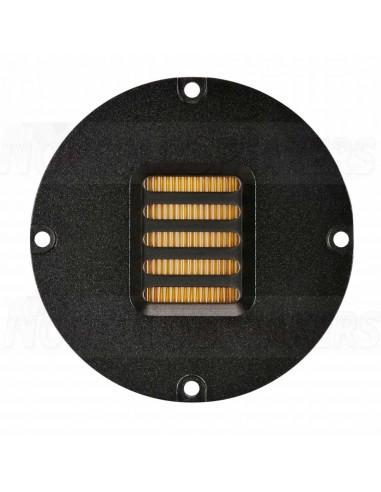

Dayton Audio AMT2-4 Air Motion Transformer Tweeter 4 Ohm

The Dayton Audio AMT2-4 Air Motion Transformer tweeter brings clarity, transient speed, and musical finesse to your design. The tweeter's round faceplate flush mounts into baffles easily, and groundbreaking AMT technology enables high output from such a compact driver.

-

Highlights

Advanced Air Motion Transformer design "squeezes" air molecules instead of shoving or crushing them

Folded Kapton ribbon diaphragm delivers detailed dynamic output

Powerful, lightweight neodymium magnet structure for low distortion and high efficiency

Sonically similar to the best metal ribbon and planar tweeters

-

Product Details

Dayton Audio AMT2-4 Air Motion Transformer Tweeter 4 Ohm

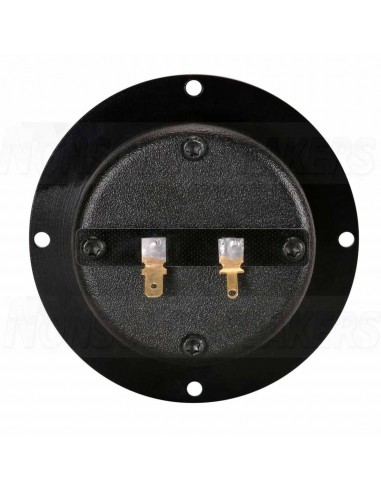

The Dayton Audio AMT2-4 features a round faceplate and compact AMT element, for wide dispersion and overall performance that easily replace dome tweeters in retrofit or new design applications. The sealed rear chamber design of the AMT2-4 eliminates the need for a separate internal chamber in the loudspeaker enclosure.

Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.

-

Characteristics:

Tweeter Type: Air Motion Transformer (AMT)

Power Handling (RMS): 15 watts

Impedance (Z): 4 ohms

Sensitivity: 92.5dB 2.83V/1m

Frequency Response: 2,500 to 22,000Hz

Resonant Frequency (Fs): 2,300Hz

DC Resistance (Re): 3.50 ohms

Mechanical quality (Qms): 2.92

Total Quality (Qts): 2.86

Outer diameter: 8.99cm (with front panel)

Cutout diameter: 6.5cm

Depth: 2.84cm
