SB Audience BIANCO-8MWN150 8 ohm 8 inch

SB Audience BIANCO-8MWN150 8 ohm 8 inch

1 PIECE

At SB we believe in the importance of subjective listening during the development process to complement the advanced FEM stimulation, motor optimization, diaphragm design, voice coil technology, adhesives etc. We have done extensive listening and also compared to several high priced competing transducers, and at SB Audience we are really excited about the sound of these new drivers.

The new line of products incorporate a heavy duty distinctive looking cast aluminium rear chamber that visually define the new products. The chamber has been optimized to minimize resonances and absorb reflections.

• Exremely light weight PEI diaphragm
• Smooth response with airy detailed highs
• High sensitivity and compact design

With well over 35 years of experience in professional sound reinforcement drivers, we strive to bring this know-how to the world with the most competitive high quality drivers on the market.

SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing. There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.

• Product type Cone driver
• Brand SB Audience
• Product manufacturer range Woofer, Bianco, 8 inch
• Frequency coverage type Midbass, Midrange, High midrange
• Dimensional category 8 inch

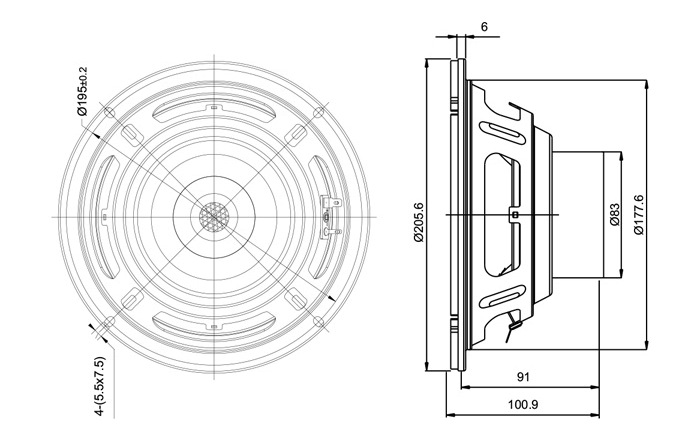

• External diametre 205.6 mm
• Mounting diametre 177.6 mm
• Magnet type Neodymium
• Basket masterial Acier
• Nominal impedance 8 ohm
• Zmin 8.2 ohm
• Nominal power handling 150 W
• Max power handling 300 W
• Manufacturer sensitivity 93 dB
• Calculated sensitivity 92.64 dB

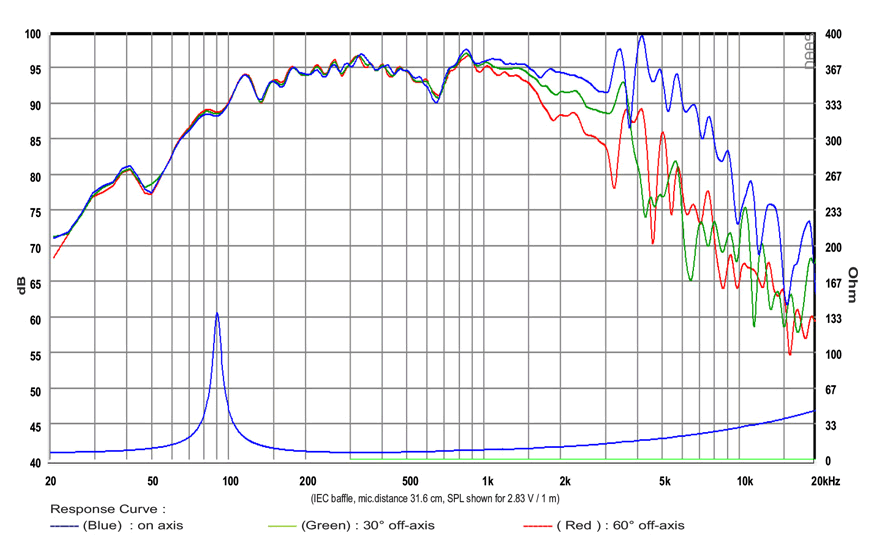

• Frequency response 77-6000 Hz
• Voice coil diameter 2.38 inch
• Winding material CCAW (Copper-clad aluminium wire)
• Voice coil former till
• Winding depth 13.64 mm
• Gap height 5 mm
• Flux density 1.04 T
• Depth after front 91 mm
• Front thickness 9.9 mm
• Diamètre aimant (mm) 83 mm
• Weight 1.43 kg
• Fs 77 Hz
• Re 6.8 ohm
• Qes 0.38
• Qms 8.54
• Qts 0.36
• Vas 10 L
• Sd 224.3 cm²
• Efficiency 1.18 %
• Calculated efficiency 1.16 %
• Xmax 5.98 mm
• Xvar 15.6 mm
• Mms 29.8 gr
• BL 16.2 T.m
• Le 1.08 mH
• EBP 203
• Cone material Paper
• Surround material Cloth
• Surround shape Double roll
• Shipping weight 1.91 kg
