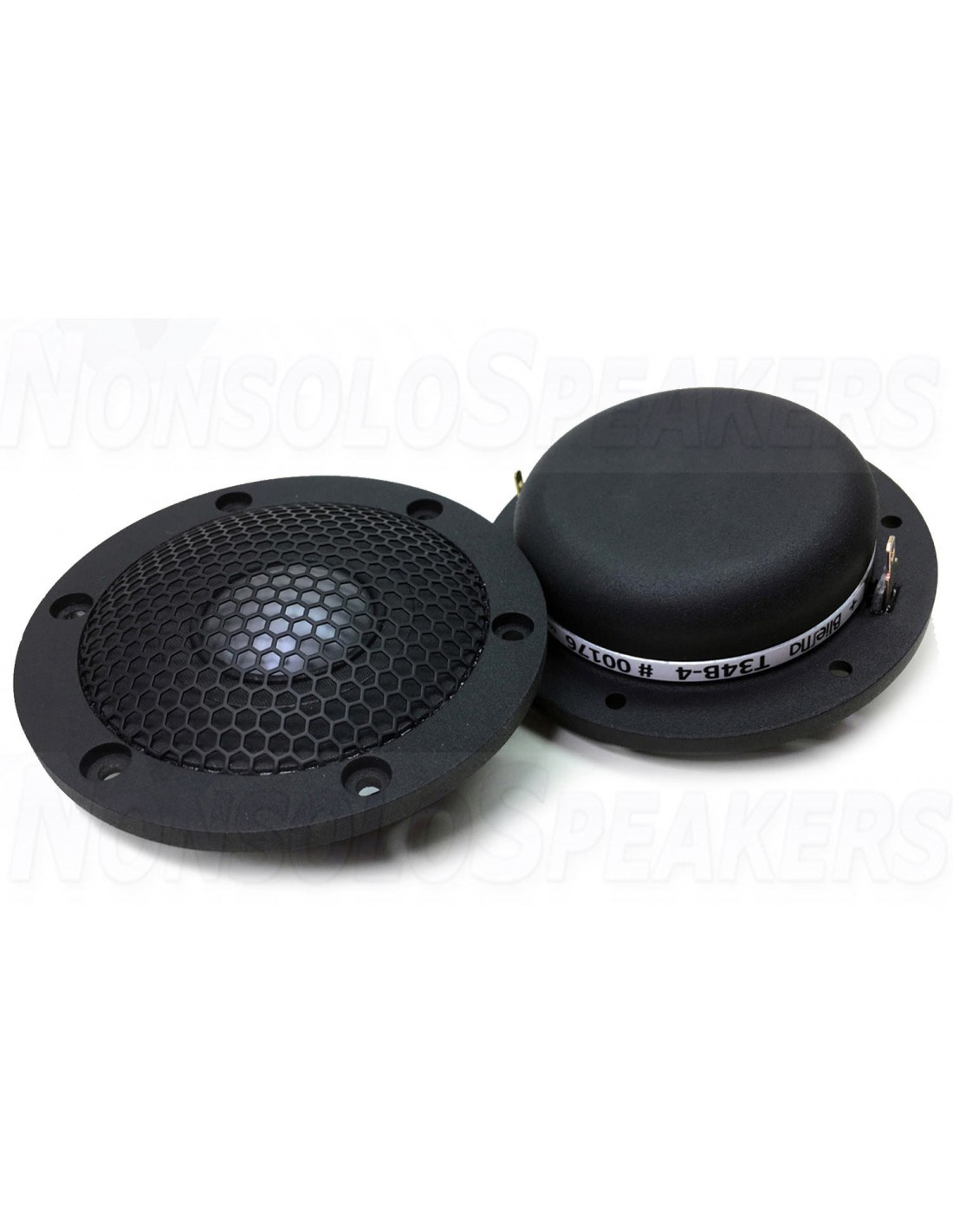

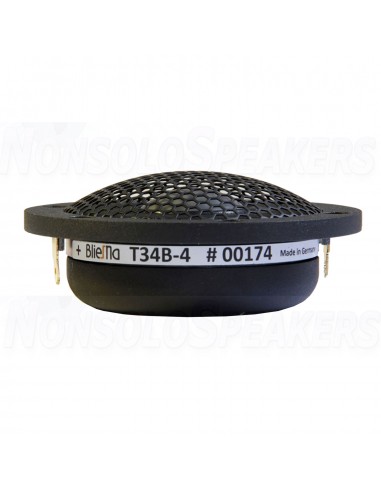

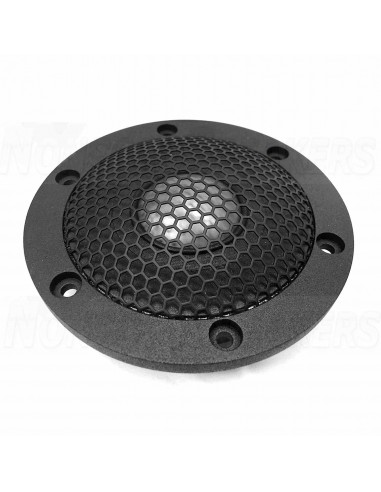

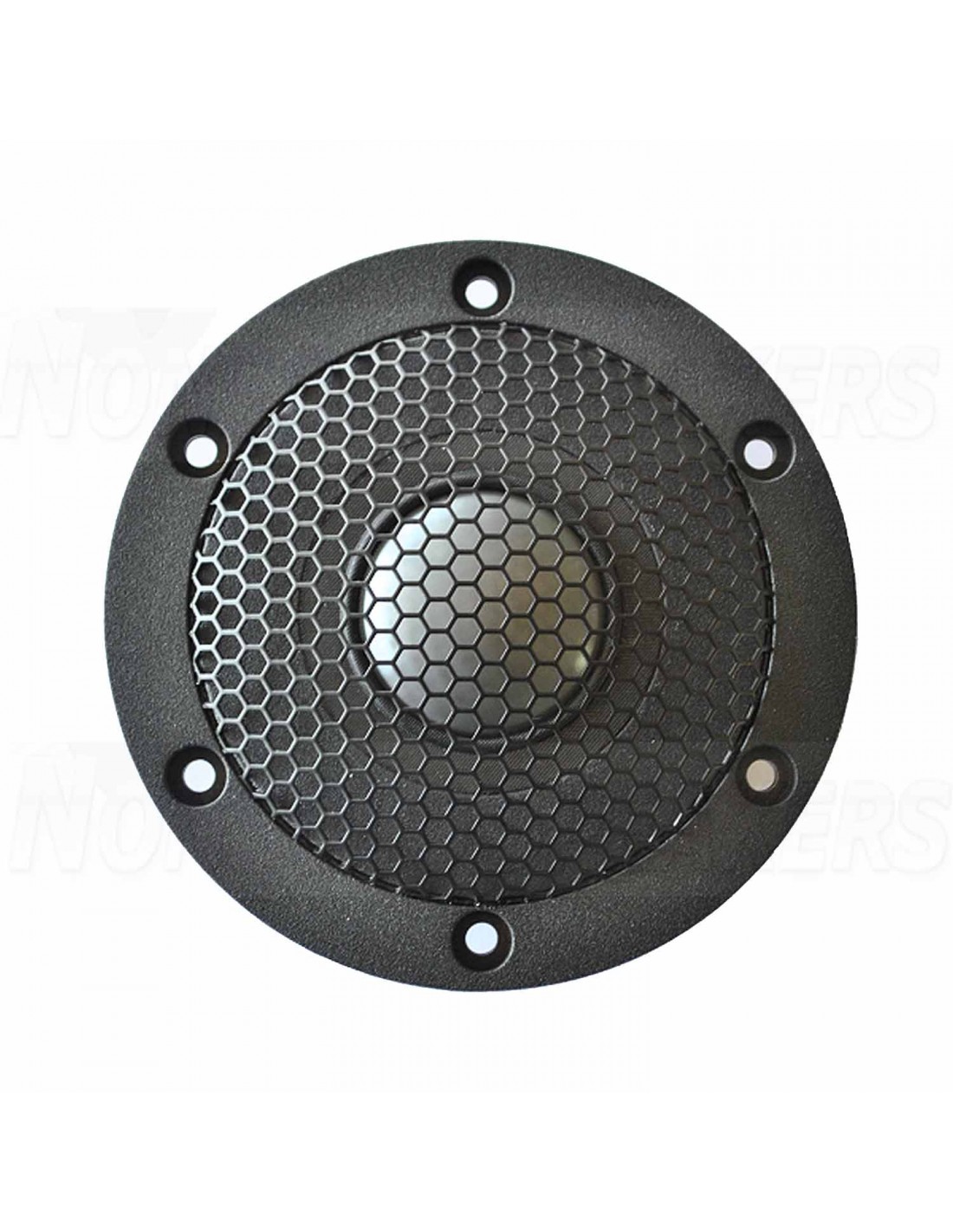

BlieSMa T34B-4 34mm Beryllium dome tweeter 4 Ohm

BlieSMa T34B-4 34 mm Beryllium dome tweeter 4 Ohm

Name: BlieSMa T34B-4 34 mm Beryllium dome tweeter 4 Ohm
Brand: Bliesma
SKU: BlieSMa T34B-4
Price: 548 EUR
Availability: OutOfStock

BlieSMa T34B-4 34mm Beryllium dome tweeter 4 Ohm

The new star among the dome tweeters with beryllium membrane and high dynamics.

High-sensitivity tweeter with 34-mm beryllium alloy dome

Out-of-Stock

€548.00

Tax included

No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs

Shipping Costs

€12.60

Shipping Time

Want to check another country or courier?

BlieSMa T34B-4 34mm Beryllium dome tweeter 4 Ohm

The new star among the dome tweeters with beryllium membrane and high dynamics.

High-sensitivity tweeter with 34-mm beryllium alloy dome

Characteristics :

34 mm beryllium lens
Extremely wide recommended frequency range 1.3 kHz-40 kHz
Extreme dynamics with an efficiency of 97.5 dB @ 2.83V
Extremely low moving mass for improved dynamics, response and higher efficiency
Fully saturated copper-capped neodymium motor for low non-linear distortion and exceptionally low intermodulation distortion 3 mm linear excursion and large vent channel for undistorted reproduction at low frequencies
Narrow surround for less tone coloration through soft elements.
Sound generation only through the up to 35kHz rigid beryllium membrane
Flush-mounted surround and rear-mounted magnet system for a flat frequency response and a wide off-axis response.
No ferrofluid for improved dynamics
Copper-coated aluminum underhung voice coil on titanium bobbin
Flexible and lightweight connection wires, made in Denmark
Thick powder coated aluminum flange
Aluminum rear chamber with natural wool damping
Gold plated wire connectors

Specifications :

Nominal Impedance: 4Ω
Rated power* 80 W
Sensitivity 2.83V/1m 97.5dB
Net weight 0.68kg
Effective piston area, Sd 10.5 cm²
Moving mass, Mms 0.26 g
Force factor, Bl 3.5 T*m
Resonant frequency, Fs 790 Hz
Mechanical Q factor, Qms 2.1
Electrical Q factor, Qes 0.42
Overall Q-factor, Qts 0.35
Magnetic flux density 2.2 T
Air gap height 4.5 mm
Linear deflection (p-p) 3 mm
Voice coil diameter 34 mm
Voice coil height 1.4 mm
voice coil layers 2
Voice coil inductance, Le 0.008 mH
DC resistance, Re 3.3 Ω
Wire material CCAW
* IEC 268-5, 2nd order high-pass Butterworth filter, 2.5 kHz

Reference BlieSMa T34B-4

BlieSMa was founded and in Germany in 2018 by Stanislav Malikov who for a long time worked in such world famous companies which produce loudspeaker drivers as Morel (Israel) and Thiel&Partner (Germany, more familar in the world by its trademark - Accuton). The main activity is the development and production of high-quality loudspeaker drivers.

The tweeters come in pairs and come in two versions: aluminium and beryllium - one of the best material available to speaker drivers manufacturers today.

BlieSMa T34B-4 Beryllium Dome Tweeter

The BlieSMa T34B-4 1-1/2" Beryllium tweeter is the beryllium version of the T34A-4. Offering an even more linear frequency response and the benefit of a resonance peak that lies beyond the 30kHz. The large surface area combined with a Peak to Peak excursion of 3mm gives this tweeter the ability to be safely used down to 1300Hz.

BlieSMa T34A-4 Aluminium-Magnesium Dome Tweeter

The BlieSMa T34A-4 1-1/2" Aluminium-Magnesium tweeter belongs to the absolute best of this market. The extremely linear frequency response and its amazing wide dispersion are unmatched by any other tweeter. The large surface area combined with a Peak to Peak excursion of 3mm gives this tweeter the ability to be safely used down to 1300Hz.

BlieSMa T25B-6 Beryllium Tweeter

The BlieSMa T25B-6 is a 25mm beryllium dome with ultrasonic first breakup mode. Extremely low moving mass for better transient response and higher efficiency.

BlieSMa T25A-6 Aluminum Dome Tweeter

The BlieSMa T25A-6 features flexible and lightweight lead wires made in Denmark. Thick aluminium powder coated flange and an aluminium rear chamber with natural wool damping. Gold plated wire terminals. Recommended frequency range 2.2kHz-35kHz.
