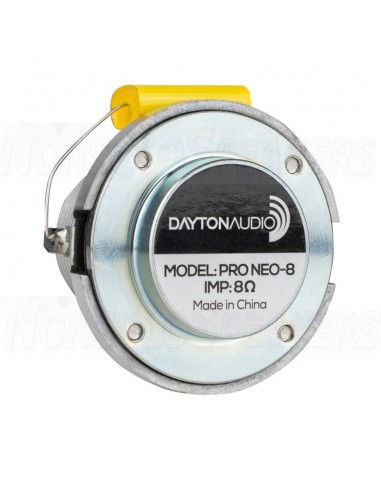

Dayton Audio PRO Neo-8 40W PEI Super Tweeter
Dayton Audio PRO Neo-8 40W PEI Super Tweeter
Dayton Audio PRO Neo-8 40W PEI Super Tweeter
Dayton Audio PRO Neo-8 40W PEI Super Tweeter

Dayton Audio PRO Neo-8 40W PEI Super Tweeter

Dayton Audio PRO Neo-8 40W PEI Super Tweeter

The PRO NEO-8 from Dayton Audio was designed to meet the demands of the market for replacement horn drivers. With a great price-to-performance ratio, you would be hard-pressed to find a better backup to keep on hand!

Highlights

  • High sensitivity output designed for pro audio duty
  • 1" PEI diaphragm for a smooth response
  • Compact Size to fit in the tightest spaces for smaller boxes
  • Standard 1-3/8 18TPI throat is compatible with many screw on horns
  • 2,500Hz crossover point is perfect for 2-way and 3-way designs
SHIPMENT IN 7-10 WORKING DAYS
€39.90

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?



Dayton Audio PRO Neo-8 40W PEI Super Tweeter

The PRO NEO-8 from Dayton Audio was designed to meet the demands of the market for replacement horn drivers. With a great price-to-performance ratio, you would be hard-pressed to find a better backup to keep on hand!

Frequency Response & Impedance

The Dayton Audio PRO NEO-8 is a driver that works well with many different types of horns. Due to its rising response, improved efficiency at the crossover point translates to a smooth, non-fatiguing output once installed on a horn. The simple impedance response of the PRO NEO-8 makes crossover design easy!

-

High Sensitivity

The Dayton Audio PRO NEO-8 has a high sensitivity to keep up with the demands of live audio. Thanks to its neodymium motor, the PRO NEO-8 can keep up when installed in even the most sensitive PA cabinets. When paired with an appropriate horn, the high-frequency detail of the PRO NEO-8 provides a brilliant, airy experience for every audience member in the crowd!

.

Highlights

  • High sensitivity output designed for pro audio duty
  • 1" PEI diaphragm for a smooth response
  • Compact Size to fit in the tightest spaces for smaller boxes
  • Standard 1-3/8 18TPI throat is compatible with many screw on horns
  • 2,500Hz crossover point is perfect for 2-way and 3-way designs

.

Product Details

Model Number PRO Neo-8
Color Silver
Unit of Measure Each
UPC 848791008672
Product Shipping Weight (lbs.) 0.5
Speaker Type Tweeter
Nominal Diameter 1"
Power Handling (RMS) 20 watts
Power Handling (max) 40 watts
Continuous Program Power --
Impedance 8 ohms
Sensitivity 105 dB @ 2.83V/1m
Frequency Response 2,500 – 20,000 Hz
Voice Coil Diameter 25.4 mm
Magnet Weight --
DC Resistance (Re) 5.96 ohms
Voice Coil Inductance (Le) 0.185 mH @ 10kHz
Resonant Frequency (Fs) 1,860 Hz
Mechanical Q (Qms) --
Electromagnetic Q (Qes) --
Total Q (Qts) --
Diaphragm Mass Inc. Airload (Mms) --
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) --
Surface Area Of Cone (Sd) --
Volume of Displacement (Vd) --
BL Product (BL) --
Compliance Equivalent Volume (Vas) --
Maximum Linear Excursion (Xmax) --
Drivers Mechanical Losses (Rms) --
Cone / Diaphragm Material PEI
Entry / Exit Diameter 1"
Surround Material --
Voice Coil Wire Material --
Voice Coil Former --
Basket/Frame Material --
Magnet Material Neodymium
Overall Outside Diameter 60 mm
Overall Depth 49.5 mm
Baffle Cutout Diameter 34.925 mm
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --
Cone / Dome Diameter --
PRO Neo-8
2 Items
New
844632000157
