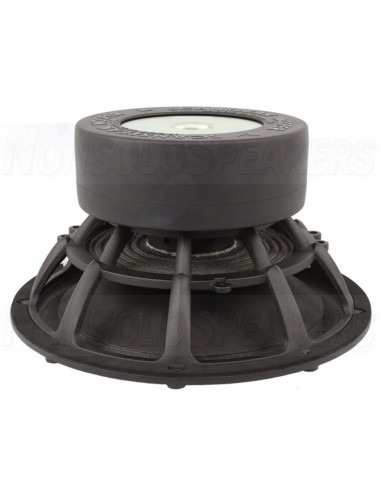

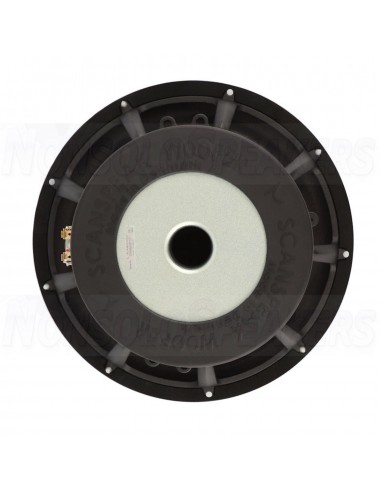

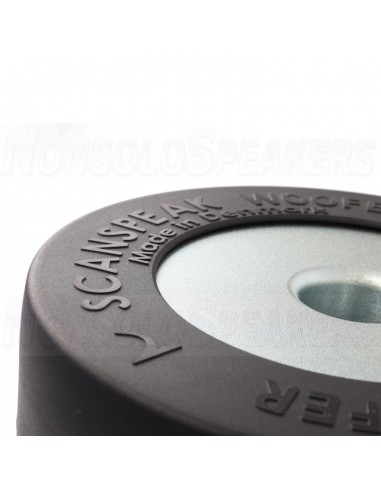

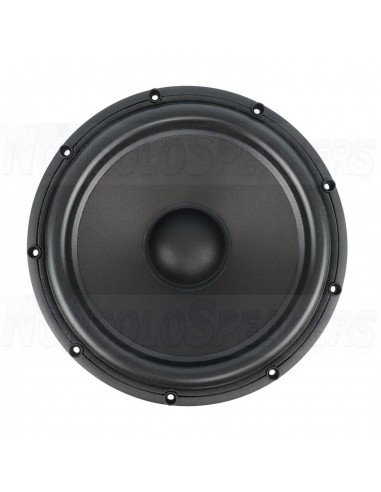

Scan-Speak Revelator 32W/8878T11 Woofer

.

Product description

The Scan-Speak Revelator 32W/8878T11 is a high-performance 13-inch woofer designed for high-sensitivity applications. It features a large 3-inch motor system with patented Symmetrical Drive, double ferrite magnets, and a sandwich paper cone surrounded by a coated foam suspension.

.

Highlights

High sensitivity (92 dB @ 2.83V/1m)

Low resonance frequency (21 Hz)

Symmetrical Drive motor system

Double ferrite magnets

Sandwich paper cone

Coated foam suspension

.

Product details

Scan-Speak Revelator 32W/8878T11 Woofer

The 32W/8878T11 offers an impressive 92 dB sensitivity at 2.83V/1m, making it ideal for use in compact speakers where amplifier power is limited. It also has a low resonance frequency of 21 Hz, which allows it to produce deep bass without distortion.

The Symmetrical Drive motor system is designed to reduce distortion and improve the overall performance of the woofer. The double ferrite magnets provide a strong magnetic field, which helps to control the cone and produce accurate sound reproduction. The sandwich paper cone is lightweight and stiff, which helps to improve the woofer's transient response. The coated foam suspension is durable and provides a smooth, even air-flow around the cone.

.
