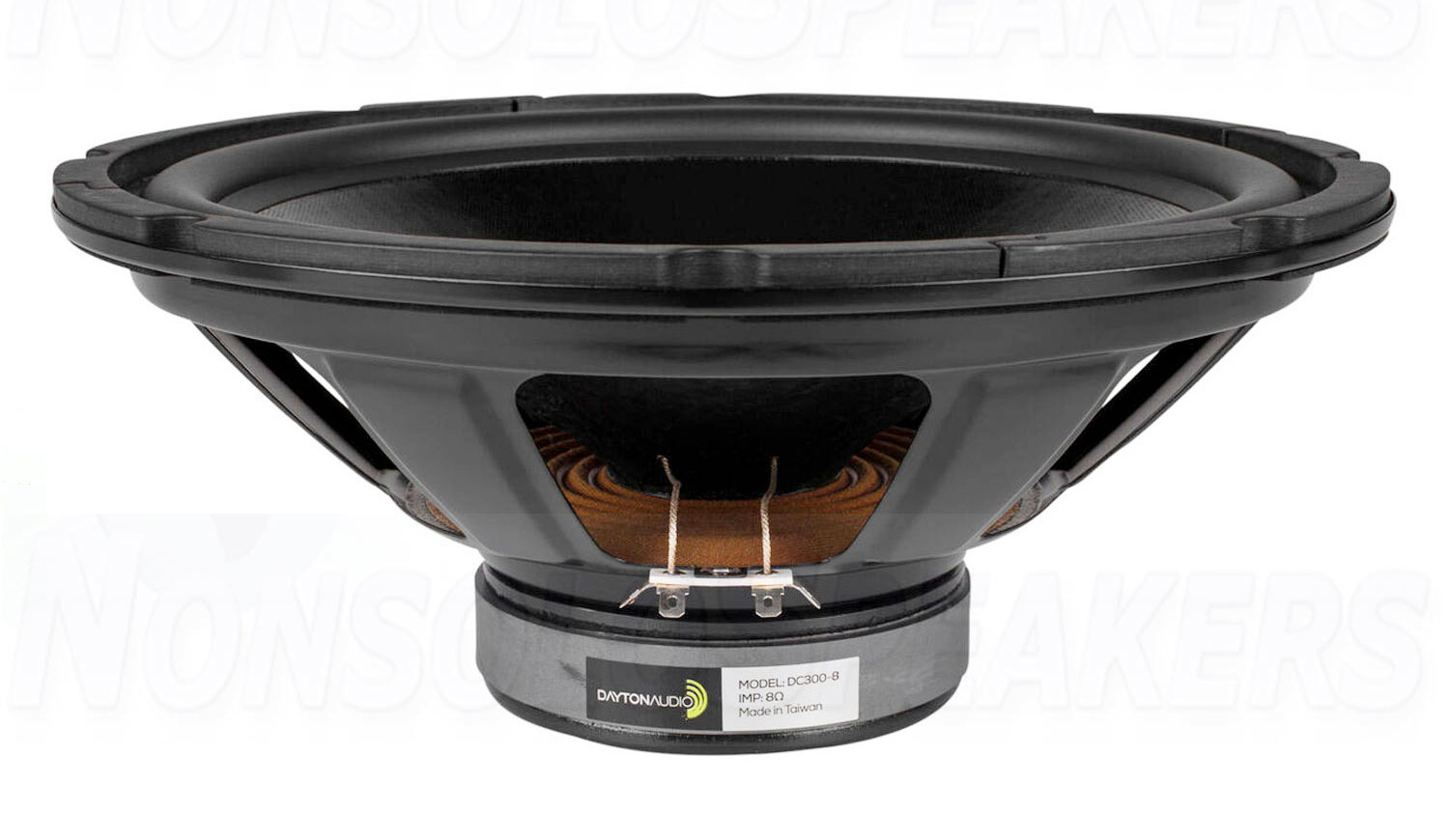

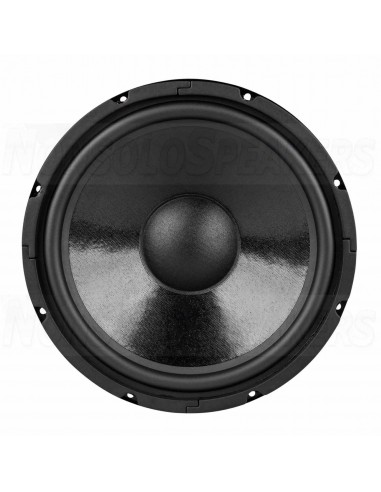

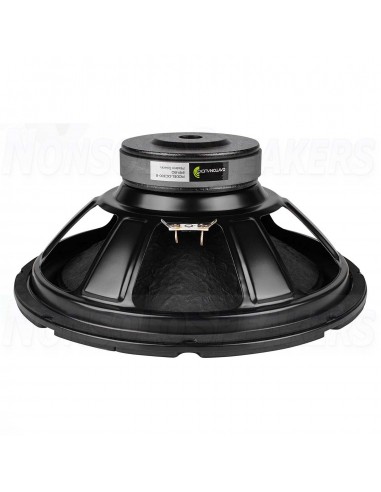

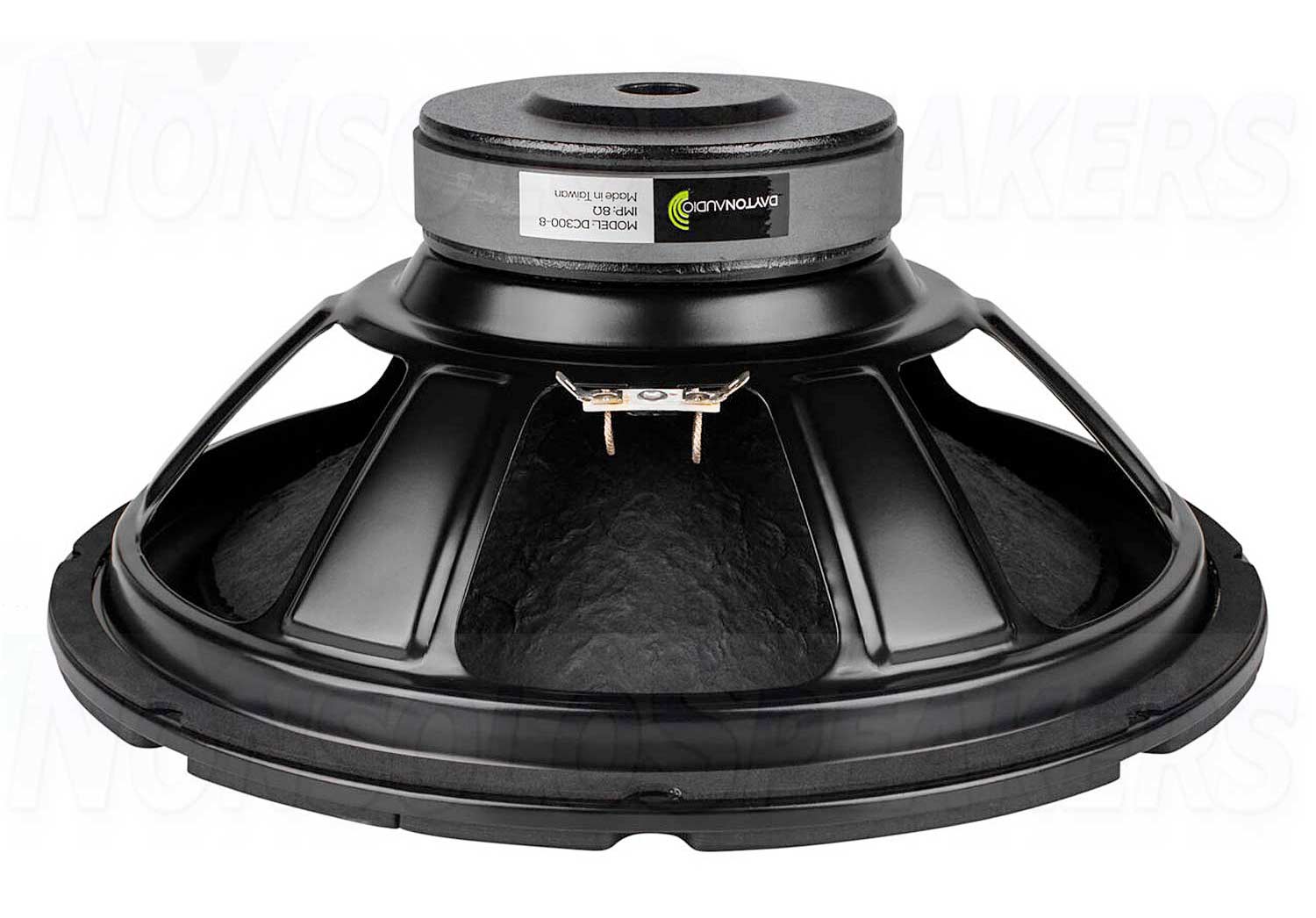

Dayton Audio DC300-8 12" Classic Woofer

Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC300-8 12" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.33 allows the DC300-8 produce incredible low frequency extension in vented enclosures or tight response with a powerful kick in sealed enclosures.

A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

.

Product Details

Brand Dayton Audio

Model DC300-8

Part Number 295-320

UPC 844632000270

Unit of Measure Each

Weight 7.8

.

Product Specifications

Nominal Diameter 12"

Bolt Circle Diameter 11.5

Moving Mass Of Diaphragm (Mmd) 100.7

Power Handling (RMS) 80 Watts

Power Handling (MAX) 160 Watts

Impedance 8Ω

Frequency Response 25 to 2,500Hz

Sensitivity 90.3dB 2.83V/1m

Voice Coil Diameter 2"

.

Thiele-Small Parameters

Resonant Frequency (Fs) 22.9Hz

DC Resistance (Re) 6.8Ω

Voice Coil Inductance (Le) 2.93mH

Mechanical Q (Qms) 3.21

Electromagnetic Q (Qes) 0.37

Total Q (Qts) 0.33

Compliance Equivalent Volume (Vas) 6.41ft³

Mechanical Compliance of Suspension (Cms) 0.48mm/N

BL Product (BL) 16.3T·m

Maximum Linear Excursion (Xmax) 4.3mm

Surface Area of Cone (Sd) 498.8cm²

.

Materials of Construction

Cone Material Treated Paper

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Aluminum

Basket / Frame Material Steel

Magnet Material Ferrite

.

Mounting Information

Overall Outside Diameter 12.07"

Baffle Cutout Diameter 11"

Depth 5.18"

# Mounting Holes 8

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

Sealed Volume 1.47ft³

Sealed F3 52Hz

Vented Volume 4.58ft³

Vented F3 28Hz
