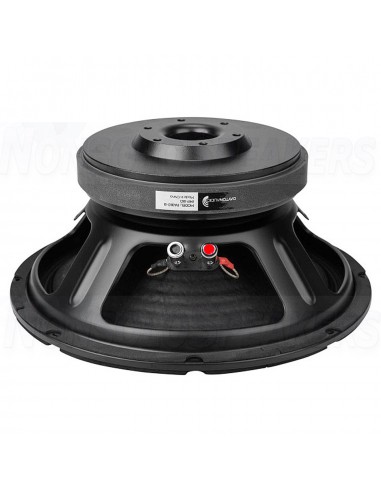

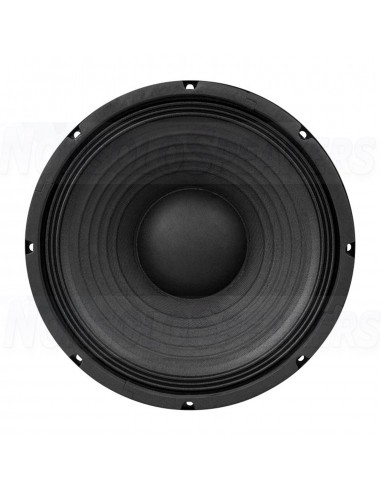

    Dayton Audio PA310-8 12" Pro Woofer

    Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.

    Estimated Shipping Costs
    Shipping Costs
    €24.00
    Shipping Time
    .
    Want to check another country or courier?

    You might also like



    Dayton Audio PA310-8 12" Pro Woofer

    Product description

    Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.

    .

    Highlights

    Strong, low-mass carbon fiber impregnated paper cone

    I-beam rolled edge 1.2 mm steel frame

    Low distortion motor system w/copper cap

    Powerful 80 oz. ceramic ferrite magnet

    Vented pole piece/vented voice coil gap improve thermal management

    Black motor parts and black polyimide voice coil former dissipate heat

    Bumped back plate for unrestricted excursion

    .

    Product details

    Dayton Audio PA310-8 12" Pro Woofer

    Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems. High power handling, smooth response, low distortion, deep punchy bass, and rugged reliability are the features that set PA Series woofers apart from other drivers – premium performance, but value priced.

    .

    Specifications

    Article numberPA310-8
    Woofer SeriesPro Audio Series
    Woofer TypeMidwoofer
    Nominal Diameter12"
    Power Handling (RMS)450 watts
    Power Handling (max)900 watts
    Impedance (Z)8 ohms
    Sensitivity (SPL at 1m / 2.83V)96.1 dB
    Frequency Response44 - 4,000 Hz
    Voice Coil Diameter76 mm
    Magnet Weight80 oz.
    DC Resistance (Re)5.5 ohms
    Voice Coil Inductance (Le)1.68 mH
    Resonant Frequency (Fs)39 Hz
    Mechanical Q (Qms)8.85
    Electromagnetic Q (Qes)0.30
    Total Q (Qts)0.29
    Diaphragm Mass Inc. Airload (Mms)72.8g
    Mechanical Compliance of Suspension (Cms)0.23 mm/N
    Surface Area of Cone (Sd)530.9 cm²
    Volume of Displacement (Vd)265.5 cm³
    BL Product (BL)18 Tm
    Compliance Equivalent Volume (Vas)91.8 liters
    Maximum Linear Excursion (Xmax)5 mm
    Cone / Diaphragm MaterialPaper / Carbon Fiber Cone
    Surround MaterialCloth
    Voice Coil Wire MaterialCopper
    Voice Coil FormerKapton® / Polyimide
    Basket / Frame MaterialSteel
    Magnet MaterialFerrite
    Overall Outside Diameter310 mm
    Overall Depth143 mm
    Baffle Cutout Diameter283 mm
    # Mounting Holes8
    Sealed Volume0.44 ft.³
    Sealed F3119 Hz
    Vented Volume1.04 ft.³
    Vented F373 Hz
