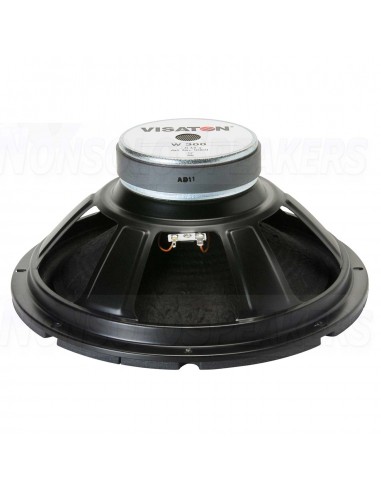

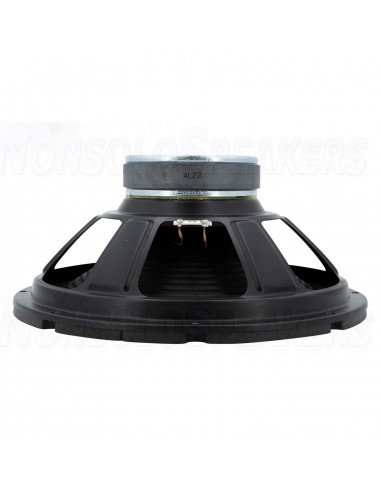

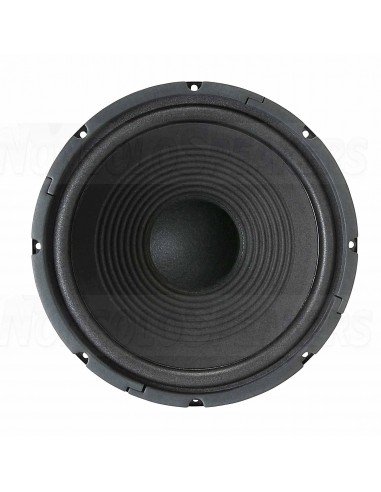

Visaton W 300 - 8 12" Woofer 8 Ohm

30 cm (12") woofer with air-dried cone and pressure vented pole piece.

.

Highlights

• Very flat frequency response for easy system integration
• Great for use as a HiFi woofer or as a subwoofer
• Great sensitivity combined with low Fs and Qts for high performance

Product Details

Visaton W 300 - 8 12" Woofer 8 Ohm

This woofer is designed to be a high performance replacement speaker at a budget price point. A foam surround, ribbed treated-paper cone, and vented pole piece offer longevity while capturing that classic sound from the golden era of loudspeakers. An excursion limit of ±14 mm allows this driver to pump out some serious bass, rivaling some subwoofer, in many different sized sealed, acoustic suspension or ported cabinets.

A smooth frequency response makes for easy integration with many different midrange speakers and tweeters.

Technical Specifications

• Article number W 300 - 8
• Woofer Series W Series
• Woofer Type Midwoofer
• Nominal Diameter 12"
• Power Handling (RMS) 120 Watts
• Power Handling (max) 180 Watts
• Impedance (Z) 8 ohms
• Sensitivity (SPL at 1m / 2.83V) 91 dB
• Frequency Response 32 - 2,500 Hz
• Voice Coil Diameter 50 mm
• DC Resistance (Re) 6.6 ohms
• Voice Coil Inductance (Le) 1.77 mH
• Resonant Frequency (Fs) 32 Hz
• Mechanical Q (Qms) 2.68
• Electromagnetic Q (Qes) 0.54
• Total Q (Qts) 0.45
• Diaphragm Mass Inc. Airload (Mms) 43g
• Surface Area of Cone (Sd) 490 cm2
• BL Product (BL) 9.4 Tm
• Compliance Equivalent Volume (Vas) 190 liters
• Maximum Linear Excursion (Xmax) 5.25 mm
• Cone / Diaphragm Material Treated Paper
• Surround Material Foam
• Overall Outside Diameter 305 mm
• Overall Depth 132
• Baffle Cutout Diameter 280 mm
• Bolt Circle Diameter 293 mm
• # Mounting Holes 8
• Mounting Hole Diameter 5.5 mm
• Sealed Volume 82.7 liters
• Sealed F3 57 Hz
• Vented Volume 223 litersVented F3 30 Hz
