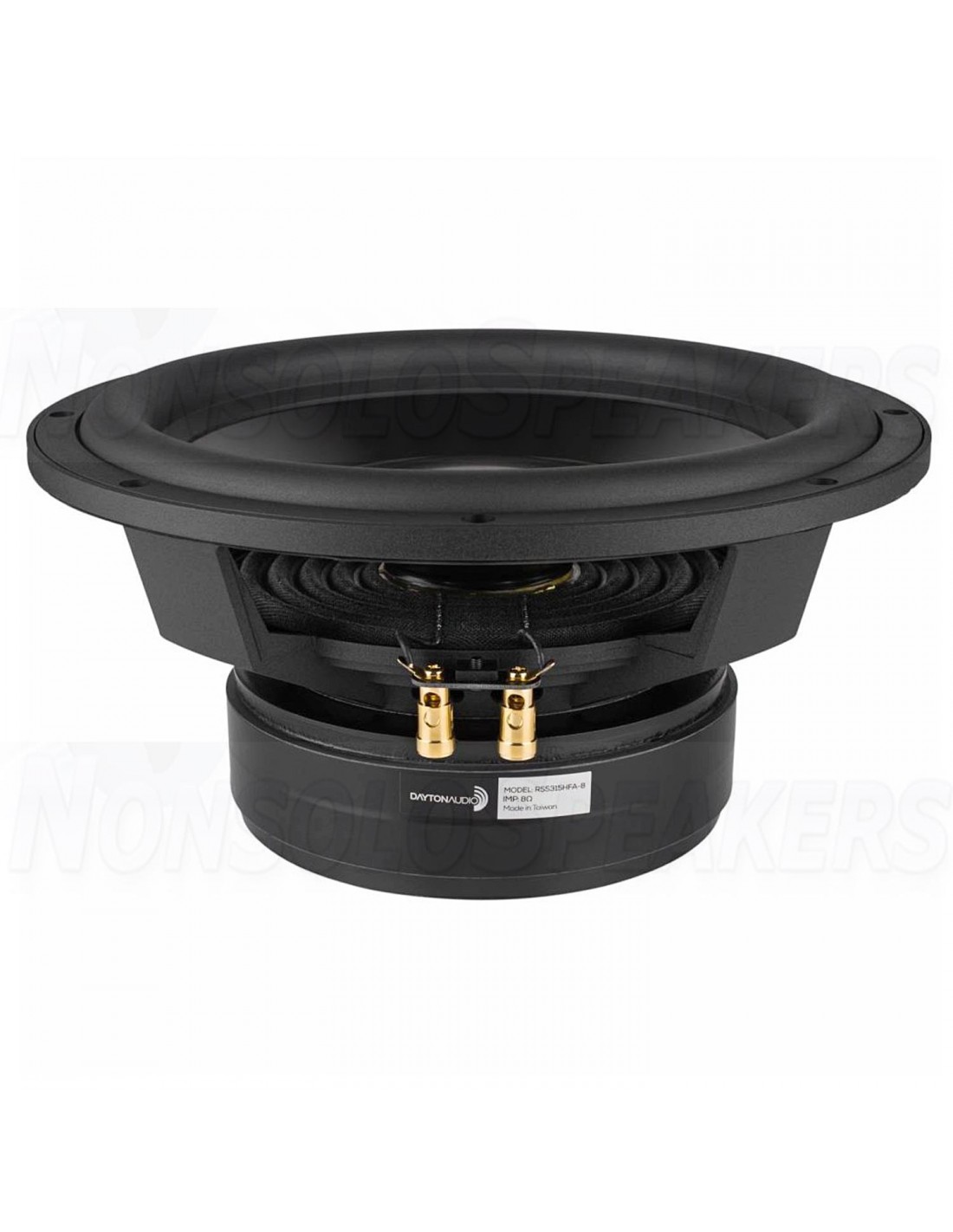

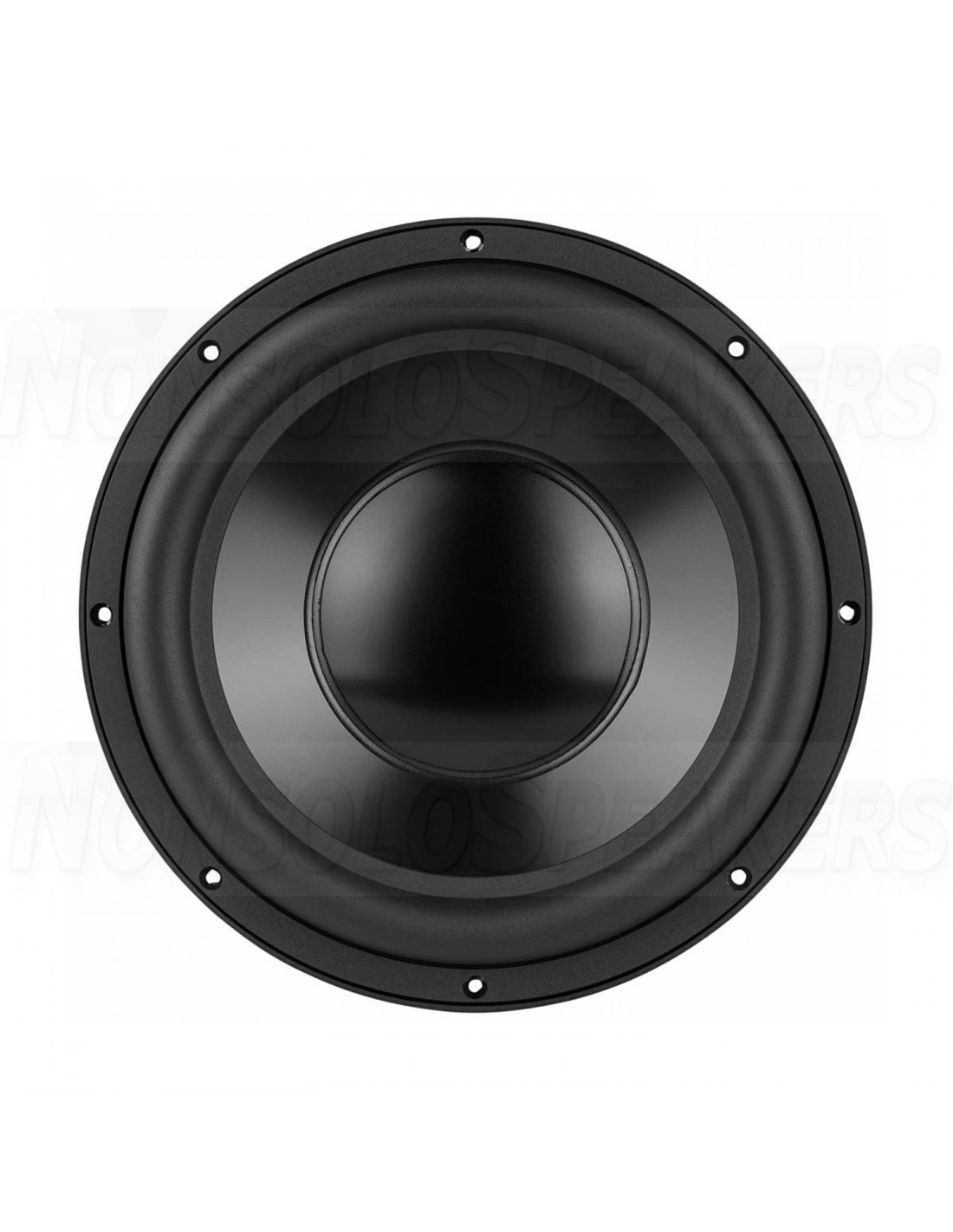

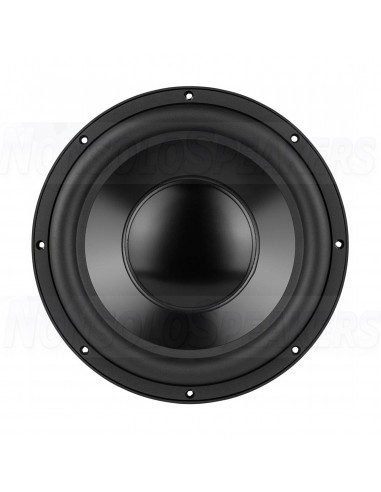

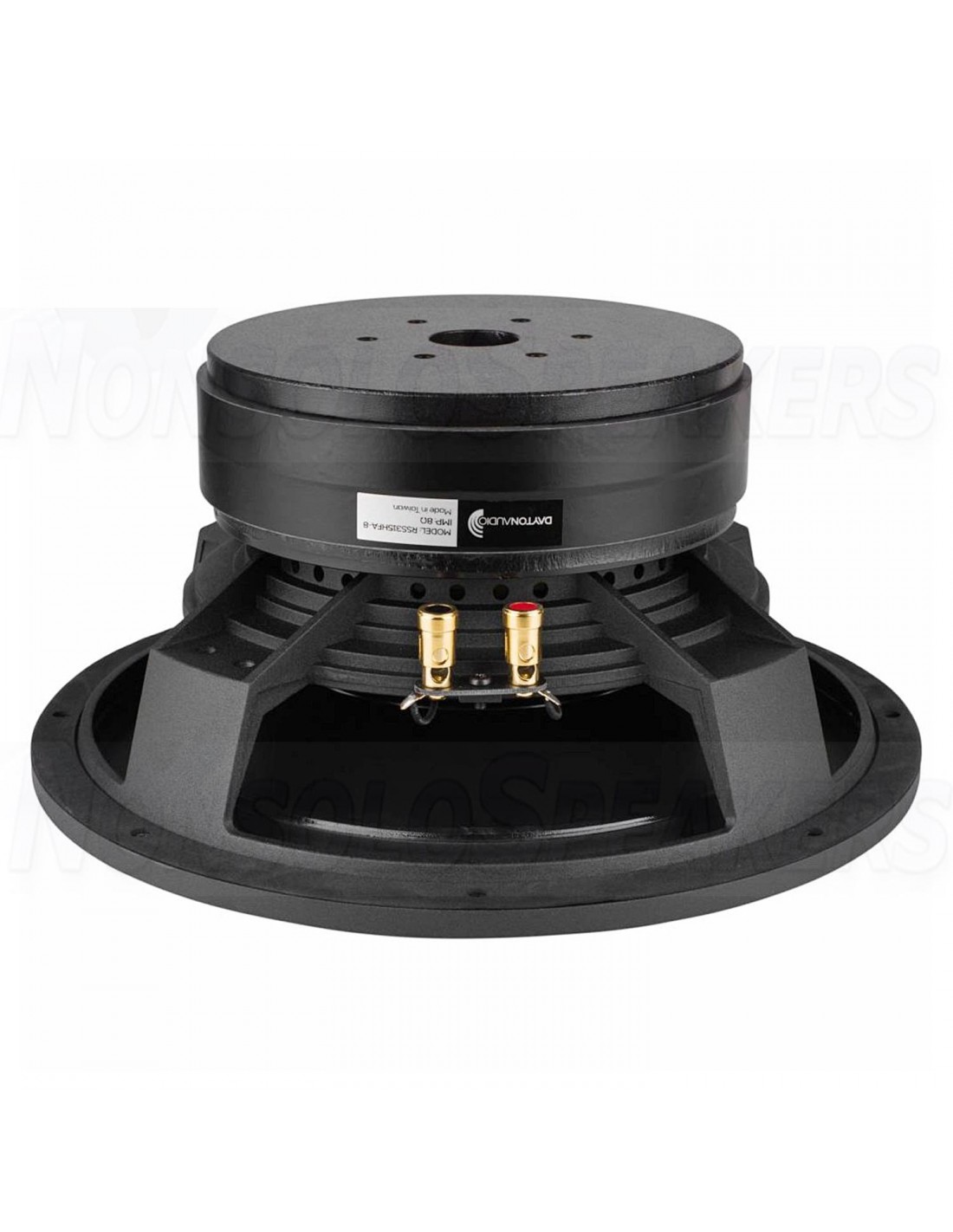

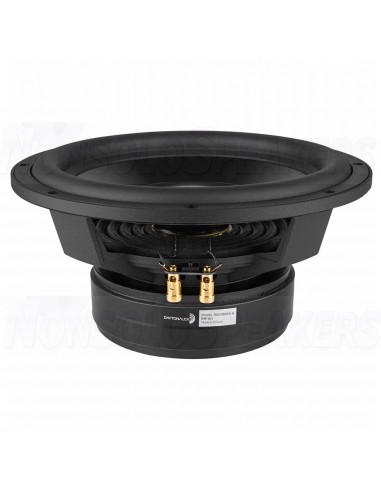

Dayton Audio Reference RSS315HO-4 Subwoofer

Product description

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.

.

Highlights

• Extensively vented motor eliminates compression and allows quiet excursion
• Extra-thick black anodized aluminum cone for maximum rigidity
• Triple shorting ring motor for ultra-low distortion
• 4-layer coil for high power handling
• Optimized parameters for small enclosures
• Highest quality materials throughout for long-lasting performance

.

Product details

Dayton Audio RSS315HO-4 12" Reference HO Subwoofer 4 Ohm

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high output version for automotive applications or for equalized high-power home subwoofers.

.

Specifications

Article number RSS315HO-4

Woofer SeriesReference Series

Woofer Type Subwoofer

Nominal Diameter 12"

Power Handling (RMS) 700 watts

Power Handling (max) 1400 watts

Impedance (Z) 4 ohms

Sensitivity 90.5 dB @ 2.83V/1m

Frequency Response 26 - 600 Hz

Voice Coil Diameter 64 mm

DC Resistance (Re) 3.2 ohms

Voice Coil Inductance (Le) 1.75 mH @ 1 kHz

Resonant Frequency (Fs) 26.2 Hz

Mechanical Q (Qms) 3.63

Electromagnetic Q (Qes) 0.33

Total Q (Qts) 0.31

Diaphragm Mass Inc. Airload (Mms) 251 g

Mechanical Compliance of Suspension (Cms) 0.15 mm/N

Surface Area of Cone (Sd) 514.7 cm²

Volume of Displacement (Vd) 633.1 cm³

BL Product (BL) 20 Tm

Compliance Equivalent Volume (Vas) 53.7 liters

Maximum Linear Excursion (Xmax) 12.3 mm

Cone / Diaphragm Material Black Anodized Aluminum Cone

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Aluminum

Basket / Frame Material Cast Aluminum

Magnet Material Ferrite

Overall Outside Diameter 314 mm

Overall Depth 146 mm

Baffle Cutout Diameter 282 mm

# Mounting Holes 8

Mounting Hole Diameter 5.5 mm
