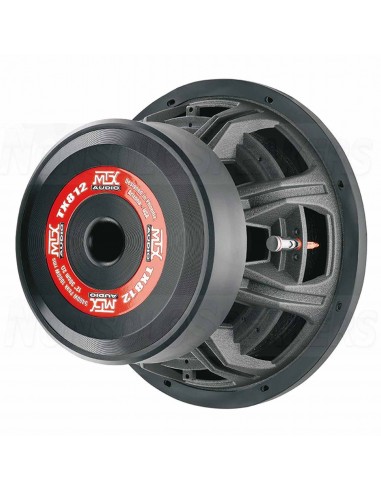

MTX Audio TX812 : 12" (300 mm) car subwoofer

MTX Audio returns to its roots and once again offers its fans superwoofers with huge power, ingenious processing and design. Heavy duty TX8 subwoofers feature 25mm magnet plates, 3" (75mm) oscillating heat resistant OFC wire voice coils, dual cooling system, dual spiders, carbon diaphragms, extra large rubber hinges for maximum XMAX. T8 subwoofers are developed for maximum pressure and maximum sound quality!

.

MTX Audio TX812 parameters:

Power RMS/MAX: 1800/5400 W

Impedance: 2 Ohms

Frequency range: 26-500 Hz

Sensitivity: 90.0 dB/2.83W/1m

Resonance frequency FS: 35 Hz

.

TS Parameters:

Re: 2Ω

Z: 2Ω

Qms: 5.12

Qes: 0.46

Qts : 0.42

Weight: 24.6 liters

Weight: 288.8 gr

Cms: 0.070mm/N

BL : 18N/A

SD: 497.4cm2

Vd: 0.62Liter

Xmax: 12.5mm

Ø30cm (12'')

Installation depth: 185 mm

Mounting diameter: 285 mm

Recommended volume of closed box: 30 l

Recommended bass reflex box volume: 54 ls Aeroportem 100x250 mm - tuning 33 Hz

Recommended volume of the bass reflex box for maximum SPL: 67 hp with a slot of 2500mm2 x 240 mm

Recommended total volume for 2 closed box subwoofers: 59 l

Recommended total volume for 2 bass reflex box subwoofers: 112 hp with a 2500mm2 x 300mm slot

Price for 1 piece.
