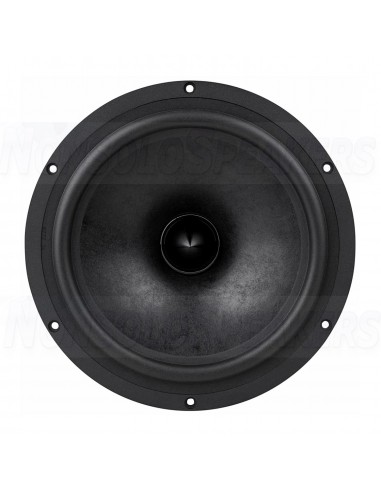

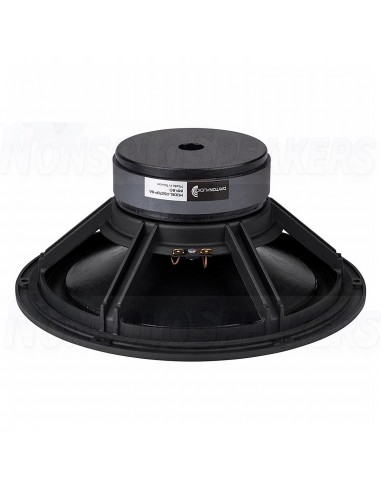

Dayton Audio RS270P-4A 10" Reference Paper Woofer 4 Ohm
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.
You might also like
Dayton Audio RS270P-4A 10" Reference Paper Woofer 4 Ohm
Product description
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.
.
Highlights
Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
Low-distortion high-excursion motor system with two short-circuit paths
Similar cosmetics and design features as original aluminum Dayton Audio Reference Series
Perfect for use a woofer, midwoofer, or dedicated midrange driver
5 dB sensitivity and 6 mm of excursion
.
Product details
Dayton Audio RS270P-4A 10" Reference Paper Woofer 4 Ohm
The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.
All Dayton Audio Reference Series drivers are created with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry.
.
Specifications
Article number RS270P-4A
Woofer Series Reference Series
Woofer Type Midwoofer
Nominal Diameter 10"
Power Handling (RMS) 100 watts
Power Handling (max) 200 watts
Impedance (Z) 8 ohms
Sensitivity 90.9 dB @ 2.83V/1m
Frequency Response 23 - 6,000 Hz
Voice Coil Diameter 2"
DC Resistance (Re) 3.9 ohms
Voice Coil Inductance (Le) 0.55 mH
Resonant Frequency (Fs) 22.9 Hz
Mechanical Q (Qms) 1.35
Electromagnetic Q (Qes) 0.34
Total Q (Qts) 0.27
Diaphragm Mass Inc. Airload (Mms) 73.2g
Mechanical Compliance of Suspension (Cms) 0.66 mm/N
Surface Area of Cone (Sd) 346.4 cm²
Volume of Displacement (Vd) 207.8 cm³
BL Product (BL) 13.0 Tm
Compliance Equivalent Volume (Vas) 110.5 liters
Maximum Linear Excursion (Xmax) 6.0 mm
Cone / Diaphragm Material Paper / Kevlar Cone
Surround Material Rubber
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Basket / Frame Material Cast Aluminum
Magnet Material Ferrite
Overall Outside Diameter 272 mm
Overall Depth 113 mm
Baffle Cutout Diameter 236 mm
Bolt Circle Diameter 258 mm
# Mounting Holes 6
RS270P-4A
