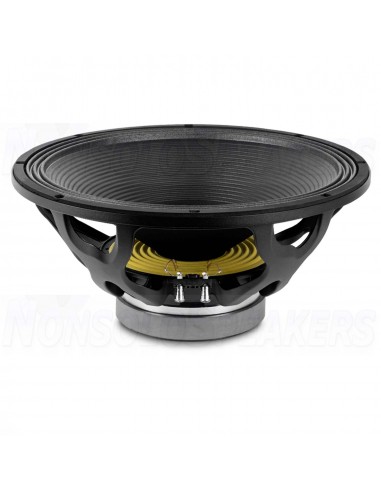

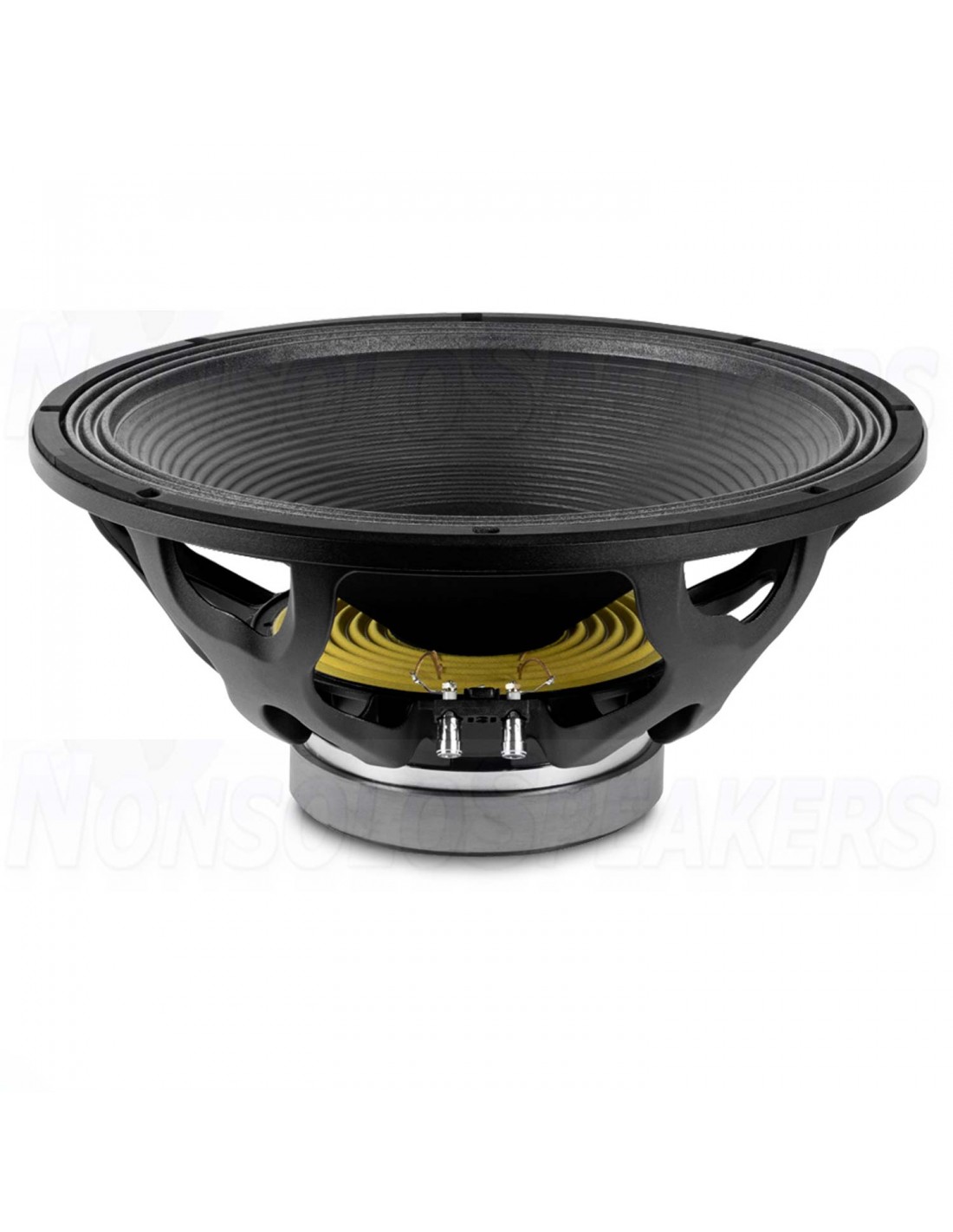

Beyma 18LEX1000FE - Subwoofer 18" 8ohm 98dB 1000W Ferrite
Beyma 18LEX1000FE - Subwoofer 18" 8ohm 98dB 1000W Ferrite

Beyma 18LEX1000FE - Subwoofer 18" 8ohm 98dB 1000W Ferrite

SHIPMENT IN 7/10 WORKING DAYS
€226.80 €360.00 -37%

Tax included
rating No review at the moment

Beyma 18LEX1000FE - Subwoofer 18" 8ohm 98dB 1000W Ferrite

In Beyma we face the problem of heat dissipation with a clear goal in mind: the speaker must deliver the best performance in the system in a consistent and reliable way, maximizing the total SPL and keeping it stable. It is well known how the overall SPL of a system suffers a drop after some time working due to the power compression effect in the speakers.

Estimated Shipping Costs
Shipping Costs
€38.40
Shipping Time
.
Want to check another country or courier?



Beyma 18LEX1000FE - Subwoofer 18" 8ohm 98dB 1000W Ferrite

In Beyma we face the problem of heat dissipation with a clear goal in mind: the speaker must deliver the best performance in the system in a consistent and reliable way, maximizing the total SPL and keeping it stable. It is well known how the overall SPL of a system suffers a drop after some time working due to the power compression effect in the speakers. It is also known that normally the bigger the voice coil diameter the higher the power capacity, but this also means bigger motor structures to obtain high total output from the transducer. The Maltcross cooling technology that we deliver to the Professional Audio market through our speakers, bring together several solutions to meet our goal; in one side allows the woofer to handle bigger rates of power with a given coil diameter, so we can think in smaller coil designs with smaller motor structure, reducing the weight but increasing the sensitivity and also keeping an adequate power handling figure for a target application, maintaining a total SPL finally that may be equivalent to a bigger size motor structure driver. The Matcross technology is a forced convection circuit inside the heart of the driver that helps to lower the working temperature of the coil and also acts like a demodulation ring, linearizing the inductance of the transducer.

.

Key Features:

  • High power handling and low distortion 18” subwoofer
  • Exclusive Malt Cross® Technology Cooling System
  • Low power compression losses
  • High sensitivity: 98 dB (1W / 1m)
  • FEA optimized ceramic magnetic circuit
  • Ultra low air noise
  • Optimized linear behaviour Weatherproof cone with treatment for both sides
  • 3,5” DUO in/out copper voice coil
  • Extended controlled displacement: Xmax ± 11 mm
  • 51 mm peak-to-peak excursion before damage
  • Optimized for direct radiation and band-pass subwoofer applications

.

Technical Specifcations:

  • Nominal diameter 460 mm 18 in
  • Rated impedance 8 Ω
  • Minimum impedance 7,2 Ω
  • Power capacity 1.000 WAES
  • Program power 2.000 W
  • Sensitivity 98 dB 1W / 1m @ ZN
  • Frequency range 35 - 1.000 Hz
  • Recom. enclosure Vb = 174 l
  • (Bass-reflex design) Fb = 37 Hz
  • Voice coil diameter 88,9 mm 3,5 in
  • Bl factor 23,8 N/A
  • Moving mass 0,196 kg
  • Voice coil length 27 mm
  • Air gap height 12 mm
  • Xdamage (peak to peak) 51 mm

.

Thiele-Small Parameters:

  • Resonant frequency, fs 34 Hz
  • D.C. Voice coil resistance, Re 5,4 Ω
  • Mechanical Quality Factor, Qms 7,3
  • Electrical Quality Factor, Qes 0,39
  • Total Quality Factor, Qts 0,38
  • Equivalent Air Volume to Cms, Vas 250 l
  • Mechanical Compliance, Cms 111 μm / N
  • Mechanical Resistance, Rms 5,7 kg / s
  • Efficiency, η0 2,4 %
  • Effective Surface Area, Sd 0,1255 m2
  • Maximum Displacement, Xmax4 11 mm
  • Displacement Volume, Vd 1380 cm3
  • Voice Coil Inductance, Le 1,9 mH.

Mounting Information:

  • Overall diameter 462 mm 18,2 in
  • Bolt circle diameter 441 mm 17,4 in
  • Baffle cutout diameter:
  • - Front mount 426 mm 16,8 in
  • Depth 224 mm 8,8 in
  • Volume displaced by driver 7,5 l 0,26 ft3
  • Net weight 11,7 kg
  • Shipping weight 13,0 kg

Beyma 18LEX1600FE
1 Item

.

Beyma is a Spanish audio brand that has been a key player in the professional audio and loudspeaker driver markets for decades. Founded in 1969, Beyma is known for its high-performance drivers and transducers, which are widely used in high-end audio systemsPA (public address) systemshome theater setups, and especially in car audio and sound reinforcement. The company is highly regarded for its professional-grade components and has developed a reputation for sound accuracyefficiency, and durability.

Here’s an overview of what Beyma Audio is all about:

1. Loudspeaker Drivers:

Beyma specializes in high-quality loudspeaker drivers, including woofersmidrange driverstweeters, and compression drivers. Their drivers are designed to deliver high output with low distortion and are often used in professional sound systems and high-end car audio.

  • Woofers and Subwoofers: Beyma's woofers and subwoofers are engineered to deliver deep, tight bass and high power handling. They are commonly used in subwoofer enclosuresPA systems, and home theater setups for powerful, clean low-frequency response.
    • Beyma 18B: A well-known 18-inch woofer that delivers impressive bass performance with a robust design, suitable for large PA systems or home subwoofer applications.
    • Beyma 15P: A high-performance 15-inch woofer designed for professional sound applications, with high excursion capabilities and efficiency for low-frequency reproduction.
  • Midrange Drivers: Beyma’s midrange drivers are designed for clarity and accuracy, producing natural and detailed mids that are critical for vocal reproduction and instrumental fidelity in full-range systems.
    • Beyma 6MI90: A 6-inch midrange driver known for its efficiency and smooth frequency response, often used in 2-way and 3-way systems.
  • Tweeters: Their high-frequency drivers (or tweeters) deliver smooth, detailed treble frequencies with minimal distortion. They are commonly used in hi-fi and PA systems.
    • Beyma T19: A compression tweeter with a high power handling capacity, designed for professional applications where high SPL (sound pressure level) and clarity are important.
  • Compression Drivers: These are used in horn-loaded systems to provide high-frequency sound with high efficiency and low distortion, often used in PA systems and concert sound systems.
    • Beyma CP-380: A compression driver that offers high output and high-frequency extension, often paired with horns for concert and professional sound systems.

2. Subwoofer Systems and Kits:

Beyma also produces complete subwoofer kits and systems, often used in professional and commercial setups where powerful, clear bass is required. Their subwoofer systems are typically designed to handle high power levels and deliver tight, controlled bass even at high volumes.

3. Car Audio:

Beyma has a significant presence in the car audio market, particularly among enthusiasts who seek high output and precision in their setups. Beyma drivers are known for their ability to handle large amounts of power while maintaining sound clarity and low distortion. Some popular Beyma products for car audio include:

  • Beyma Pro Series Woofers: Known for their high power handling and extended bass response, these woofers are frequently used in high-end car audio builds.
  • Beyma Coaxial Speakers: Beyma also produces coaxial speakers for car audio, combining a woofer and tweeter in a single unit for a more compact solution without sacrificing sound quality.

4. Professional Audio Systems:

Beyma’s products are widely used in professional audio systems, particularly in applications that require high SPL (sound pressure level) and durability. Their loudspeakers are found in:

  • Live Sound Reinforcement: For concerts, festivals, and events where powerful, clear sound is essential.
  • PA Systems: Beyma's woofers, midrange drivers, and compression drivers are used in PA (Public Address) systems and touring sound systems for delivering full-range sound with accuracy and high efficiency.
  • Theater and Cinema: Beyma drivers are used in cinema sound systems for accurate and powerful reproduction of both low-frequency and high-frequency sounds.

5. Build Quality & Materials:

Beyma is known for using high-quality materials in its drivers, ensuring that their components can handle high power levels and provide long-lasting performance. Some features include:

  • Paper and Composite Cones: For woofers and midrange drivers, Beyma often uses paper or composite cones for their excellent stiffness-to-weight ratio and natural sound characteristics.
  • Voice Coils: Their voice coils are made of high-temperature resistant materials, allowing Beyma speakers to handle high power without overheating.
  • Ferrite and Neodymium Magnets: Beyma uses both ferrite and neodymium magnets depending on the application, providing the right balance of efficiencypower handling, and size for different speaker types.

6. Technology and Innovation:

Beyma constantly strives to improve the performance and efficiency of their drivers through technological innovations. Some of their innovations include:

  • High excursion designs for subwoofers and woofers, allowing for greater low-frequency output and less distortion at high volumes.
  • Neodymium magnet technology for lightweight, efficient drivers that maintain high output levels, especially in their compression drivers and tweeters.

Why Choose Beyma Audio?

  • Sound Quality: Beyma is known for producing drivers that provide clearaccurate sound across all frequencies, making them a favorite among professionals who demand precision and high-quality audio.
  • Power Handling: Beyma drivers are built to handle high power loads without sacrificing sound quality. They are often used in high-output environments such as live sound systems and car audio competitions.
  • Durability and Reliability: Beyma’s components are built to last, designed to withstand the rigors of professional sound applications, and offer long-term reliability.
  • Flexibility: Beyma offers a wide range of drivers suitable for different applications—from entry-level car audio to high-end professional sound systems.
