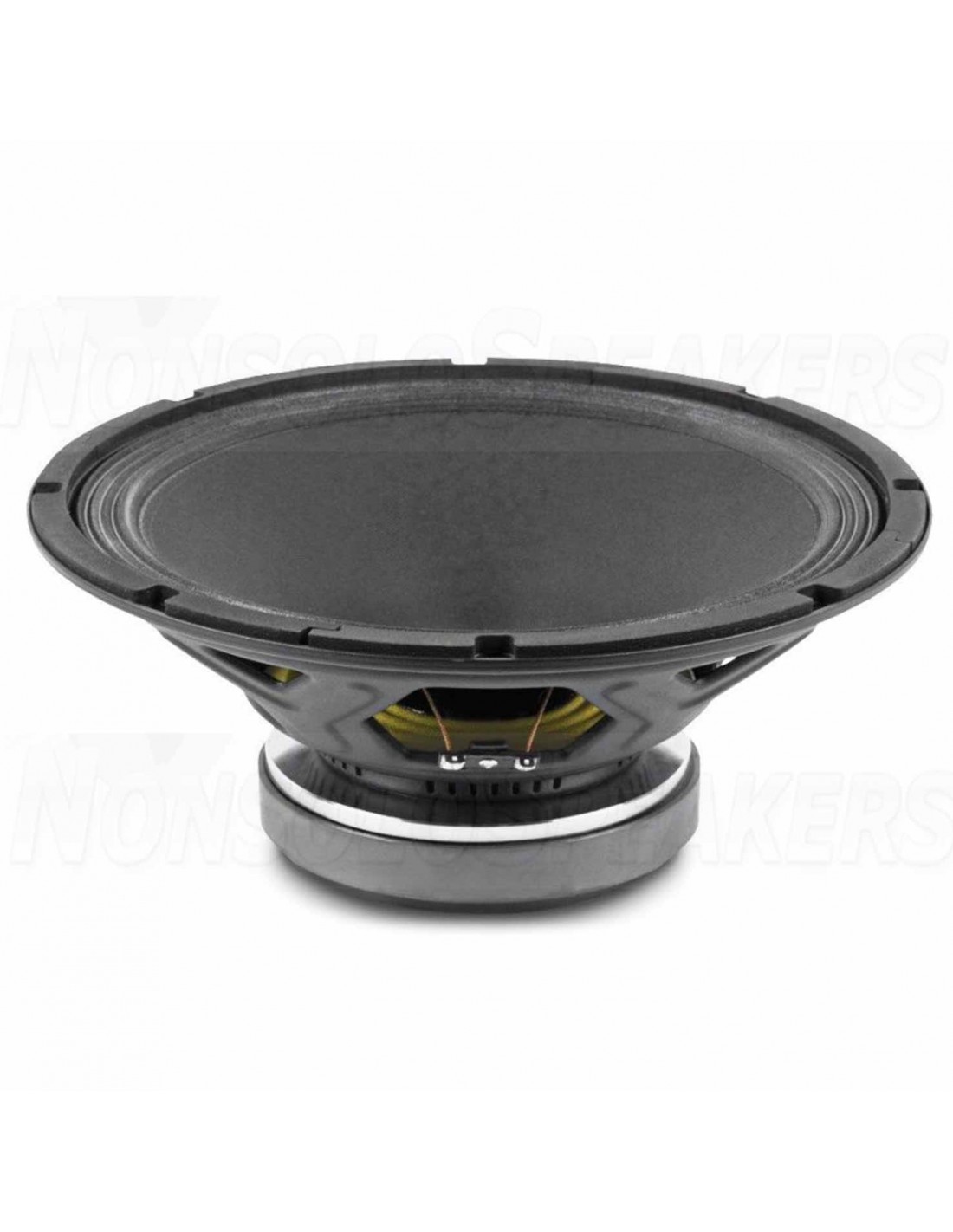

Beyma 12CMV2 - Woofer 12" 8ohm 96dB 320W Ferrite
Beyma 12CMV2 - Woofer 12" 8ohm 96dB 320W Ferrite

Beyma 12CMV2 - Woofer 12" 8ohm 96dB 320W Ferrite

SHIPMENT IN 7/10 WORKING DAYS
€108.30 €114.00 -5%
Tax included
rating No review at the moment

Beyma 12CMV2 - Woofer 12" 8ohm 96dB 320W Ferrite

The CMV2 series, composed of 5 models (6.5, 8, 10, 12 and 15"), is an extension of Beyma's current offer of pressed steel frame speakers.

Variants

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?



Beyma 12CMV2 - Woofer 12" 8ohm 96dB 320W Ferrite

.

The CMV2 series, composed of 5 models (6.5, 8, 10, 12 and 15"), is an extension of Beyma's current offer of pressed steel frame speakers. Designed using their exclusive basket and ceramic magnets, these 100% Made in Spain products present linear Frequency Response Curves, low distortion and a remarkable increase in power; Standing well above of similar products from their competitors.

.

Key Features:

  • High power handling: 640 W program power
  • 2.5” CCAW wire voice coil
  • High sensitivity:  96 dB (1W / 1m)
  • Very linear extended response and low distortion
  • Treated triple roll cloth surround
  • Optimized pressed steel frame
  • Ferrite magnet
  • Designed for bass and midbass applications in small vented cabinets

.

Technical Specifcations:

  • Nominal diameter 300 mm 12 in
  • Rated impedance 8 Ω
  • Minimum impedance 7,2 Ω
  • Power capacity* 320 WAES
  • Program power 640 W
  • Sensitivity 96 dB 1W / 1m @ ZN
  • Frequency range 50 - 6.000 Hz
  • Recom. enclosure Vb = 50 l
  • (Bass-reflex design) Fb = 54 Hz
  • Voice coil diameter 63,5 mm 2,5 in
  • Bl factor 13,7 N/A
  • Moving mass 0,054 kg
  • Voice coil length17 mm
  • Air gap height 7 mm
  • Xdamage (peak to peak) 29 mm


.

Thiele-Small Parameters:

  • Resonant frequency, fs 49 Hz
  • D.C. Voice coil resistance, Re 6 Ω
  • Mechanical Quality Factor, Qms 3,9
  • Electrical Quality Factor, Qes 0,54
  • Total Quality Factor, Qts 0,47
  • Equivalent Air Volume to Cms, Vas 76 l
  • Mechanical Compliance, Cms 193 μm / N
  • Mechanical Resistance, Rms 4,2 kg / s
  • Efficiency, η0 1,7 %
  • Effective Surface Area, Sd 0,053 m2
  • Maximum Displacement, Xmax *** 7 mm
  • Displacement Volume, Vd 371 cm3
  • Voice Coil Inductance, Le@ 1 kHz 1 mH.

Mounting Informations:

  • Overall diameter 310 mm 12,2 in
  • Bolt circle diameter 292 mm 11,5 in
  • Baffle cutout diameter:
  • Front mount 280 mm 11,0 in
  • Depth 130 mm 5,1 in
  • Net weight 4,6 kg
  • Shipping weight 5,3 kg
Beyma 12CMV2
2 Items

.

Beyma is a Spanish audio brand that has been a key player in the professional audio and loudspeaker driver markets for decades. Founded in 1969, Beyma is known for its high-performance drivers and transducers, which are widely used in high-end audio systemsPA (public address) systemshome theater setups, and especially in car audio and sound reinforcement. The company is highly regarded for its professional-grade components and has developed a reputation for sound accuracyefficiency, and durability.

Here’s an overview of what Beyma Audio is all about:

1. Loudspeaker Drivers:

Beyma specializes in high-quality loudspeaker drivers, including woofersmidrange driverstweeters, and compression drivers. Their drivers are designed to deliver high output with low distortion and are often used in professional sound systems and high-end car audio.

  • Woofers and Subwoofers: Beyma's woofers and subwoofers are engineered to deliver deep, tight bass and high power handling. They are commonly used in subwoofer enclosuresPA systems, and home theater setups for powerful, clean low-frequency response.
    • Beyma 18B: A well-known 18-inch woofer that delivers impressive bass performance with a robust design, suitable for large PA systems or home subwoofer applications.
    • Beyma 15P: A high-performance 15-inch woofer designed for professional sound applications, with high excursion capabilities and efficiency for low-frequency reproduction.
  • Midrange Drivers: Beyma’s midrange drivers are designed for clarity and accuracy, producing natural and detailed mids that are critical for vocal reproduction and instrumental fidelity in full-range systems.
    • Beyma 6MI90: A 6-inch midrange driver known for its efficiency and smooth frequency response, often used in 2-way and 3-way systems.
  • Tweeters: Their high-frequency drivers (or tweeters) deliver smooth, detailed treble frequencies with minimal distortion. They are commonly used in hi-fi and PA systems.
    • Beyma T19: A compression tweeter with a high power handling capacity, designed for professional applications where high SPL (sound pressure level) and clarity are important.
  • Compression Drivers: These are used in horn-loaded systems to provide high-frequency sound with high efficiency and low distortion, often used in PA systems and concert sound systems.
    • Beyma CP-380: A compression driver that offers high output and high-frequency extension, often paired with horns for concert and professional sound systems.

2. Subwoofer Systems and Kits:

Beyma also produces complete subwoofer kits and systems, often used in professional and commercial setups where powerful, clear bass is required. Their subwoofer systems are typically designed to handle high power levels and deliver tight, controlled bass even at high volumes.

3. Car Audio:

Beyma has a significant presence in the car audio market, particularly among enthusiasts who seek high output and precision in their setups. Beyma drivers are known for their ability to handle large amounts of power while maintaining sound clarity and low distortion. Some popular Beyma products for car audio include:

  • Beyma Pro Series Woofers: Known for their high power handling and extended bass response, these woofers are frequently used in high-end car audio builds.
  • Beyma Coaxial Speakers: Beyma also produces coaxial speakers for car audio, combining a woofer and tweeter in a single unit for a more compact solution without sacrificing sound quality.

4. Professional Audio Systems:

Beyma’s products are widely used in professional audio systems, particularly in applications that require high SPL (sound pressure level) and durability. Their loudspeakers are found in:

  • Live Sound Reinforcement: For concerts, festivals, and events where powerful, clear sound is essential.
  • PA Systems: Beyma's woofers, midrange drivers, and compression drivers are used in PA (Public Address) systems and touring sound systems for delivering full-range sound with accuracy and high efficiency.
  • Theater and Cinema: Beyma drivers are used in cinema sound systems for accurate and powerful reproduction of both low-frequency and high-frequency sounds.

5. Build Quality & Materials:

Beyma is known for using high-quality materials in its drivers, ensuring that their components can handle high power levels and provide long-lasting performance. Some features include:

  • Paper and Composite Cones: For woofers and midrange drivers, Beyma often uses paper or composite cones for their excellent stiffness-to-weight ratio and natural sound characteristics.
  • Voice Coils: Their voice coils are made of high-temperature resistant materials, allowing Beyma speakers to handle high power without overheating.
  • Ferrite and Neodymium Magnets: Beyma uses both ferrite and neodymium magnets depending on the application, providing the right balance of efficiencypower handling, and size for different speaker types.

6. Technology and Innovation:

Beyma constantly strives to improve the performance and efficiency of their drivers through technological innovations. Some of their innovations include:

  • High excursion designs for subwoofers and woofers, allowing for greater low-frequency output and less distortion at high volumes.
  • Neodymium magnet technology for lightweight, efficient drivers that maintain high output levels, especially in their compression drivers and tweeters.

Why Choose Beyma Audio?

  • Sound Quality: Beyma is known for producing drivers that provide clearaccurate sound across all frequencies, making them a favorite among professionals who demand precision and high-quality audio.
  • Power Handling: Beyma drivers are built to handle high power loads without sacrificing sound quality. They are often used in high-output environments such as live sound systems and car audio competitions.
  • Durability and Reliability: Beyma’s components are built to last, designed to withstand the rigors of professional sound applications, and offer long-term reliability.
  • Flexibility: Beyma offers a wide range of drivers suitable for different applications—from entry-level car audio to high-end professional sound systems.
