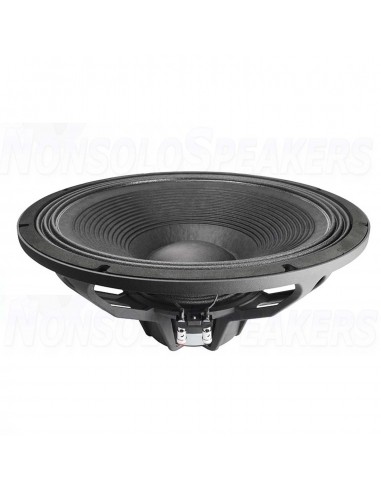

Faital 18HP1022 - Subwoofer 18" - Neodimio - 8ohm
Faital 18HP1022 - Subwoofer 18" - Neodimio - 8ohm

Faital 18HP1022 - Subwoofer 18" - Neodimio - 8ohm

Faital 18HP1022 - Subwoofer 18" - Neodimio - 8ohm

SHIPMENT IN 7-10 WORKING DAYS
€427.48 €449.98 -5%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



Faital 18HP1022 - Subwoofer 18" - Neodimio - 8ohm

NOMINAL SPECIFICATIONS

Nominal Diameter 460 mm (18 in)
Overall Diameter 460 mm (18.11 in)
Bolt Circle Diameter 440 mm (17.32 in)
Baffle Cutout Diameter 422 mm (16.61 in)
Depth 202 mm (7.95 in)
Flange and Gasket Thickness 14 mm (0.55 in)
Net Weight 6.6 Kg (14.6 lb)
Shipping Box
(Single Carton Box)		 503 x 500 x 258 mm
(19.8 x 19.7 x 10.2 in)
Shipping Weight 7.8 Kg (17.2 lb)



TECHNICAL PARAMETERS

Nominal Impedance 8 Ohm
Minimum Impedance 6.5 Ohm
AES Power Handling (1) 1000 W
Maximum Power Handling (2) 2000 W
Sensitivity (1W/1m) 98 dB
Frequency Range 35÷1600 Hz
Voice Coil Diameter 100 mm (4 in)
Winding Material Cu
Former Material Glass Fiber
Winding Depth 23 mm (0.91 in)
Magnetic Gap Depth 12 mm (0.47 in)
Flux Density 1.3 T
Magnet Neodymium Slug
Basket Material Aluminum
Demodulation No
Cone Surround (3) Triple Roll
NET Air Volume filled by Loudspeaker 5.8 dm^3 (0.205 ft^3)
Spider Profile 2x non-adjacent symmetrical constant height waves



QUICK MECHANICAL SPECS

Nominal Diameter 460 mm (18 in)
Overall Diameter 460 mm (18.11 in)
Bolt Circle Diameter 440 mm (17.32 in)
Baffle Cutout Diameter 422 mm (16.61 in)
Depth 202 mm (7.95 in)
Flange and Gasket Thickness 14 mm (0.55 in)
Net Weight 6.6 Kg (14.6 lb)
Shipping Box
(Single Carton Box)		 503 x 500 x 258 mm
(19.8 x 19.7 x 10.2 in)
Shipping Weight 7.8 Kg (17.2 lb)
18HP1022
