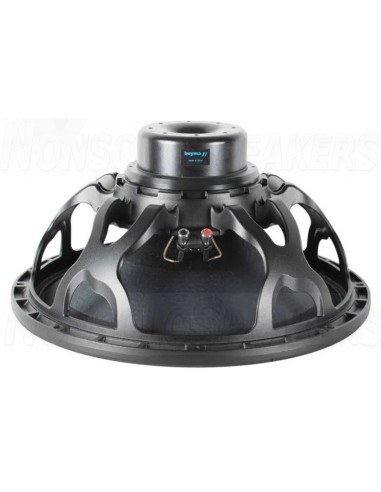

Beyma 18LEX1200ND - Subwoofer 18" 8ohm 98dB 1200W Neodimio
Beyma 18LEX1200ND - Subwoofer 18" 8ohm 98dB 1200W Neodimio
Beyma 18LEX1200ND - Subwoofer 18" 8ohm 98dB 1200W Neodimio
Beyma 18LEX1200ND - Subwoofer 18" 8ohm 98dB 1200W Neodimio

Beyma 18LEX1200ND - Subwoofer 18" 8ohm 98dB 1200W Neodimio

Beyma  18LEX1200ND - Subwoofer 18" 8ohm 98dB 1200W Neodimio

Variants
SHIPMENT IN 7/10 WORKING DAYS
€343.20 €572.00 -40%

Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€46.80
Shipping Time
.
Want to check another country or courier?



Beyma  18LEX1200ND - Subwoofer 18" 8ohm 98dB 1200W Neodimio

.

Product description Beyma 18LEX1200Nd Subwoofer

The Beyma 18LEX1200Nd is a professional-grade 18" neodymium subwoofer engineered for high-performance low-frequency reproduction. With advanced cooling technologies and rugged build quality, it is ideal for demanding applications in high SPL environments such as professional sound reinforcement systems and high-end DIY projects.

.

Highlights of the Beyma 18LEX1200Nd Subwoofer

Power handling of 1200W AES and 2400W program power with 98 dB sensitivity

Exclusive Malt Cross® cooling system for lower power compression and improved thermal management

4” DUO double layer copper voice coil with double silicone spider for extended linear excursion

FEA-optimized neodymium magnet structure and weatherproof cone design

.

Product details Beyma 18LEX1200Nd Subwoofer

Beyma 18LEX1200Nd Low Frequency Transducer

The Beyma 18LEX1200Nd is a premium low-frequency transducer designed to deliver powerful, low-distortion bass with exceptional control and durability. Built around a lightweight yet strong neodymium motor structure, the driver achieves high efficiency with a sensitivity of 98 dB (1W/1m). It supports a continuous AES power rating of 1200 watts and a program power capacity of 2400 watts, making it suitable for high-powered subwoofer systems.

This driver features a 4" DUO double-layer voice coil wound in and out on a high-temperature copper former, which ensures excellent thermal stability and mechanical reliability. A double silicone spider and extended Xmax of ±11 mm contribute to its precise and linear behavior over large excursions. The 48 mm peak-to-peak mechanical excursion capacity allows it to handle massive dynamic peaks without damage.

The 18LEX1200Nd incorporates Beyma’s patented Malt Cross® cooling system, which minimizes power compression and keeps performance stable even under continuous heavy loads. Additional design enhancements include an aluminum demodulating ring to reduce distortion and a weatherproof cone treated on both sides for outdoor or adverse conditions. With an optimized frequency range of 40–1000 Hz and resonance frequency of 36 Hz, this subwoofer is ideal for both direct radiation and band-pass configurations.

.

Specifications

  • Article number 18LEX1200Nd
  • EAN 8435469057708
  • Woofer Series Beyma LEX series
  • Woofer Type subwoofer
  • Nominal Diameter 18"
  • Power Handling (RMS) 1200 Watts
  • Power Handling (max) 2400 W
  • Impedance (Z) 8 Ohm
  • Sensitivity (SPL at 1m / 2.83V) 98 dB
  • Frequency Response 40-1000 Hz
  • Voice Coil Diameter 101.6 mm
  • DC Resistance (Re) 5.3 ohm
  • Voice Coil Inductance (Le) 1.7 mH
  • Resonant Frequency (Fs) 36 Hz
  • Mechanical Q (Qms) 10.9
  • Electromagnetic Q (Qes) 0.35
  • Total Q (Qts) 0.33
  • Diaphragm Mass Inc. Airload (Mms) 200g
  • Mechanical Compliance of Suspension (Cms) 0.1 mm / N
  • Surface Area of Cone (Sd) 1255 cm²
  • Volume of Displacement (Vd) 1.3 l
  • BL Product (BL) 26.4 N/A
  • Compliance Equivalent Volume (Vas) 219 l
  • Maximum Linear Excursion (Xmax) 11 mm
  • Driver's Mechanical Losses (Rms) 4.1 kg / s
  • Dual Voice Coil
  • Magnet Material Neodymium
  • Overall Outside Diameter 462 mm
  • Overall Depth 225 mm
  • Baffle Cutout Diameter 415 mm
  • Bolt Circle Diameter 440 mm
18LEX1200ND
2 Items

.

Beyma is a Spanish audio brand that has been a key player in the professional audio and loudspeaker driver markets for decades. Founded in 1969, Beyma is known for its high-performance drivers and transducers, which are widely used in high-end audio systemsPA (public address) systemshome theater setups, and especially in car audio and sound reinforcement. The company is highly regarded for its professional-grade components and has developed a reputation for sound accuracyefficiency, and durability.

Here’s an overview of what Beyma Audio is all about:

1. Loudspeaker Drivers:

Beyma specializes in high-quality loudspeaker drivers, including woofersmidrange driverstweeters, and compression drivers. Their drivers are designed to deliver high output with low distortion and are often used in professional sound systems and high-end car audio.

  • Woofers and Subwoofers: Beyma's woofers and subwoofers are engineered to deliver deep, tight bass and high power handling. They are commonly used in subwoofer enclosuresPA systems, and home theater setups for powerful, clean low-frequency response.
    • Beyma 18B: A well-known 18-inch woofer that delivers impressive bass performance with a robust design, suitable for large PA systems or home subwoofer applications.
    • Beyma 15P: A high-performance 15-inch woofer designed for professional sound applications, with high excursion capabilities and efficiency for low-frequency reproduction.
  • Midrange Drivers: Beyma’s midrange drivers are designed for clarity and accuracy, producing natural and detailed mids that are critical for vocal reproduction and instrumental fidelity in full-range systems.
    • Beyma 6MI90: A 6-inch midrange driver known for its efficiency and smooth frequency response, often used in 2-way and 3-way systems.
  • Tweeters: Their high-frequency drivers (or tweeters) deliver smooth, detailed treble frequencies with minimal distortion. They are commonly used in hi-fi and PA systems.
    • Beyma T19: A compression tweeter with a high power handling capacity, designed for professional applications where high SPL (sound pressure level) and clarity are important.
  • Compression Drivers: These are used in horn-loaded systems to provide high-frequency sound with high efficiency and low distortion, often used in PA systems and concert sound systems.
    • Beyma CP-380: A compression driver that offers high output and high-frequency extension, often paired with horns for concert and professional sound systems.

2. Subwoofer Systems and Kits:

Beyma also produces complete subwoofer kits and systems, often used in professional and commercial setups where powerful, clear bass is required. Their subwoofer systems are typically designed to handle high power levels and deliver tight, controlled bass even at high volumes.

3. Car Audio:

Beyma has a significant presence in the car audio market, particularly among enthusiasts who seek high output and precision in their setups. Beyma drivers are known for their ability to handle large amounts of power while maintaining sound clarity and low distortion. Some popular Beyma products for car audio include:

  • Beyma Pro Series Woofers: Known for their high power handling and extended bass response, these woofers are frequently used in high-end car audio builds.
  • Beyma Coaxial Speakers: Beyma also produces coaxial speakers for car audio, combining a woofer and tweeter in a single unit for a more compact solution without sacrificing sound quality.

4. Professional Audio Systems:

Beyma’s products are widely used in professional audio systems, particularly in applications that require high SPL (sound pressure level) and durability. Their loudspeakers are found in:

  • Live Sound Reinforcement: For concerts, festivals, and events where powerful, clear sound is essential.
  • PA Systems: Beyma's woofers, midrange drivers, and compression drivers are used in PA (Public Address) systems and touring sound systems for delivering full-range sound with accuracy and high efficiency.
  • Theater and Cinema: Beyma drivers are used in cinema sound systems for accurate and powerful reproduction of both low-frequency and high-frequency sounds.

5. Build Quality & Materials:

Beyma is known for using high-quality materials in its drivers, ensuring that their components can handle high power levels and provide long-lasting performance. Some features include:

  • Paper and Composite Cones: For woofers and midrange drivers, Beyma often uses paper or composite cones for their excellent stiffness-to-weight ratio and natural sound characteristics.
  • Voice Coils: Their voice coils are made of high-temperature resistant materials, allowing Beyma speakers to handle high power without overheating.
  • Ferrite and Neodymium Magnets: Beyma uses both ferrite and neodymium magnets depending on the application, providing the right balance of efficiencypower handling, and size for different speaker types.

6. Technology and Innovation:

Beyma constantly strives to improve the performance and efficiency of their drivers through technological innovations. Some of their innovations include:

  • High excursion designs for subwoofers and woofers, allowing for greater low-frequency output and less distortion at high volumes.
  • Neodymium magnet technology for lightweight, efficient drivers that maintain high output levels, especially in their compression drivers and tweeters.

Why Choose Beyma Audio?

  • Sound Quality: Beyma is known for producing drivers that provide clearaccurate sound across all frequencies, making them a favorite among professionals who demand precision and high-quality audio.
  • Power Handling: Beyma drivers are built to handle high power loads without sacrificing sound quality. They are often used in high-output environments such as live sound systems and car audio competitions.
  • Durability and Reliability: Beyma’s components are built to last, designed to withstand the rigors of professional sound applications, and offer long-term reliability.
  • Flexibility: Beyma offers a wide range of drivers suitable for different applications—from entry-level car audio to high-end professional sound systems.
