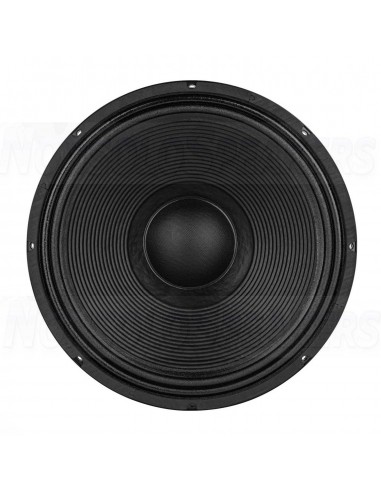

Dayton Audio Odeum Apollo 18SW1200N-8 Subwoofer

Product description

Live sound is back in business! Dayton Audio wants you to hit the road with confidence and maximize your profitability at your next gig. Dayton Audio is a worldwide leader in raw frame drivers. We are passionate audio enthusiasts with a vision to offer the best performance to price value in the industry. After extensive market research, vendor evaluation, and sample driver testing, we are proud to introduce to you the Dayton Audio ODEUM Series.

.

Highlights

Powerful neodymium motor for superior output.

Well balanced SPL to Xmax ratio equates to a loud and long-throw sub

Copper inductance cap and aluminum demodulation ring for low distortion and low power compression

Robust 18” ribbed paper cone for strength and durability

Under spider and rear periphery venting allow for a cooler running voice coil

.

Product details

Dayton Audio Odeum Apollo 18N 18SW1200N-8 18" Professional Neodymium 8 Ohm

Using the knowledge from decades of driver design and engineering, Dayton Audio is placing an emphasis on technical excellence, product reliability, and innovation with the Odeum Series of speaker components! The Odeum Series takes the stage with a new line of professional drivers made for any venue.

The Dayton Audio Apollo 18N has a response that matches a large number of horn drivers and tweeters due to its high efficiency in the frequency range of human voices and midrange detail of stringed instruments. The impedance curve of the Apollo 18N makes it easy to pair up with your favorite compression driver without taxing your power amplifiers!

The Apollo 18N is an 18" subwoofer that is guaranteed to outperform the stock woofers in your PA system. A 1200W power limit is achieved through the combination of a large neodymium motor, a 4" voice coil with a fiberglass former, and a copper inductance cap to lower distortion. A paper cone with cloth M-roll surrounds provides a neutral tone that is easy to tune, and peripheral venting helps keep the whole system cool when playing!

We feel we have hit the sweet spot in price and specs in the pro audio market with this workhorse line of subwoofers, midrange, and high-frequency drivers. The ODEUM series consist of two 1200W 18” subwoofers (one neodymium, one ceramic), 5 sizes and various power ratings of neodymium mid-bass, and two 1” exit compression drivers (one bolt-on, one screw-on).  Upgrade, replace, or create a new pro sound system with the ODEUM series.

.

Specifications

Article number 18SW1200N-8

Woofer Series Odeum

Woofer Type Subwoofer

Nominal Diameter 18"

Power Handling (RMS) 1200 Watts

Power Handling (max) 2400 Watts

Impedance (Z) 8Ω

Sensitivity 97dB 2.83V/1m

Frequency Response 35 to 1,000Hz

Voice Coil Diameter 4"

DC Resistance (Re) 6.1Ω

Voice Coil Inductance (Le) 0.61mH

Resonant Frequency (Fs) 32Hz

Mechanical Q (Qms) 10.02

Electromagnetic Q (Qes) 0.35

Total Q (Qts) 0.33

Diaphragm Mass Inc. Airload (Mms) 217.8g

Mechanical Compliance of Suspension (Cms) 0.114mm/N

Surface Area of Cone (Sd) 1200cm²

BL Product (BL) 27.57T·m

Compliance Equivalent Volume (Vas) 8.95ft³

Maximum Linear Excursion (Xmax) 9.1mm

Cone / Diaphragm Material Coated Paper

Surround Material Paper

Voice Coil Wire Material Copper

Voice Coil Former Copper

Basket / Frame Material Steel

Magnet Material Neodymium

Overall Outside Diameter 18.19"

Overall Depth 7.22"

Baffle Cutout Diameter 16.23"

# Mounting Holes 8

Sealed Volume 3ft³

Sealed F3 84Hz

Vented Volume 4.5ft³

Vented F3 42Hz
