GRS 15PT-8 15" Paper Cone Woofer 8 Ohm
GRS 15PT-8 15" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm
The GRS 15PT-8 15” professional paper cone woofer will deliver high output bass response without breaking the bank. Packed with features like a 3” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability.
GRS 15PT-8 15" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm
The GRS 15PT-8 15” professional paper cone woofer will deliver high output bass response without breaking the bank. Packed with features like a 3” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a worn-out professional subwoofer or are working on high SPL 3-way system, the 15PT-8 is the perfect driver for budget builds.
.
Product highlights:

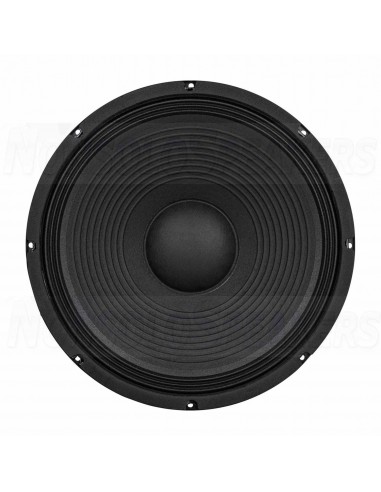

- Lightweight ribbed paper cone allows high efficiency with minimal resonance
- Excellent choice for high output 3-way designs and compact portable subwoofers
- 3” diameter voice coil on heat resistant Kapton former handles up to 350 watts RMS
- Extensive venting keeps cool air flowing across the voice coil to minimize power compression

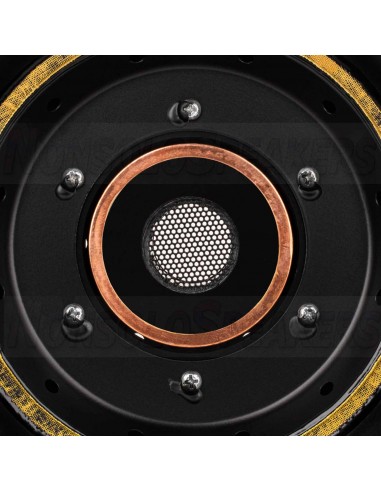

- Inductance lowering copper cap reduces distortion and extends high frequency response

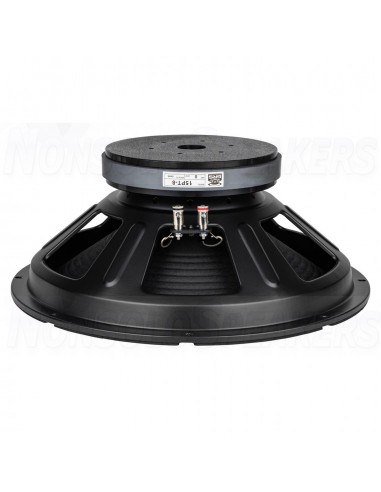

- Spring-loaded push-button terminals makes wire connections quick and easy
- Foam front gasket ensures an airtight seal for rear mount installations
.
Product details
GRS 15PT-8 15" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm
Engineered for high output with powerful low frequency extension, the 15PT-8 15” professional woofer is ideal for use in large low-cost sound systems. Packed with features you would expect from much more expensive drivers, the 15PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 1,500 Hz. Driving the cone is a 3” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 350 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 15PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a blown professional subwoofer, or are designing high output 3-way system, the 15PT-8 is the ideal choice if you want high impact low frequency response without spending a fortune.
Technical Specifications:
- Article number 15PT-8
- Woofer Type Paper Cone Professional Woofer
- Nominal Diameter 15"
- Power Handling (RMS) 350 Watts
- Power Handling (max) 700 Watts
- Impedance (Z) 8 Ohms
- Sensitivity (SPL at 1m / 2.83V) 93 dB
- Frequency Response 30 to 6,000Hz
- Voice Coil Diameter 3"
- DC Resistance (Re) 7.4Ω
- Voice Coil Inductance (Le) 2.1mH
- Resonant Frequency (Fs) 28 Hz
- Mechanical Q (Qms) 11.7
- Electromagnetic Q (Qes) 0.43
- Total Q (Qts) 0.41
- Diaphragm Mass Inc. Airload (Mms) 137g
- Mechanical Compliance of Suspension (Cms) 0.24mm/N
- Surface Area of Cone (Sd) 829.6cm²
- BL Product (BL) 20.2T·m
- Compliance Equivalent Volume (Vas) 8.55ft³
- Maximum Linear Excursion (Xmax) 7.8 mm
- Cone / Diaphragm Material Paper / Glass Fiber
- Surround Material Cloth
- Voice Coil Wire Material Copper
- Voice Coil Former Kapton® / Polyimide
- Basket / Frame Material Steel
- Magnet Material Ferrite
- Overall Outside Diameter 15.12"
- Overall Depth 5.9"
- Baffle Cutout Diameter 13.77"
- Bolt Circle Diameter 14.65
- # Mounting Holes 8
- Sealed Volume 3ft³
- Sealed F3 53Hz
- Vented Volume 5ft³
- Vented F3 30Hz
