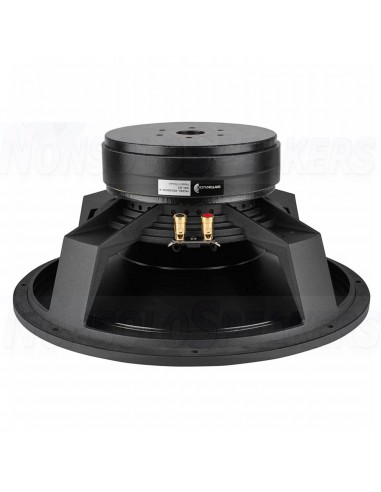

Dayton Audio Reference RSS390HO-4 Subwoofer

Product description

Dayton Audio's Reference Series RSS390HO-4 15" subwoofers make solid, tight, low-distortion bass performance a reality for automotive speaker applications and compact, equalized home audio installations.

.

Highlights

Extensively vented motor eliminates compression and allows quiet excursion

Lightweight black anodized aluminum cone for rigidity and lower moving mass

Triple shorting ring motor for ultra-low distortion

2-layer coil for reduced back EMF

Suitable for sealed or vented enclosures

Highest quality materials throughout for long-lasting performance

-

Product details

Dayton Audio RSS390HO-4 15" Reference HO Subwoofer 4 Ohm

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure.

A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high output version for automotive applications or for equalized high-power home subwoofer speaker systems.

.

Specifications

Article number RSS390HO-4

Woofer Series Reference Series

Woofer Type Subwoofer

Nominal Diameter 15"

Power Handling (RMS) 800 watts

Power Handling (max) 1600 watts

Impedance (Z) 4 ohms

Sensitivity 92.8 dB @ 2.83V/1m

Frequency Response 21 - 600 Hz

Voice Coil Diameter 64 mm

Magnet Weight150 oz.

DC Resistance (Re) 3.2 ohms

Voice Coil Inductance (Le) 1.79 mH @ 1 kHz

Resonant Frequency (Fs) 21.5 Hz

Mechanical Q (Qms) 3.69

Electromagnetic Q (Qes)0.35

Total Q (Qts)0.32

Diaphragm Mass Inc. Airload (Mms)319g

Mechanical Compliance of Suspension (Cms)0.17 mm/N

Surface Area of Cone (Sd) 829.6 cm²

Volume of Displacement (Vd) 995.5 cm³

BL Product (BL) 19.8 Tm

Compliance Equivalent Volume (Vas) 168 liters

Maximum Linear Excursion (Xmax) 12.0 mm

Cone / Diaphragm Material Black Anodized Aluminum Cone

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Aluminum

Basket / Frame Material Cast Aluminum

Magnet Material Ferrite

Overall Outside Diameter 388.4 mm

Overall Depth 178 mm

Baffle Cutout Diameter 355.8 mm

# Mounting Holes 8

Sealed Volume 1.58 ft.³

Sealed F3 50 Hz

Vented Volume 2.72 ft.³

Vented F3 30 Hz
