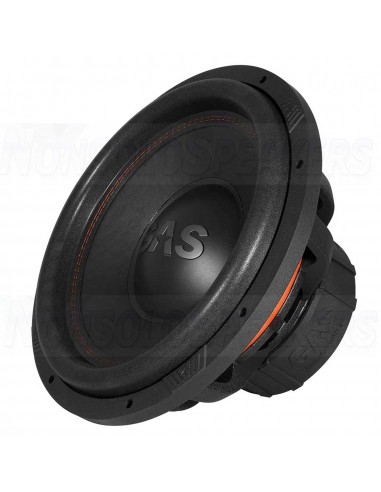

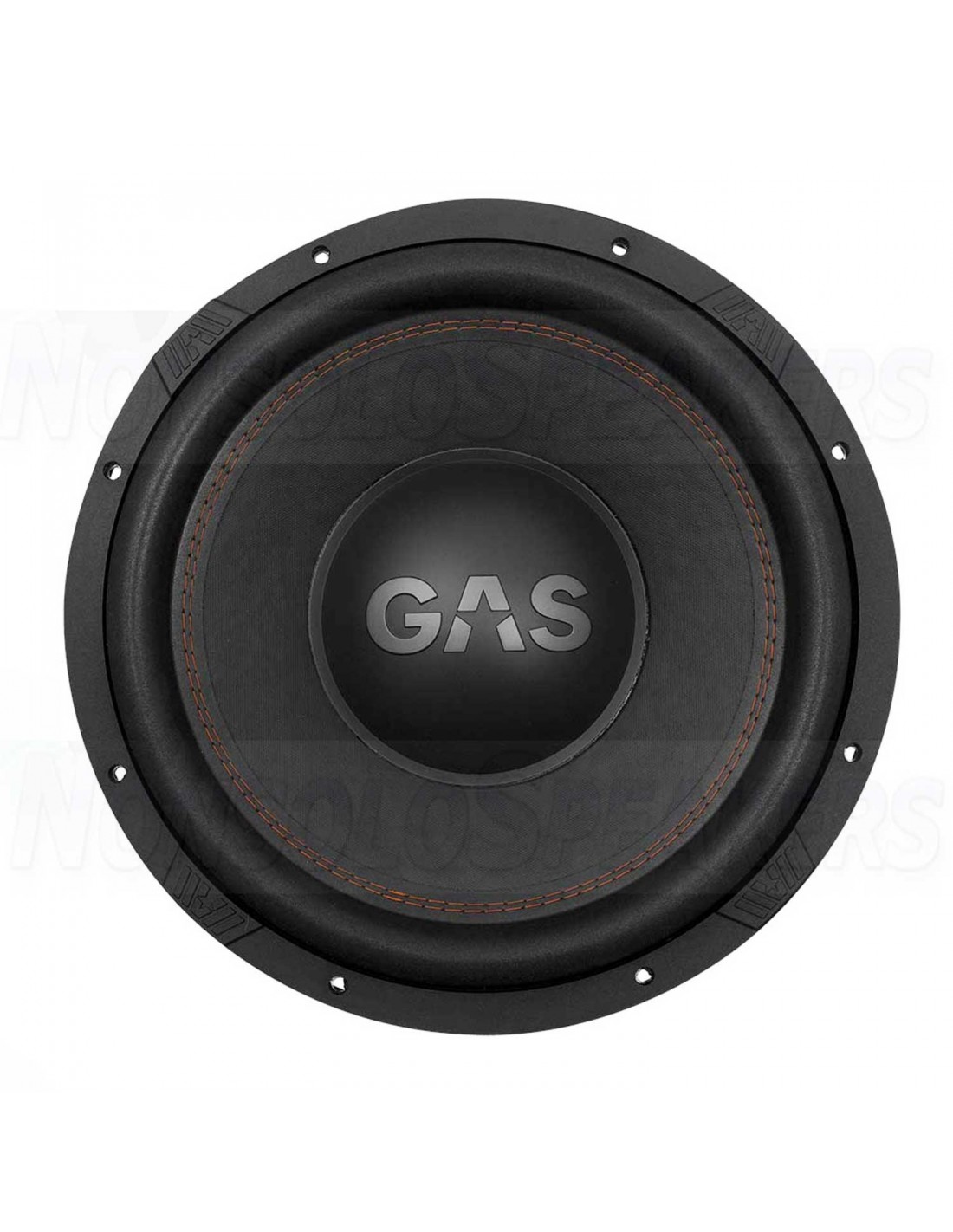

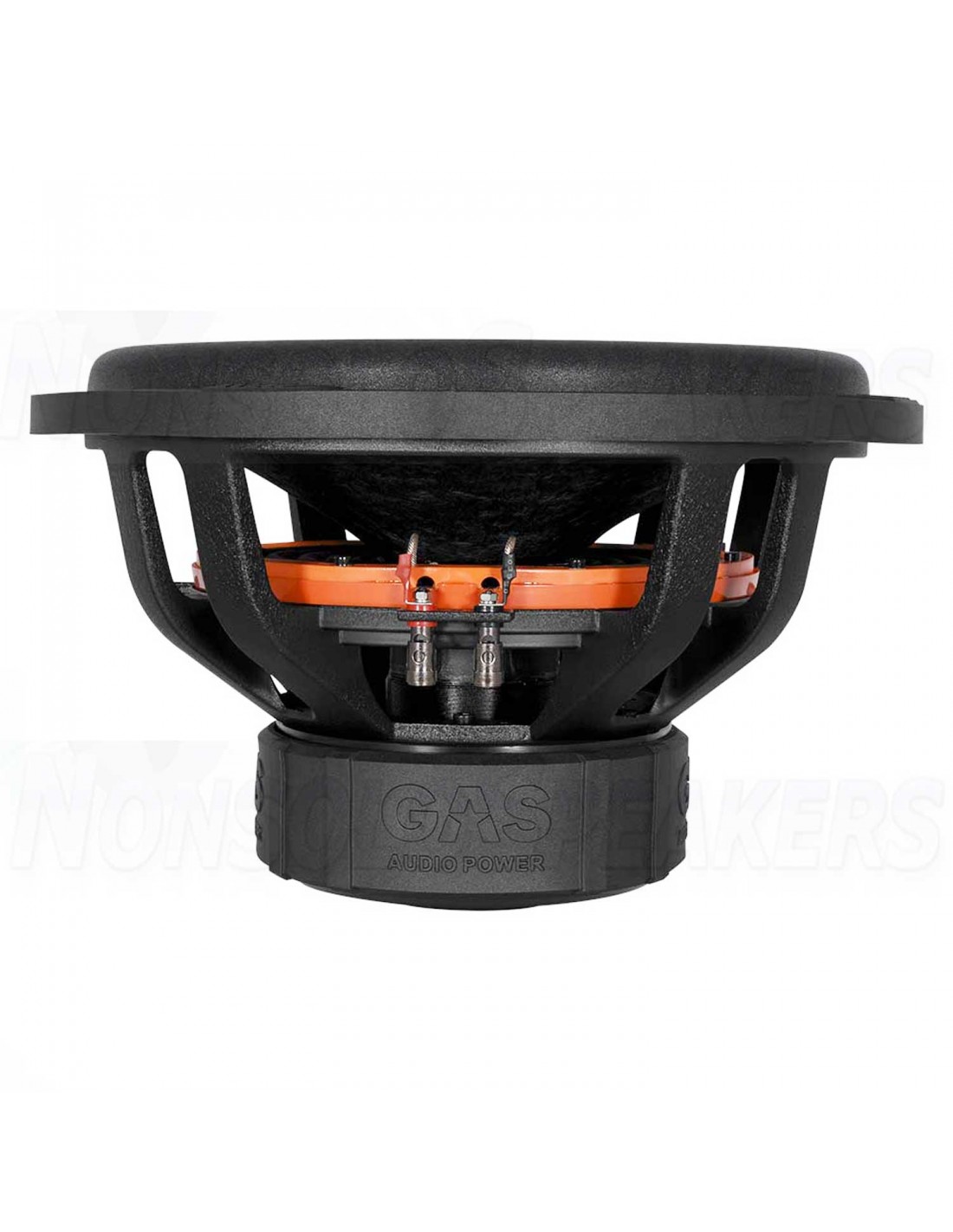

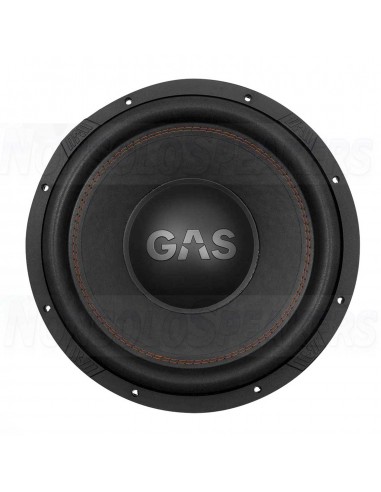

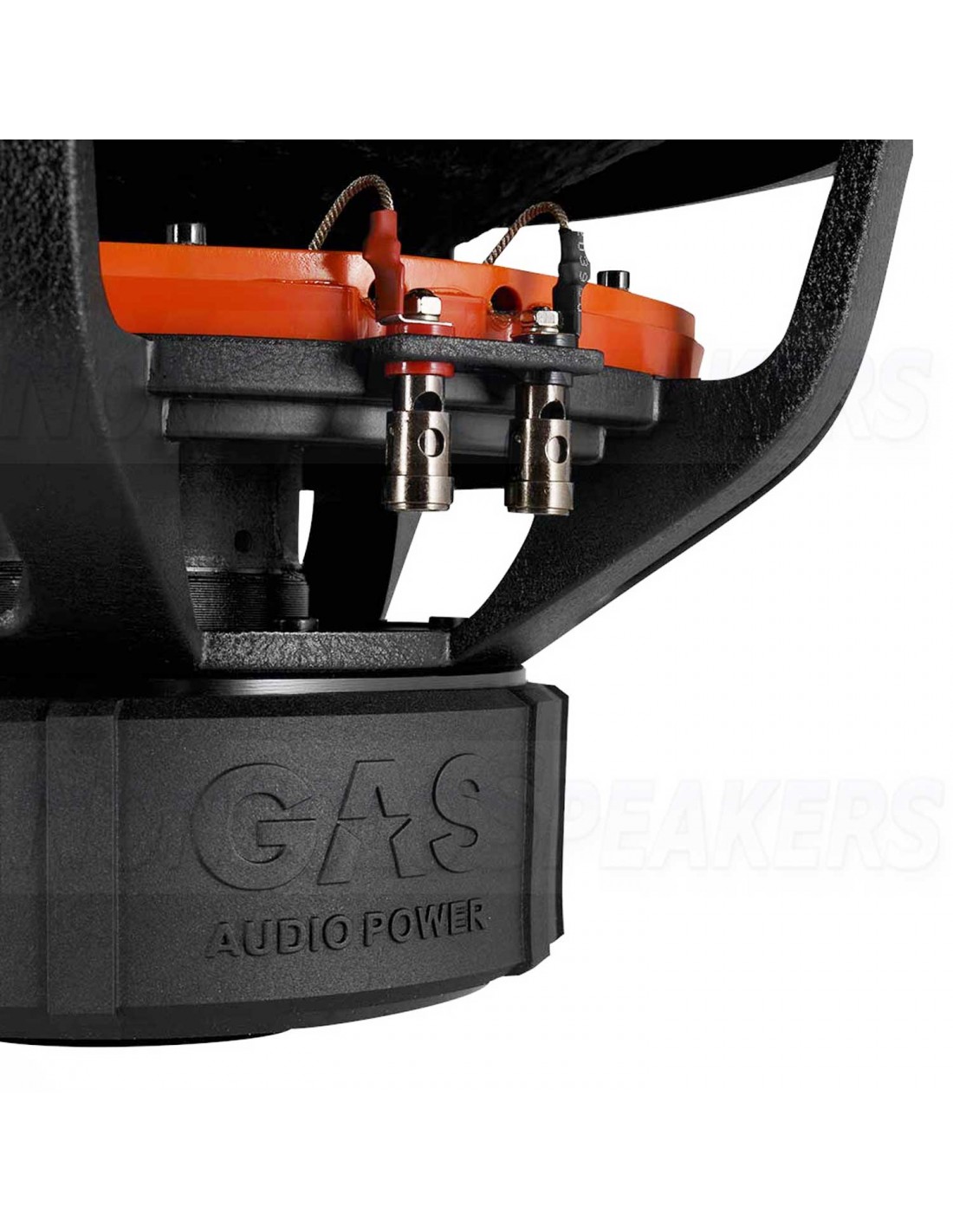

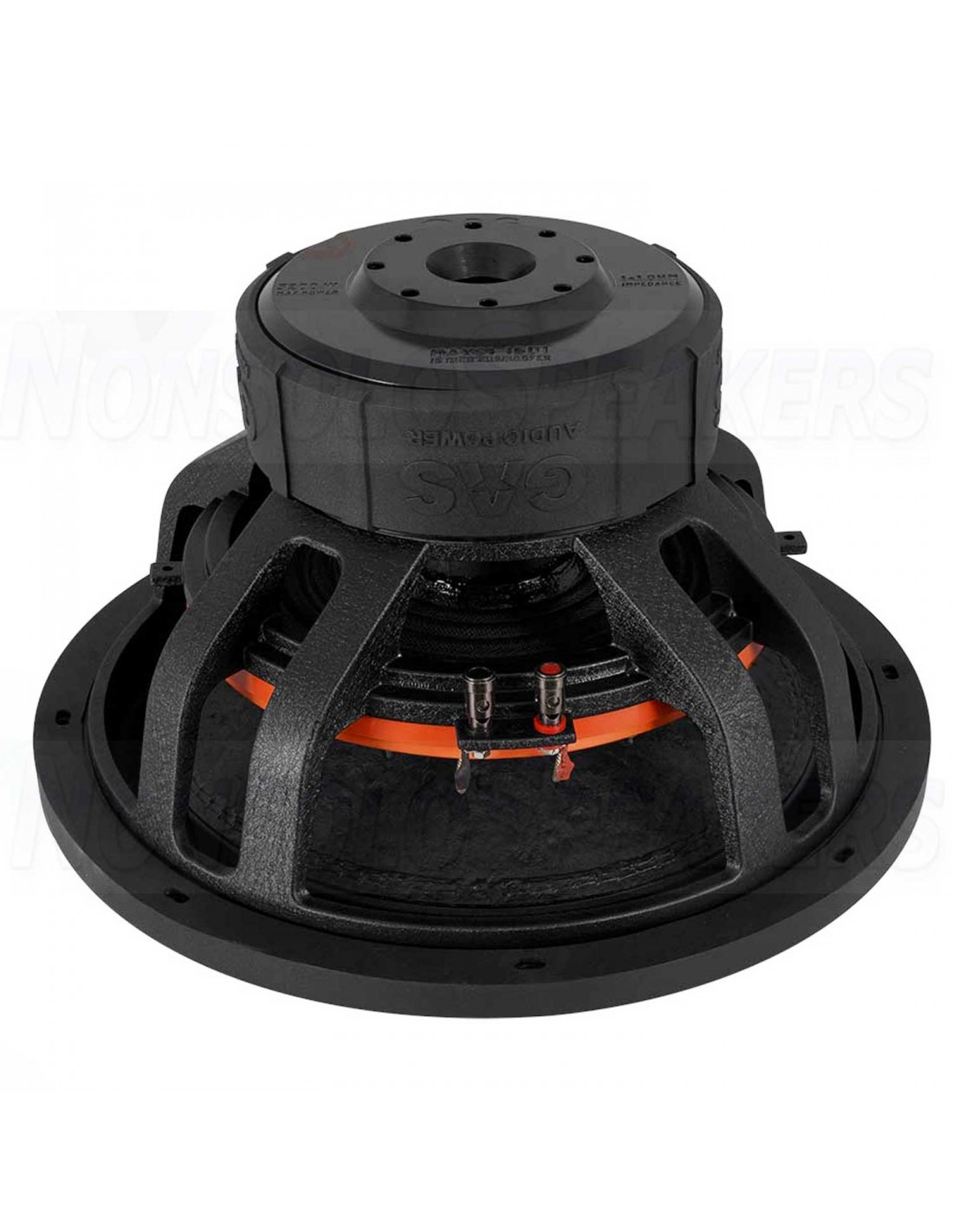

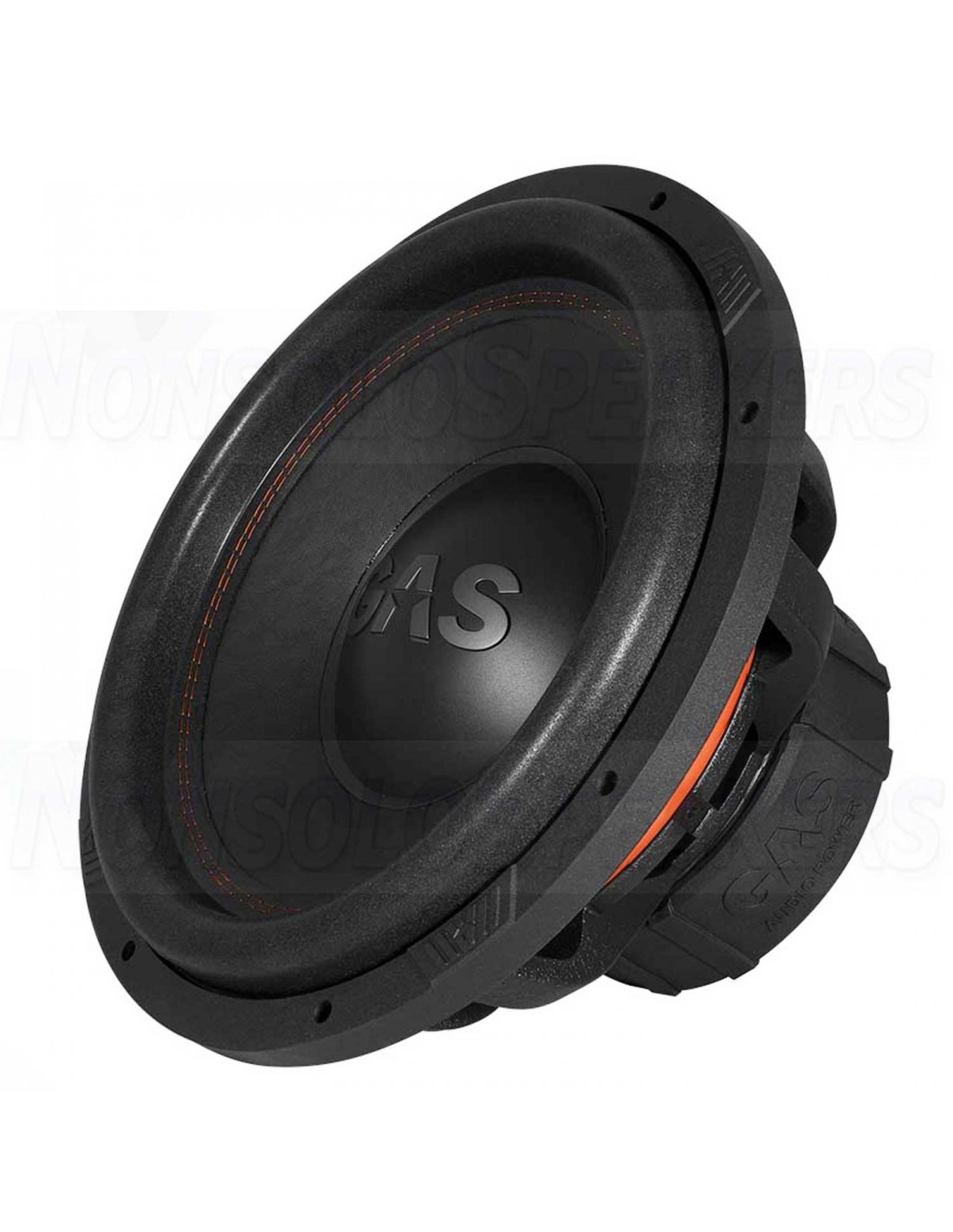

GAS MAX S1-15D2 15" subwoofer 2+2 Ohm

The GAS MAX S1-15D2 is a 15" (380 mm) car subwoofer suitable for mounting in a speaker cabinet with an output of 1600 W RMS.

Congratulations! You are ready to take the next step, enter the world of NO COMPROMISE with a subwoofer that will take your car to a whole new level. Go out and impress the unbelievers! Show them that true commitment comes from the inside of your trunk and that "good enough" just isn't enough.

The MAX subwoofer is designed to test the limits and match your commitment in performance and style. Made for die-hard bass - with a strong and durable diaphragm made from unpressed paper and mineral mica that perfectly balances amazing power, weight and musicality. The canopy is made of IMPP for a unique 3D design, an idea that is taken from the MAD S2 series. But since this is MAX, it's taken one step further. With impressive foam suspension with high rollability, you get even more amazing diaphragm movement. The dual voice coil wire is made of PCW (Pure Copper Wire) and on the 8” and 10” models a bumped back plate is introduced for some extra mechanical maximum deflection, which minimizes the risk of damage to the voice coil.

The MAX S1 subwoofers will let everyone know that your audio commitment is real. No details were overlooked and no compromises were made. The subwoofer shows its dedication to the craft of bass with two stacked HQ ferrite magnets that deliver an insane amount of subwoofer power. For greater durability, Dual Nomex spider is also used in all models and double stitching. The MAX S1 will show everyone that you have reached the next level, the MAX level. Subwoofer performance at this level requires extremely good ventilation. Therefore, cooling is solved in two different ways. The material in the top/back plate is thicker for optimal heat conduction and the implemented DVS2 (Dual Ventilation System) creates incredible heat dissipation while reducing distortion.

.

The main features of the GAS MAX S1-15D2 subwoofer

• Double Subwoofer Ferrite Magnet
• Double Nomec Spider
• Double-stitched membrane to the hinge
• Dual heat dissipation for reduced distortion and maximum durability
• Dual Pure Copper Wire voice coils
• Special IMPP canopy with 3D design

.

Technical Specifications

• Power RMS/MAX: 1600/3200 W
• Subwoofer size: 15" - 380 mm
• Impedance: 2+2 Ohms
• Frequency range: 20-200 Hz
• Sensitivity: 85 dB
• Voice coil diameter: 76 mm
• Double Ferrite Magnet
• Membrane made of pressed cellulose and mineral mica
• Hi-foam suspension with double stitching
• Mounting diameter: 350 mm
• Installation depth: 206 mm
• Recommended closed box volume: 55 L
• Recommended bass reflex box volume: 96 L with 155 x 310 mm nozzle
• Weight: 14.6 kg
