Audio System H 15 EVO - 38cm SPL-Subwoofer

Audio System H 15 EVO - 38cm SPL-Subwoofer

Audio Systems' HELON H series has always been particularly popular with those looking for high levels. Now the largest woofer in the family and thus the thickest chunk in the entire product range is appearing as a newly made HELON EVO version. The woofer chassis alone weighs 21.6kg.

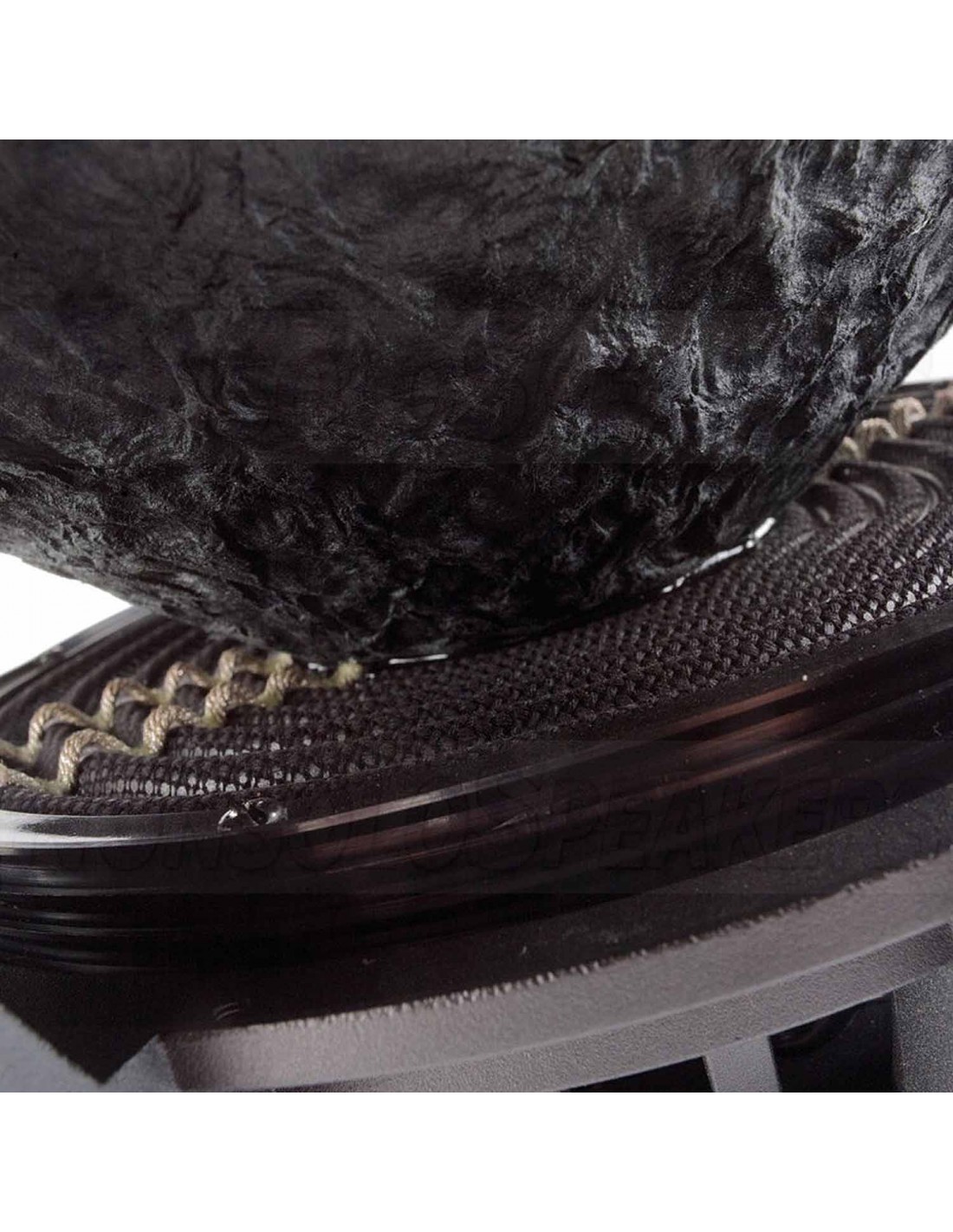

As with the X-Series, Audio System is moving to the new paper cone for the HELON H-Evo woofers, which has a thick layer of plastic on the front for reinforcement. This composite is not overly heavy, but very stable and therefore perfectly suited as a subwoofer membrane.

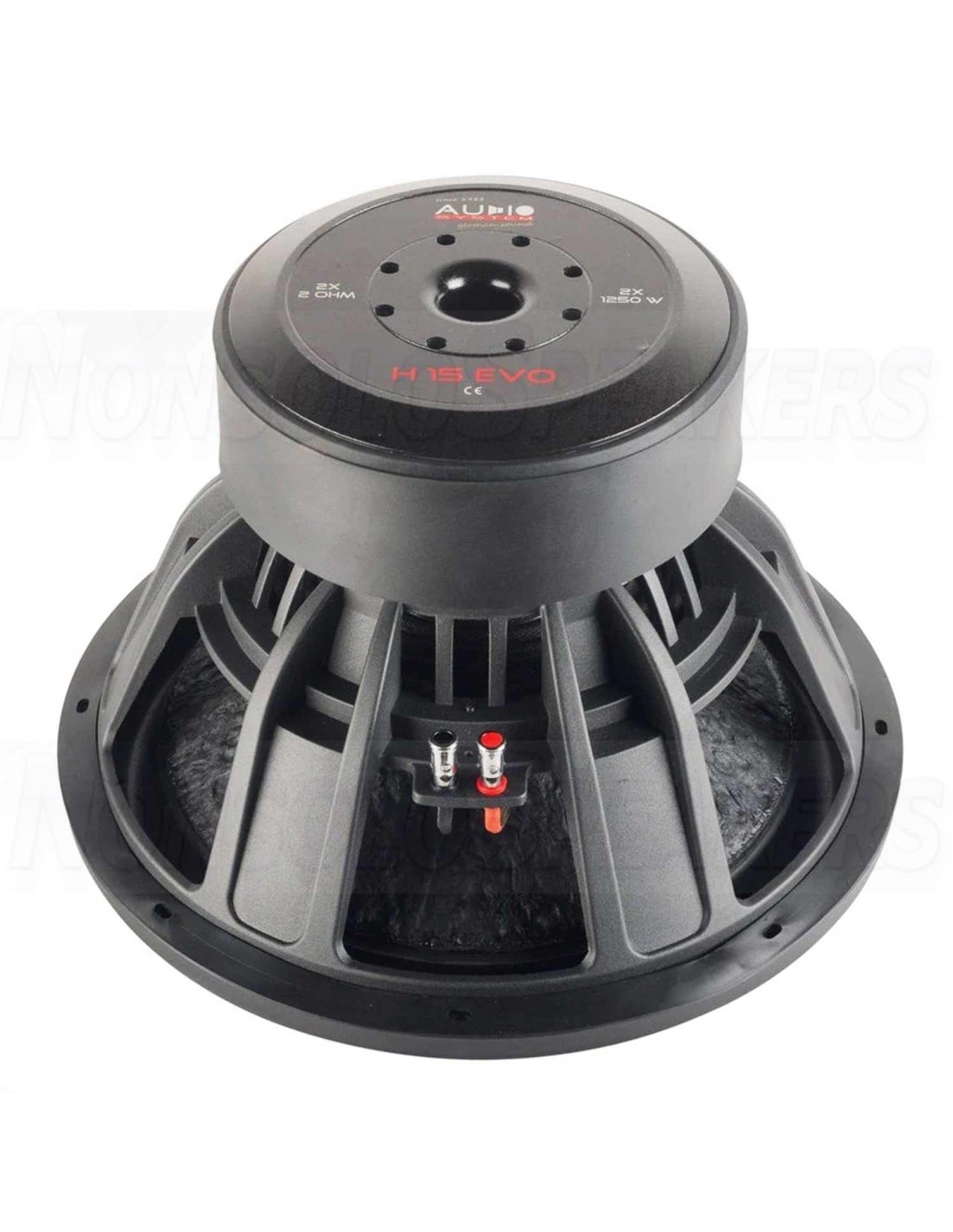

Plenty of air can flow through the huge windows in the die-cast basket, and the linear stroke can be estimated at around 25 millimeters in every direction. Mechanically it is 55 millimeters of travel from the spider to the pole plate.

Features audio system HELON H 15 EVO:

Audio System H-EVO SERIES SPL Woofer

15" (38cm) subwoofer SPL power subwoofer

2x 1500/1250 watts

15500 watts peak at 60 Hz

3″ flat wire dual voice coil “MADE in USA”

33-fold ventilation system

ultra-stable KPC paper cone

Flow-optimised, ultra-stable cast basket

double-sewn, highly flexible foam surround

woven 2-fold silver strands

Magnet system with HEM magnet (High Efficient Magnet)

Improved T-Joke and Pole Plate construction

progressive 2x PPTA Connex spider

Pure carbon dust cap

USS Spacer(Up Stroke Spacer)

Performance data audio system HELON H 15 EVO:

Impedance: 2x 2 ohms

2x 1500/1250 watts

Dimensions audio system HELON H 15 EVO:

Weight: 22.8kg

installation depth: 239 mm,

Installation Ø: 358 mm

Outer Ø: 396 mm
