Digital Designs Basskit RL-LA600.1 + RL-SE12-S1

Basskit DD Redline 12″

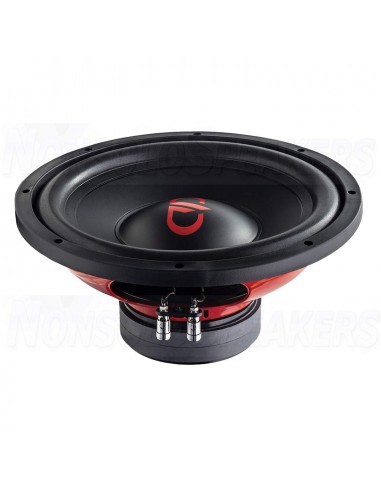

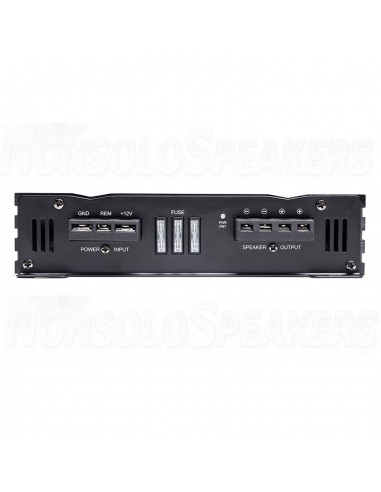

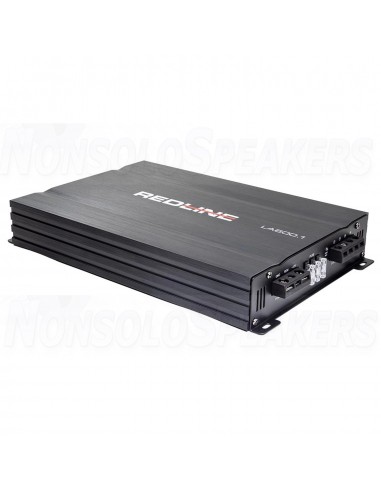

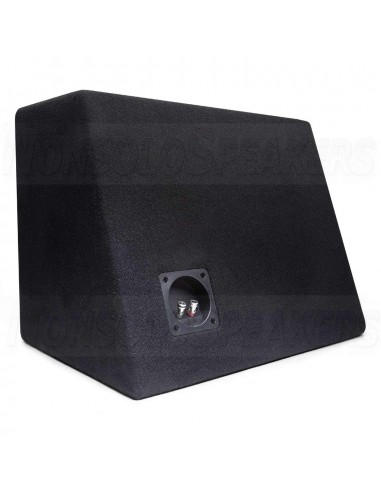

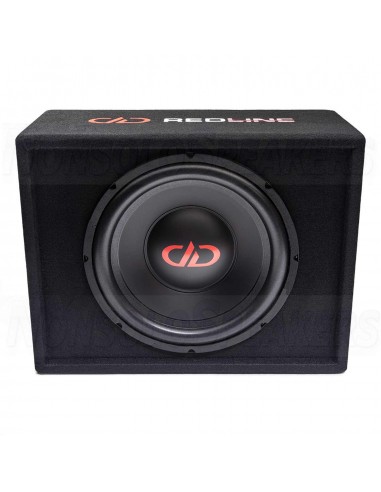

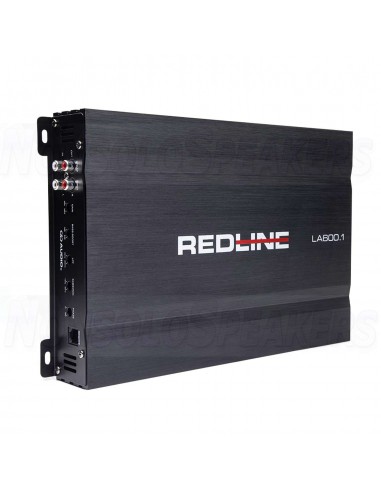

DD Audio Basskit includes 12″ RL-SW12-D2 subwoofer in a closed enclosure and a powerful RL-LA600.1 mono amplifier. Amplifier: The Class D RL-LA600.1 efficiently delivers the power to drive a DD AUDIO loaded enclosure or DD REDLINE multi subwoofer setups. Bandpass crossovers and bass boost capabilities allow precise tuning of the sub stage while the included remote control knob adds the ability to make on the fly adjustments of the subwoofer volume. When paired with a DD AUDIO SC2 or SC4 active line output converter, the REDLINE LA Series amplifiers provide a seamless factory integrated amplification solution. The REDLINE LA Series amplifiers utilize spade terminals for clean and secure connections on both the power input and speaker outputs. Subwoofer: The DD REDLINE RL-SE12 loaded enclosure is an easy, plug and play solution for solid bass and rich savings! It’s designed to deliver deep, satisfying bass on low to moderate power. They use sturdy sealed seam MDF construction, and are upholstered in a durable carpet with an embroidered logo. They’re also loaded with subwoofers designed specifically for the enclosure to ensure maximum performance. Model of subwoofer: DDRL-SW12-D2 SOLID PERFORMANCE. SIZABLE SAVINGS.

.

Technical Specifications

Subwoofer:

Speaker Size (In): 12

Watts RMS: 100 - 300

Watts Peak: 600

Impedance: S1

dBSPL: 88

Dimensions (Inches): 18 x 14 x 8 Top / 13 Base

Dimensions (MM): 458 x 356 x 203 Top / 330 Base

Amplifier:

Operating Voltage: 9 - 16

Test Voltage: 14.4

Output Channel(s): 1

Continuous Wattage @4ohm: 1 x 180

Continuous Wattage @2ohm: 1 x 350

Continuous Wattage @1ohm: 1 x 600

Dynamic Wattage: 1200

Max Current Draw (Amps): 60

RCA Input Voltage Sensitivity: 6 - 0.25

RCA Input S/N: 85

THD: 0.1%

Bass Boost: 6dB @ 45Hz

Frequency Response (Hz): 20 - 500

Sub-Sonic Filter: 10 - 50

Low-Pass Filter: 32 - 300

ZVL Input: No

Pass Thru Output: No

Power Wire Gauge: Spade Terminal

Speaker Wire Gauge: Spade Terminal

Dimensions (Inches): 11.75 x 8.25 x 2

Dimensions (MM): 298 x 209 x 51
