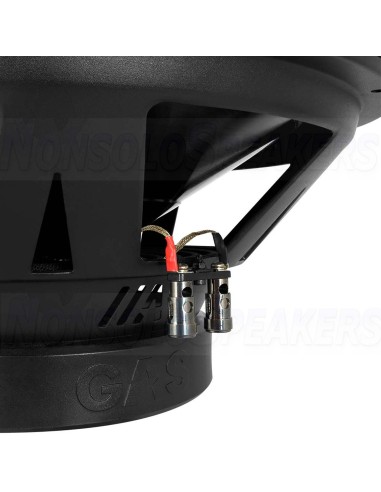

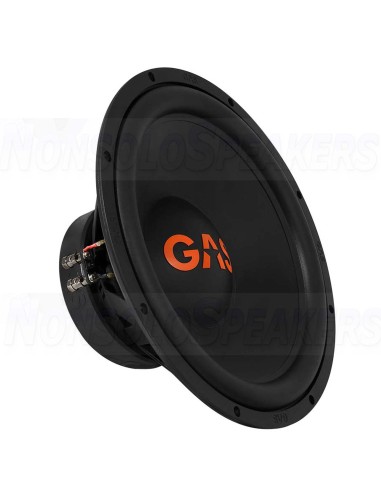

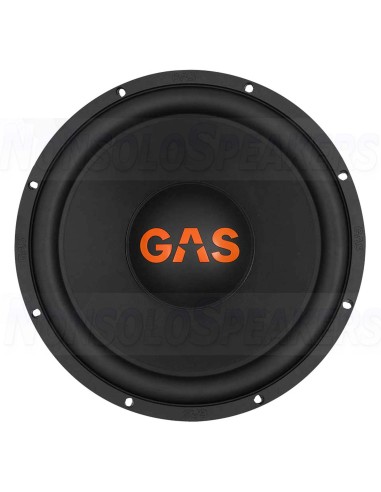

Subwoofer GAS MAD S2-15D2 Subwoofer 15"

.

The GAS MAD S2-15D2 is a 15" (380 mm) in-car subwoofer designed for installation in a speaker enclosure, delivering 400 W RMS power.

MAD subwoofers are designed to be powerful and last for years. Extraordinary emotions bring extraordinary cabinets to life, loaded with quality subwoofers. Innovative and cutting-edge techniques are used to increase their durability and performance. All this to ensure you can turn up the volume and listen day and night. Unleash pure power with the MAD S2 subwoofer and you'll be amazed.

GAS also focused on the diaphragm design, developing the exclusive USG™ (Unity Surround & Gasket) mount. Normally, the gasket and frame are separated into two parts. But GAS Audio Power has combined this to optimize the linear movement and displacement area of ​​the diaphragm, offering an additional advantage in precision and extraordinary musical performance. If you like LOUD sound, adequate cooling is essential. The subwoofer features a DVS™ (Dual Ventilation System) designed to reduce distortion and increase heat dissipation. Adequate cooling means less heat, and less heat gives you the ability to add more subwoofers and achieve even more sound pressure!

The MAD S2 Series is powerful and impressive. It features Thiele/Small's multifunctional parameters, ensuring excellent performance in sealed, vented, and bandpass enclosures. To complement the subwoofer's high-quality construction, a durable and robust MAD molded industrial steel basket was created. The 51 mm voice coil is made of PCW (pure copper wire) and the dust cap is made of IMPP, as is the dome, for a unique 3D design that will truly make your friends jealous.

.

Main Features of the MAD S2-15D2 GAS Subwoofer

• Ferrite subwoofer magnet with steel basket
• Injection-molded polypropylene diaphragm
• Connecting Terminals Robust
• Dual venting system
• Dual voice coil
• Exclusive USG™ basket hook attachment
• Suitable for vented and sealed enclosures
• GAS MAD S2-15D2 parameters
• RMS/MAX power: 400/800 W
• Subwoofer dimensions: 15" - 380 mm
• Impedance: 2+2 Ohms
• Frequency range: 18-150 Hz
• Sensitivity: 88 dB
• Voice coil diameter: 51 mm
• Ferrite magnet
• Polypropylene diaphragm
• Rubber hinge
• Mounting diameter: 349 mm
• Mounting depth: 161.5 mm
• Recommended sealed enclosure volume: 53-102 L
• Recommended bass reflex enclosure volume: 91 L with 155x440 mm nozzle
