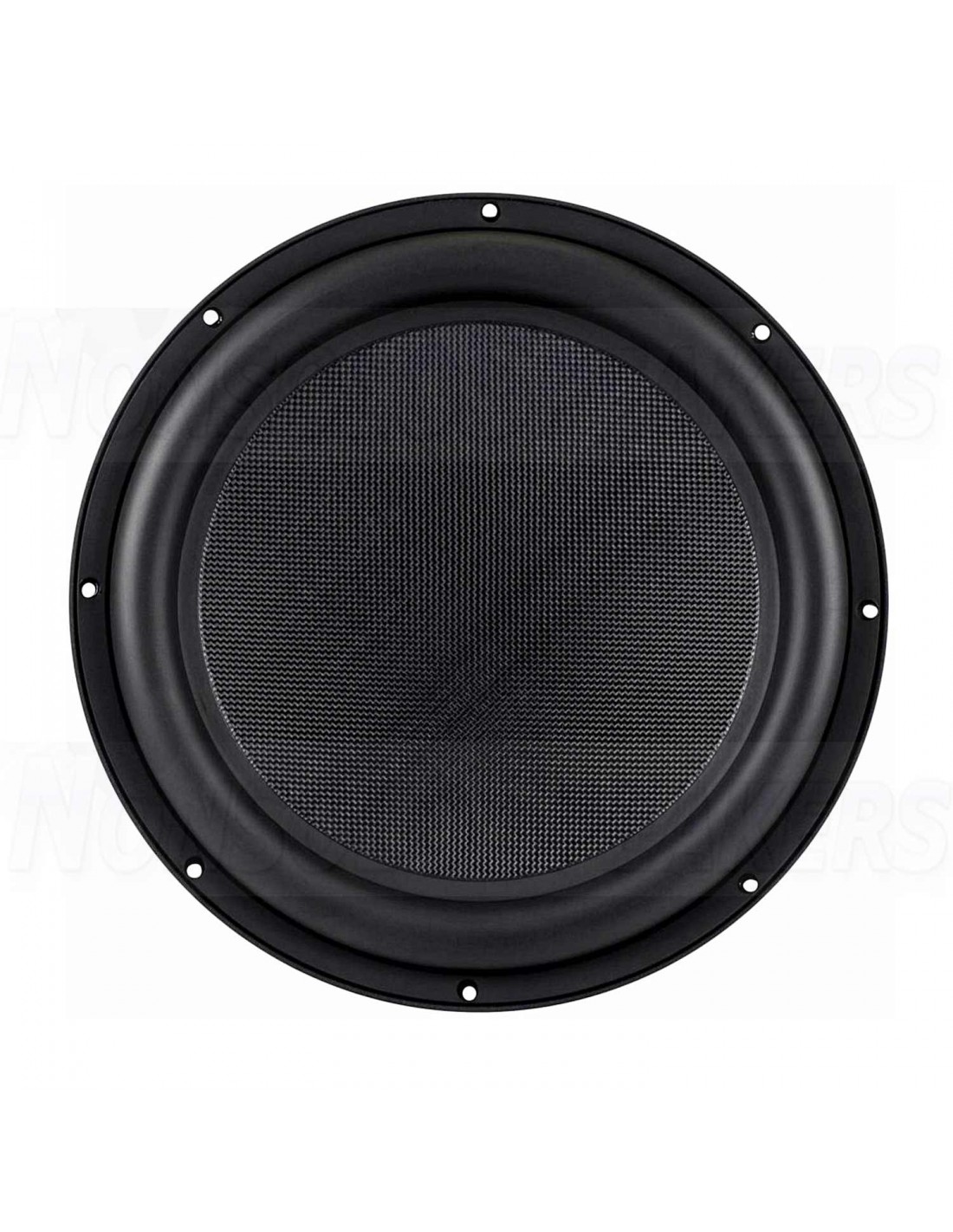

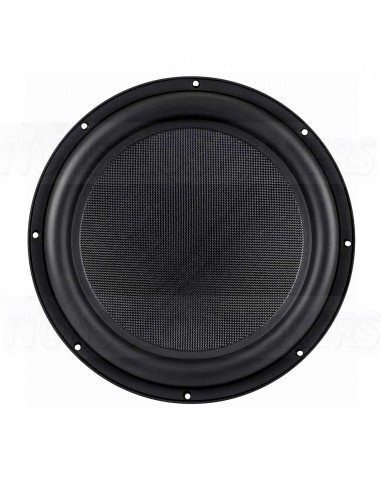

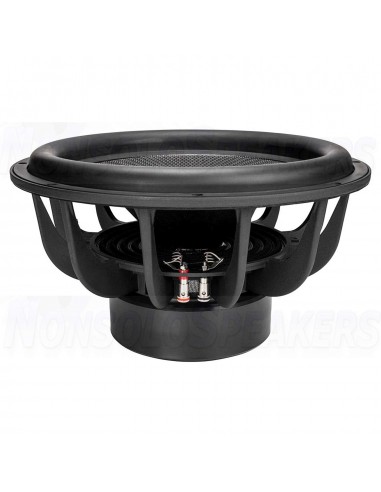

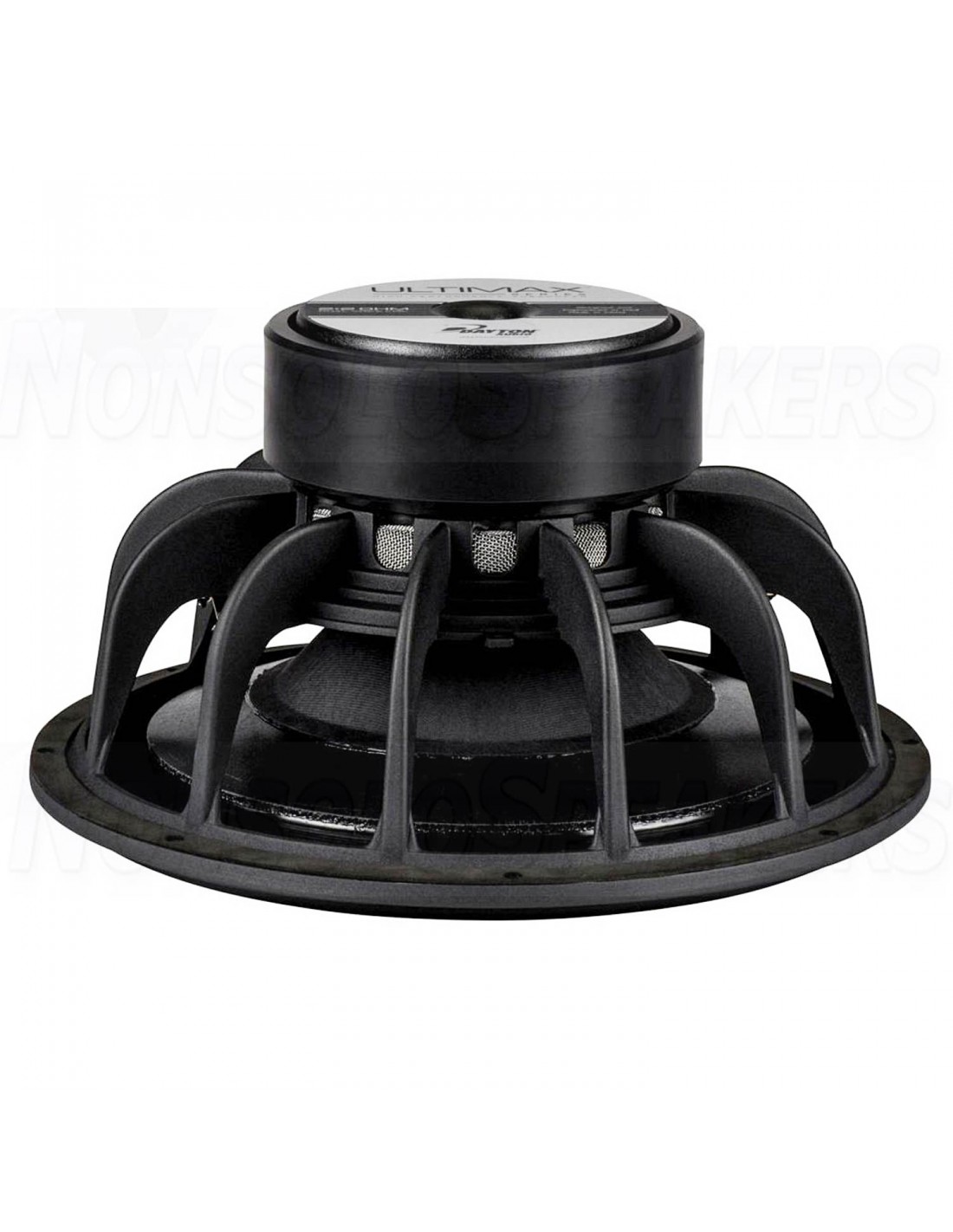

Dayton Audio UM15-22 15" Ultimax DVC Subwoofer 2 ohms Per Coil

Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Experience the apex of subwoofer design


Estimated Shipping Costs
Shipping Costs
€26.40
Shipping Time
.
Want to check another country or courier?



Dayton Audio UM15-22 15" Ultimax DVC Subwoofer 2 ohms Per Coil

Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Experience the apex of subwoofer design

.

Highlights

  • Sweeps massive amounts of air!
  • Over 1-1/2" of total cone travel 800 watts RMS power handling
  • The latest in subwoofer technology
  • Dual linear stiffness spiders limit distortion and rocking modes
  • Dual 2 ohm, 2-layer copper voice coils
  • Large vented pole piece and under-spider venting

.

Product Description

The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass.

Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility.

To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils.

Over 1-1/2" of travel (3/4" Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. "Tall-boy" rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation.

A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for "faster" response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.

.

Cabinet Recommendations:

  • Sealed 3.8 cubic ft. (net internal) with 3 lbs. of Acousta-Stuf polyfill, f3 of 33 Hz with a 0.707 Qtc alignment
  • Vented 4 cubic ft. (net internal, not including driver or port volume) for an f3 of 25 Hz. Larger cabinets and lower tuning frequencies are possible.

.

Product Specifications

Speaker Series Ultimax Series
Model Number UM15-22
Color Black
Unit of Measure Each
UPC 844632099267
Product Shipping Weight (lbs.) 28
Speaker Type Subwoofer
Power Handling (RMS) 800 watts
Power Handling (max) 1,600 watts
Continuous Program Power --
Impedance 4 ohms Sensitivity 86.5 dB @ 2.83V/1m
Frequency Response 15 - 1,000 Hz
Voice Coil Diameter 63.5 mm Magnet Weight --
DC Resistance (Re) 3.4 ohms
Voice Coil Inductance (Le) 1.31 mH
Resonant Frequency (Fs) 19.5 Hz
Mechanical Q (Qms) 2.4
Electromagnetic Q (Qes) 0.59
Total Q (Qts) 0.47
Diaphragm Mass Inc. Airload (Mms) 279.4 g
Moving Mass Of Diaphragm (Mmd) --
Mechanical Compliance of Suspension (Cms) 0.24 mm/N
Surface Area Of Cone (Sd) 814.6 cm²
Volume of Displacement (Vd) 1,548 cm³
BL Product (BL) 15.4 Tm
Compliance Equivalent Volume (Vas) 224.3 liters
Maximum Linear Excursion (Xmax) 19 mm
Drivers Mechanical Losses (Rms) --
Cone / Diaphragm Material Nomex Cone
Entry / Exit Diameter --
Surround Material Rubber
Voice Coil Wire Material Copper
Voice Coil Former Aluminum
Basket/Frame Material Cast Aluminum
Magnet Material Ferrite
Overall Outside Diameter 388 mm
Overall Depth 192 mm
Baffle Cutout Diameter 350.5 mm
# Mounting Holes 8
Mounting Hole Diameter --
Bolt Circle Diameter --
Product Weight --
