Ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum.

SHIPMENT IN 7-10 WORKING DAYS
€72.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like

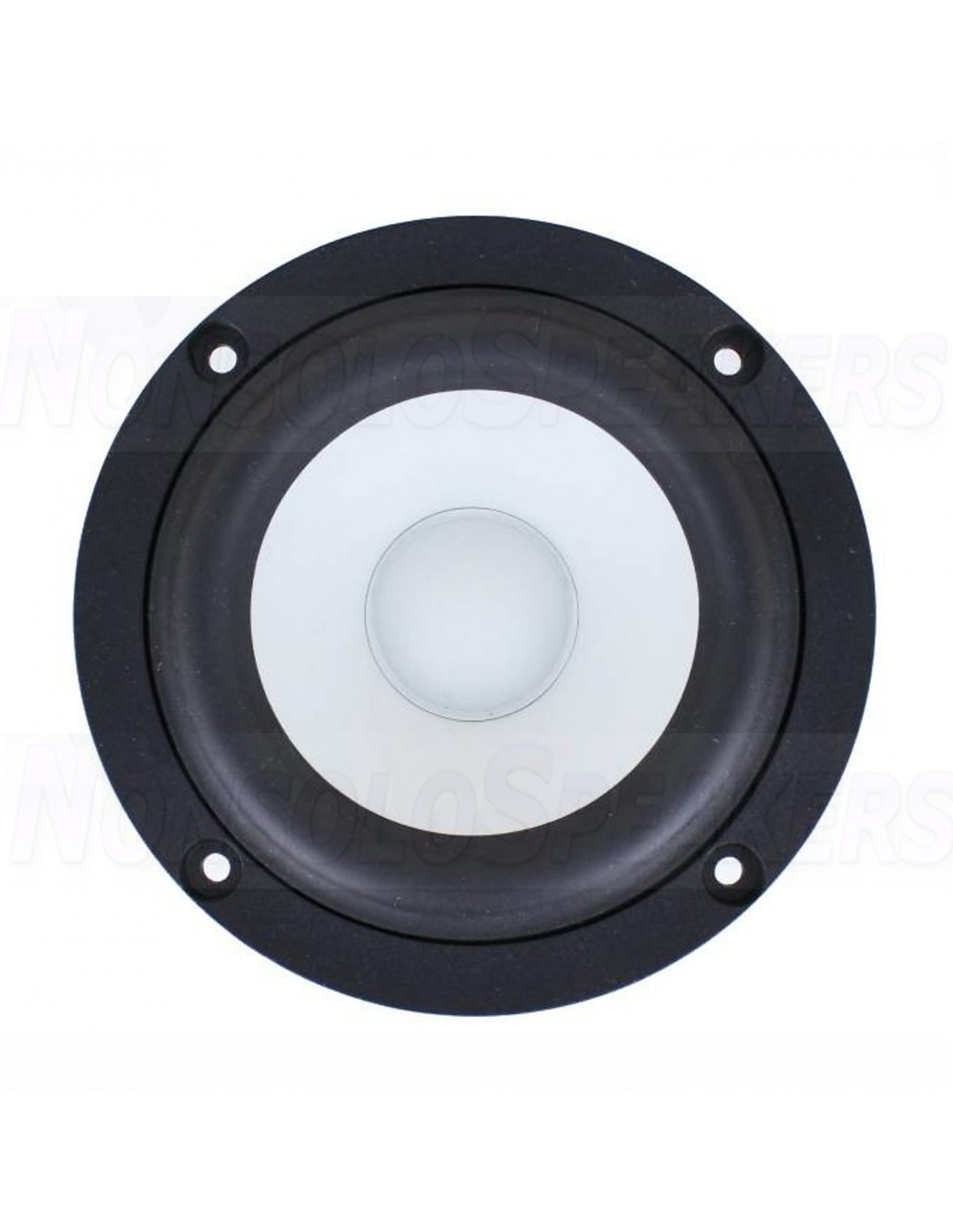

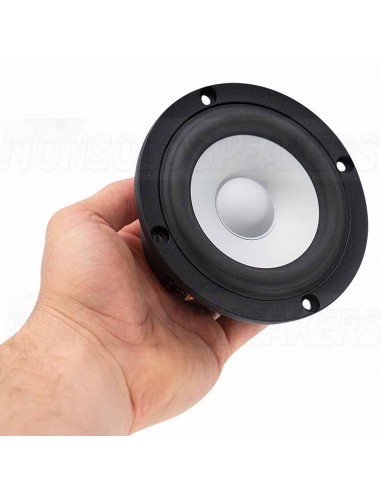

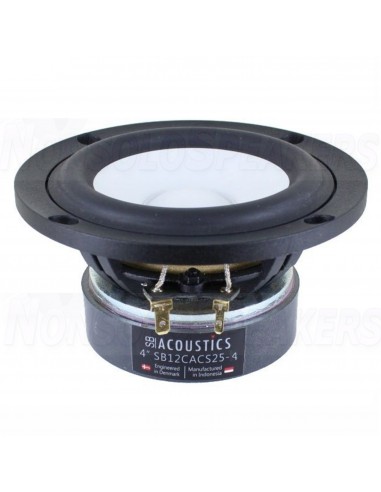

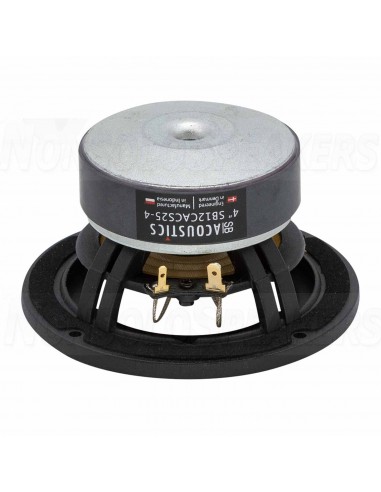

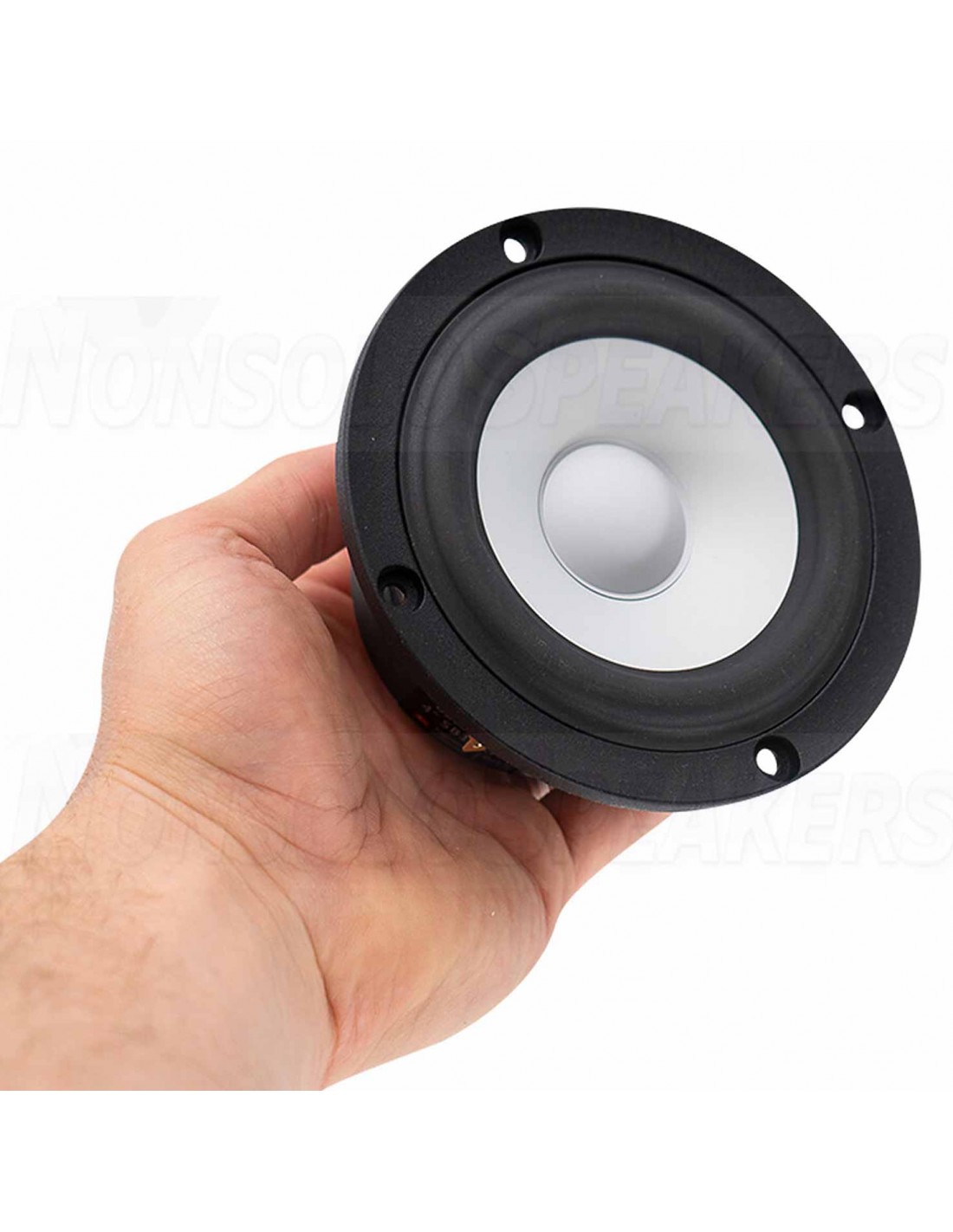

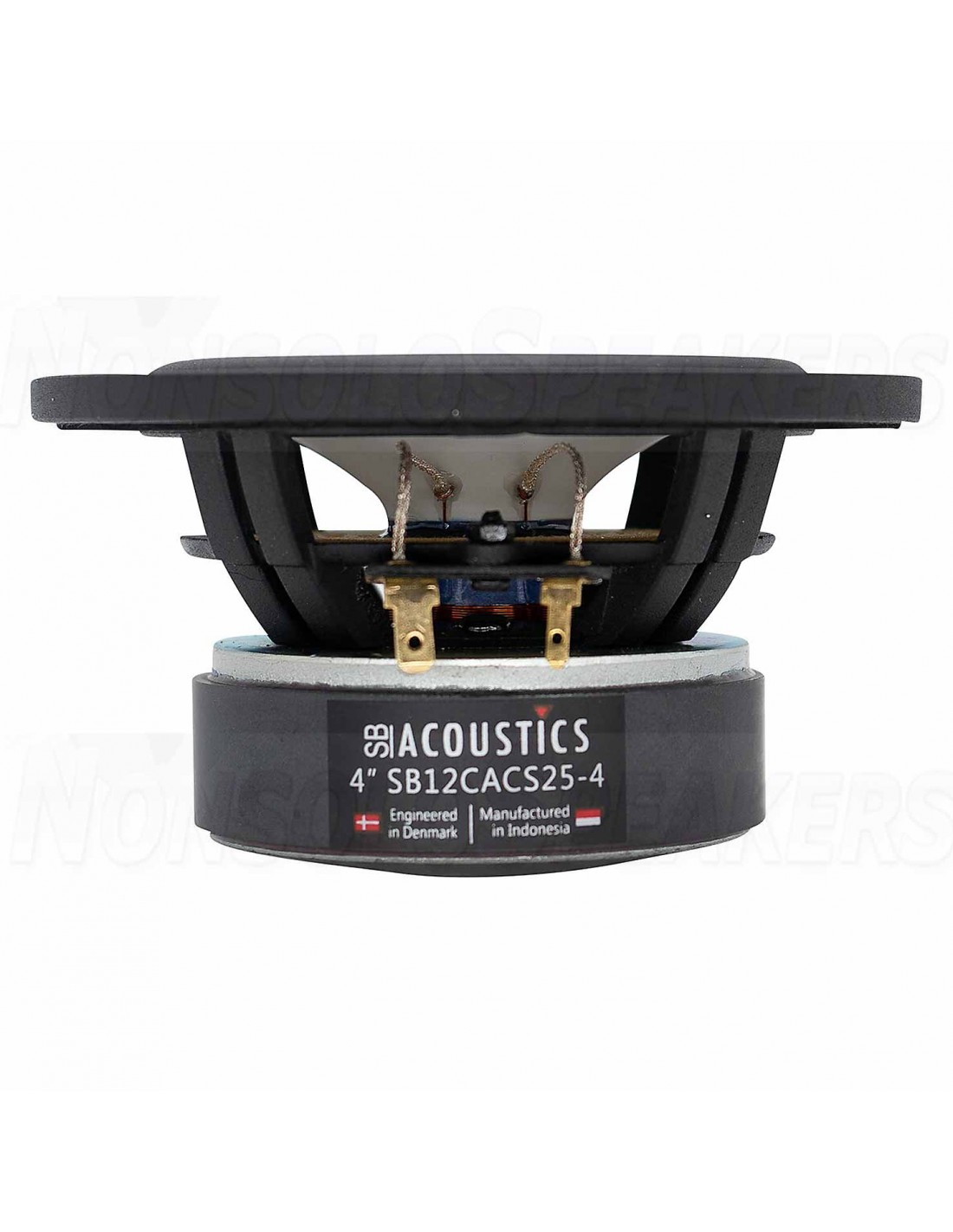

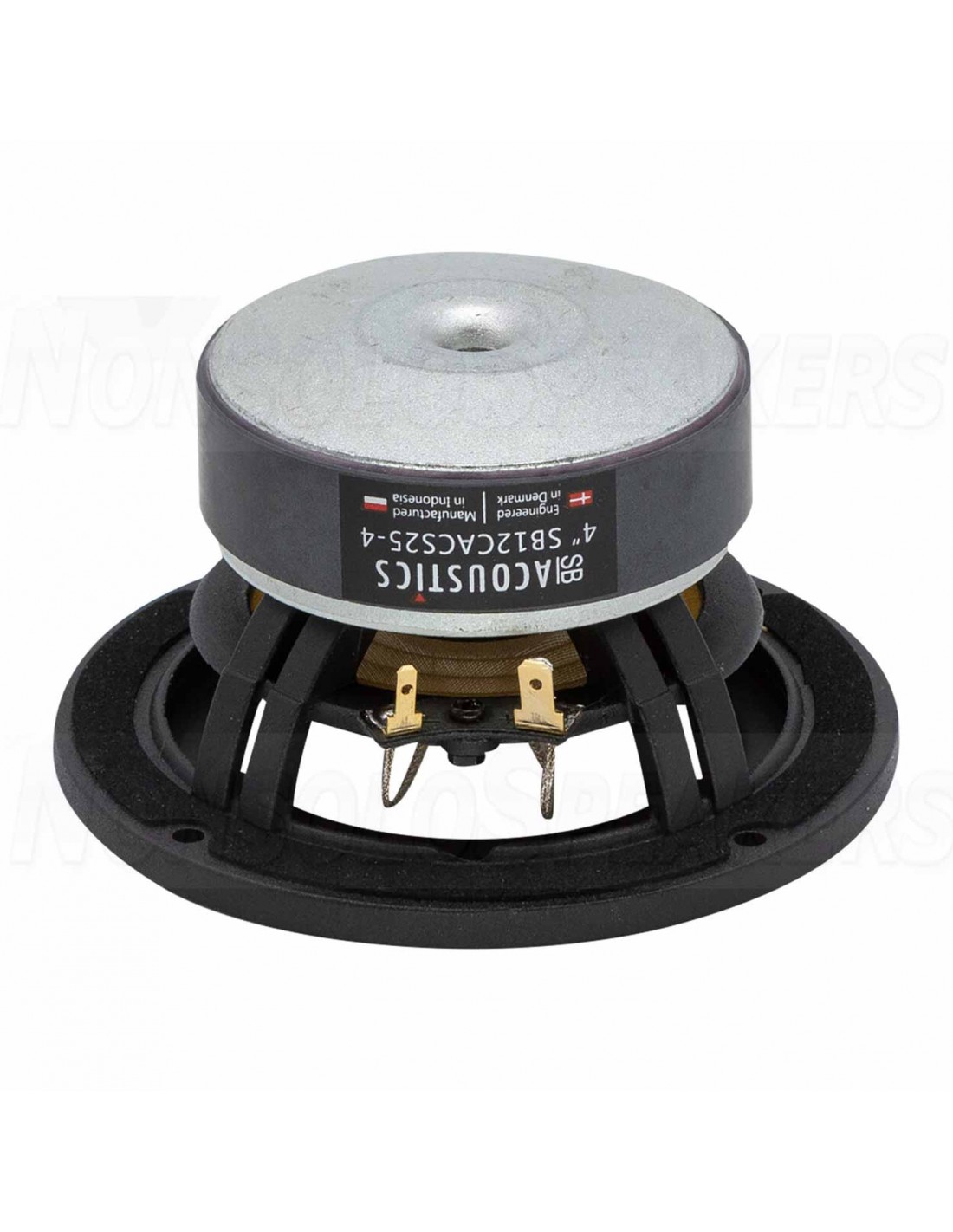

SB ACOUSTICS SB12CACS25-4 - 4" Midwoofer

.

Product description

Vented cast aluminum chassis for optimum strength and low compression

Ceramic cone

Soft low damping rubber surround for improved transient response

Shorting ring in motor system for reduced distortion

Non-conducting fiber glass voice coil former for minimum damping

CCAW voice coil for reduced moving mass

Long life silver lead wires

Vented pole piece for reduced compression

.

Product details

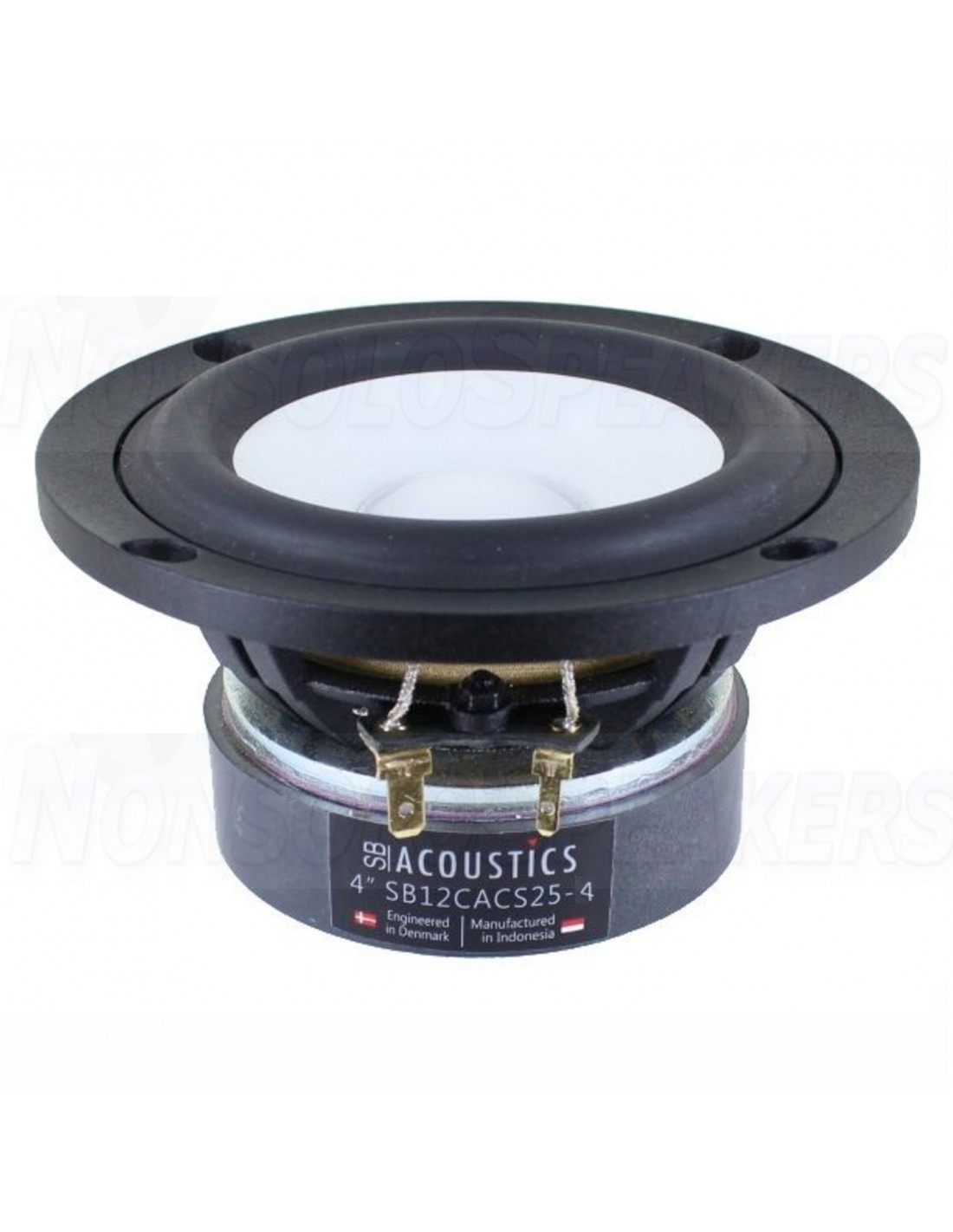

SB Acoustics SB12CACS25-4 4"Ceramic Woofer

Ceramic cones offer smoothness and harmonic richness unavailable from conventional paper cone material. Ceramic materials also offer significantly higher stiffness numbers and slightly better internal losses than typical metals such as titanium or aluminum. Compared to polymers, paper, and other soft materials, ceramics provide: Significantly higher stiffness to weight ratio, more consistent performance over a wide range of temperature and humidity as well as superior immunity to UV light and sunlight, to water and salt water and to combustibility.

.

Specifications

Article numberSB12CACS25-4
Woofer SeriesCAC Series
Woofer TypeMidwoofer
Nominal Diameter4"
Power Handling (RMS)30 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)88 dB
Voice Coil Diameter1"
DC Resistance (Re)3.1 ohms
Voice Coil Inductance (Le)0.26 mH
Resonant Frequency (Fs)51 Hz
Mechanical Q (Qms)4.89
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.31
Diaphragm Mass Inc. Airload (Mms)6.1 g
Mechanical Compliance of Suspension (Cms)1.6 mm/N
Surface Area of Cone (Sd)50 cm2
BL Product (BL)4.3 Tm
Compliance Equivalent Volume (Vas)0.2 ft.³
Maximum Linear Excursion (Xmax)5 mm

SB12CACS25-4
