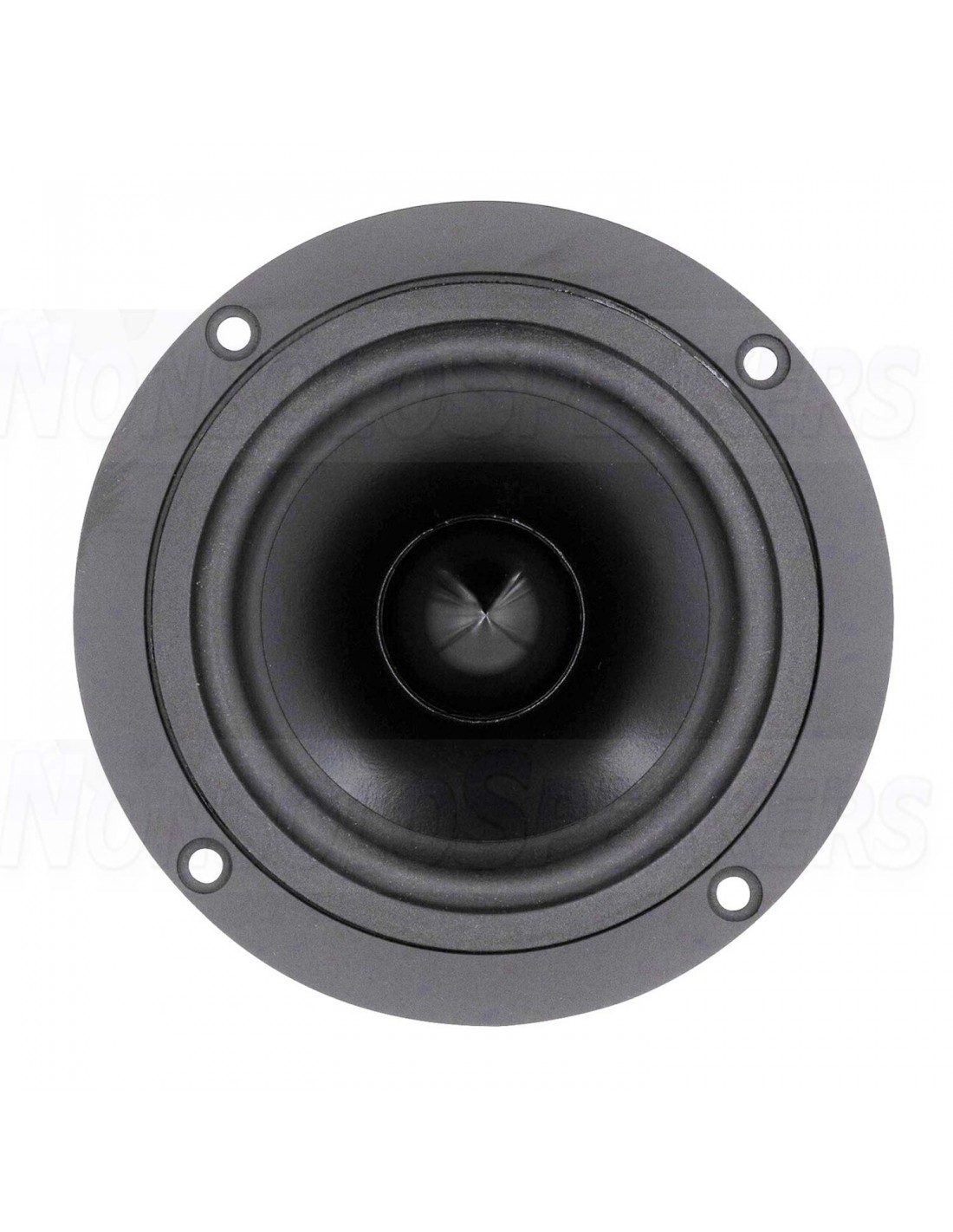

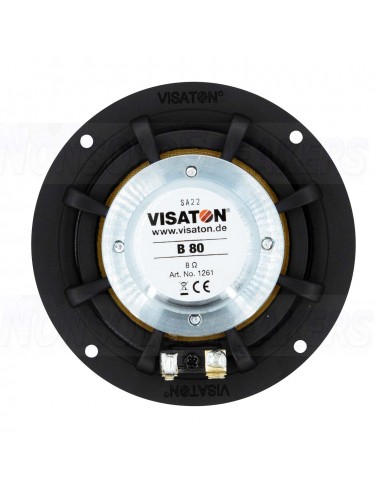

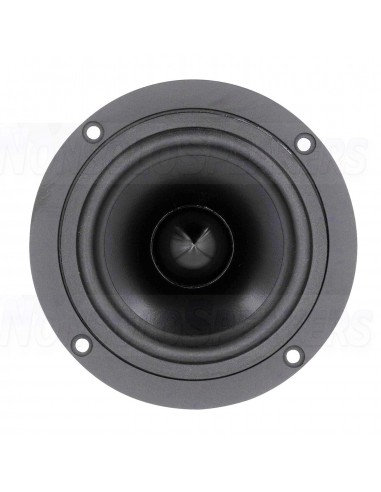

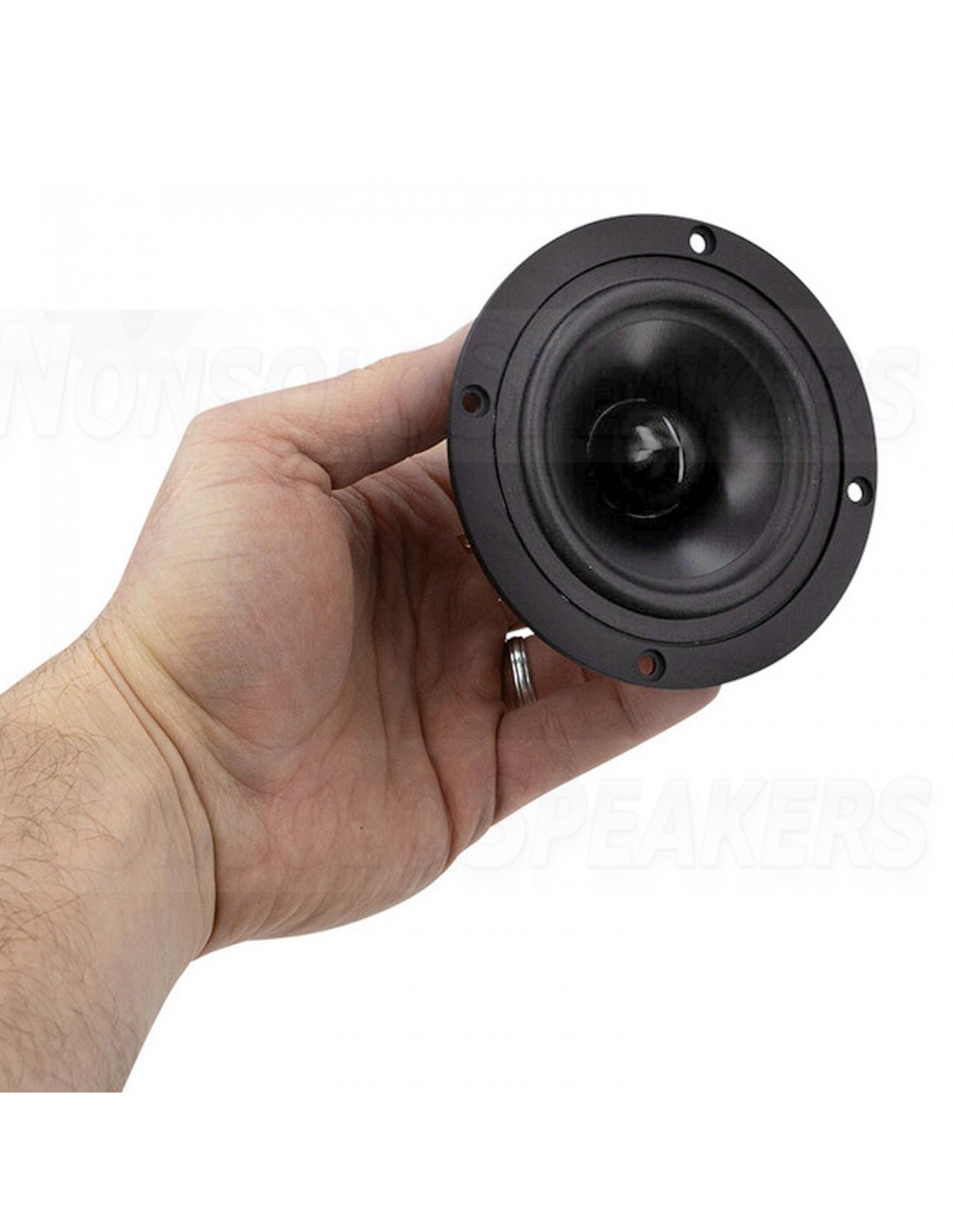

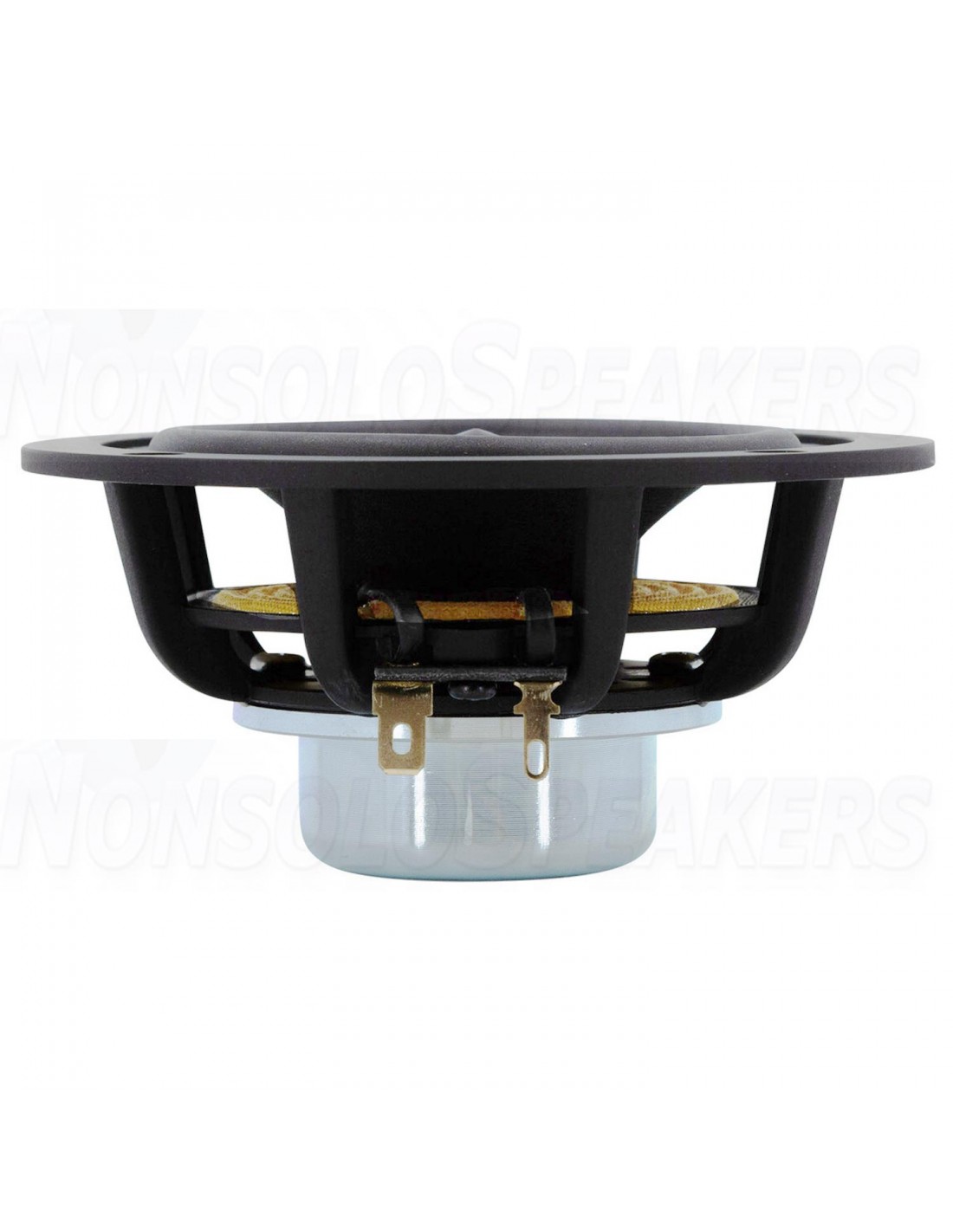

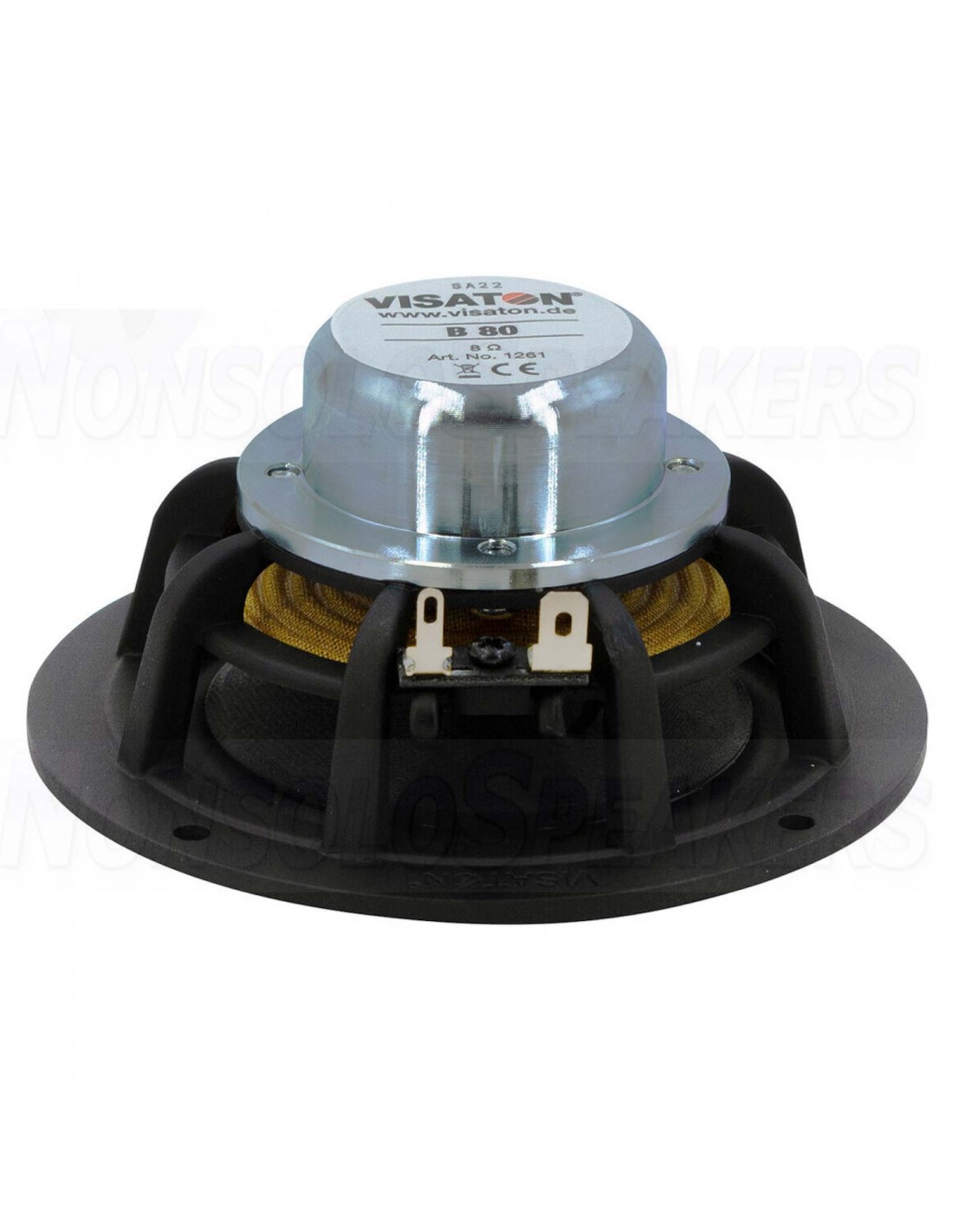

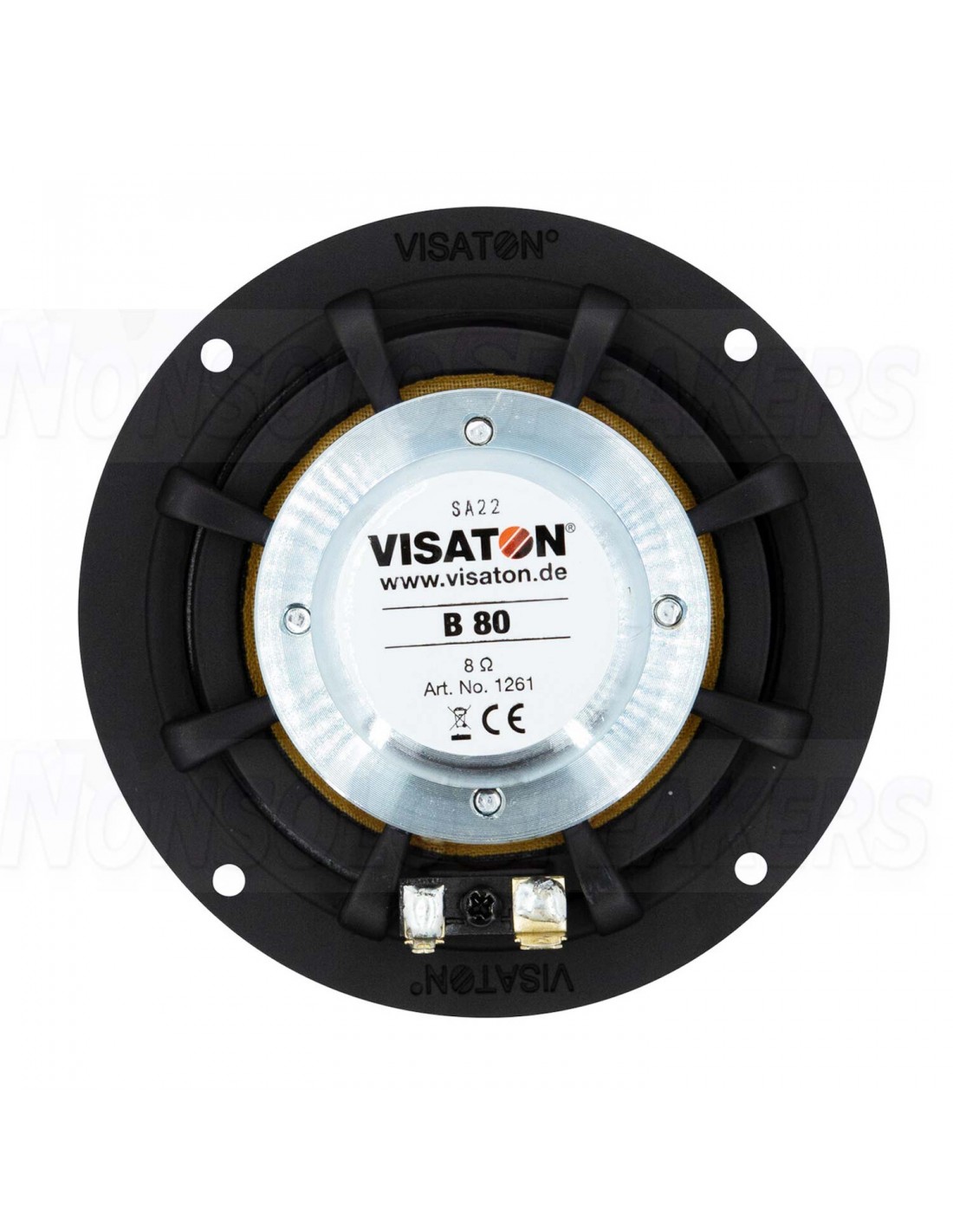

8 cm (3.3") high-end full-range loudspeaker with excellent balanced response characteristics.

Out-of-Stock
€86.45
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton B 80 3.3" High-End Full-Range Loudspeaker 8 Ohm

8 cm (3.3") high-end full-range loudspeaker with excellent balanced response characteristics.

.

Highlights

  • Low mechanical losses
  • Great for small high-end applications
  • Balanced response characteristics

.

Product Details

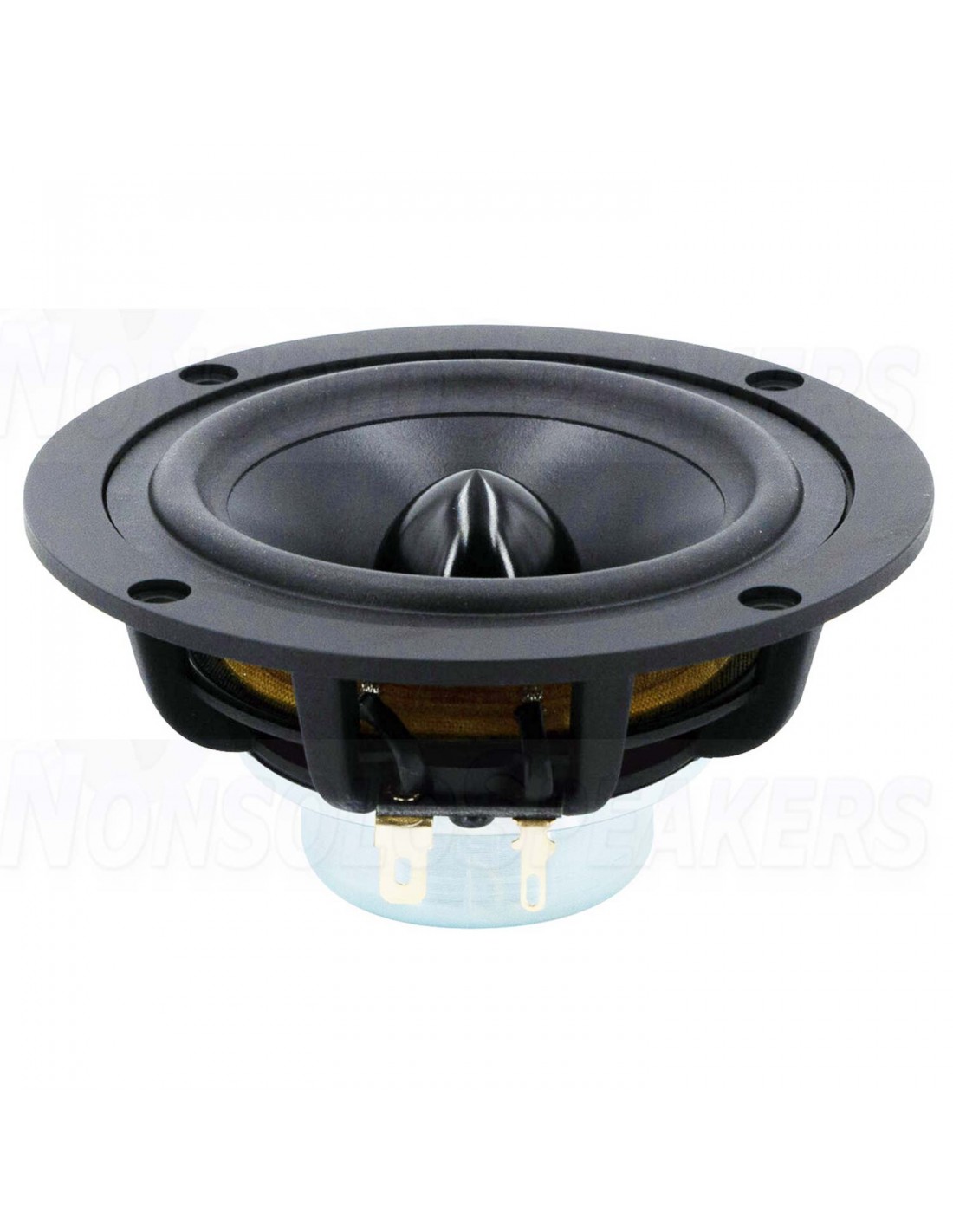

Visaton B 80 3.3" High-End Full-Range Loudspeaker 8 Ohm

Due to perfect accordance of the coated paper cone, the rear ventilated damper and the phase plug, as well as the strong and lightweight neodymium magnet, an extremely well-balanced frequency response with very low harmonic distortion and lowest possible mechanical losses comes into being.

The B 80 woofer is ideal for small high-end shelf speakers or as a mid-high-range unit in high-end multi-way speakers.

Technical Specifications

  • Article number B 80
  • Woofer Series High-End
  • Woofer Type Full-Range
  • Nominal Diameter 3.3"
  • Power Handling (RMS) 30 Watts
  • Power Handling (max) 50 Watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 85 dB
  • Frequency Response 80 - 20,000 Hz
  • Voice Coil Diameter 25 mm
  • DC Resistance (Re) 6.6 ohms
  • Resonant Frequency (Fs) 110 Hz
  • Mechanical Q (Qms) 6.53
  • Electromagnetic Q (Qes) 0.69
  • Total Q (Qts) 0.63
  • Mechanical Compliance of Suspension (Cms) 0.87 mm/N
  • Surface Area of Cone (Sd) 38.5 cm2
  • BL Product (BL) 4.15 Tm
  • Maximum Linear Excursion (Xmax) 2.25 mm
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Overall Outside Diameter 104.4 mm
  • Overall Depth 49.3 mm
  • Baffle Cutout Diameter 89 mm
  • Bolt Circle Diameter 95 mm
  • # Mounting Holes 4
  • Mounting Hole Diameter 3.9 mm

Visaton B 80
