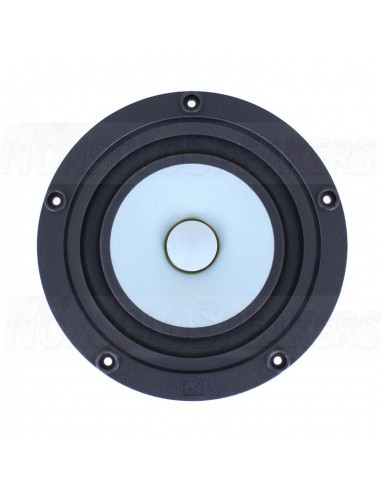

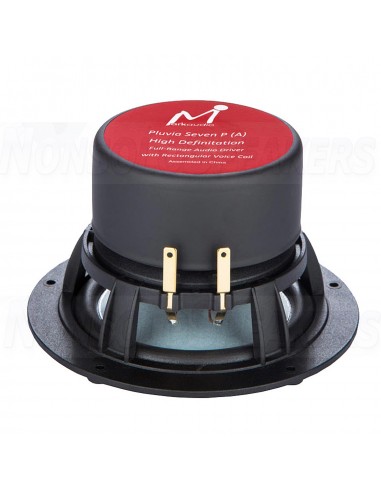

Markaudio PLUVIA-7PHD Full-range Woofer

Price for 1 piece

-

Product description

The new paper-cone Pluvia 7 PHD was developed with the attractive paper cone, unique suspension and low-mass coil which is wound in high-purity rectangular section copper. The Thiele / Small characteristics are engineered to allow surprising bass performance from a compact drive unit.

-

Highlights

Latest-model

Blue 4’’ natural uncoated paper cone

Wide operating range –rolled off high frequencies for vintage tone

Low cone profile –very broad directivity pattern

Advanced low-distortion motor design

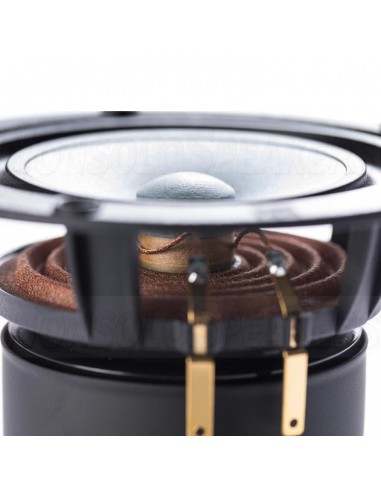

Long-stroke suspension with excursion arrestor and progressive-rate spider

Low-profile surface-mount reinforced polymer basket

 -

Product details

Markaudio Pluvia 7 PHD Full-range Woofer

The new paper-cone Pluvia seven PHD was developed due to requests from the DIY audio community for a return of paper cone drivers to the latest Markaudio drivers. Its response balance was carefully engineered to provide a shelved down treble and emphasized upper midrange output to address specific requests.

The attractive paper cone, suspension, and low-mass coil, wound in high-purity rectangular section copper are unique to this model, and the Thiele / Small characteristics engineered to allow surprising bass performance from a compact drive unit. The frame is the familiar, high-quality Pluvia design, which may be conveniently surface or flush-mounted, and has a very open design, allowing good air-flow to the rear of the cone.

The sound balance is warm, with emphasized upper midrange, and soft treble. Jazz followers in Asia played a role in the final tuning of this driver. Those enthusiasts into vintage and mono recordings using warm tube (valve) amplification may have a particular interest in this driver.

-

Specifications

• Article number PLUVIA-7PHD
• Woofer Series Pluvia series
• Woofer Type Full-Range Woofer
• Nominal Diameter 4''
• Power Handling (RMS) 15 Watts
• Impedance (Z) 8 Ohms
• Sensitivity 87 dB 1W/m
• Frequency Response 60-30,000 Hz
• DC Resistance (Re) 3.5 Ohms
• Voice Coil Inductance (Le) 0.0274 mH
• Resonant Frequency (Fs) 77.79 Hz
• Mechanical Q (Qms) 2.7968
• Electromagnetic Q (Qes) 0.6623
• Total Q (Qts) 0.5355
• Diaphragm Mass Inc. Airload (Mms) 3.2888 g
• Mechanical Compliance of Suspension (Cms) 1.2728 mm/N
• Surface Area of Cone (Sd) 50 cm²
• BL Product (BL) 2.9146
• Compliance Equivalent Volume (Vas) 4.4905
• Maximum Linear Excursion (Xmax) 4 mm (mechanical)
• Cone / Diaphragm Material Uncoated paper
• Surround Material Rubber
• Basket / Frame Material Cast aluminum
• Magnet Material Ferrite
• Overall Outside Diameter 122 mm
• Baffle Cutout Diameter 100 mm
• Bolt Circle Diameter 112 mm
• # Mounting Holes 5
• Mounting Hole Diameter 3.1 mm
