SHIPMENT IN 7-10 WORKING DAYS
€43.99
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

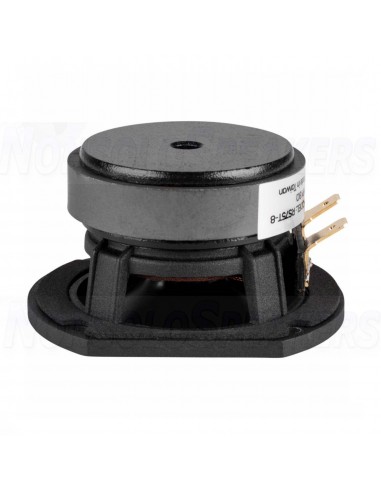

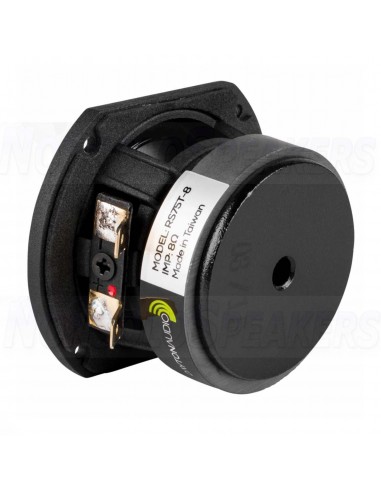

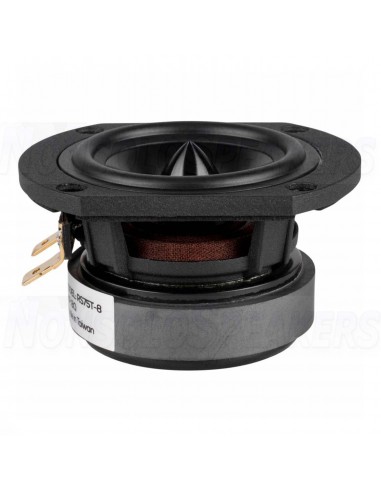

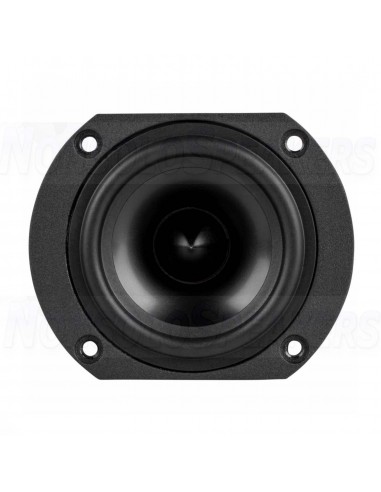

Dayton Audio RS75T-8 3" Full-Range Driver Truncated Frame

Product description

Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75T-8 can outperform "boutique" drivers that cost several times the price.

.

Highlights

Truncated cast frame—great for line arrays and MTM speaker designs

Full-range performance

Low distortion and high resolution

Aluminum frame, aluminum cone, rubber surround

Distortion-reducing copper ring, copper cap, and aluminum phase plug

Subtle yet high-tech look makes a bold cosmetic statement

Designed and engineered in USA

.

Product details

Dayton Audio RS75T-8 3" Reference Full-Range Driver Truncated Frame

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75T-8 can outperform "boutique" drivers that cost several times the price. The driver's truncated frame makes it ideal for line arrays and ultra-compact MTM designs requiring minimal driver-to-driver spacing. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.

.

Specifications

Article numberRS75T-8
Woofer SeriesReference Series
Woofer TypeFull-Range
Nominal Diameter3"
Power Handling (RMS)15 watts
Power Handling (max)30 watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)84.3 dB
Frequency Response170 - 20,000 Hz
Voice Coil Diameter16 mm
DC Resistance (Re)6.1 ohms
Voice Coil Inductance (Le)0.32 mH @ 1 kHz
Resonant Frequency (Fs)189 Hz
Mechanical Q (Qms)5.84
Electromagnetic Q (Qes)1.13
Total Q (Qts)0.95
Diaphragm Mass Inc. Airload (Mms)1g
Mechanical Compliance of Suspension (Cms)0.69 mm/N
Surface Area of Cone (Sd)12 cm²
Volume of Displacement (Vd)1.56 cm³
BL Product (BL)2.58 Tm
Compliance Equivalent Volume (Vas)0.22 liters
Maximum Linear Excursion (Xmax)1.3 mm
Cone / Diaphragm MaterialBlack Anodized Aluminum Cone
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter72 mm
Overall Depth38.5 mm
Baffle Cutout Diameter54 mm
# Mounting Holes4
Sealed Volume0.02 ft.³
Sealed F3175.2 Hz
Vented Volume0.05 ft.³
Vented F396 Hz
