Dayton Audio DMA45-4 1-1/2" Aluminum Cone Full-Range Driver

Product description

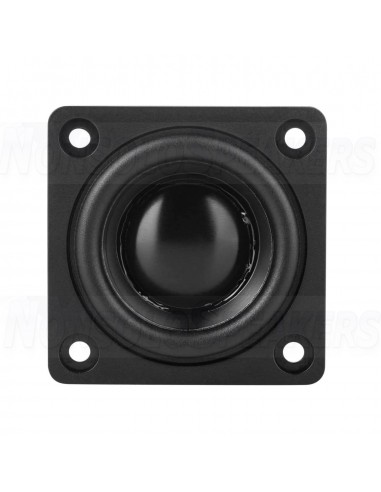

Dayton Audio's DMA45-4 1.5" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA45-4 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.

.

Highlights

Excellent high frequency response for true full-range applications

Dual neodymium motor to create a symmetrical magnetic field for superb control

Large copper cap lowers distortion while improving high frequency response

Remarkably flat full-range response with excellent off axis performance

Exclusive 8-spoke open frame design provides extensive venting and minimal reflection

DIY friendly, oversized mounting flange makes installation simple

Matching tunable passive radiators also available!

.

Product details

Dayton Audio DMA45-4 1-1/2" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm

Providing high efficiency with low distortion, Dayton Audio's DMA45-4 1.5" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA45-4 is the perfect full-range for the job.

Designed for the highest performance while delivering maximum value, the no compromise design of the DMA45-4 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 0.75" voice coil is wound on an vented polyimide former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 8-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

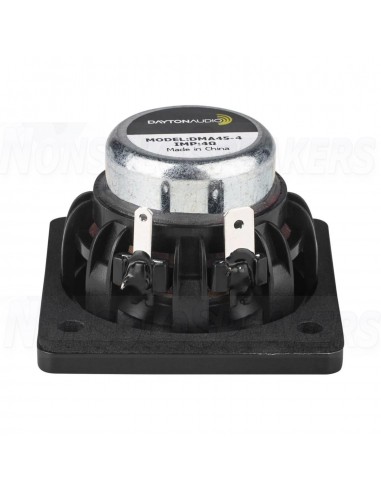

Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.

.

Specifications

Article numberDMA45-4
Woofer SeriesDMA series
Woofer TypeFull-range
Nominal Diameter1-1/2"
Power Handling (RMS)10 Watts
Power Handling (max)20 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)82 dB
Frequency Response150 to 20,000 Hz
Voice Coil Diameter0.75"
DC Resistance (Re)3.7 ohms
Voice Coil Inductance (Le)0.3 mH
Resonant Frequency (Fs)151.1 Hz
Mechanical Q (Qms)5.23
Electromagnetic Q (Qes)0.62
Total Q (Qts)0.56
Diaphragm Mass Inc. Airload (Mms)1.3g
Mechanical Compliance of Suspension (Cms)0.83 mm/N
Surface Area of Cone (Sd)8.6 cm²
BL Product (BL)2.8 Tm
Compliance Equivalent Volume (Vas)0.003 ft.³
Maximum Linear Excursion (Xmax)2 mm
Cone / Diaphragm MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium
Overall Outside Diameter1.81" x 1.81"
Overall Depth1.02"
Baffle Cutout Diameter1.57"
# Mounting Holes4
Sealed Volume0.002 ft.³
Sealed F3232 Hz
Vented Volume0.012 ft.³
Vented F394 Hz
