A powerful an exceptionally stable subwoofer for any compact subwoofer DIY project.

SHIPMENT IN 7-10 WORKING DAYS
€149.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SB23MFCL45-4 - Subwoofer 8"

.

Product description

Long stroke design

Linear high stability surround

Low damping rubber surround

Long copper voice coil

Non-conducting reinforced fibre glass coil former

Very stiff mineral filled polypropylene cone

Vented cast aluminum chassis

Large vented motor system

Optimized for smaller enclosures

.

Product details

SB Acoustics SB23MFCL45-4 8"Polypropylene Cone Subwoofer

SB Acoustics is known for their high value products. And the SB23MFCL45-4 is no exception. Offering the benefits of a stiff polypropylene cone of a smooth well-damped sound quality. It also one of the quality’s that allows this subwoofer to be used in small enclosures.  A powerful an exceptionally stable subwoofer for any compact subwoofer DIY project.

.

Specifications

Article numberSB23MFCL45-4
Woofer TypeSubwoofer
Nominal Diameter8''
Power Handling (RMS)150 Watts
Impedance (Z)4 Ohms
Sensitivity (SPL at 1m / 2.83V)87.4 dB
Voice Coil Diameter45.5 mm
Magnet Weight2.0 kg
DC Resistance (Re)3.3 Ohms
Voice Coil Inductance (Le)0.73 mH
Resonant Frequency (Fs)27 Hz
Mechanical Q (Qms)7.7
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.34
Diaphragm Mass Inc. Airload (Mms)59 g
Mechanical Compliance of Suspension (Cms)0.59 mm/N
Surface Area of Cone (Sd)210 cm2
BL Product (BL)9.6 Tm
Compliance Equivalent Volume (Vas)37 Ltr
Maximum Linear Excursion (Xmax)12 mm
Driver's Mechanical Losses (Rms)1.3 kg/s
Cone / Diaphragm MaterialPolypropylene
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerFibre glass
Magnet MaterialFerrite

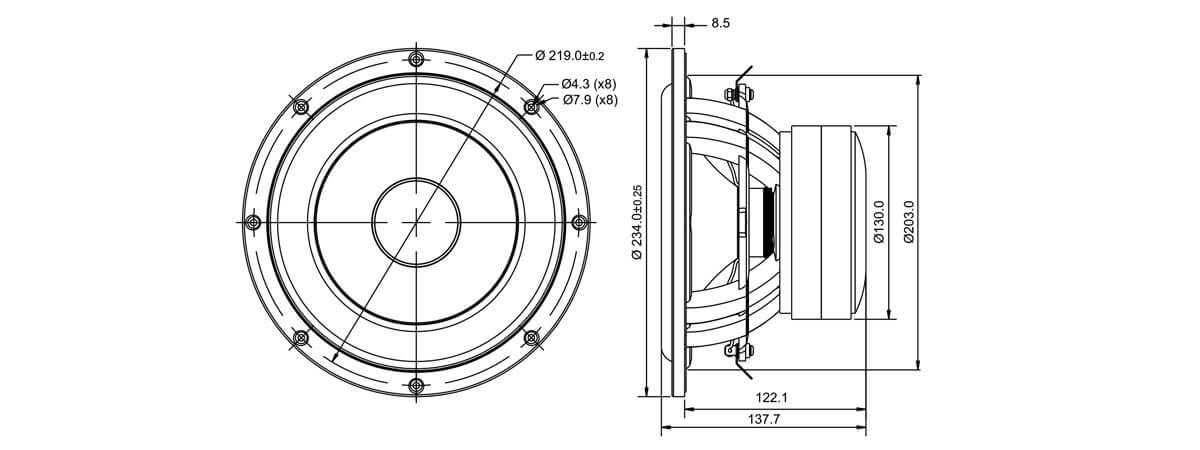

Overall Outside Diameter234 mm
Overall Depth122.1
Baffle Cutout Diameter203 mm
# Mounting Holes8

SB23MFCL45-4
