Dayton Audio DA30 2 x 15W Class D Bridgeable Mini Amplifier

Choose the Dayton Audio DA30 amplifier for your fixed audio application. Its small chassis fits away neatly for security, while the big sound fills classrooms and conference rooms.

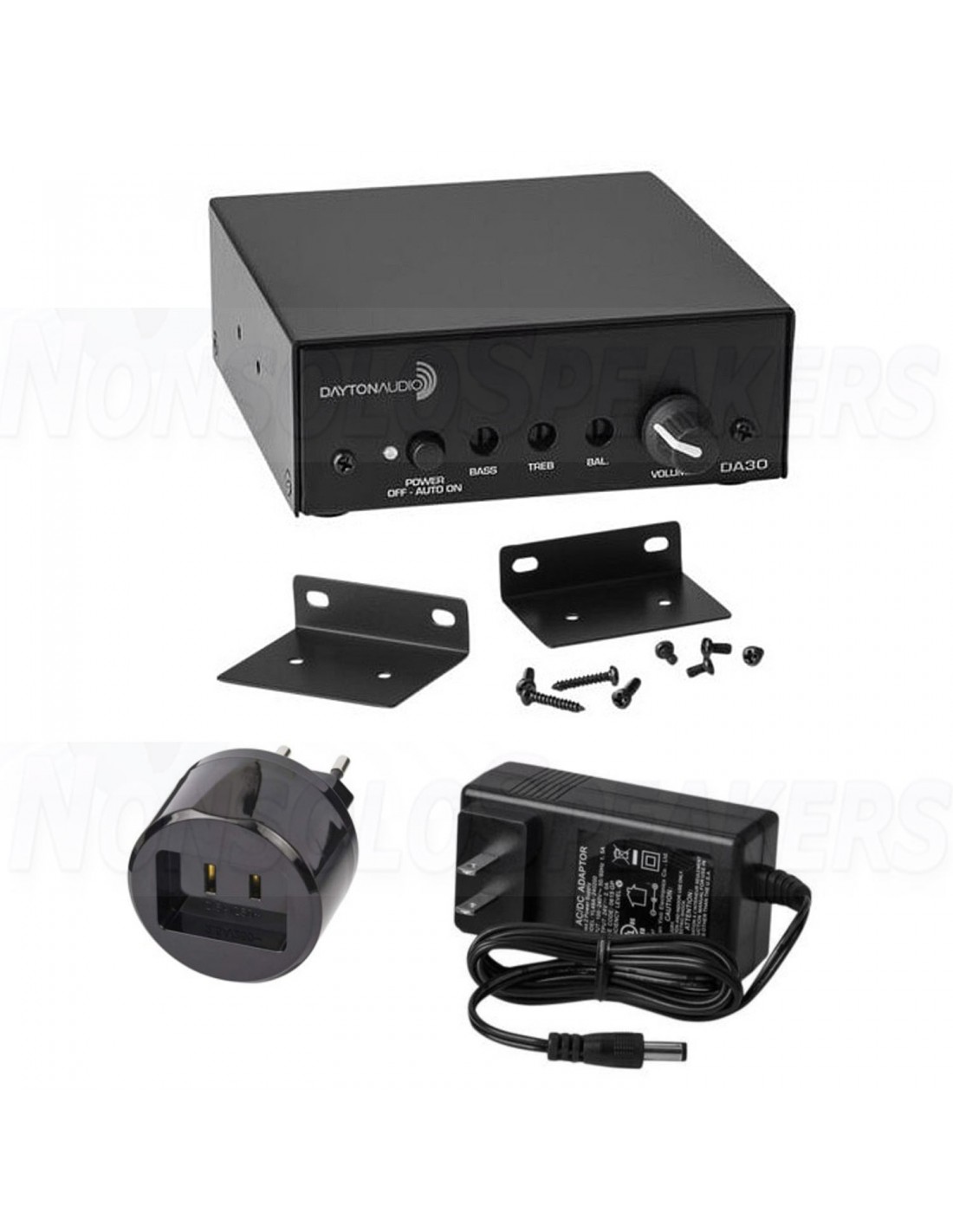

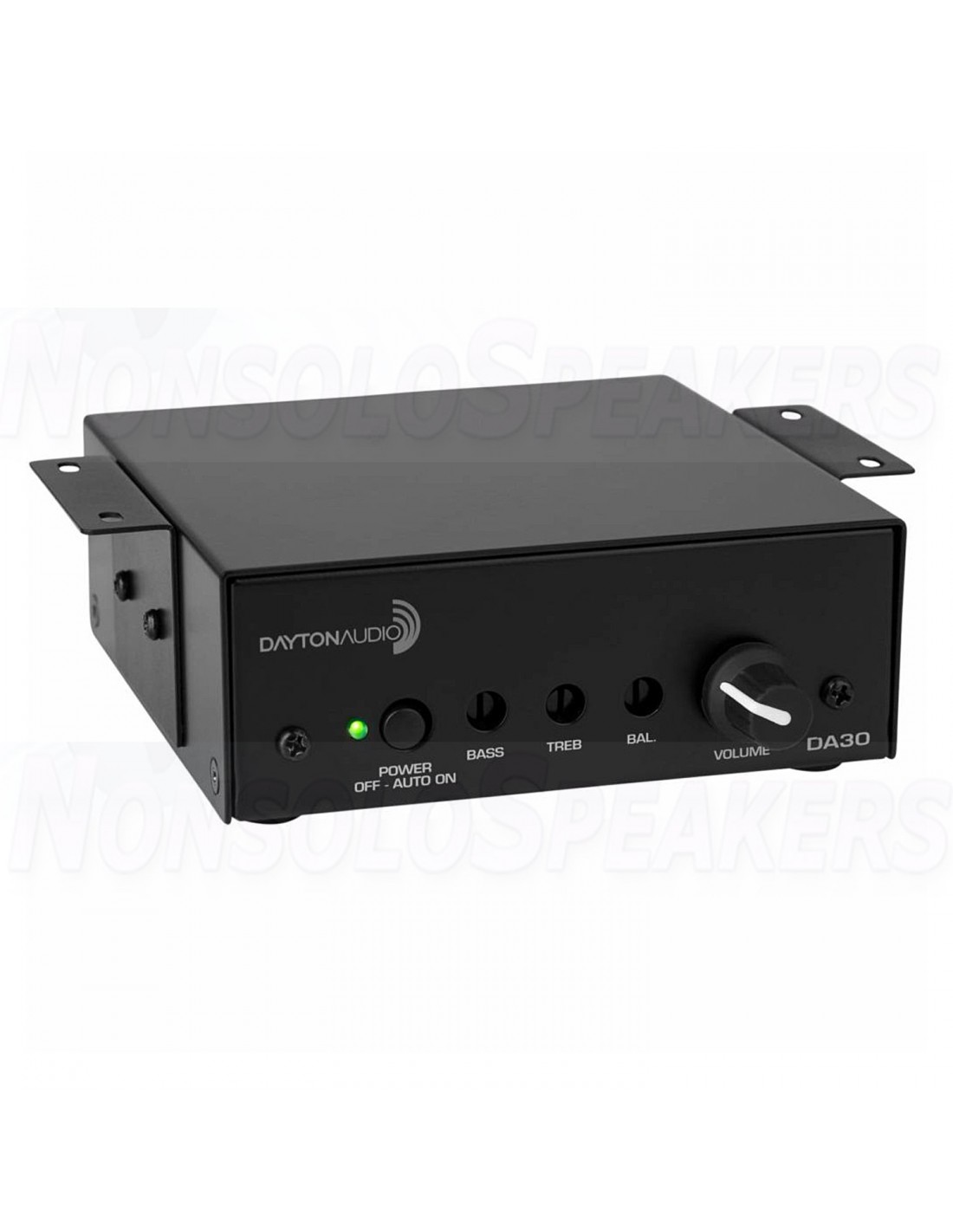

The Dayton Audio DA30 is the ideal amplifier for commercial audio installations; such as classrooms, where a small, low wattage amplifier is required. This Class D amplifier can sit on a desktop, or can be mounted on a wall or under cabinets using the included mounting brackets.

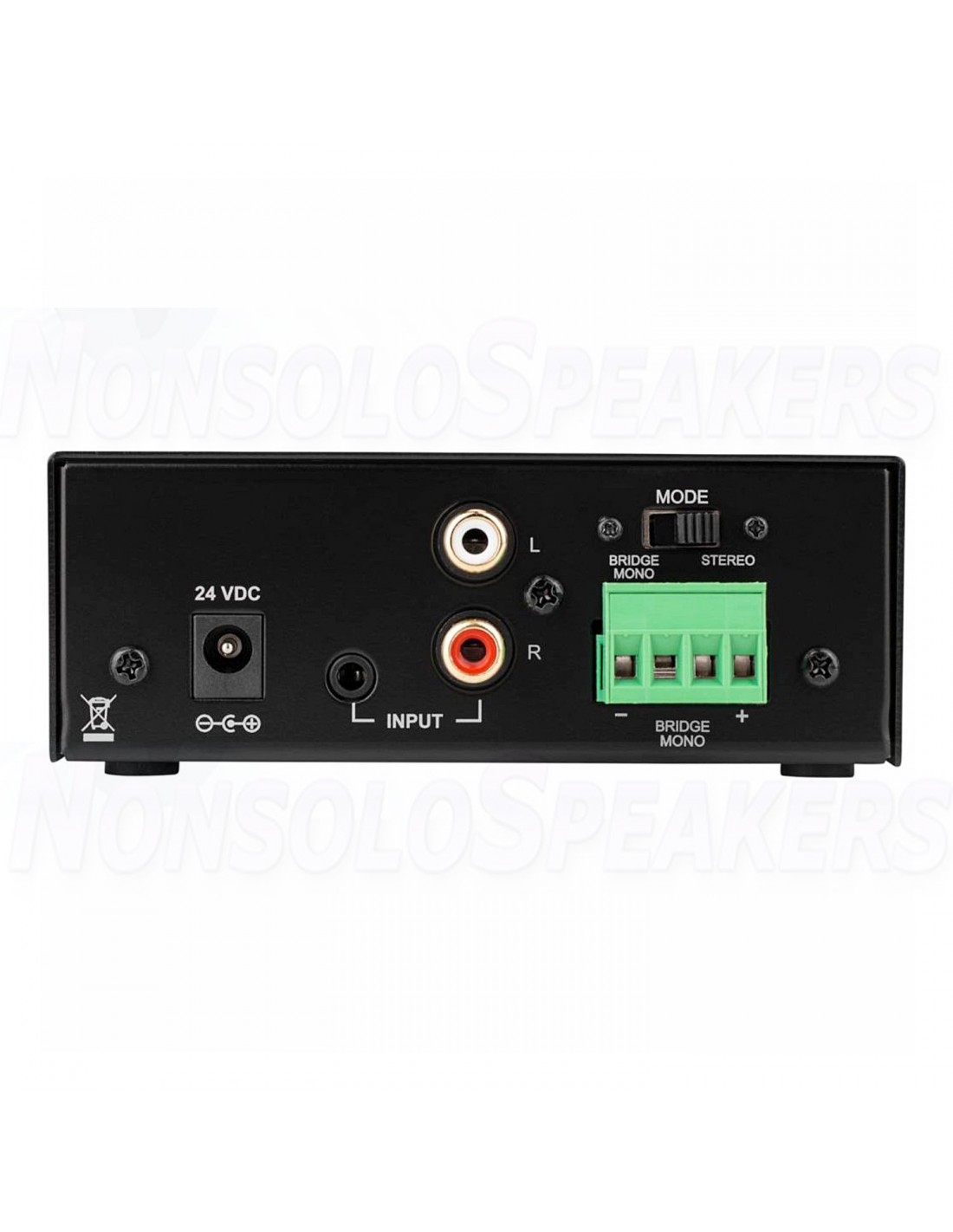

In stereo mode the DA30 delivers 2 x 15W and in bridged mode 1 x 30W. Two stereo audio inputs increase versatility; 2-RCA or a single 3.5 mm jack. Separate treble and bass controls allow the sound to be tailored to the room. The DA30s Auto-on feature increases energy efficiency. An all-metal chassis and the selection of high-spec internal components ensure reliable operation and a long service life.

-

Specifications:

• Power output: 2 x 15W into 4 ohms, 1 x 30W into 8 ohms

• Efficiency: 92%

• Total harmonic distortion: 0.015%

• Input impedance: 100k Ohms

• Auto-on sensitivity: <0.8V

• Stand-by current consumption: 0.6 mA

• Power supply: 24 VDC, 2000 mA

• Dimensions (H x W x D): 1-5/8" x 4-7/16" x 5-1/2".

-

 Highlights

• 2 x 15W power output into 4 ohms or 1 x 30W bridged output into 8 ohms

• Clear, articulate hi-fi sound quality, but built for the tough requirements of commercial duty

• Cool-running Class D circuitry delivers high output while reducing AC line current demands

• Ideal for classrooms, boardrooms, or bedrooms

• Recessed, tamper-resistant tone controls provide simple sound shaping

• Compact size makes it easy for this amp to fit almost anywhere

• Add a Bluetooth receiver (sold separately) for even greater control flexibility!

-

Product Details

Model Number DA30

Color Black

Unit of Measure Each

UPC 848791000317

Product Shipping Weight (lbs.) 1.9

Product Height 1-5/8"

Product Width 4-7/16"

Product Length --

Product Depth 5-1/2"

Amplifier Type Mini Amplifiers

Power Output 15 watts RMS x 2 into 4 ohms 30 watts RMS x 1 into 8 ohms

Power Output (RMS @ 70V) Range --

Output Connectors --

Output Types --

Input Connectors --

Input Impedance --

Signal-to-Noise Ratio --

THD @ Rated Power --

Parametric EQ --

Phase Adjustment --

Low-pass Crossover --

Low Pass Adjustment --

Dynamic Range --

Frequency Response --

Efficiency 0.92 Gain --

Bass Boost --

Voltage Requirement --

Auto-on Sensitivity --

Stand-by Power Rating --

Special Features --
