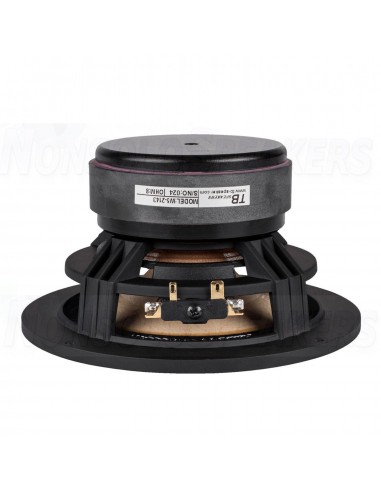

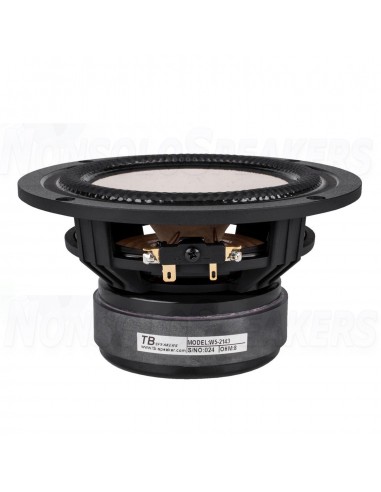

TANG BAND W5-2143 - 5" Fullrange 8 ohm

.

With a bamboo fiber paper cone, structured Santoprene surround, and underhung motor, the W5-2143 5" full range from Tang Band has impressive response from 55 to 20,000 with very low distortion.

Tang Band's versatile W5-2143 full range driver uses an underhung voice coil, which places the entire coil inside the magnetic gap, for the utmost in control and accuracy. Designed for minimum distortion and resonance, the bamboo fiber paper cone and structured surround produces smooth response without harsh peaks or dips. The aluminum phase plug improves off axis response while also acting as a shorting ring providing greater control of the voice coil resulting in lower distortion.

-

Product Details

• Brand Tang Band
• Model W5-2143
• Part Number 264-958
• UPC 848864023779
• Unit of Measure Each
• Weight 4

Product Specifications

• Nominal Diameter 5"
• Bolt Circle Diameter 5.7
• Moving Mass Of Diaphragm (Mmd) 5.99
• Power Handling (RMS) 30 Watts
• Power Handling (MAX) 60 Watts
• Impedance 8Ω
• Frequency Response 55 to 20,000Hz
• Sensitivity 90dB 2.83V/1m
• Voice Coil Diameter 1"

Thiele-Small Parameters

• Resonant Frequency (Fs) 55Hz
• DC Resistance (Re) 6.3Ω
• Voice Coil Inductance (Le) 0.02mH
• Mechanical Q (Qms) 3.21
• Electromagnetic Q (Qes) 0.43
• Total Q (Qts) 0.38
• Compliance Equivalent Volume (Vas) 0.67ft³
• Mechanical Compliance of Suspension (Cms) 1.4mm/N
• BL Product (BL) 5.43T·m
• Maximum Linear Excursion (Xmax) 2.5mm
• Surface Area of Cone (Sd) 97.83cm²

Materials of Construction

• Cone Material Bamboo Fiber / Paper
• Surround Material Santoprene®
• Voice Coil Wire Material Copper
• Voice Coil Former Kapton® / Polyimide
• Basket / Frame Material Cast Aluminum
• Magnet Material Ferrite

Mounting Information

• Overall Outside Diameter 6.125"
• Baffle Cutout Diameter 4.84"
• Depth 3.34"
• # Mounting Holes 4

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

• Sealed Volume 0.19ft³
• Sealed F3 115Hz
• Vented Volume 0.46ft³
• Vented F3 64Hz
