W3-315E 3" Fullrange Tang Band 8 ohm
W3-315E 3" Fullrange Tang Band 8 ohm

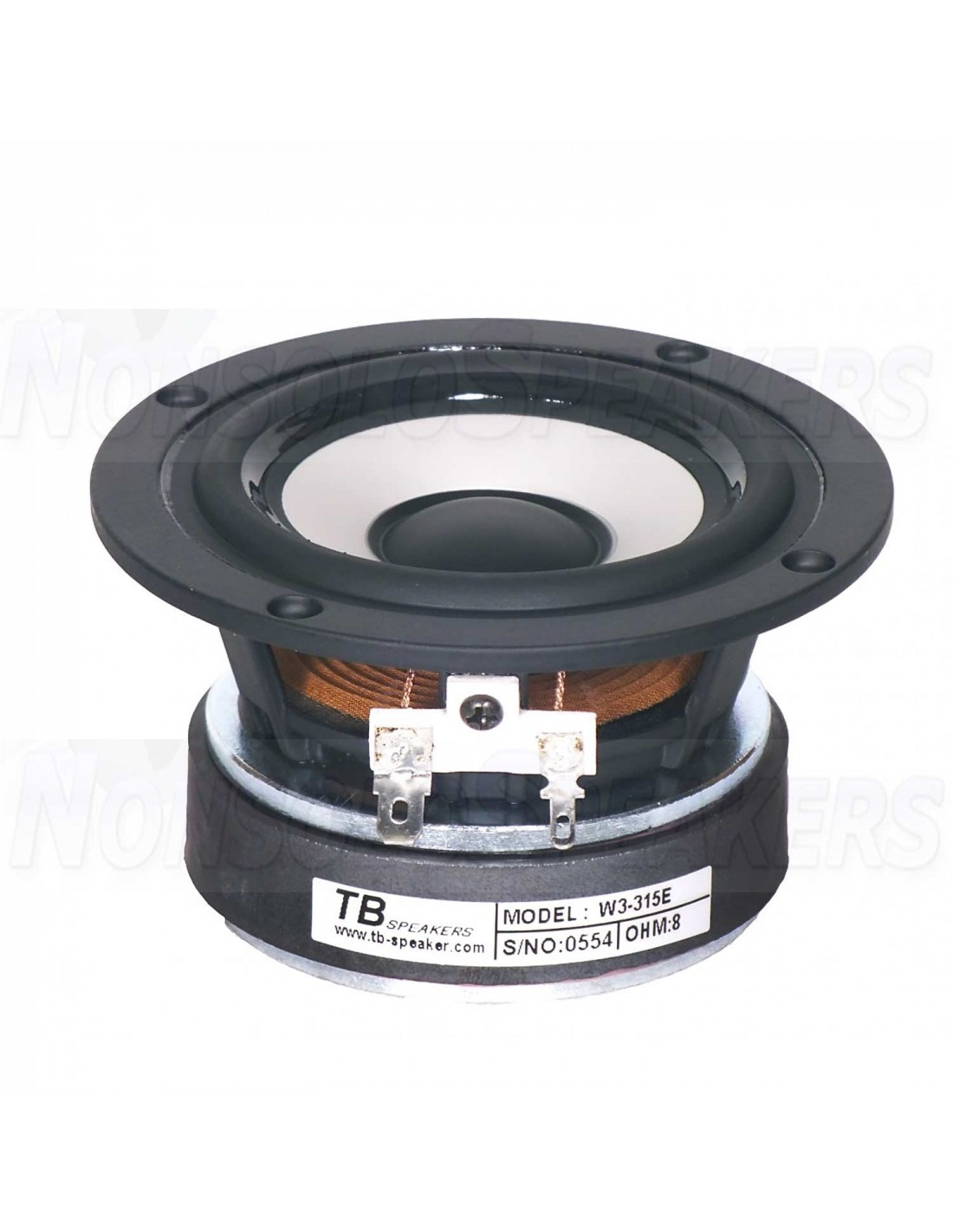

Tang Band W3-315E 3" Fullrange 8 ohm, cone Al and Mg

SHIPMENT IN 5-7 WORKING DAYS
€37.05 €39.00 -5%
Tax included
rating No review at the moment

Tang Band W3-315E 3" Fullrange  8 ohm,  cone Al and Mg

The minimum purchase order quantity for the product is 2.

Quantity Unit discount You Save
2 5% €3.90
Estimated Shipping Costs
Shipping Costs
€10.80
Shipping Time
.
Want to check another country or courier?

You might also like



Tang Band W3-315E 3" Fullrange  8 ohm,  cone Al and Mg

.

Product Specifications

  • Nominal Diameter3"
  • Power Handling (RMS)10 Watts
  • Power Handling (max)20 Watts
  • Impedance8 ohms
  • Frequency Response100 to 20,000 Hz
  • Sensitivity87 dB 1W/1m
  • Voice Coil Diameter0.8"

.

Thiele-Small Parameters

  • Resonant Frequency (Fs)100 Hz
  • DC Resistance (Re)6.6 ohms
  • Voice Coil Inductance (Le)0.2 mH
  • Mechanical Q (Qms)5.51
  • Electromagnetic Q (Qes)0.57
  • Total Q (Qts)0.52
  • Compliance Equivalent Volume (Vas)0.06 ft.³
  • Mechanical Compliance of Suspension (Cms)1.15 mm/N
  • BL Product (BL)3.89 Tm
  • Diaphragm Mass Inc. Airload (Mms)2g
  • Maximum Linear Excursion (Xmax)1.25 mm
  • Surface Area of Cone (Sd)32 cm²

Materials of Construction

  • Cone MaterialAluminum / Magnesium
  • Surround MaterialSantoprene®
  • Voice Coil Wire MaterialCCA
  • Voice Coil FormerKapton® / Polyimide
  • Basket / Frame MaterialCast Aluminum
  • Magnet MaterialFerrite

W3-315E
