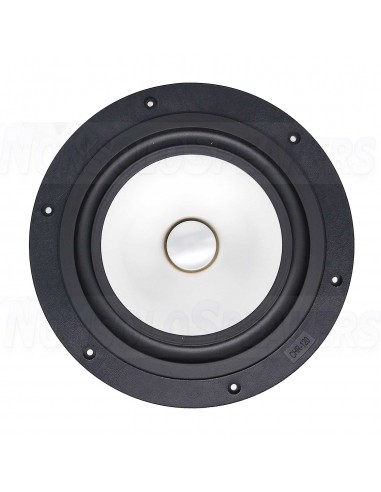

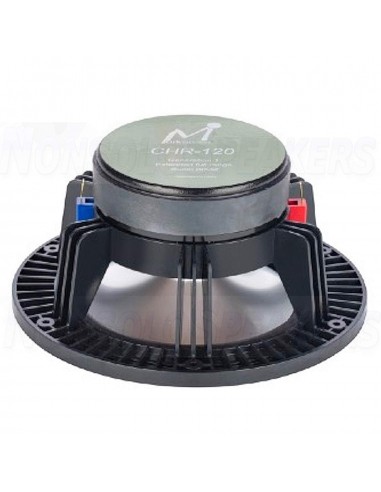

Markaudio CHR-120 6.5" Grey Full Range Magnesium Woofer

Markaudio CHR-120 6.5" Grey Full Range Magnesium Woofer

Name: Markaudio CHR-120 6.5" Grey Full Range Magnesium Woofer
Brand: MARKAUDIO
SKU: Markaudio CHR-120
Price: 94.95 EUR
Availability: OutOfStock

4Markaudio CHR-120 6.5" Grey Full Range Magnesium Woofer

Out-of-Stock

€94.95 €99.95 -5%

Tax included

No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs

Shipping Costs

€12.60

Shipping Time

Want to check another country or courier?

Markaudio CHR-120 6.5" Grey Full Range Magnesium Woofer

Price for 1 piece

Product description

Highlights

Latest-model

Aerospace-grade magnesium-alloy

Wide dispersion multiform cone concept

Optimized for use in larger enclosures

Product details

Markaudio CHR-120 6.5" Gold Full Range Magnesium Woofer

The CHR-120 is a brand-new 6.5-inch high fidelity multi-purpose high-volume driver design from Markaudio. This new driver has been purpose developed to provide significant bass extension beyond what many similar-sized midbass units can deliver, combined with full-range frequency output.

The CHR-120 cone is made from a high-strength, aerospace-grade magnesium-alloy designed to cope with high bending stress loads. Based upon our renowned shallow profile, wide dispersion multiform cone concept, the material thickness is carefully balanced to maximize low-frequency load capacity while retaining excellent performance at higher frequencies. The long-stroke suspension and low-distortion motor are designed to provide a low resonant frequency, medium Q, and an air volume compliance of around 59 liters. Optimized for use in larger enclosures, the CHR-120 can provide output to some 30Hz and smooth high-frequency range extending above 20KHz in a suitable design. Other key features include an “easy install” reinforced polymer frame for both surface and recessed mounting.

The CHR-120 provides custom builders with wide operational flexibility at a surprisingly affordable price and can be used as a high-performance full-range driver, or as a wide-range midbass. It is ideal for use in high-fidelity, home-theatre, commercial A/V applications, and by suiting a wide range of enclosure types, it continues Markaudio’s reputation for providing qualitative excellence and advanced mechanical engineering at an accessible level.

Specifications

Article number CHR-120 Grey
Woofer Series Markaudio CHR
Woofer Type Full-range Woofer
Nominal Diameter 6.5"
Power Handling (RMS) 50 Watts (Nom)
DC Resistance (Re) 7.2000 Ω
Resonant Frequency (Fs) 34.2417 Hz
Mechanical Q (Qms) 2.3823
Electromagnetic Q (Qes) 0.4411
Total Q (Qts) 0.3722
Diaphragm Mass Inc. Airload (Mms) 11.1310 g
Moving Mass Of Diaphragm (Mmd) 10.1179 g
Mechanical Compliance of Suspension (Cms) 1.9409 mm/N
Surface Area of Cone (Sd) 0.0147 m2
Compliance Equivalent Volume (Vas) 58.8923 L
Maximum Linear Excursion (Xmax) 9mm (1 way)
Driver's Mechanical Losses (Rms) 1.0052 WM

Reference Markaudio CHR-120

Markaudio is a well-known brand specializing in high-performance full-range drivers and speakers. They’re particularly popular among audiophiles and DIY speaker builders because of their exceptional sound quality and innovative designs.

Markaudio’s drivers are known for:

Full-Range Sound: Their speakers typically focus on delivering clear, uncolored sound across a broad range, without relying on crossovers or multiple drivers. This results in a more natural soundstage.

High Efficiency: Markaudio drivers are usually designed to be highly efficient, which means they can produce loud and clear sound even with lower-powered amplifiers.

Compact Size: Many of their drivers are compact, making them ideal for bookshelf or small speaker builds while still providing excellent sound reproduction.

Their most popular models include:

Markaudio Alpair Series: This is one of their flagship lines, known for its clarity and wide frequency response.

Markaudio CHR Series: These are also highly regarded, with some models offering even broader dispersion and better midrange presence.
