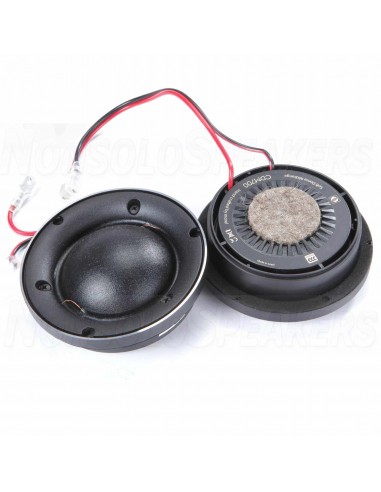

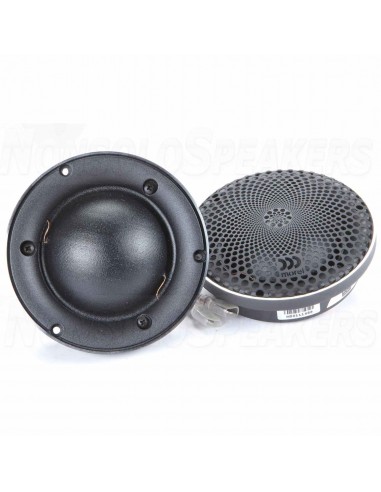

Morel CDM 700 3-1/2" midrange speakers

Morel has mastered the art of making compact (and beautiful) speakers that will floor you with their sonic capabilities. Morel's CDM700 3-1/2" midrange speakers live up to the legend. Use this as a factory midrange replacement or incorporate it into a custom 3-way component system for seriously premium sound. Just be sure you power it with an outboard amplifier to make the most of Morel's superior speaker technology .The Morel CDM700s are ideal for adding high-quality mid-frequency reproduction to your Hi-Fi Car system.

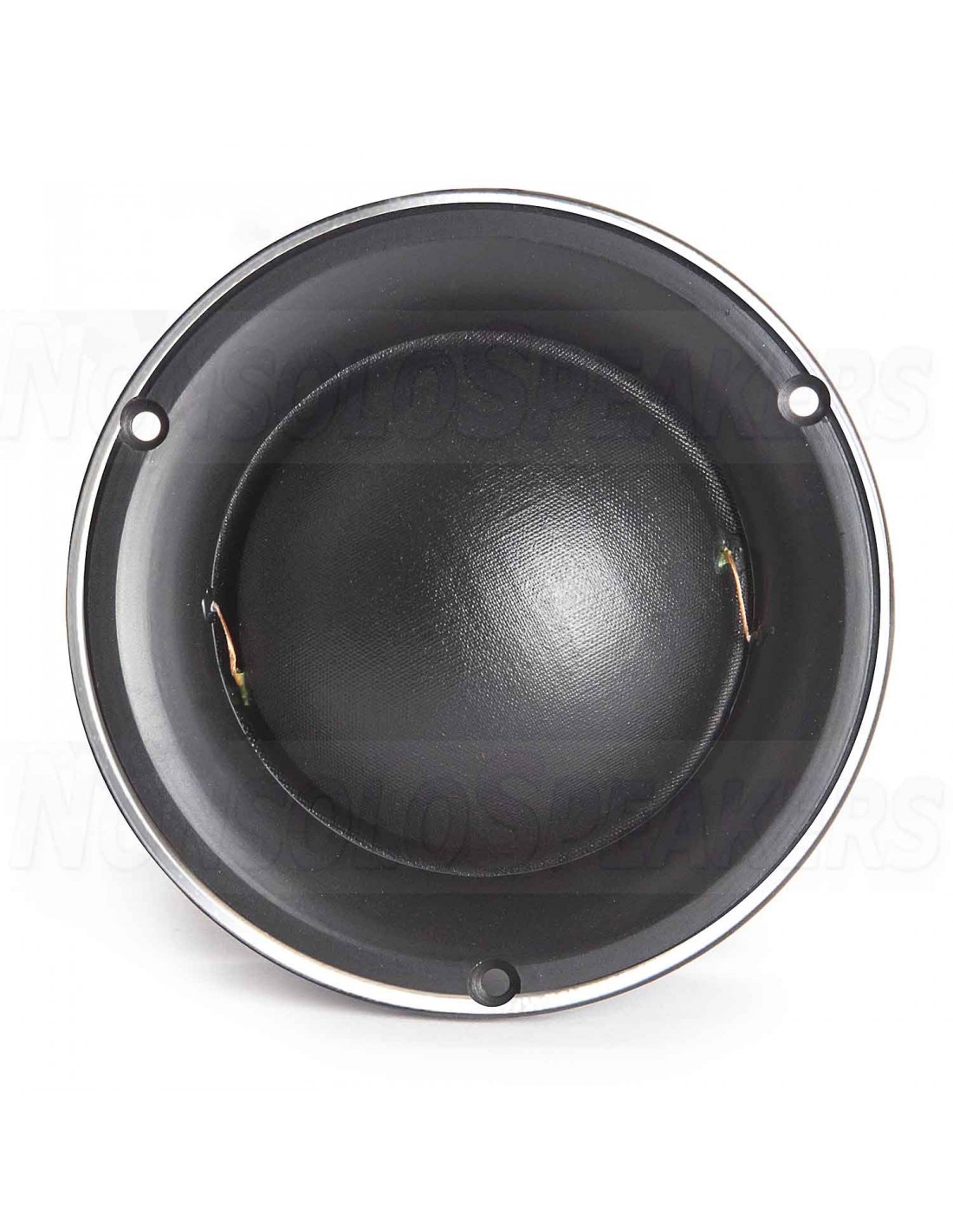

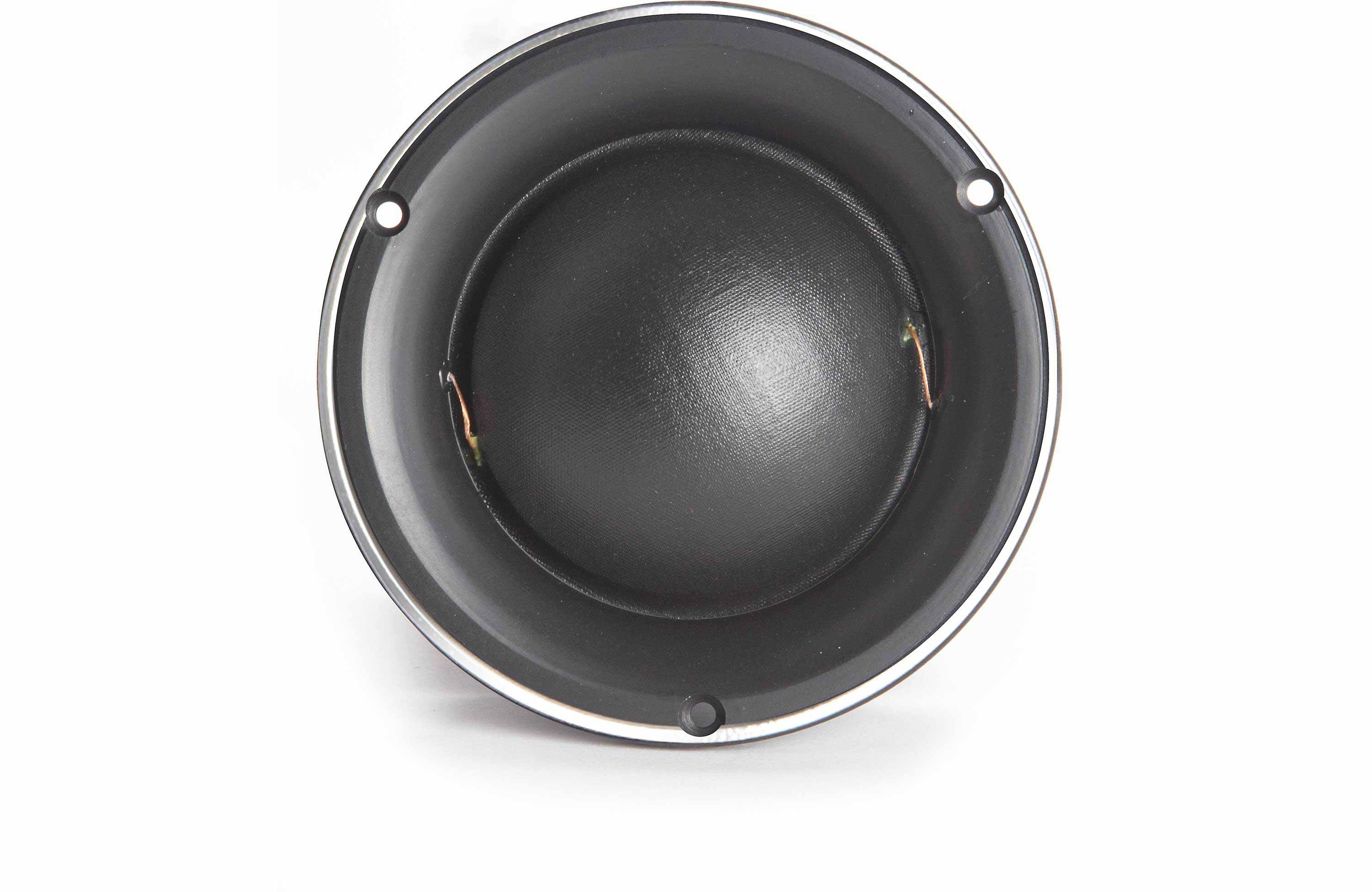

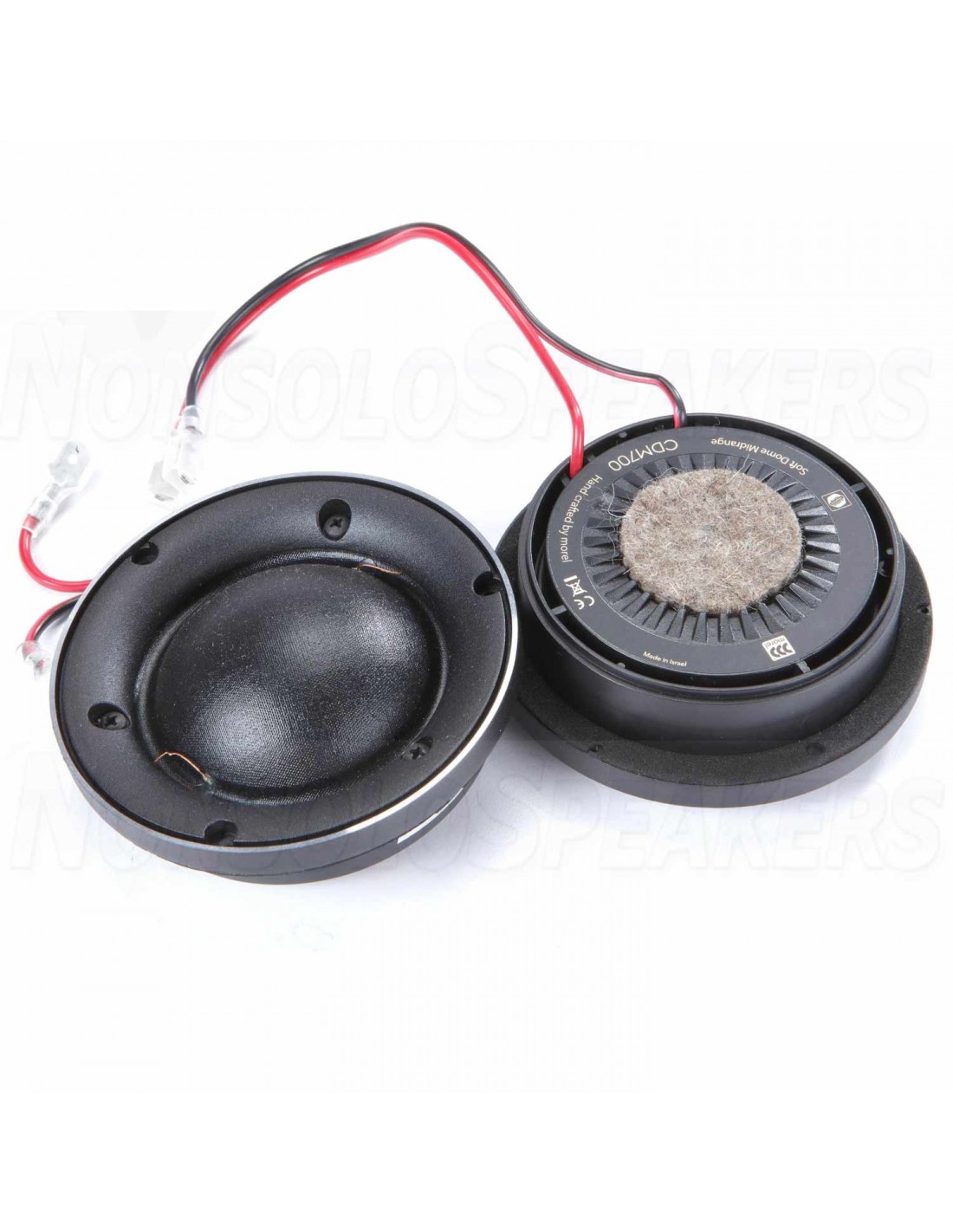

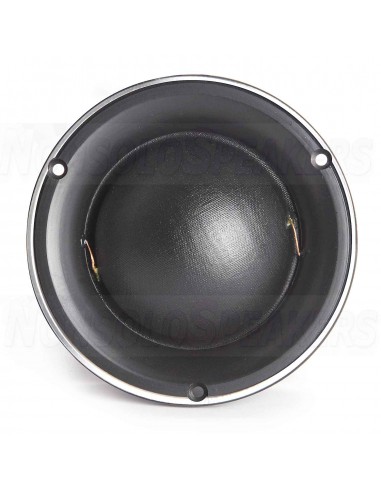

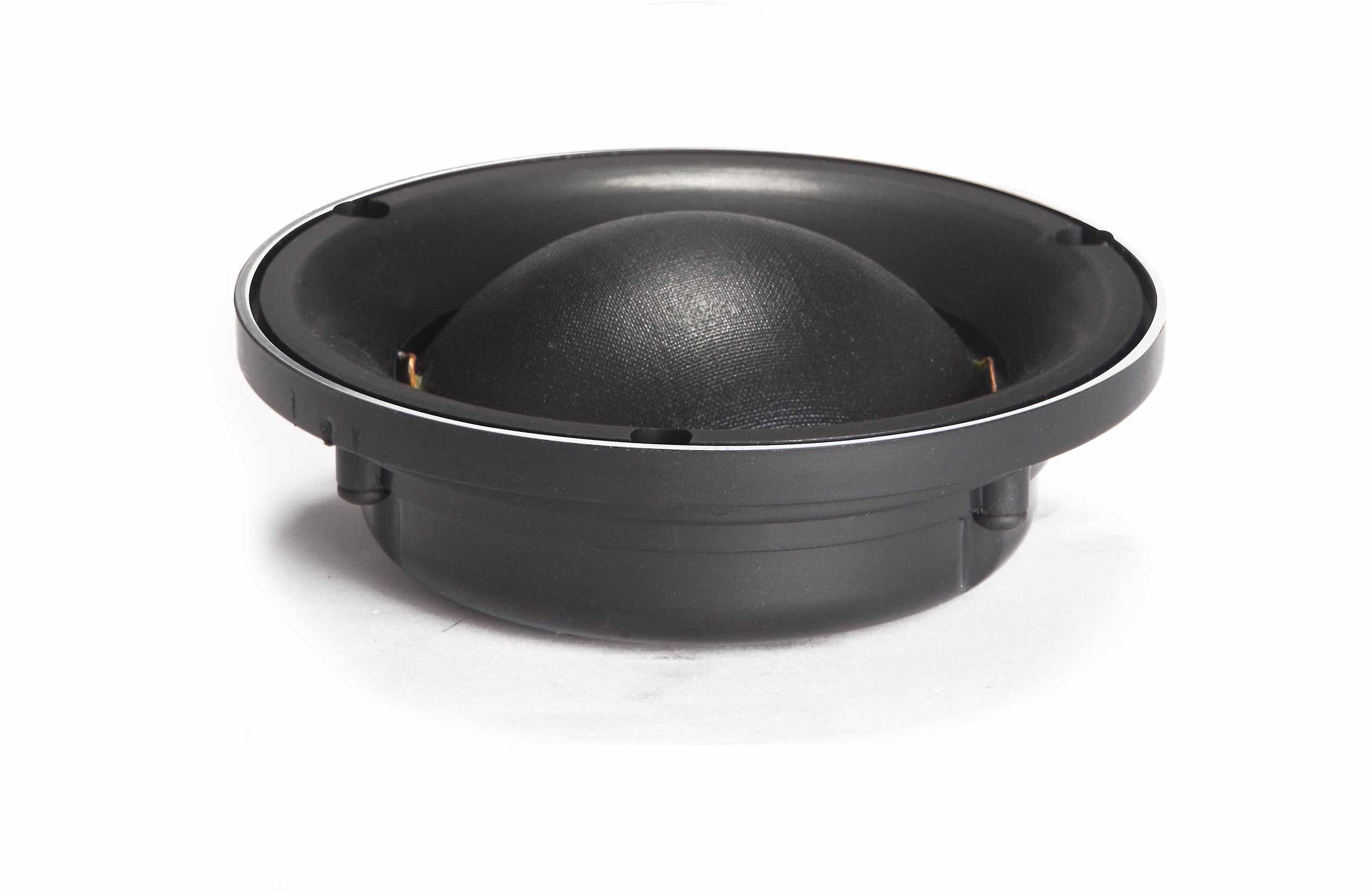

Pair of 88mm (3.5 ") 2.1" soft dome midranges featuring an extremely low mass aluminum Hexatech voice coil, allowing for very efficient coil cooling. The Neo magnet motor system, by encapsulating the voice coil structure, forms a very large ventilation pole with a Morel C.A.R filter to create a highly effective damped rear chamber. This type produces very low resonant frequencies, low distortion and high power handling. Due to their acoustic attributes and mechanical design, the CDM 700 midrange can be easily installed in various places in the car.

.

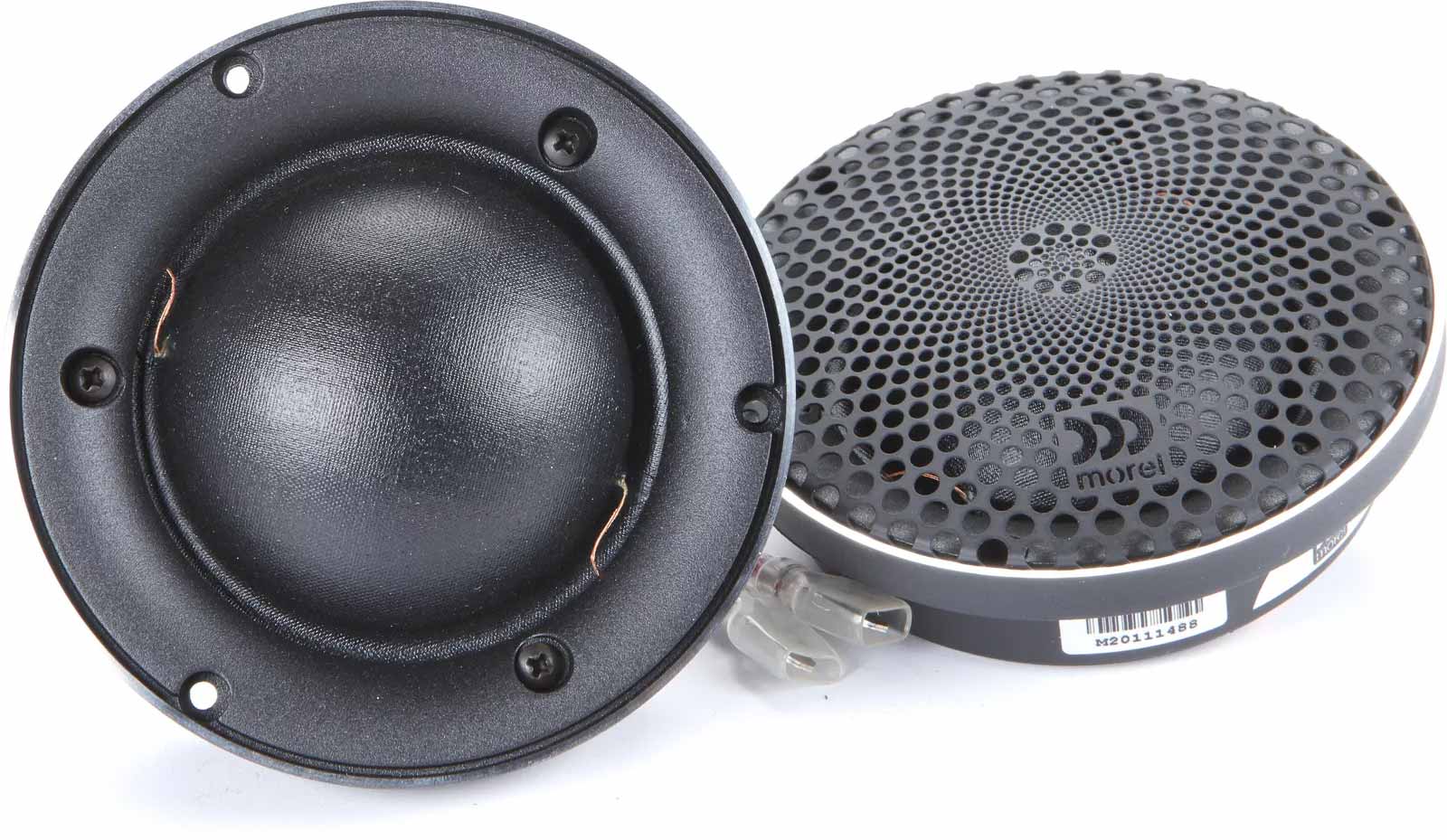

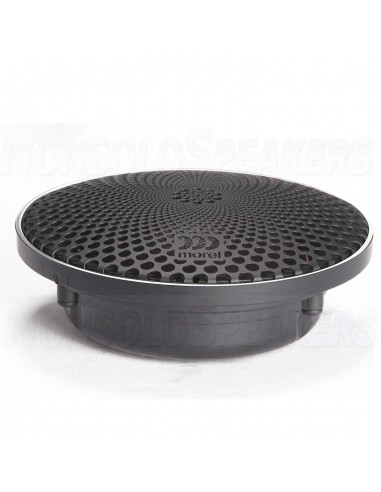

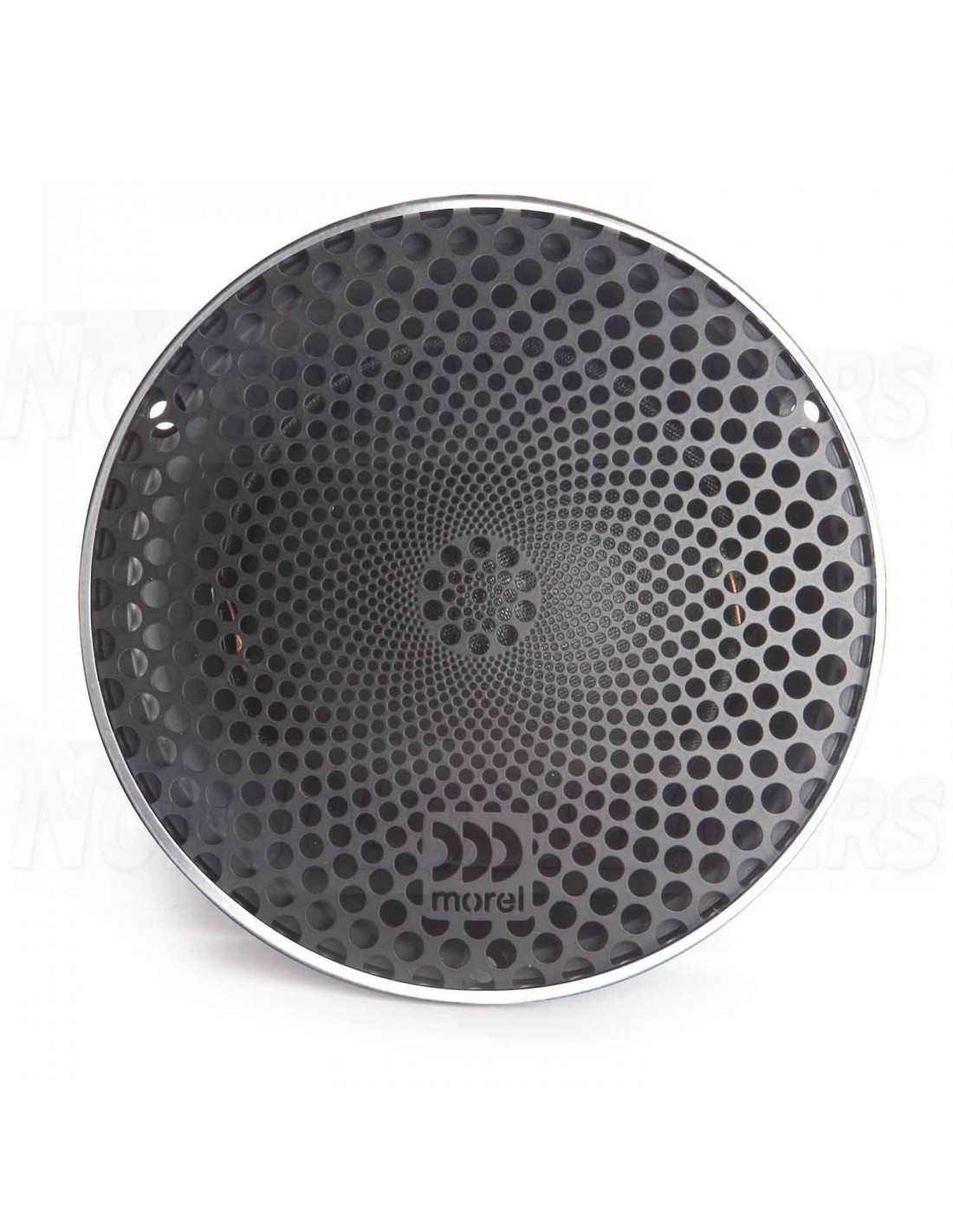

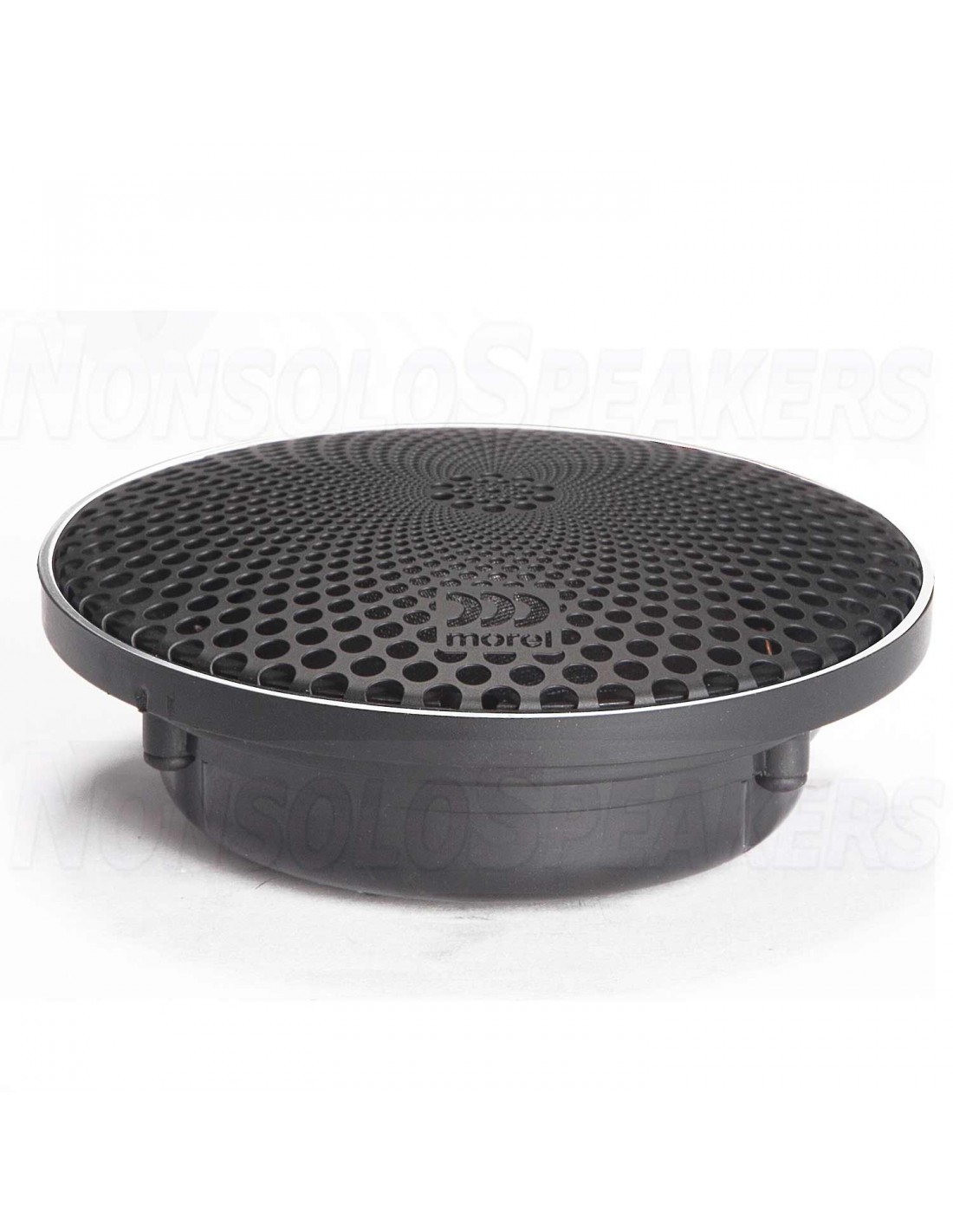

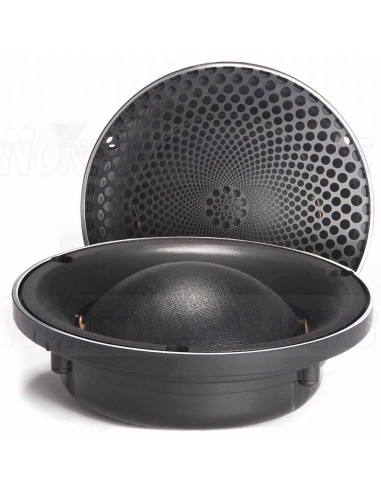

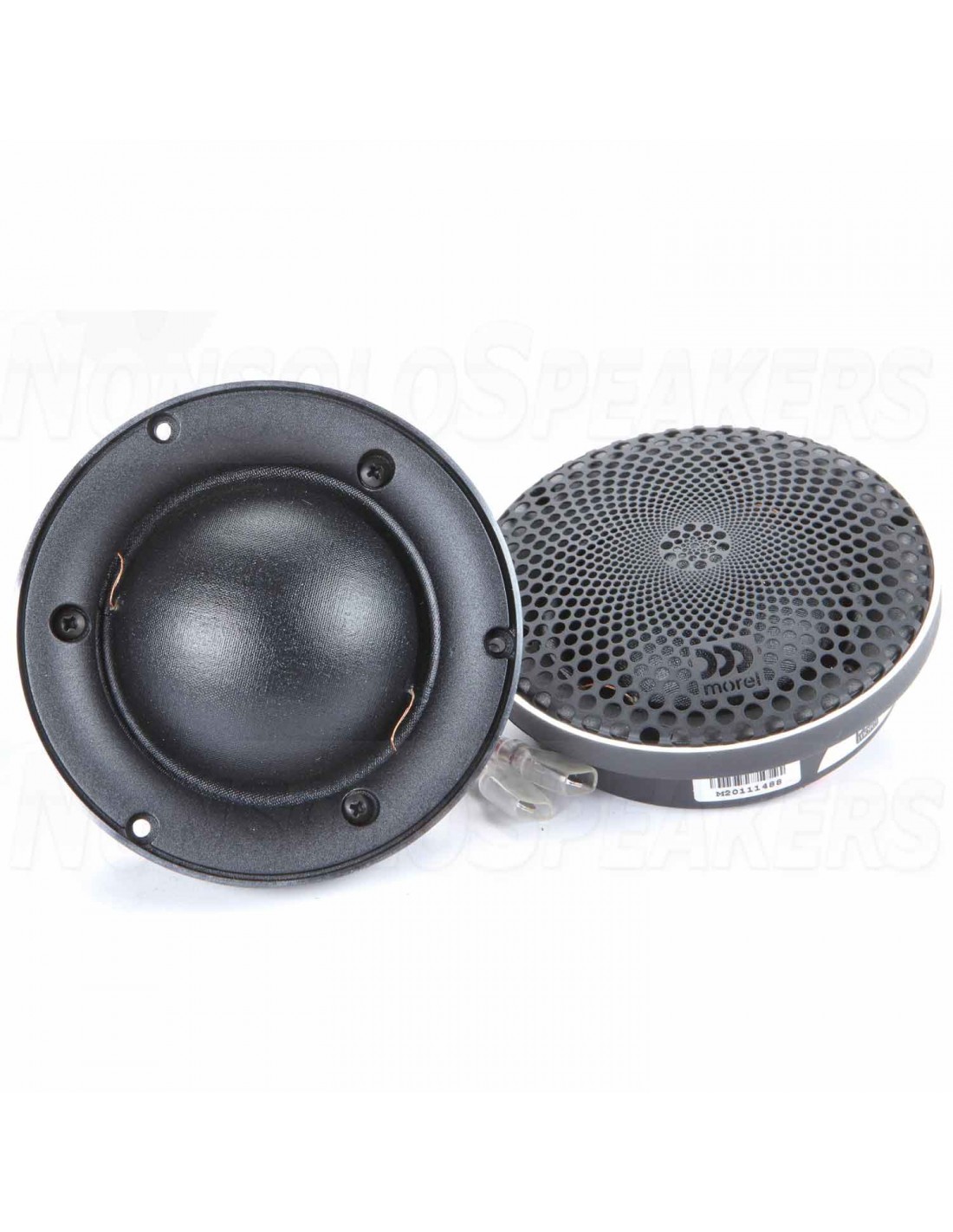

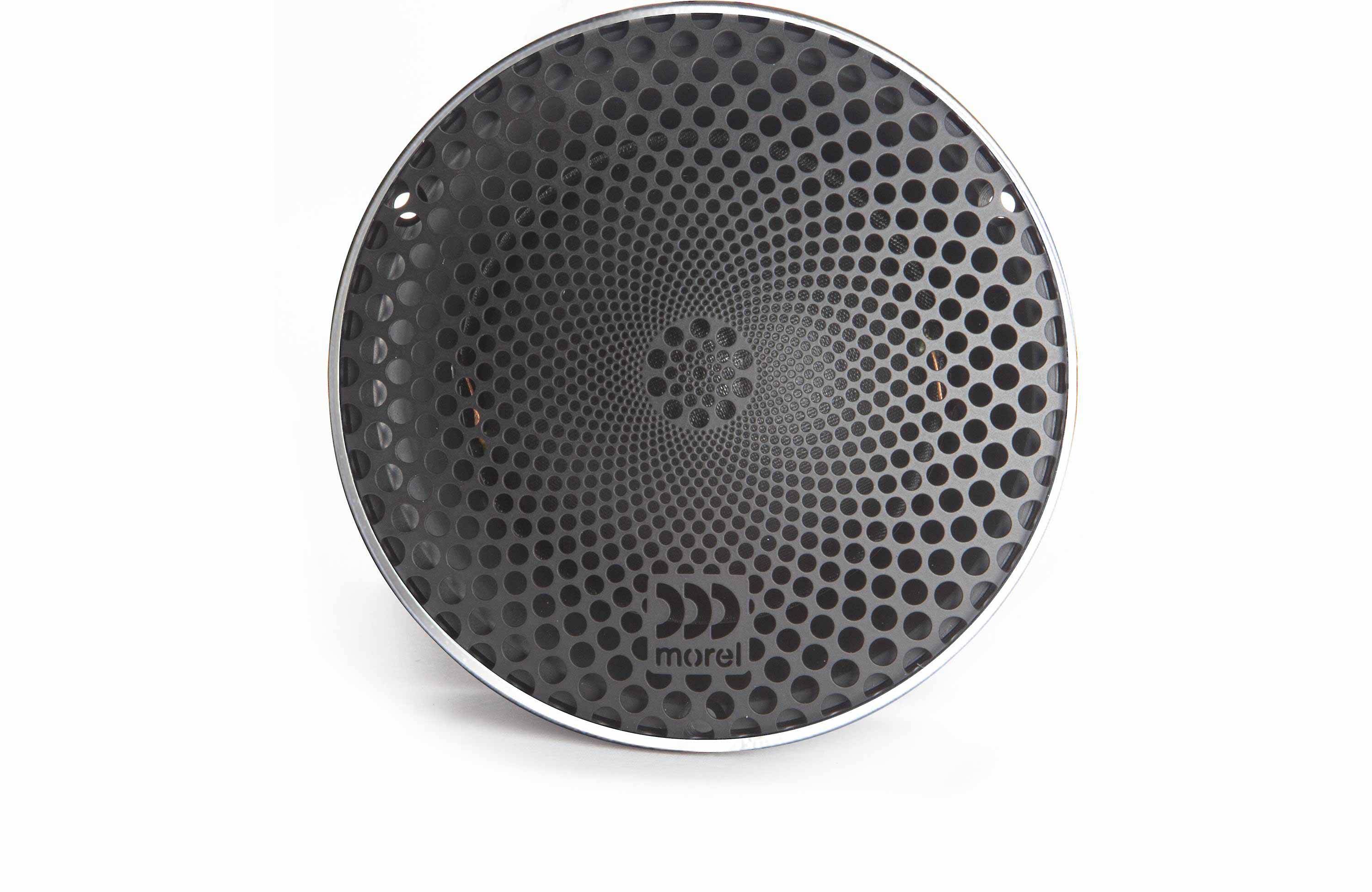

Grids included in the package.

Morel CDM700 technical specifications

Nominal Impedance (Ohms) 8

Power management 100 Watt rms

Maximum power (10ms) 300 watts

Sensitivity (2.83 V / 1 M) dB 90

Frequency response Hz 600-6000

FS 480 Hz

Voice coil diameter mm (inch) 54 (2.125 ")

Voice Coil Ex aluminum

Hexatech ™ aluminum voice coil wire

DC resistance ohm 3.5

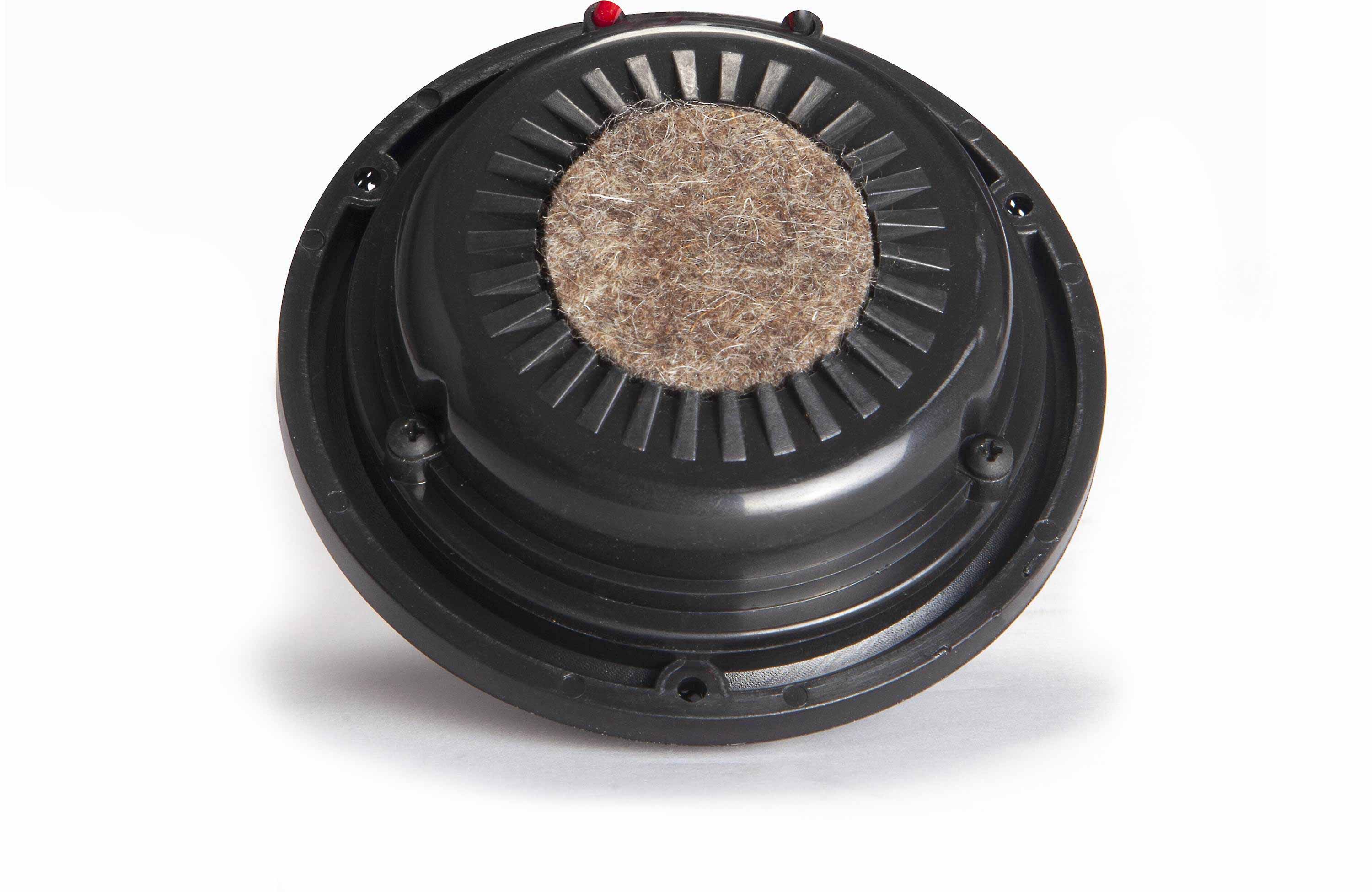

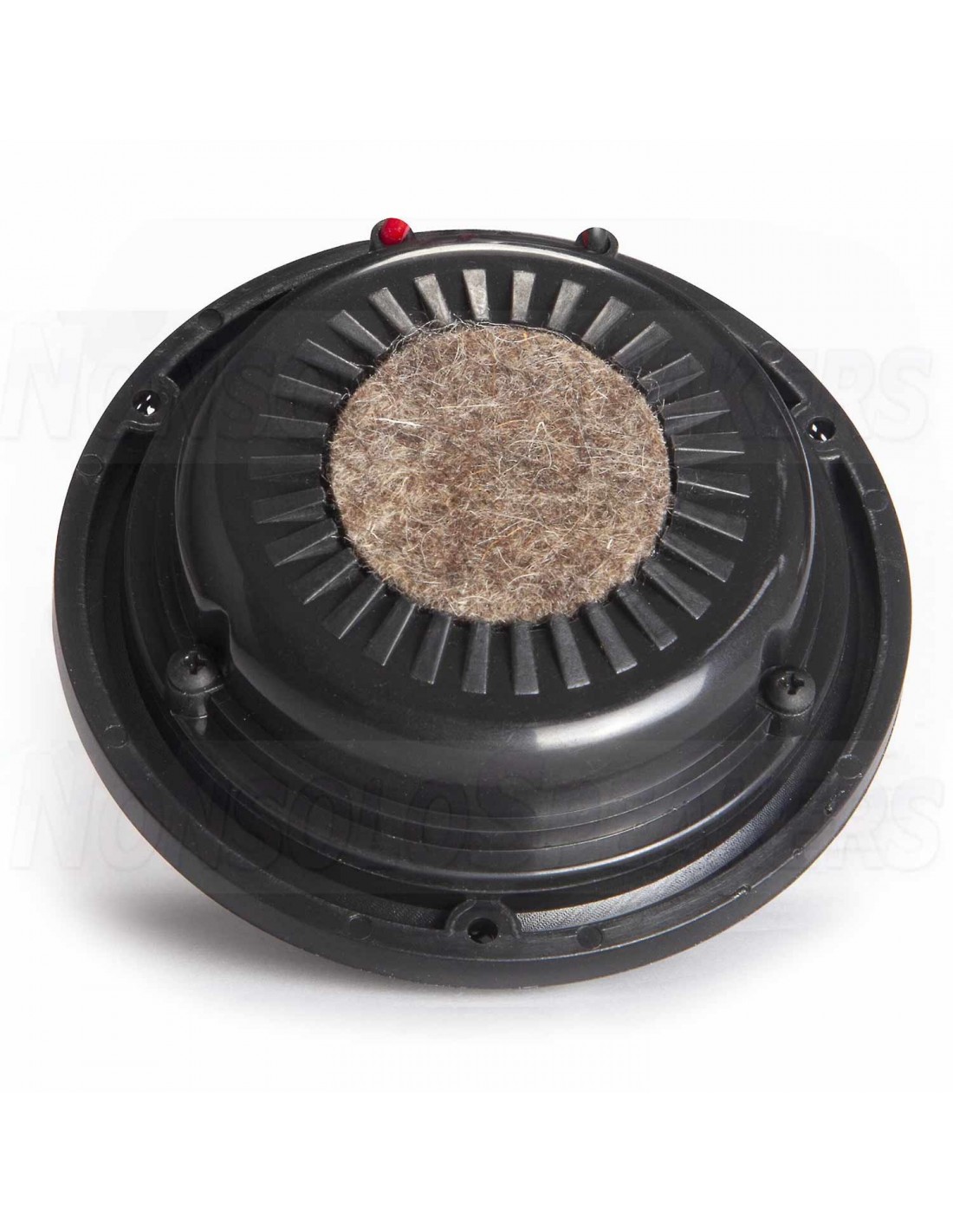

Neodymium magnetic system with rear ventilation

Soft dome selected dome type

Dome material Silk

Unit diameter 88.00 mm (3.50 ")

Mounting depth 21.00 mm (0.83 ")

Mounting opening 75.50 mm (2.97 ")

Net weight Kg 0,25
